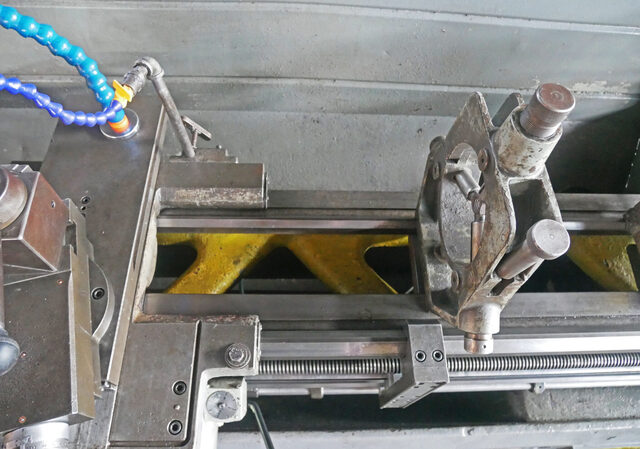

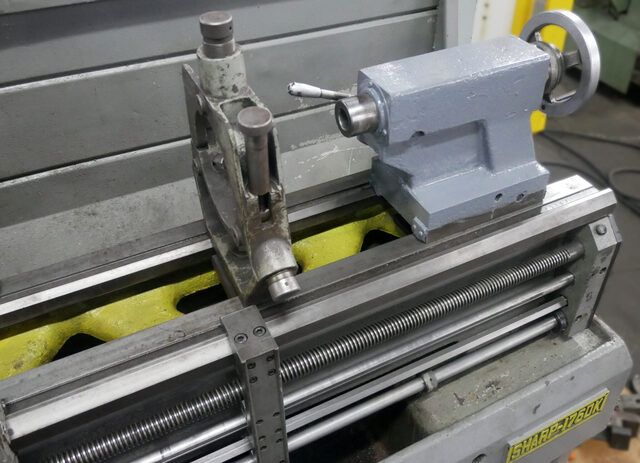

17"/26" x 60" Sharp #1760K, Gap Bed Lathe, 11" swing over cross slide, 2" spindle bore, 50-1800 RPM, D1-6, inch/metric thread, 12" width bed, tailstock, 7.5 HP

Description

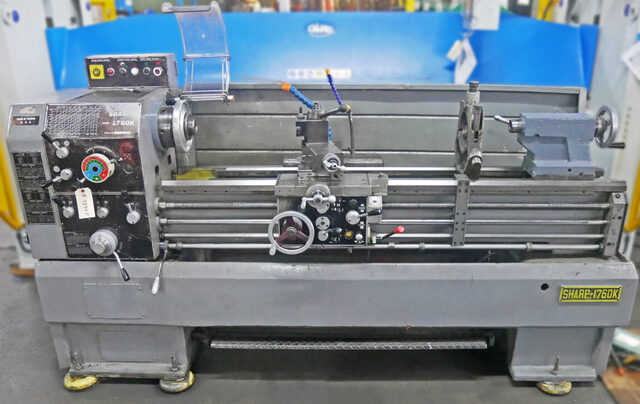

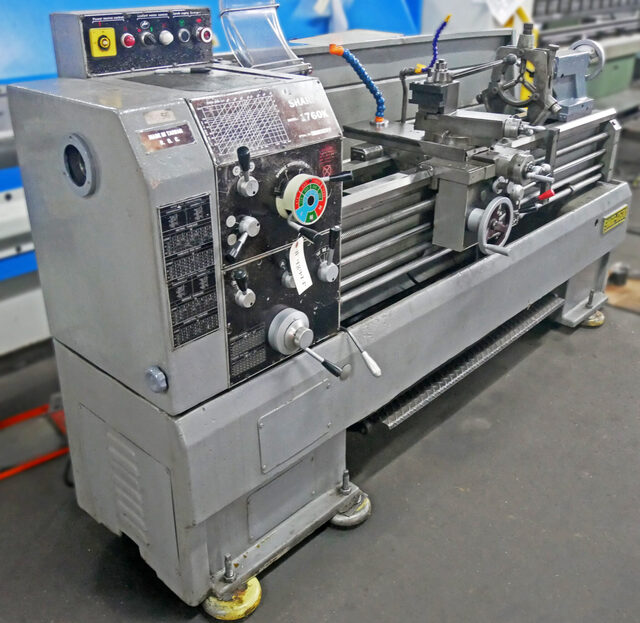

Sharp 17″ x 60″ Gap Bed Lathe, 1760K

Inventory # 9894-P

Model: 1760K

S/N: 75317

Specifications:

Swing Over Bed: 17″

Swing Over Cross Slide: 11″

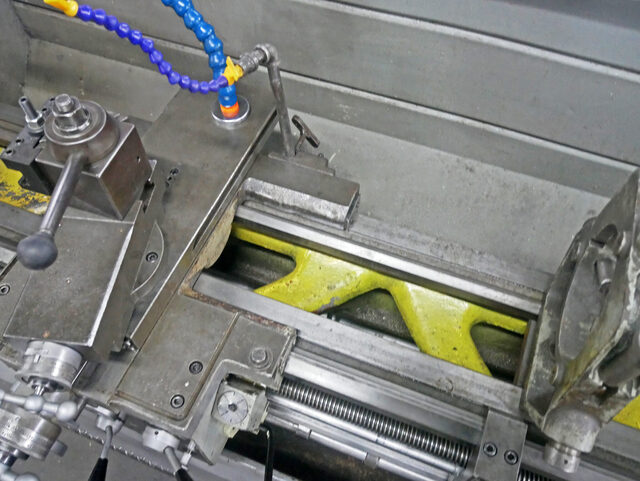

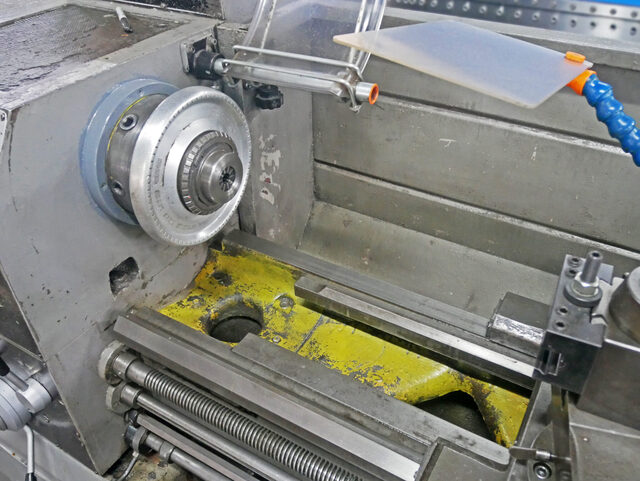

Swing in Gap: 26″

Gap Length: 8 1/2″

Distance Between Centers: 60″

Spindle Bore: 2.04″

Spindle Speeds: (12) 50 – 1,800 RPM

Spindle Nose: D1-6

Inch Threads: (45) 4 – 56 TPI

Metric Threads: (42) 0.5 – 7 mm

Longitudinal Feeds: (32) 0.0002 – 0.028 IPR

Cross Feeds: (32) 0.001 – 0.0200 IPR

Cross Slide Travel: 9″

Compound Travel: 4 1/8″

Length of Taper per Setting: 16″

Bed Width: 12″

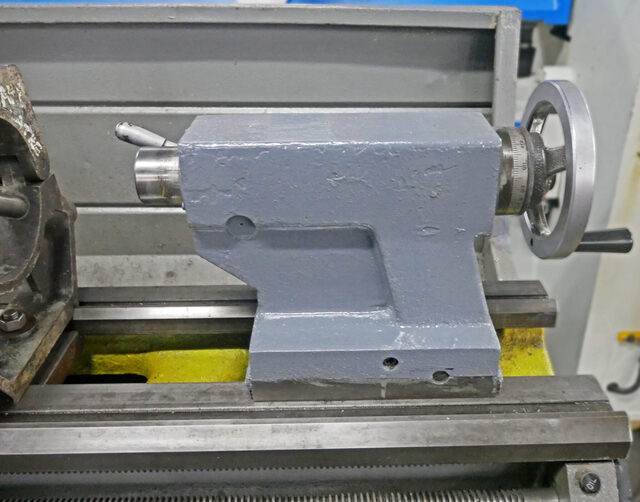

Tailstock Spindle Travel: 6″

Tailstock Taper: # 4 MT

Motor: 7.5 HP / 220v / 3ph

Standard Features & Equipment Included:

Inch/Metric Threading

Mechanical Specifications:

Dimensions: 114″ x 44″ x 63″ H

Weight: approx. 4,500 lbs.

FOB Our Baltimore, MD Warehouse
