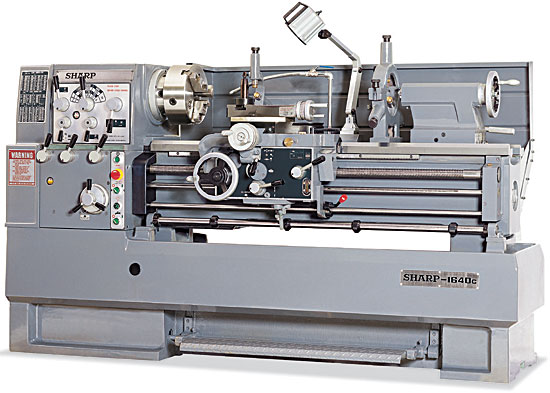

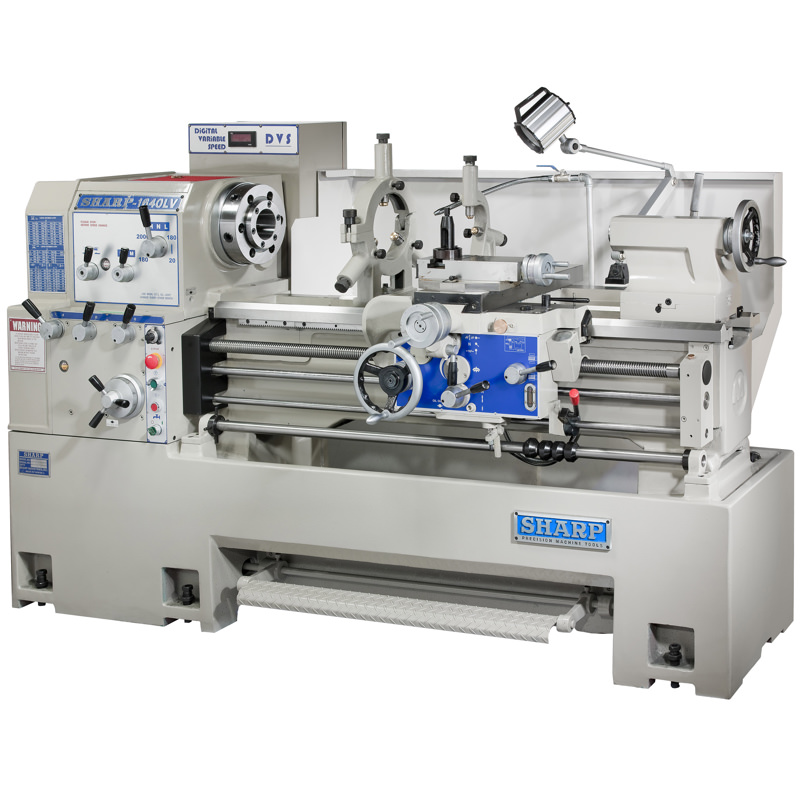

Sharp 16″ x 60″ Precision Lathe, 1660-LV
Inventory # 2186
Model: 1660-LV
Specifications:
Swing Over Bed: 16″
Swing Over Cross Slide: 8 3/4″
Swing Over Gap: 24 3/8″
Gap Width: 10 3/4″
Distance Between Centers: 60″
Spindle Nose Type: D1-8 Camlock
Spindle Bore Diameter: 3 1/16″
Spindle Speeds: 20 – 2,000 RPM (12 Steps)
Morse Taper of Spindle Bore (of Center): # 6 (# 4)
Longitudinal Feeds: 0.02″ – 0.032″ /rev. (18)
Cross Feeds: 0.001″ – 0.0094″ /rev. (12)
Inch Threads: 4 – 56 Threads/Inch (36)
Metric and Module Threads: 0.5 – 7mm (17)
D.P. Threads: 4 – 56 (36)
Lead Screw Pitch / Diameter: 4 TPI / 1 3/8″
Compound Rest Travel / Width: 4.9″ / 4 1/2″
Bed Size: 77″ x 11 3/4″
Tailstock Quill Travel (Graduated): 5″
Tailstock Quill Diameter: 2 1/4″
Tailstock Taper: M.T. # 4
Motor: 7.5 HP / 220v, 440v / 3ph
Standard Equipment:

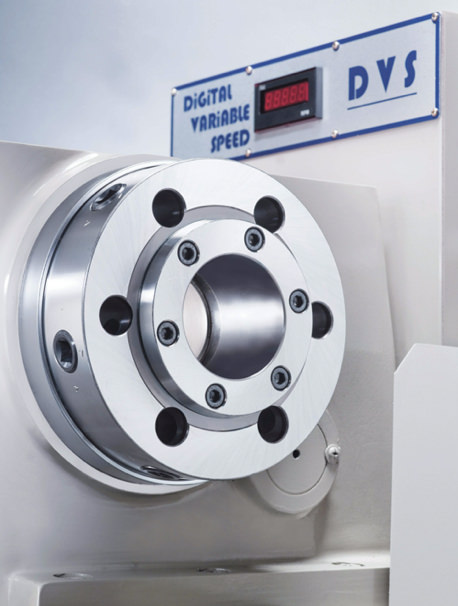

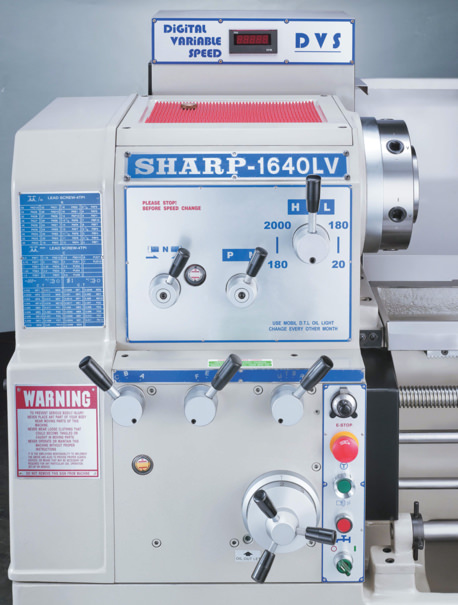

Digital Vari-Speed
3-Jaw Chuck
Coolant System
Halogen Work Light
Face Plate

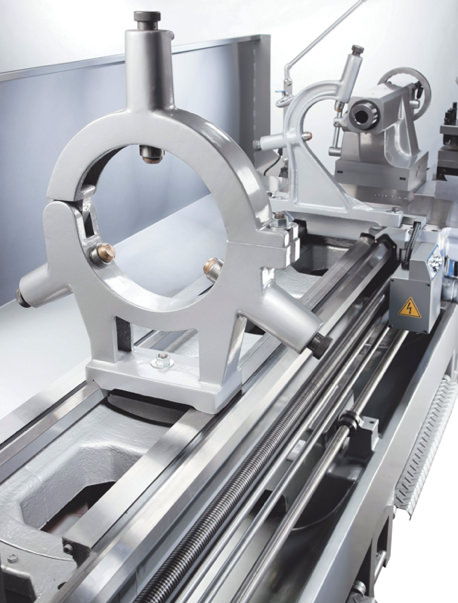

10 1/2″ Steady Rest
Longitudinal Carriage Stops
Tool Kit
Splash Guard
Follow Rest
Mechanical Specifications:
Weight: approx. 4,100 lbs.
Contact us for pricing and availability
FOB Factory
