Manufacturer: Okamoto
Model: ACC-16-32DX
Year: 1998
Width/Cross: 16.0
Length/Longit.: 32.0
Stock # Lot 60
1 / 10
Click to zoom in
1 / 10
For Sale by Machinesused.com
Surplus Record Dealer Since 2004
Location: Minneapolis, MN
Contact John Lawton
Phone Number: 763...> Show Phone Number 763-745-1166
Let the seller know you found their listing on Surplus Record!
Description

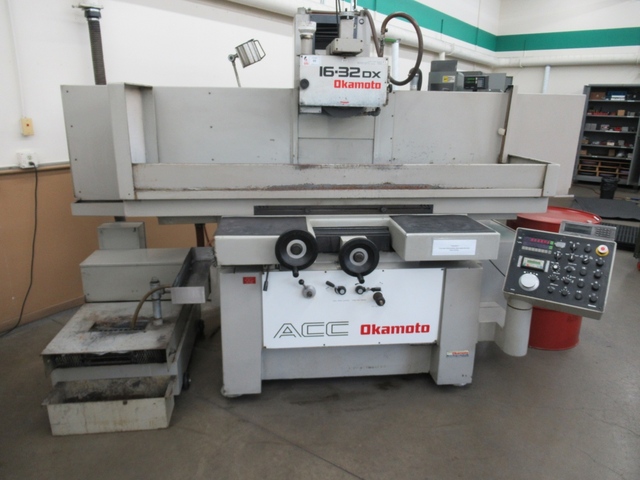

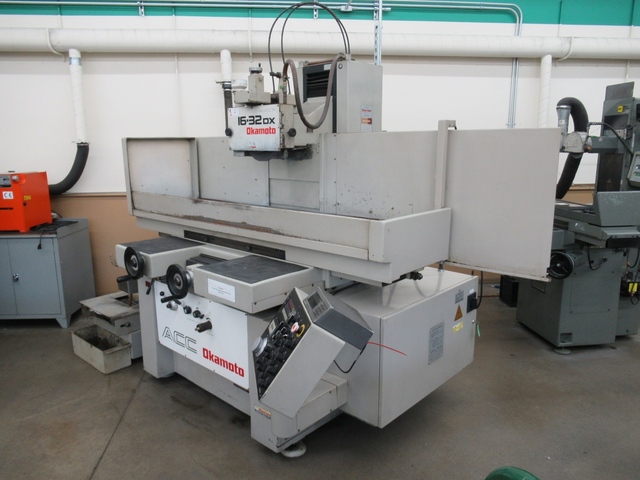

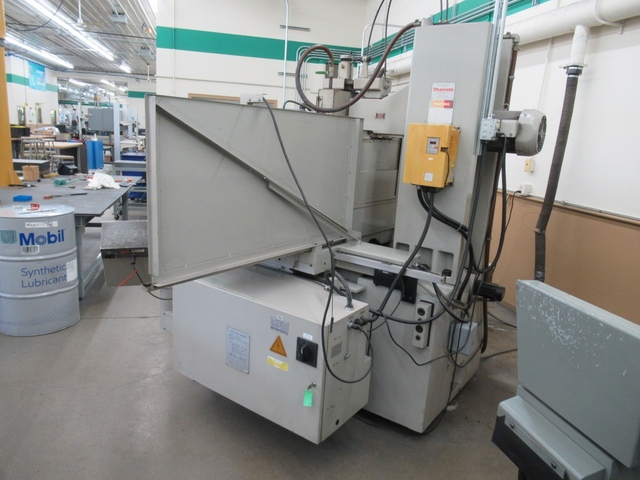

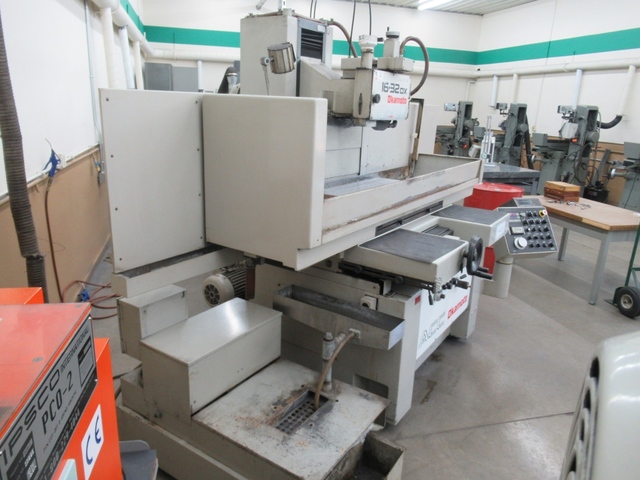

Lot 60: Okamoto ACC-16-32DX 3-Axis Hydraulic Surface Grinder with Incremental Down Feed. 16"x32" Chuck, Coolant System with Paper Filtration
Electrics:
230/460 Volt, 3 Phase
Main Unit Approx Weight: 8800.00 lbs
Main Unit Dimensions (in inches): Length: 132.00" Width: 87.00" Height: 82.00"
Components:

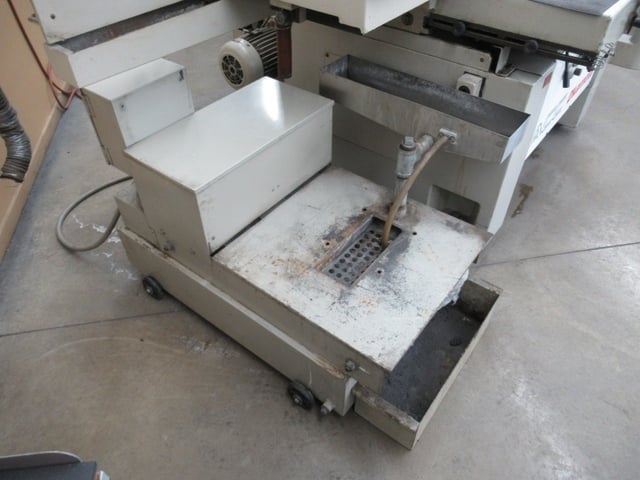

Coolant Tank and Paper Filtration Unit: Length: 48.00" Width: 24.00" Height: 32.00"
Specs:

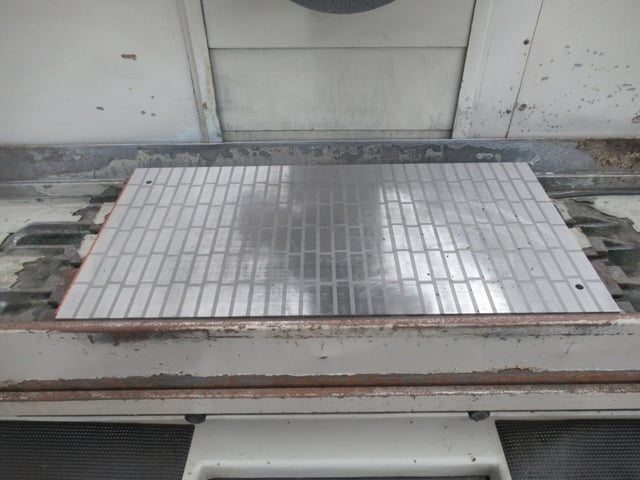

Max Chuck Size: 16" x 32"

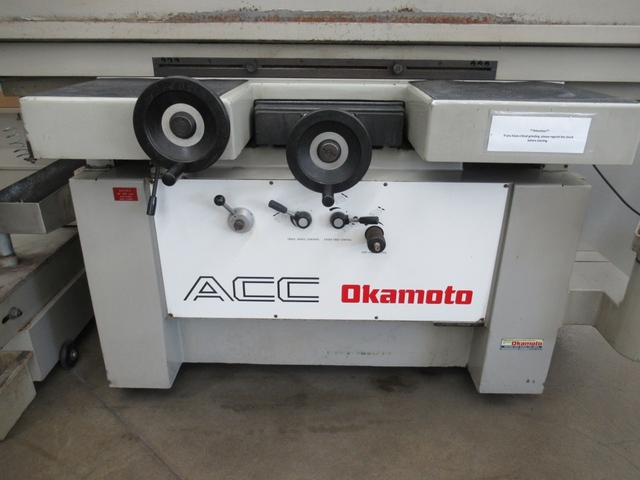

Max Table Movement (Manual): 18" x 38"
Max Table Travel Powered: 16" x 32"
Auto Longitudinal Feed Rate: 1-82 Ft/Min
Max Distance Spindle / Wheel to Table: 1.9" - 21.5" Under 12" Wheel
Max Table Load (Including Chuck): 1,540 Lbs.

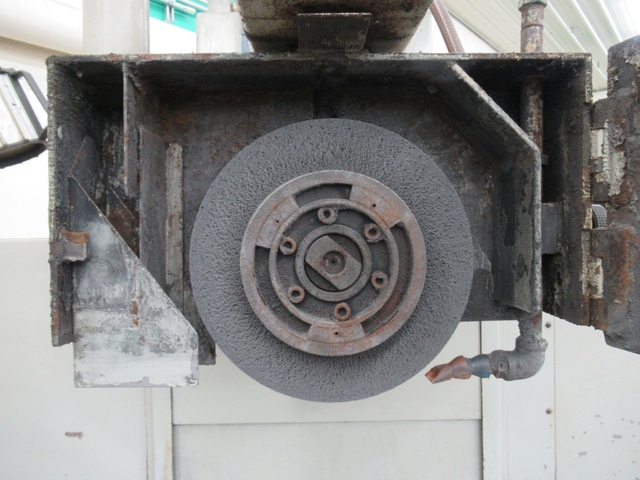

Max Wheel Size : 12" x 1/5" x 5"
Wheel Speed: 1,800 RPM
Cross Feed Rapid Traverse Rate: 8-40 Ft/Min
Cross Feed Automatic Increments: .02" - .8"
Rapid Wheelhead Feed Rate: 23.6 IPM

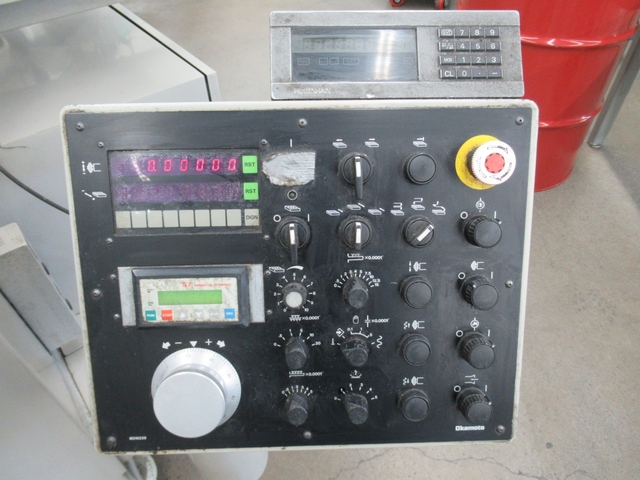

Auto Wheelhead Downfeed Increments: Rough: 0 -.0015" (11 Stages) / Fine: 0 - .0005" (7 Stages)

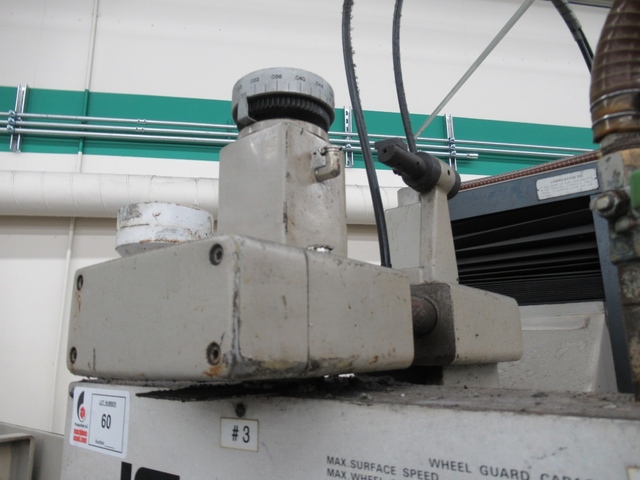

Hand Wheelhead Downfeed Increments: .01/.005 / .001" Per Revolution (3X Settings)
Wheelhead Elevation Motor: .5 HP
Hydraulic Motor: 2 HP
Spindle Drive: 5 HP
Seller Company: Paradigme Engineering - A Velosity Company
Seller Contact: Machinesused.com Phone: (763) 745-1166
Location Contact: Machinesused.com Phone: (763) 745-1166
Inspection Date & Time: Friday, October 23, 2026 9AM-4PM
Dock Door: 12' x 12' Ground Level Door
Loading Dock: 8' x 8' Loading Dock
Removal Dates and Times: This item must be removed between Monday, November 2, 2026 and Thursday, November 5, 2026
Electrics:
230/460 Volt, 3 Phase
Main Unit Approx Weight: 8800.00 lbs
Main Unit Dimensions (in inches): Length: 132.00" Width: 87.00" Height: 82.00"
Components:
Coolant Tank and Paper Filtration Unit: Length: 48.00" Width: 24.00" Height: 32.00"
Specs:
Max Chuck Size: 16" x 32"
Max Table Movement (Manual): 18" x 38"
Max Table Travel Powered: 16" x 32"
Auto Longitudinal Feed Rate: 1-82 Ft/Min
Max Distance Spindle / Wheel to Table: 1.9" - 21.5" Under 12" Wheel
Max Table Load (Including Chuck): 1,540 Lbs.
Max Wheel Size : 12" x 1/5" x 5"
Wheel Speed: 1,800 RPM
Cross Feed Rapid Traverse Rate: 8-40 Ft/Min
Cross Feed Automatic Increments: .02" - .8"
Rapid Wheelhead Feed Rate: 23.6 IPM
Auto Wheelhead Downfeed Increments: Rough: 0 -.0015" (11 Stages) / Fine: 0 - .0005" (7 Stages)
Hand Wheelhead Downfeed Increments: .01/.005 / .001" Per Revolution (3X Settings)
Wheelhead Elevation Motor: .5 HP
Hydraulic Motor: 2 HP
Spindle Drive: 5 HP
Seller Company: Paradigme Engineering - A Velosity Company
Seller Contact: Machinesused.com Phone: (763) 745-1166
Location Contact: Machinesused.com Phone: (763) 745-1166
Inspection Date & Time: Friday, October 23, 2026 9AM-4PM
Dock Door: 12' x 12' Ground Level Door
Loading Dock: 8' x 8' Loading Dock
Removal Dates and Times: This item must be removed between Monday, November 2, 2026 and Thursday, November 5, 2026
