16.5" x 28" Cosen #SH-710DM, Double Mitering Horizontal Band Saw, Semi-Automatic, Double Column, 257.5" x 1.6" x 0.05" Blade, 26.4" H Workbed, 82-330 FPM, 7.5 HP, new

Description

Tariff Surcharge Note: Tariff surcharge is not included in the above price. Price could be subject to a surcharge based on USA “reciprocal” tariff(s) at the time of import. The actual surcharge cost will be billed based on the tariff percentage at the time of import. We are actively monitoring updates as they happen and will respond accordingly

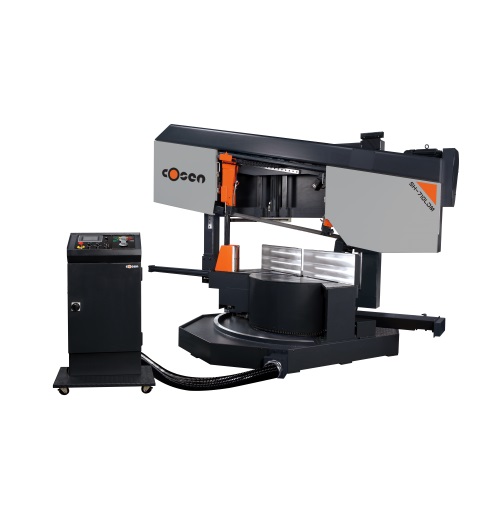

Cosen 18 1/2″ Semi-Automatic Double Column Double Mitering Horizontal Band Saw, SH-710DM

Inventory # 7550

Model: SH-710DM

Description:

Rarely do you find such a versatile horizontal double miter-cutting band saw with such a large capacity. With the SH-710DM, you can miter-cut either forward or backward up to 60°. The 10° blade cant is designed specifically for cutting structural steel such as H-beam, I-beam, channel and profiles at the maximized cutting conditions

Specifications:

Capacities:

Round:

@ 0°: 18 1/2″

@ ±45°: 16 1/2″

@ ±60°: 11.8″

Rectangle:

@ 0°: 16 1/2″ x 28″

@ ±45°: 16 1/2″ x 17.7″

@ ±60°: 16 1/2″ x 11.8″

Saw Blade:

Speed: 82 – 330 FPM

Size: 257 1/2″ x 1.6″ x 0.05″

Motor: 7.5 HP

Hydraulic Tank: 9.2 Gallons

Coolant Tank: 19.8 Gallons

Tension: Hydraulic

Workbed Height: 26.4″

Standard Features:

10° blade cant for cutting large structural material

Rigid linear-guide square columns design

Power gear driven rotating mechanism

Hydraulic angle lock-down

Specially designed heavy-duty gearbox

Inverter-controlled blade speed

Hydraulic clamping vise

5.7″ HMI touch screen with error code feedback

Instant readout on blade speed, blade life and miter angle

Precision feed rate and feed pressure valve

Adjustable control panel at waist level

Mechanical Specifications:

Dimensions: 128″ x 126″ x 76″ H

Weight: approx. 6,380 lbs.

FOB Factory – Contact us for Availability
