16-1/8" x 40" Nardini #MS-1640, Engine Lathe, 10-1/2" swing over cross slide, 2500 RPM, 1.9" bore, inch/metric thread, digital read out, Follow Rest, tailstock, 8" chuck, AS IS

Description

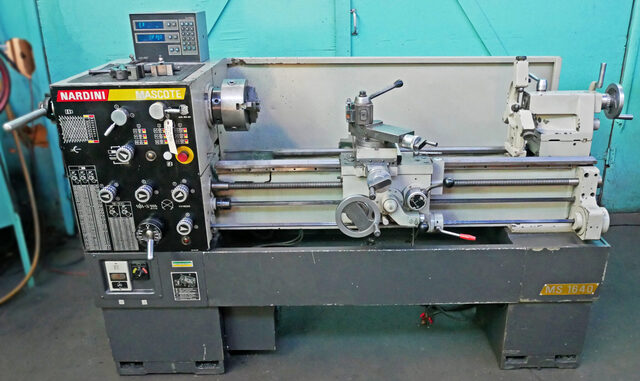

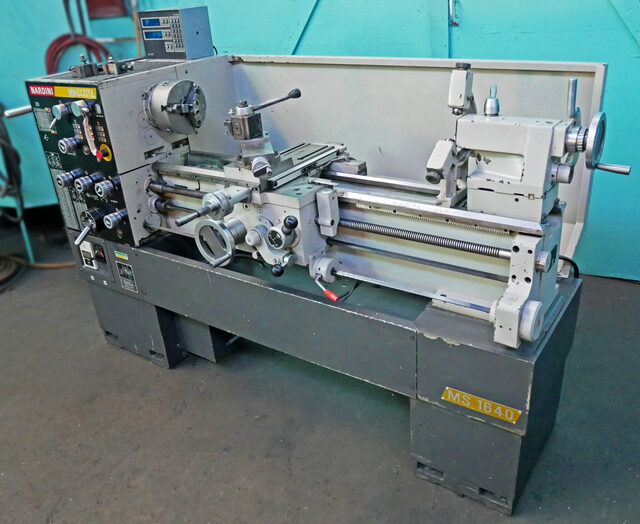

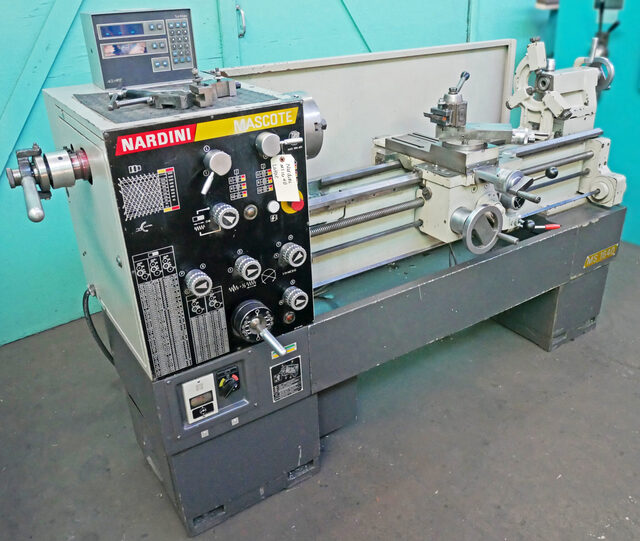

Nardini ‘Mascote’ 16″ x 40″ Engine Lathe, MS-1640

Inventory # 10008

Model: MS-1640 ‘Mascote’

S/N: D5JFL141

*Please Note: Lathe runs as it should. DRO works, but X-axis scale is damaged, and it errors (as shown in the photos & video). There are no replacement parts readily available for this machine, and it is being sold as-is, as-inspected, with no warranty and no return privilege

Specifications:

Swing Over Bed: 16 1/8″

Swing Over Cross Slide: 10 1/4″

Swing In Gap: 22″

Length Of Gap: 4 3/4″

Distance Between Centers: 40″

Cross Slide Travel: 9 1/4″

Spindle Nose: D1-5 Camlock

Spindle Speeds (18): 31.5 – 2,500 Rpm

Spindle Hole: 1.885″

Tailstock Taper: Mt #3

Tailstock Quill Travel: 5 1/8″

Inch Threading Range (48): 3 1/2 – 42 Tpi

Metric Threading Range (48): 0.40 – 7.00 Mm Pitch

Inch Feed Range (48): 0.0016 – .0399 Inch / Rev

Metric Feed Range (48): 0.042 – 1.013 Mm / Rev

Motor: 4.0, 6.3 HP / 220v / 3ph (2-Spd)

Equipment Included:

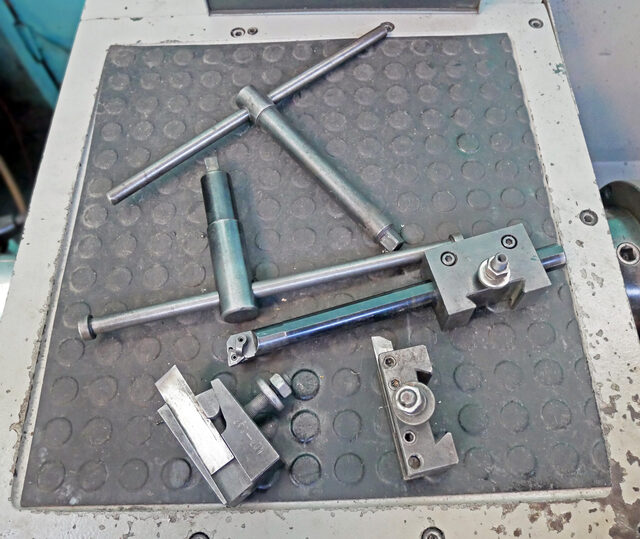

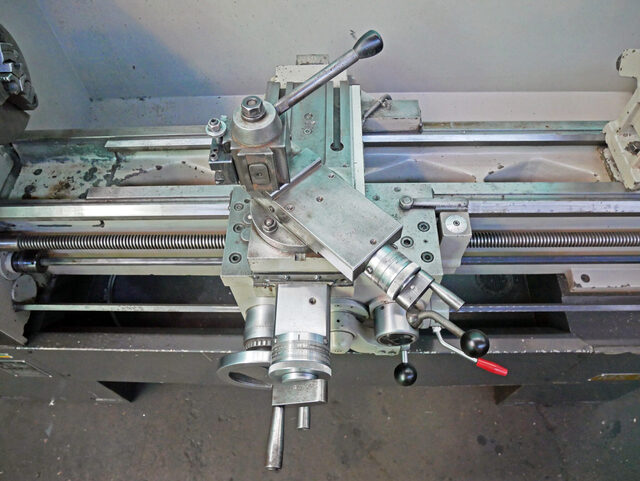

Aloris Style Tool Post

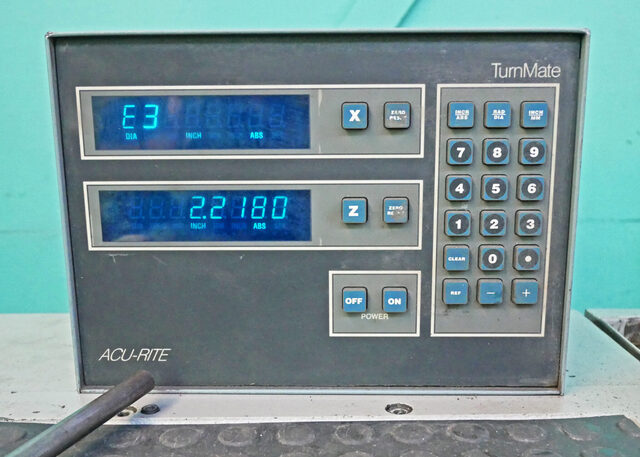

Acu-Rite Turnmate 2-Axis Digital Readout*

Tailstock

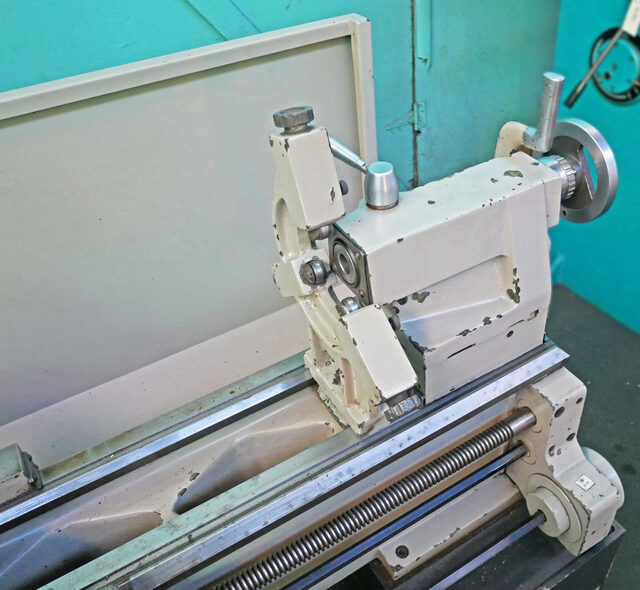

Follow Rest

Lever Style Collet Closer

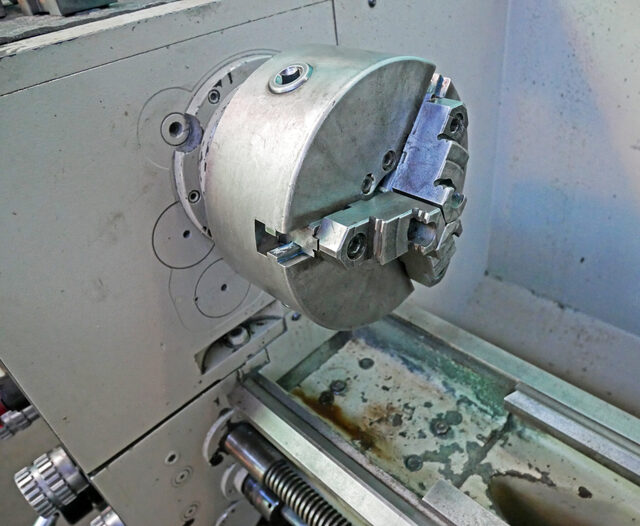

8″ 3-Jaw Chuck

Backsplash

Mechanical Specifications:

Dimensions: 87″ x 36″ x 55″ H

Weight: approx. 3,400 lbs.

*Please Note: Lathe runs as it should. DRO works, but the X-axis scale is damaged, and it errors (as shown in photos). There are no replacement parts for this machine, and it is being sold as-is, as-inspected, with no warranty and no return privilege

FOB Our Baltimore, MD Warehouse
