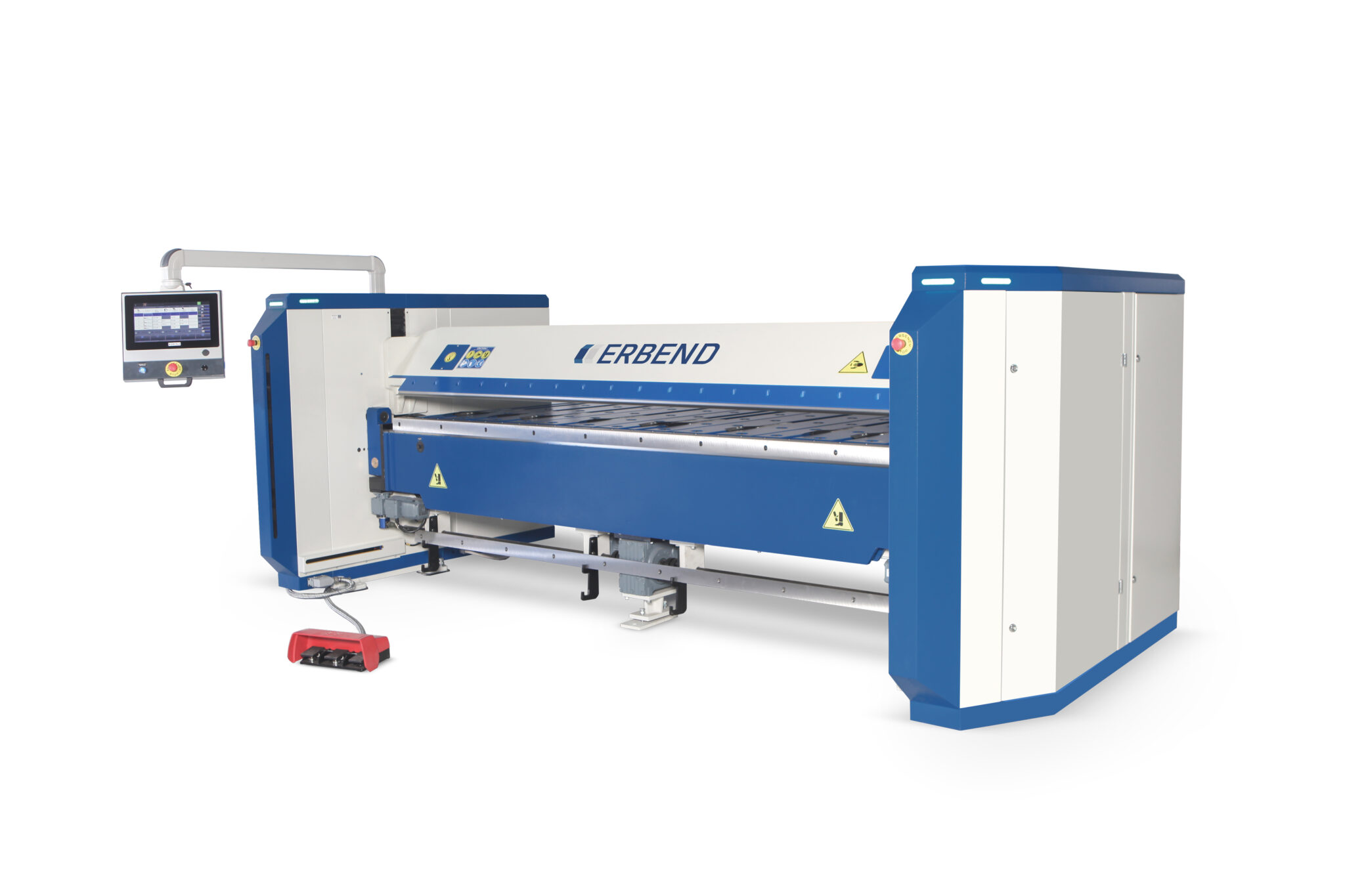

Erbend 13′ x 16 Gauge CNC Folder, MFB 4215
Inventory # 9700
Model: MFB 4215
Made in Turkey
Specifications:
Max. Sheet Length: 156″
Capacity:
Mild Steel: 16 Gauge (1.5mm)
Stainless Steel: 20 Gauge (1mm)
Aluminum: 14 Gauge (2mm)
Motor: 480v / 3ph
Standard Features:
AC motorized drive X, Y, Z (clamping, folding, backgauge)
15.6″ touchscreen controller on swivel arm with ERFOLD BASIC CNC line by line and 2D software control
Flat rail bottom beam tool for feather grooves
Clamping beam open height 6.29″ (160mm)
Manual folding beam adjustment 1.38″ (35mm) (A-Axis)
45° clamping beam geometry with 30°/R1 sharp nose clamping beam tools
Folding beam tools, two sets: .59″ (15mm) & .98″ (25mm)
Front light barriers
LED function lights (red, green, & blue)
Three switch foot pedal
Equipment Included:
ERFOLD Advanced 2D Graphical Control

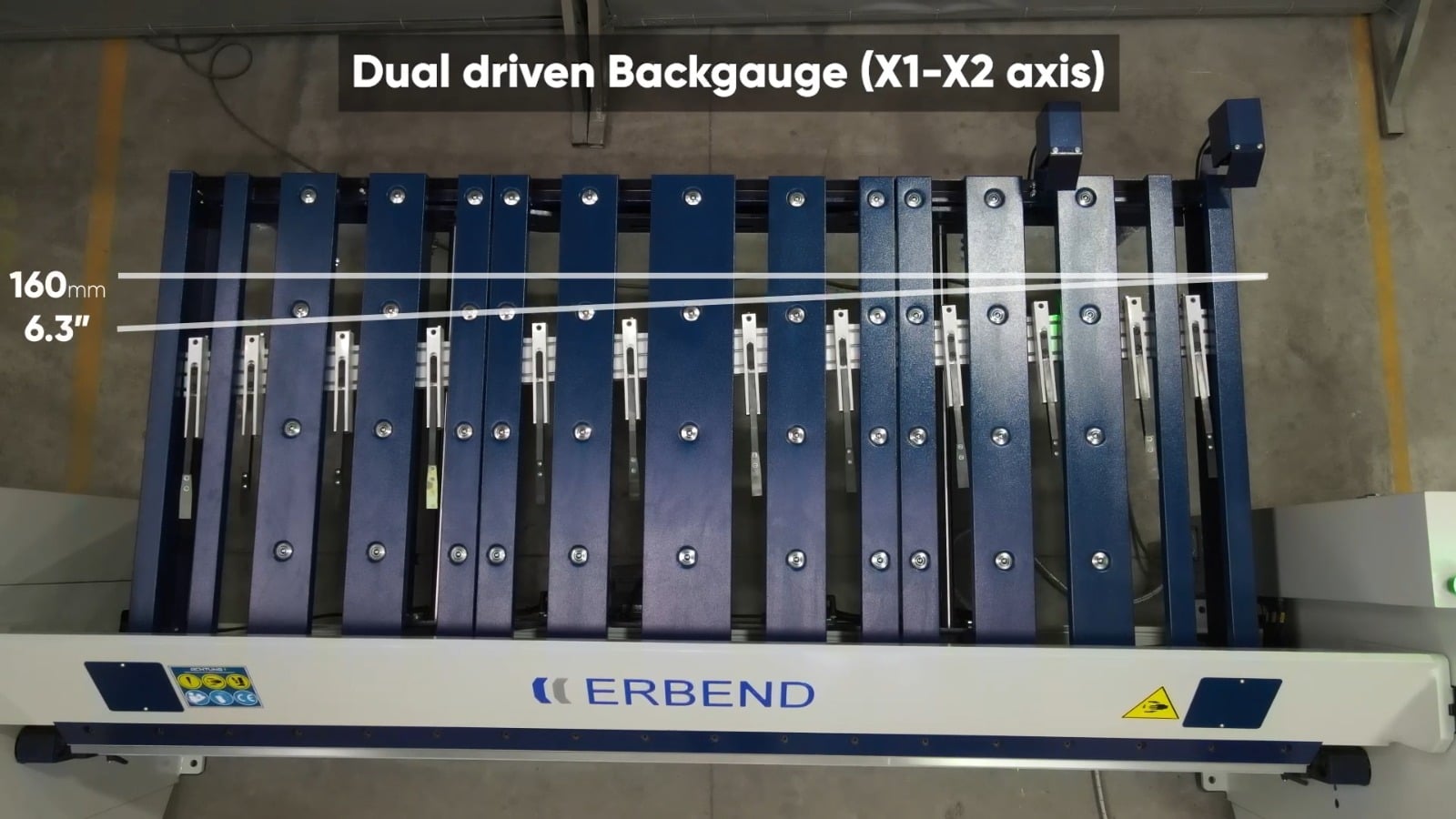

36.37″ (1,000mm) Motorized Back Gauge and Sheet Support Table with Ball Casters
Mechanical Specifications:
Dimensions: 226″ x 91″ x 83″ H
Weight: approx. 11,575 lbs.
FOB Factory – Contact us for Pricing and Availability
