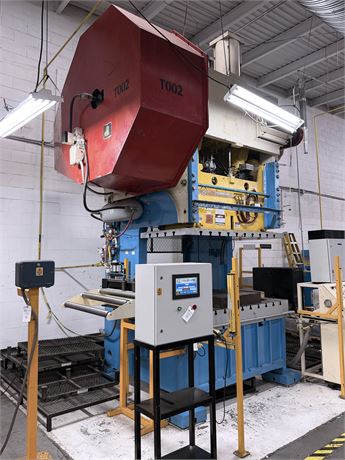

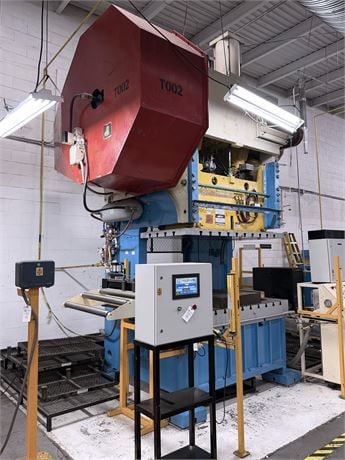

150 Ton, Johnson #G21507236, double crank gap frame press, 72" x36" bed, air clutch & brake, powered slide adj., automatic lubrication

South bend Johnson G21507236

Description

150 ton, two point/double crank, gap frame mechanical stamping press with 72 in. left to right × 36 in. front to back T slotted bed; floor standing construction; air clutch and brake; air counterbalanced slide; powered slide adjustment; automatic lubrication; dual palm button operator controls; forward, reverse, inch, single stroke and continuous operating modes. Equipped with press control cabinet, light curtain guarding, die area guarding and CWP coil feed equipment. 1CWP model 4R-24 single-end pull-off coil reel: 6,500-lb. maximum coil weight, 24-in. maximum stock width, 60-in. maximum coil OD, 1317-in. standard mandrel expansion range plus removable pads for 1721 in. coil ID, right to left payout direction, manual mandrel expansion, pneumatic spindle brake requiring 80100 PSI. CWP model 12B powered stock straightener: 12 in. maximum stock width, 0.0180.125 in. mild steel thickness range, 120 thru 600 IPM operating range, right to left material flow, 80100 PSI air requirement, 440V/3 phase/60 Hz electrical supply, 8 full load amps; equipped with powered straightening rolls, pneumatic pinch roll adjustment, entry/exit stock support rollers and forward/reverse/jog controls. Also includes AutomationDirect touchscreen T002 servo feeder control cabinet, press mounted electronic servo roll feeder, stock loop control sensor on floor stand, dual palm button press control console, light curtain guarding on both sides of the die area, interlocked perimeter guarding, expanded metal service platforms and steps, pneumatic equipment, press lubrication system and associated electrical control cabinets.
stroke: 8
