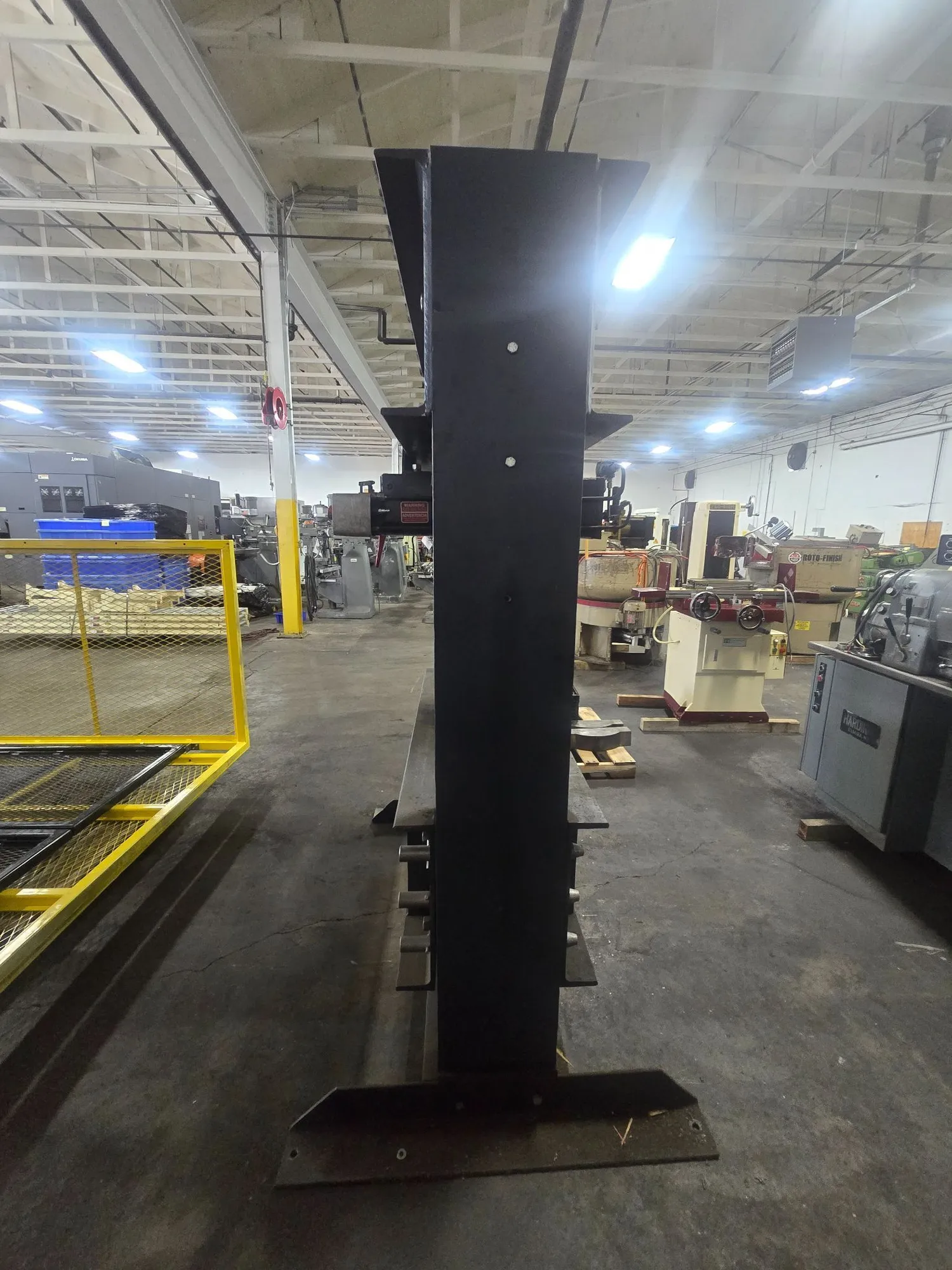

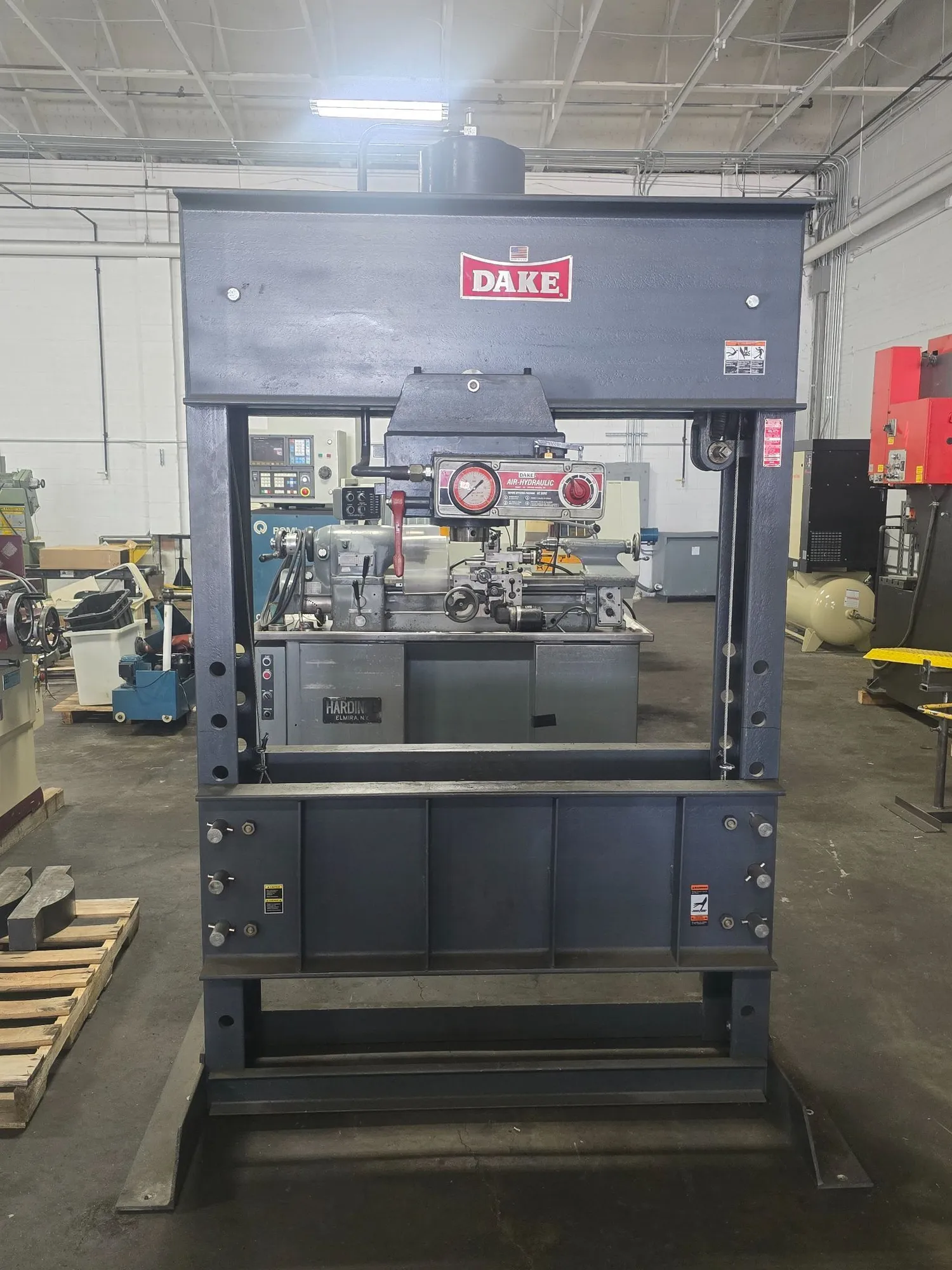

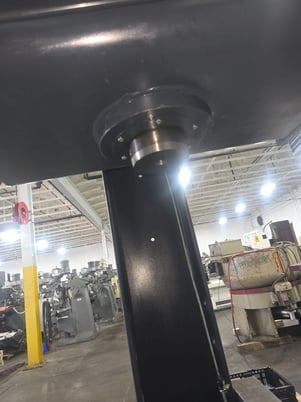

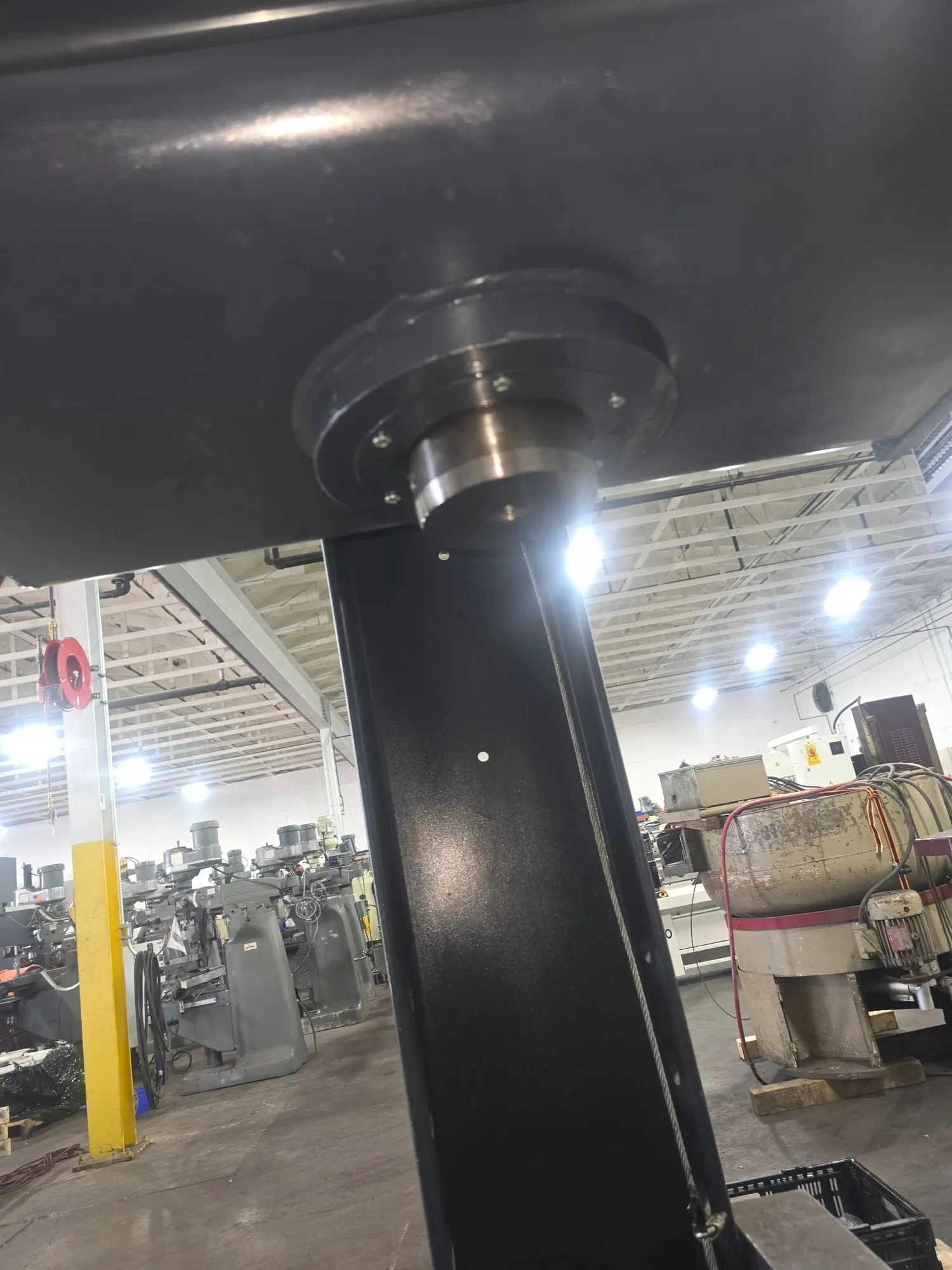

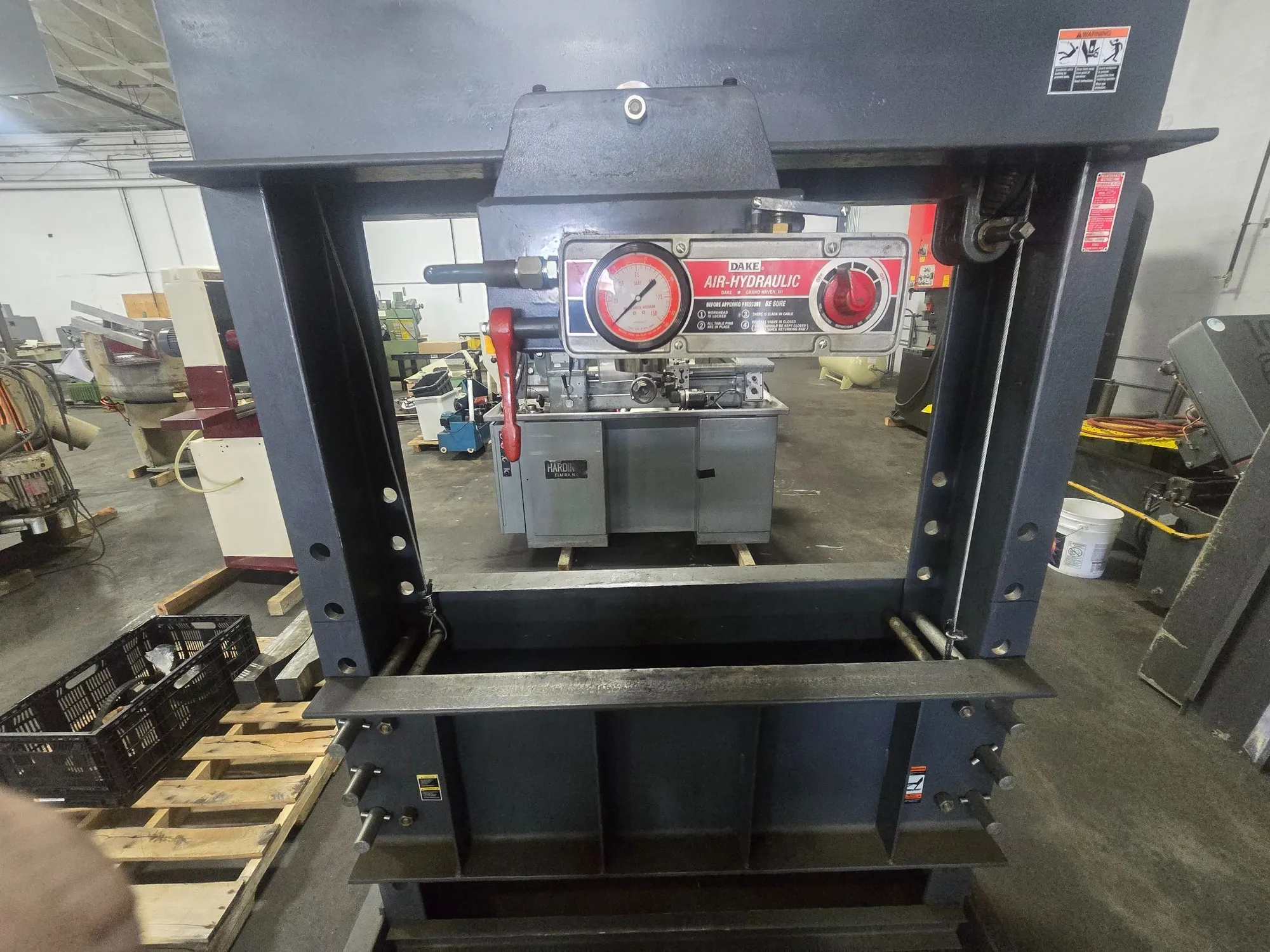

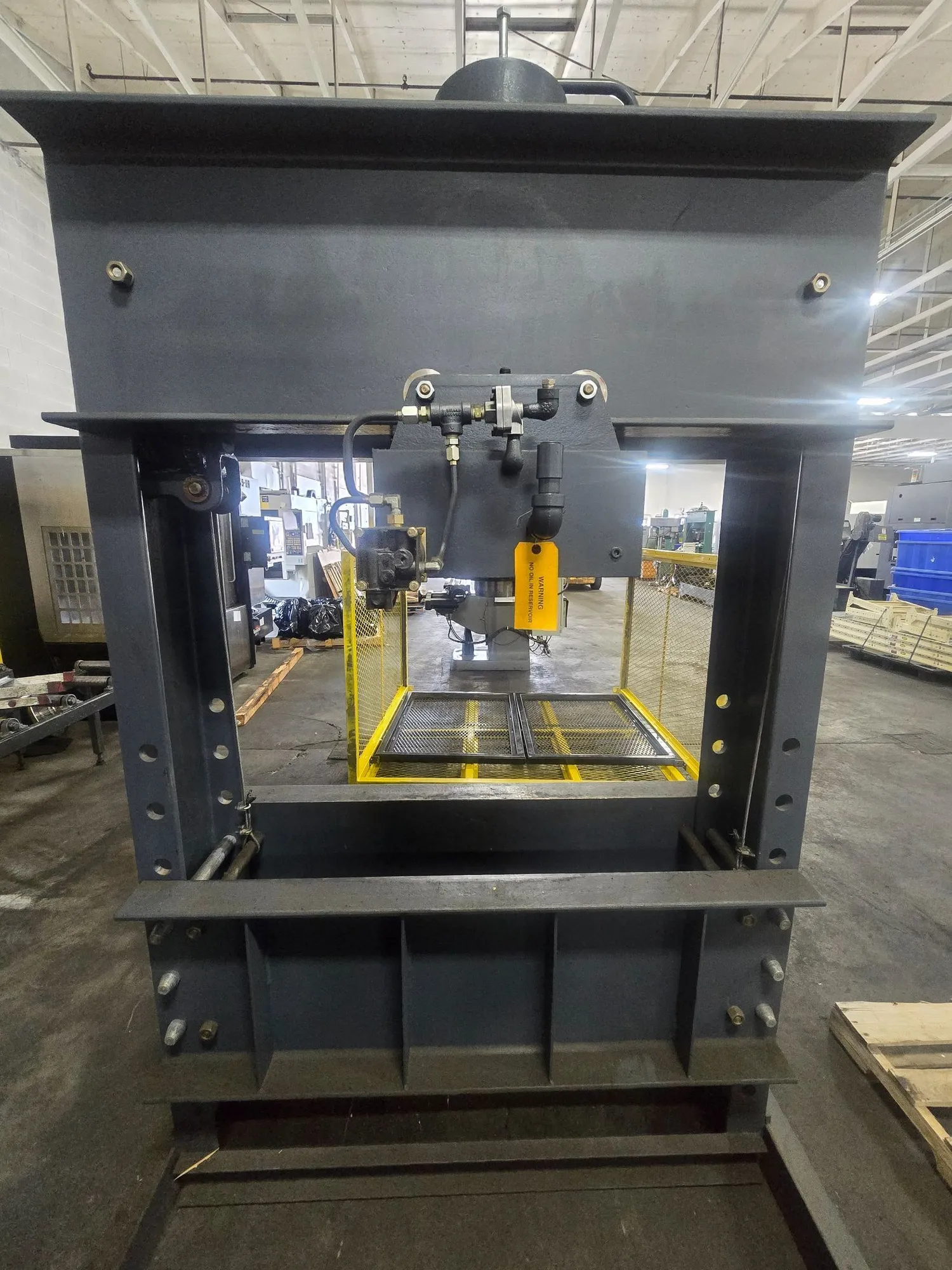

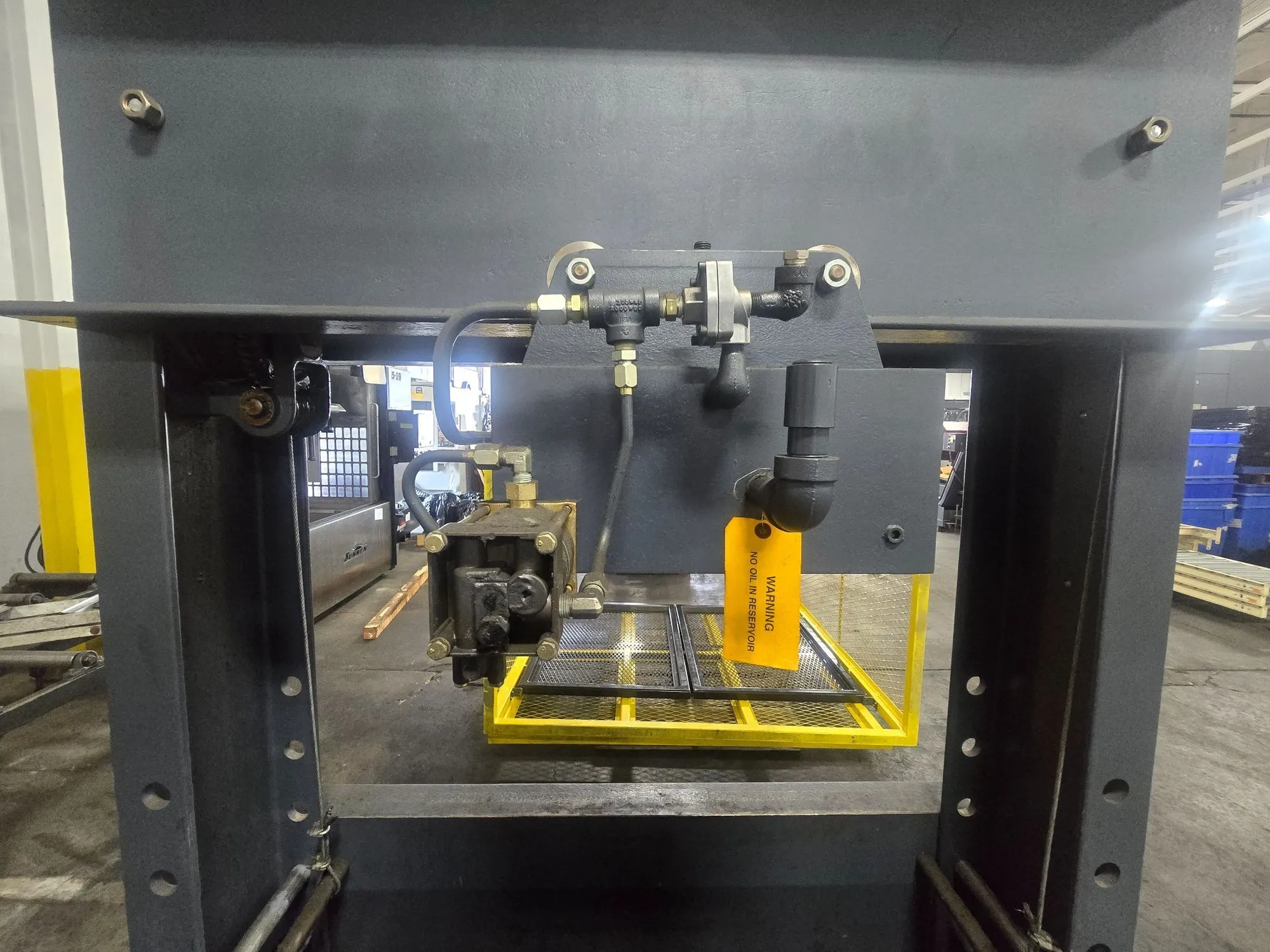

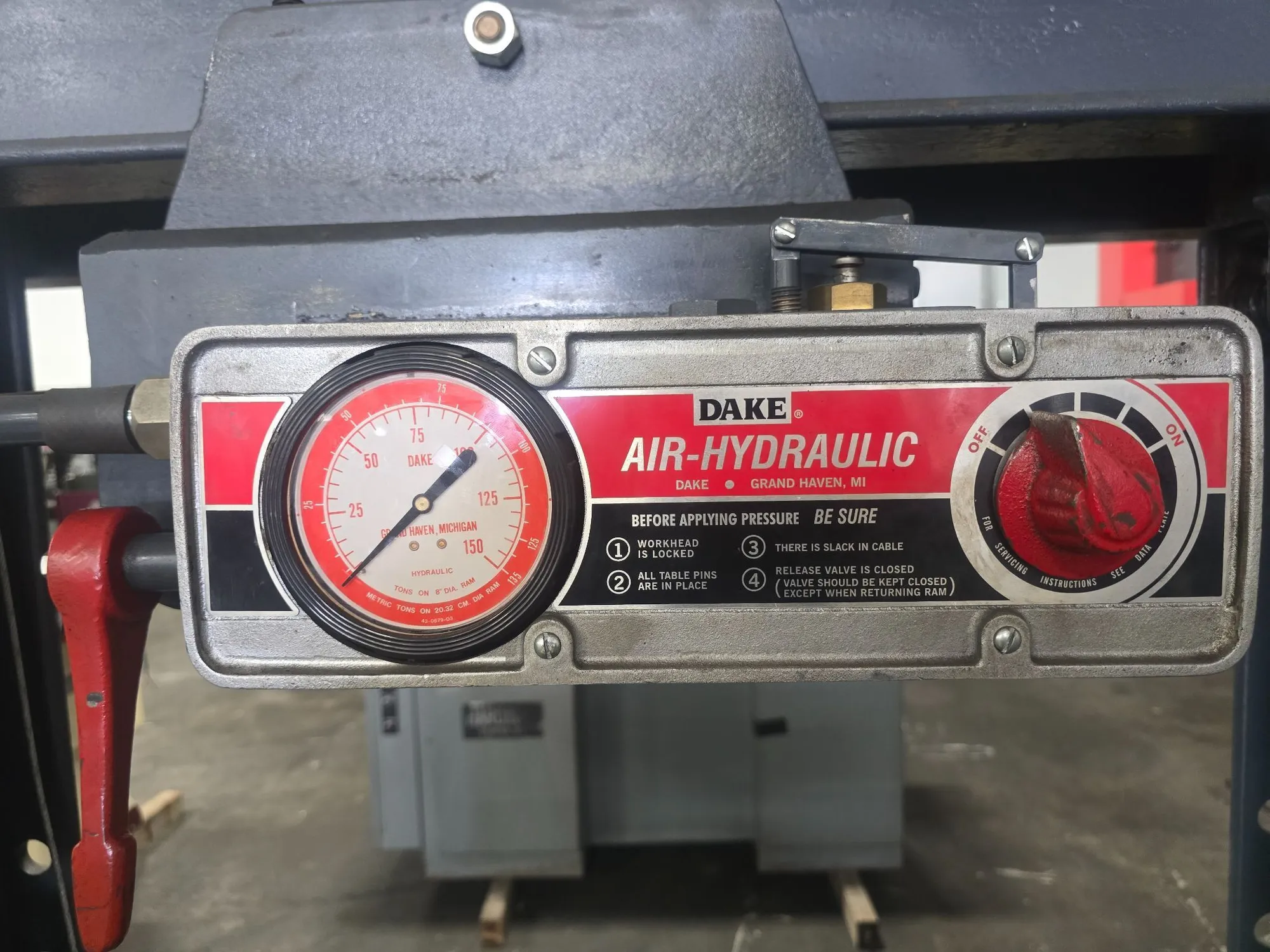

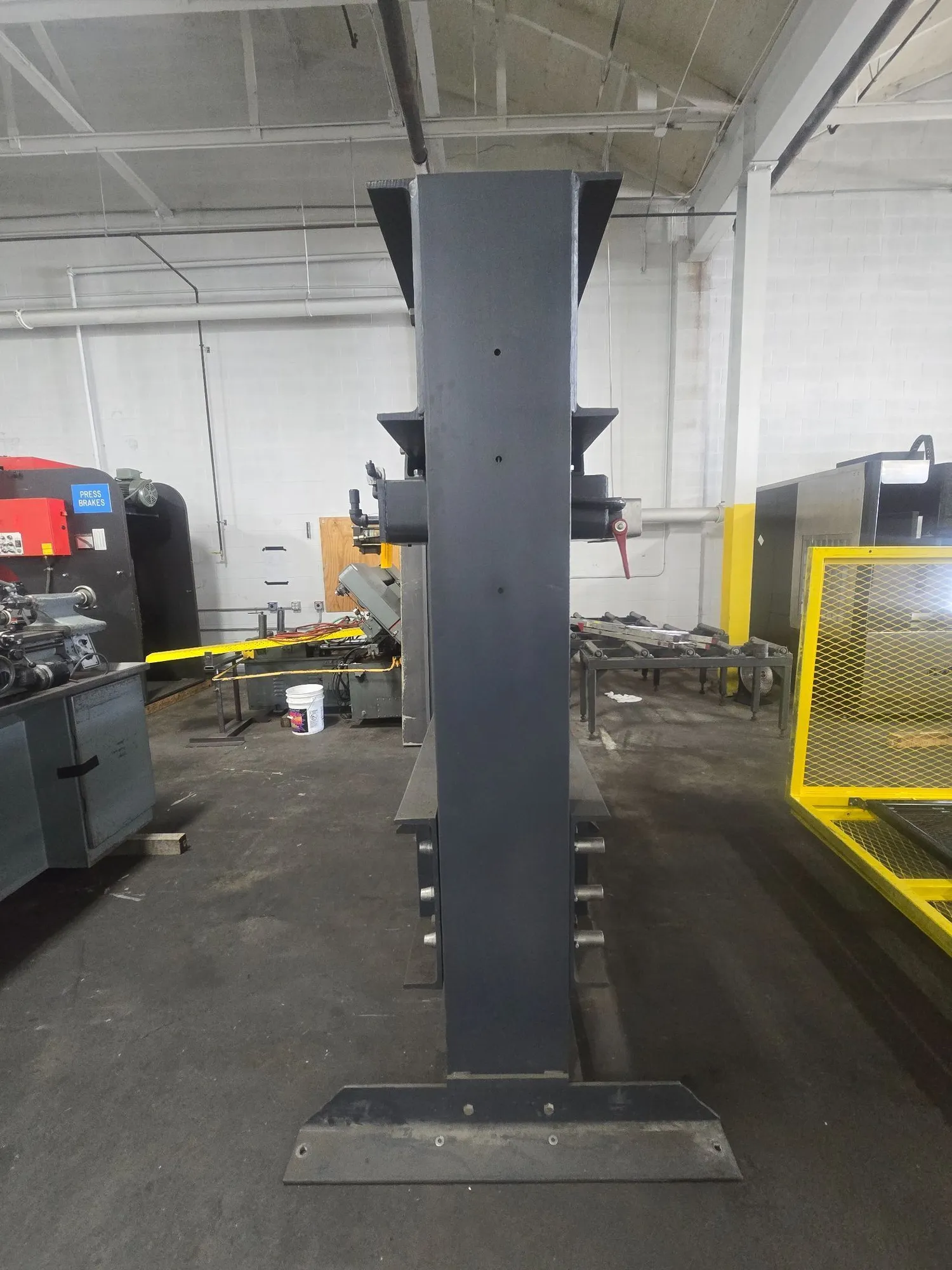

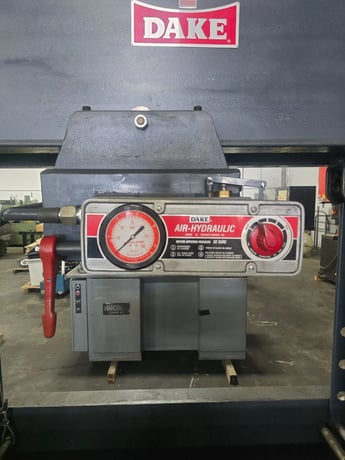

THIS DAKE 6-650 H FRAME SHOP PRESS IS A 150 TON AIR-OVER-HYDRAULIC PRESS DESIGNED FOR FABRICATING AND PRESSING APPLICATIONS. IT OPERATES WITH AN AIR PRESSURE REQUIREMENT OF 90-125 PSI. THE PRESS HAS OVERALL BASE DIMENSIONS OF 66 INCHES BY 42 INCHES AND A HEIGHT OF 95 INCHES, WITH A TOTAL WEIGHT OF 3,000 LBS. KEY WORKING DIMENSIONS INCLUDE A WIDTH OF 48 INCHES BETWEEN THE UPRIGHTS AND 12-1/4 INCHES BETWEEN THE TABLE CHANNELS. THE RAM FEATURES A TRAVEL OF 16 INCHES, WITH THE MAXIMUM RAM-TO-TABLE DISTANCE BEING 30 INCHES AND THE MINIMUM AT 10 INCHES. THE HORIZONTAL WORKHEAD TRAVEL IS 21-7/8 INCHES. THE MACHINE INCORPORATES AN ADJUSTABLE TABLE WITH A SELF-LOCKING HOIST FOR EASY VERTICAL MOVEMENT, AND A MOVABLE WORKHEAD THAT IS ROLLER MOUNTED ON BALL BEARINGS TO FACILITATE OFF-CENTER WORK. OPERATIONAL FEATURES INCLUDE AIR OPERATION TO ELIMINATE MANUAL HAND PUMPING, A SAFETY VALVE FOR OVERLOAD PROTECTION, A STROKE INDICATOR FOR ACCURATE RAM CONTROL, AND A RAPID RAM APPROACH FEATURE TO EXPEDITE PRODUCTION TIME.
THE DAKE MODEL 5-150A IS A 150-TON ELECDRAULIC H-FRAME PRESS DESIGNED FOR FABRICATING AND PRESSING APPLICATIONS. IT OPERATES ON AN ELECTRIC, THREE-PHASE POWER SOURCE (220/440V) DRIVEN BY A 2 HP MOTOR. KEY DIMENSIONS INCLUDE A 48-INCH WIDTH BETWEEN THE UPRIGHTS AND 12-1/4 INCHES BETWEEN THE TABLE CHANNELS. THE WORK ...more

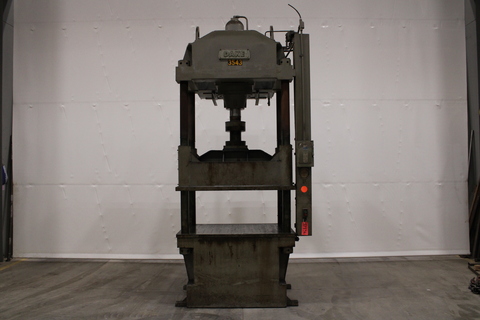

SERIAL. S150-1059, MODEL. S150-14 D-18, CAPACITY. 150 TONS, AREA OF BED. 97" X 26", DISTANCE BETWEEN POSTS. 46", STROKE OF RAM. 10-3/4", RAM SPEED. 14 IPM, RAM SPEED HIGH. 111 IPM, WIDTH BETWEEN UP RIGHTS. 14", DISTANCE BETWEEN BED CHANNELS. 20", DISTANCE RAM TO BED. 0" MINIMUM, 38" MAXIMUM, BED ADJUSTMENT. 12" ...more
