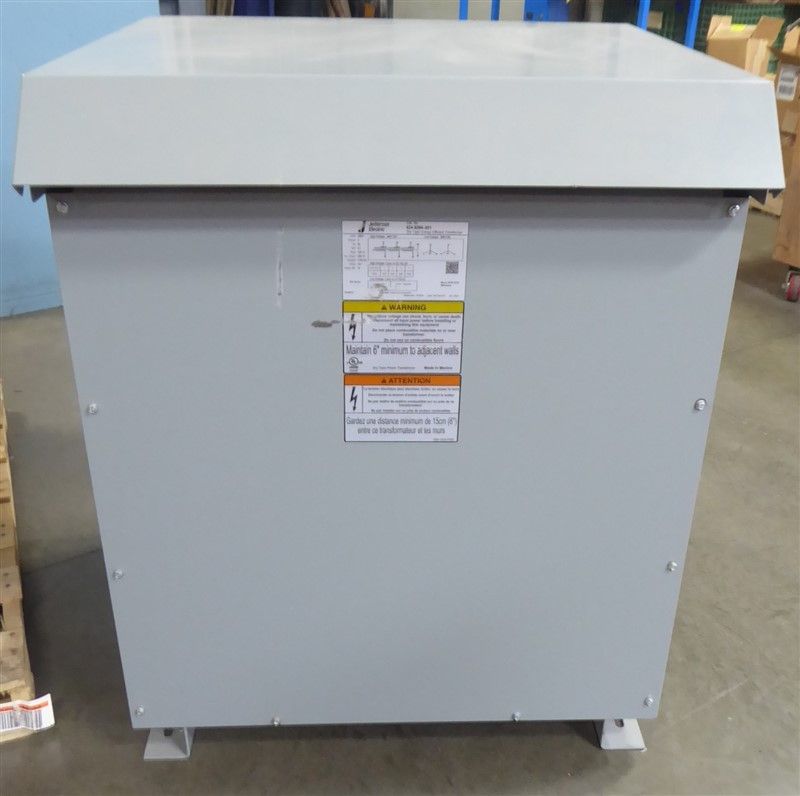

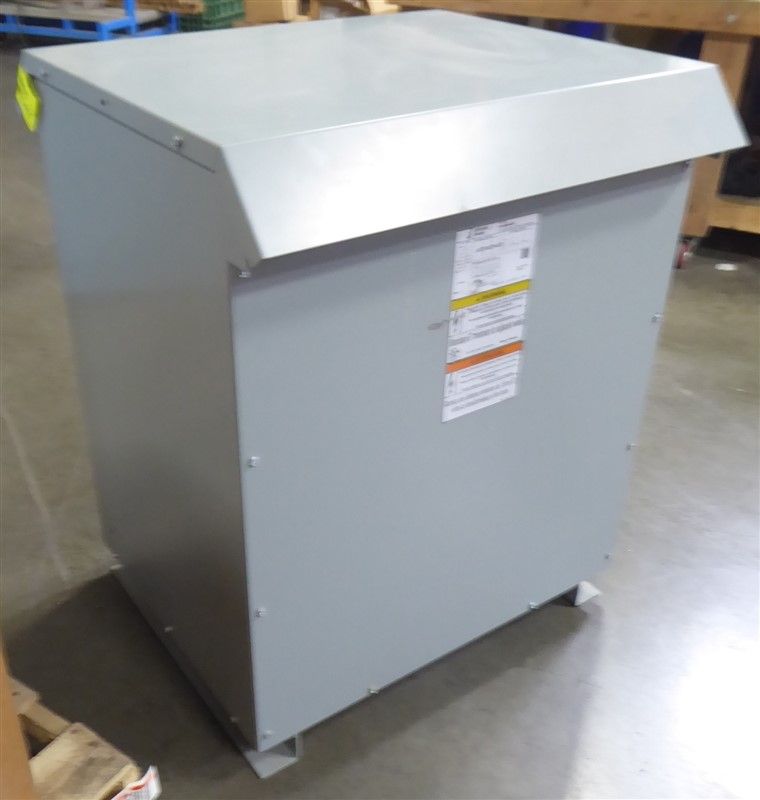

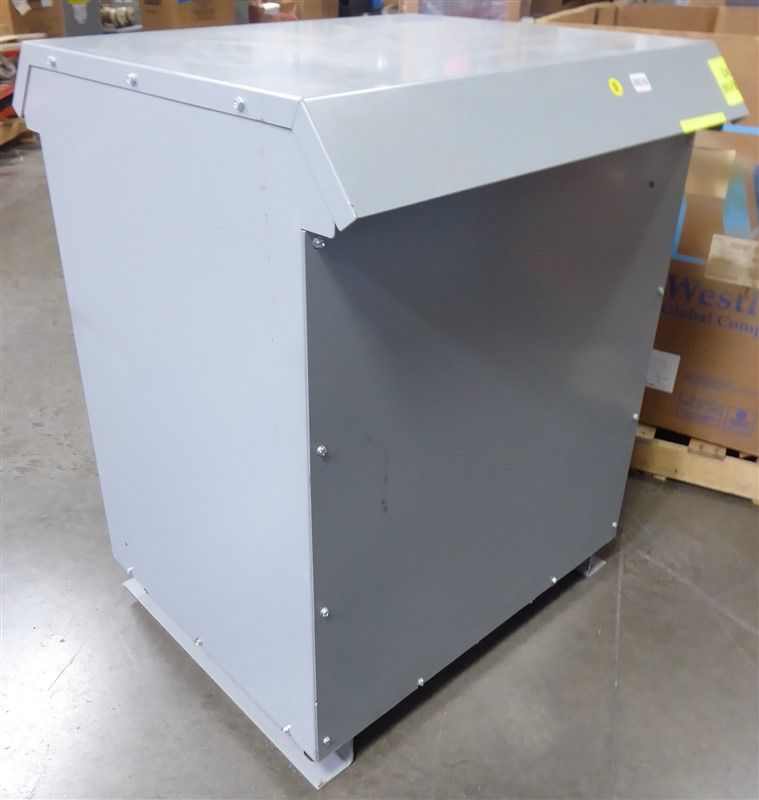

150 KVA 400Y/231 Primary, 208Y/120 Secondary, Jefferson, dry type, class AA

$2,750 USD

Request Formal Quote

This is a used energy efficient dry type transformer for sale. We have hundreds of dry transformers in stock.

With thousands of transformers on the internet to choose from, why should you buy one from Green Industrial out of Belgium Wisconsin? Our professional cleaning, testing and packaging process makes sure you are 100% satisfied, saving you thousands in the process!


"SAVE THOUSANDS AND BUY USED FROM GREEN INDUSTRIAL TODAY!"


CONDITION: Used

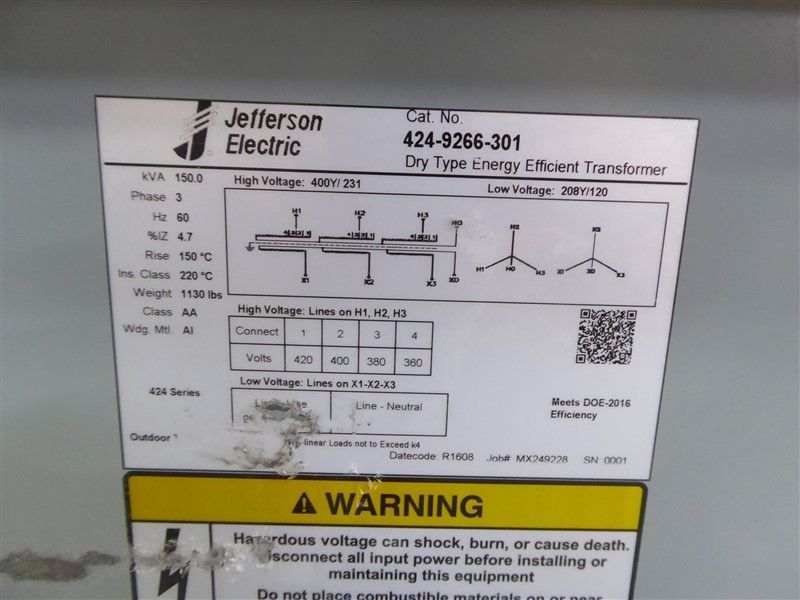

Manufacturer: Jefferson Electric

Series: 424

Catalog Number: 424-9266-301

KVA: 150

Phase: 3

Hertz: 60

Primary Voltage: 400Y/231

Secondary Voltage: 208Y/120

Class: AA

Insulation Class: 220C

Degree Temp Rise: 150C

Impedance: 4.7%

Enclosure: 3R Rainproof


Actual Transformer Dimensions: 33-1/4 Inches Wide x 33 Inches Deep x 42-1/4 Inches Tall (Not Shipping Dimensions)
Actual Transformer Weight: 1130 Pounds (Not Shipping Weight)
Shipping Dimensions: 48" Long x 40" Wide x 46" Tall
Shipping Weight: 1180 Pounds, Includes Pallet, 2x4 Runners, Hardware and Transformer

GREEN INDUSTRIAL ITEM NUMBER: 51214W



Your transformer will go through the process below prior to shipping to ensure your satisfaction.



1. Transformer enclosure will be disassembled and the old hex sheet metal hardware discarded.

2. Cleaned thoroughly (inside and out).

3. Coils blown out with compressed air.

4. Tested for continuity.

5. Reassembled with all NEW zinc coated steel hex head / sheet metal hardware on the exterior. (structural assembly hardware)

6. Labeled as tested.

7. Installed onto a standard pallet with 2x4 runners under each of the transformer legs/feet/mounting plates. The 2x4's will be attached to the pallet via long torques head screws. The transformer will then be attached to those 2x4's with long 1/4", 5/16" or 3/8" zinc coated steel hardware, depending on its size. There will be four bolts holding the transformer down to the pallet giving it a professional look and making it extremely sturdy/durable and easy to remove upon delivery.

8. Plastic poly cover placed on the top.

9. Wrapped on our shrink wrap machine.

10. DO NOT DOUBLE STACK & FRAGILE stickers placed on all four sides on the exterior of the shrink wrap.

11. 12 inch tall, yellow corrugated DO NOT STACK safety cone installed on the top of the transformer to prevent anything from being placed on top during shipping.

12. Loaded on a truck and photographed at time of loading.
