Description

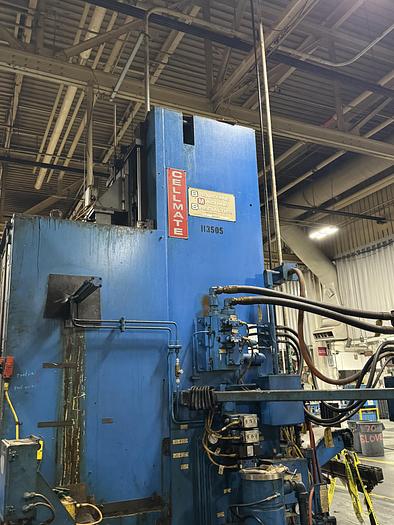

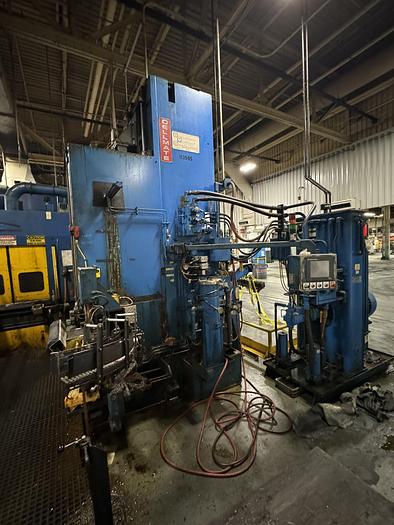

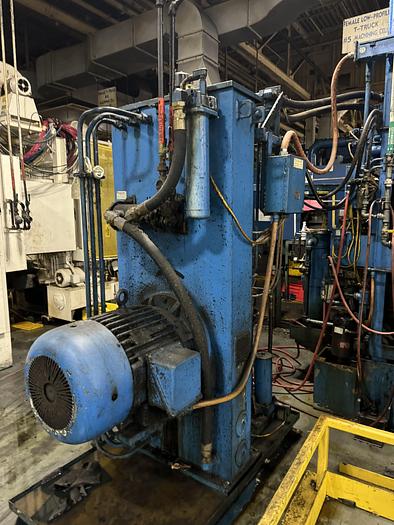

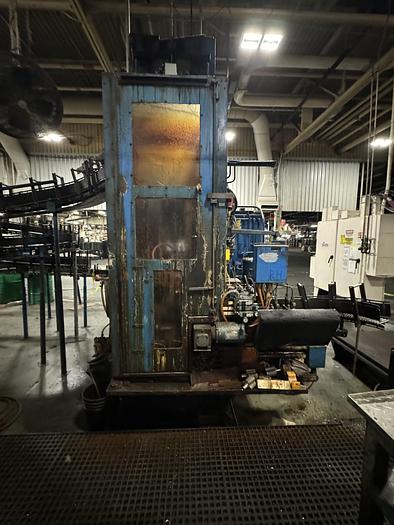

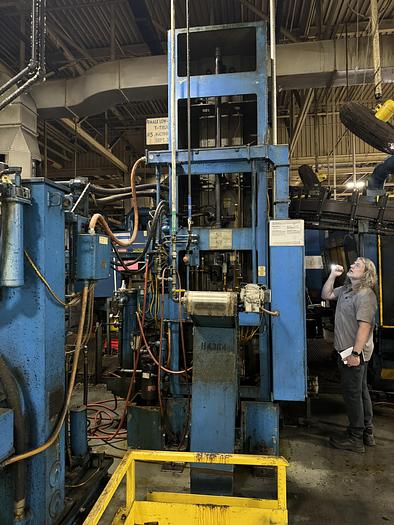

The 1998 Bms Cellmate BMCM15-48 is a dual-station vertical table-up internal broaching machine designed for high-production cell manufacturing environments. It features a pulling capacity of 30,000 lbs (15 tons) and a 48-inch stroke. The machine is engineered for floor-level loading to eliminate the need for pits or operator stands. Technical specifications include a maximum cutting speed of 30 FPM and a maximum return speed of 60 FPM. The hydraulic system is gravity-fed with an oil reservoir capacity of 200 gallons, while the coolant reservoir holds 175 gallons. Power is provided by a 40 HP main motor. The physical footprint of the unit is approximately 118 inches by 72 inches, with an overall height of 164 inches and a weight of 32,000 lbs. This model is equipped with a dual-station setup, an auto-loader, a chip conveyor, and an external hydraulic unit. Control is managed via a JLC controls panel and an operator's station. Its vertical table-up design facilitates internal broaching operations and offers flexibility for integration into various manufacturing cells.
The 1998 Bms Cellmate BMCM15-48 is a vertical table-up internal broaching machine featuring a dual station configuration. It provides a 15-ton pulling capacity and a 48-inch stroke length. Designed for floor-level loading to eliminate the need for pits or operator stands, the machine is powered by a 40 HP main motor. ...more
This used Bms BMCM15-54 (1998) is a unit available from R.A.B. Industries. It is the nan controller.1-USED BMS CELLMATE 15 TON X 48" STROKE VERTICAL TABLE UP BROACHING MACHINEMODEL BMCM15-48 DUAL STATIONSERIAL NUMBER 1144-98DATE OF MFG. 1998STK#105178============================================== WHILE OBTAINED FROM ...more
Tonnage 15 tons Stroke 72 inches Type of CNC Control Allen Bradley PanelView Plus 1000 Touch Screen Control Dimensions Approx 14' tall X 8' X 8' as Assembled Approximate Weight 21500 pounds, Machine and electronics upgraded by Broaching Machine Specialties (BMS) 2012, Servo Driven Table up parts carrier ...more
OHIO Vertical table up broach model VTUP-1554-S single station broach New 2000 Good Condition!, Ohio Vertical Table Up Broach, Model VTUP-1554-S, Manufactured in 2000, s/n 101170-00, This vertical Table up broaching machine is in very good condition, it can be installed and put right to use. It has a simple allen- ...more
