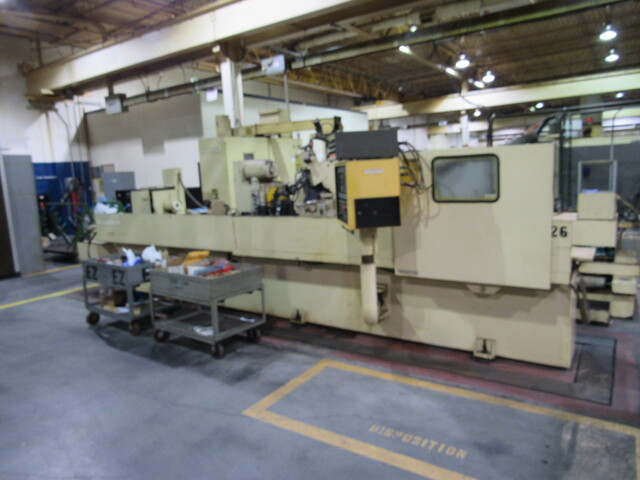

14" x 80" Cincinnati #480-AH, angle head Step grinder, 30 deg., 14" diameter work capacity, 30" x 4" x 12" bore grinding wheel, 8500 SFPM, 25 HP, 1986

14" x 80" Cincinnati 480 Step Grinder, 14" Swing, 80" Between Centers, 30 Degree
14 x 80 CINCINNATI 480 AH ANGLE HEAD STEP GRINDER
S/N3548M0286-0001 Year: 1986
STANDARD SPECIFICATIONS
Maximum work piece diameter ground with new wheel……….… 14”
Maximum work piece swing diameter………………………………........ 14”
Maximum work piece/grind length………………………….....……….... 80”
Maximum work piece weight………………….………….......……..1000 lbs.
Grinding wheel size……………………………..……....... 30”x 4” x 12” bore
Angle of wheel head totable………………………………………......... 30 deg.
Standard work piece center hole(included angle)………………. 60 deg.
Grinding wheel surface speed…………………………………..... 8500 ft./min.
Radial in feed resolution…………………………………………......... 0.000025”
Diametrical in feed resolution……………………………………...... 0.000050”
Radial in feed rate resolution……………………………………....... 0.001 IPM
Diametrical in feed rate resolution…………………………….…... 0.002 IPM
In feed rapid positioning radial rate in run mode…………….… 250 IPM
In feed rapid set-up position in gradial rate in prove mode… 50 IPM
Head stock spindle speeds–variable…………………………. 10 – 550 RPM
Head stock spindle nose mount……………………….………………..... A1-6
Head stock inside taper………………………………………………..... 14 Jarno
Head stock type……………………….………………..Combination live/dead
Overall dimensions…..……………………………….262”x 158” x 103” high
Machine weight–approximately…………………………………….. 28000 lbs.
EQUIPPED WITH:
Cincinnati Milacron 700G CNC Control System.
25 HP Spindle motor drive………………………………..240/3/60
3 HP Head stock motor.
Live dead center head stock.
Stand alone electrical panel.
Behind the wheel dresser.
Specifications are deemed accurate, however, subject to verification or prior sale.
