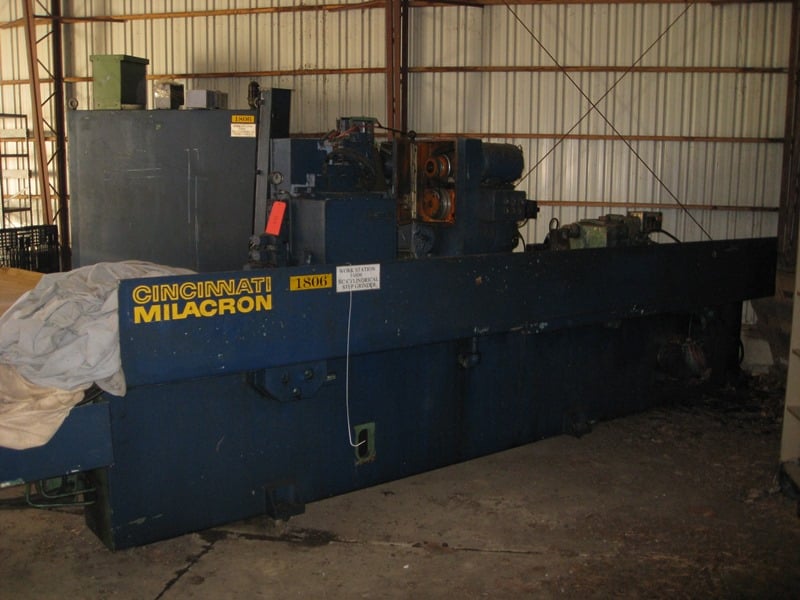

14" x 60" Cincinnati #480-AH, cylindrical angle head Step grinder, 30" diameter x 4" width grinding wheel, 8500 SFPM, 25 HP, 1983

14" x 60" Cincinnati 480 Step Grinder, 14" Swing, 60" Between Centers, No Wheel Mount
14 x 60CINCINNATIMILACRON MODEL 480 AH
CYLINDRICAL ANGLE HEAD STEP GRINDER
S/N 3548L0283-0001 Year:1983
STANDARD SPECIFICATIONS
Nominal swing………………………………………………….. 14 (355 mm) standard
Nominal table length………………………………………..…... 60 (1524 mm)
Base configuration…………………………………………..…. 30 Degrees
CAPACITIES
Actual swing……………………………………………………. 14.93 (380 mm)
Maximum diameter ground – new wheel………………………. 14 (355 mm)
Minimum diameter ground – worn wheel…………………….... 30' = 0.65 (16 mm)
Work length……………………………………………………. 60 (1524 mm)
AXISMOVEMENTS
X-Axis(wheel head) - Feed rate………………………………. 250/min (6.35 m/min)
-Resolution..……………………………. 0.000020 (0.0005 mm)
- Repeat ability.…………………..……… '0.000060('0.0015 mm)
Z-Axis(Table) - Feed rate……………………………………… 400/min (10.16 m/min)
- Resolution……………………………………. 0.000020(0.0005 mm)
- Repeat ability…………………………..…….. '.000150('0.0038 mm)
WHEEL HEAD
Grinding wheel diameter (maximum)………………………... 30 (760 mm)
Grinding wheel width………………………………………… 4 (100 mm) standard
6 to 12 (150 to 350mm) opt.
Wheel speed (new wheel)……………………………………. 8500 sfpm (43m/s)
HEAD STOCKANDFOOTSTOCK
Work center tapers……………………………………. No. 14 Jarno
Head stock speeds…………………………………….. 3 Torque ranges; 10-550RPM
Spindle nose………………………………………….. Type A1-6
Part weight capacity - lever screw foot stock (std)… 100 lb. (45.5kg) by Lever/1000 lb.
(455 kg) by Screw
- hydraulic foot stock (opt)..…… 100 or 400 lb (45.5 or 182 kg)
(Depending on Screw used)
Center height from floor -14 (355 mm) swing machine….. 48 (1220 mm)
ELECTRICAL MOTORS
Wheel head drive………………………………………….. 25HP (18kW)
Head stock work drive…………………………………….. 3 HP (2.2kW)
Hydraulic pump drive……………………………………... 2 HP (1.5kW)
Way lubrication pump drive…………………………….… 0.25 HP (0.18kW)
Cutting fluid pump drive……………………………….…. 0.25 HP (0.18kW)
EQUIPPED WITH
Acramatic 700 G push button station.
Behind the wheel truing attachment.
Live dead center head stock.
Hydraulic tail stock.
Variable speed head stock.
