Description

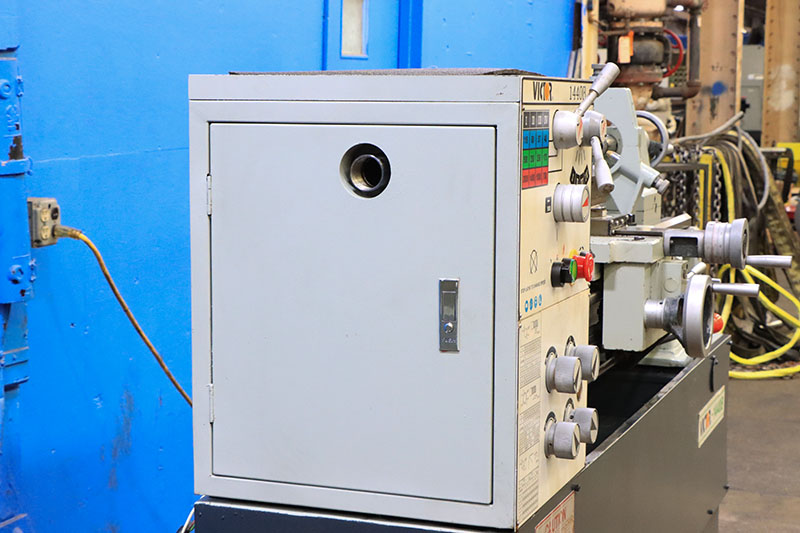

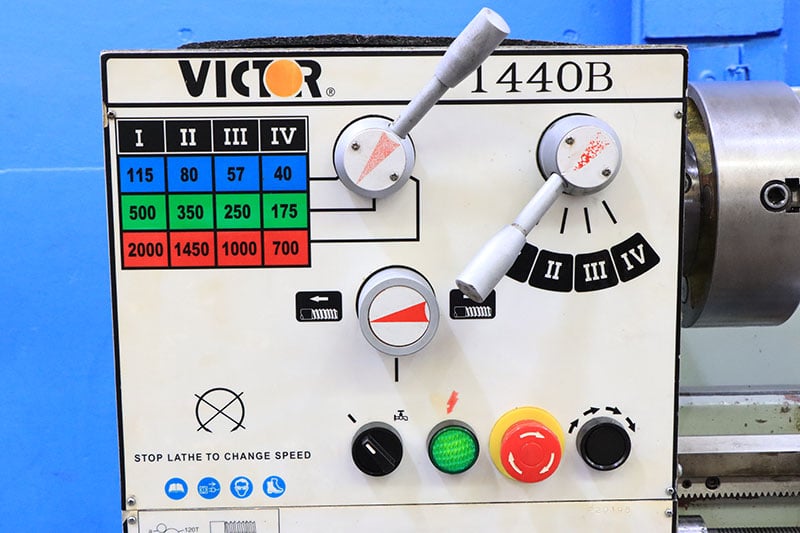

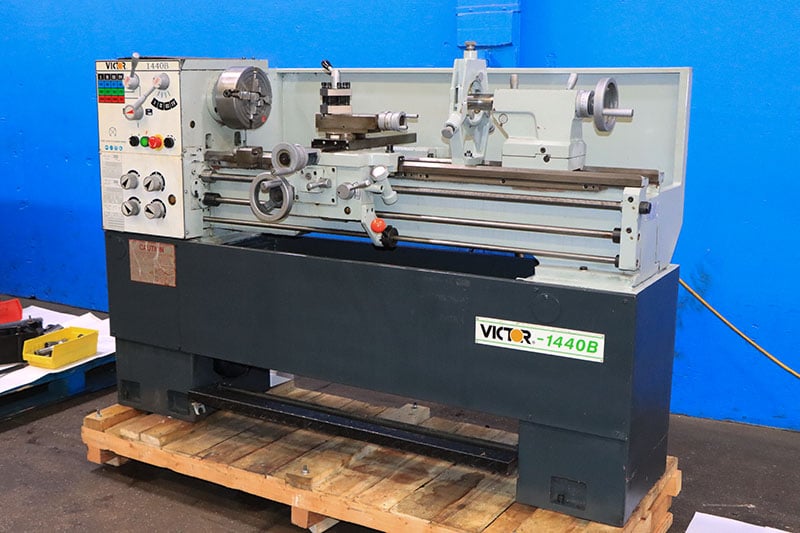

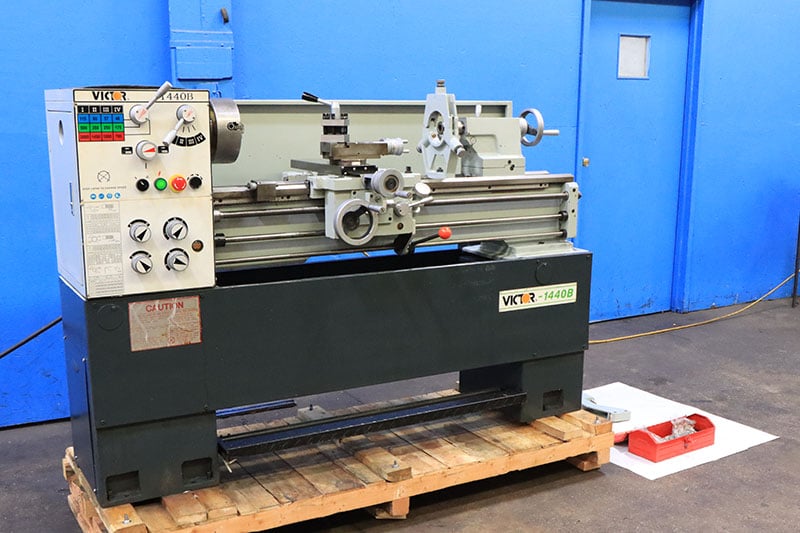

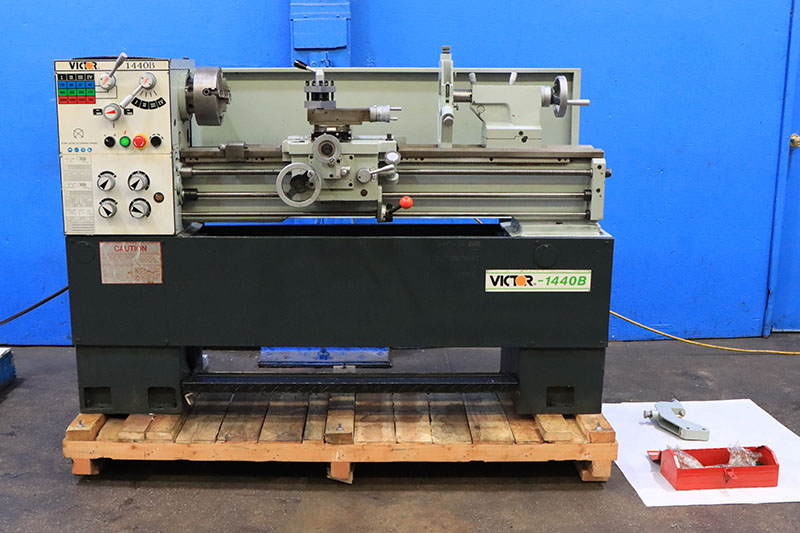

14"/20" x 40" VICTOR GAP BED ENGINE LATHE
MODEL: 1440B, S/N: 220198
SPECIFICATIONS:
SWING OVER BEDWAYS ................... 14"
SWING IN REMOVEABLE GAP .............. 20"
SWING OVER CROSS SLIDE ............... 8-5/8"
HOLE THRU SPINDLE .................... 1-1/2"
DISTANCE BETWEEN CENTERS ............. 40"
SPINDLE NOSE ......................... D1-4" CAMLOCK
SPINDLE SPEED RANGE (12) ............. 40 - 2020 RPM

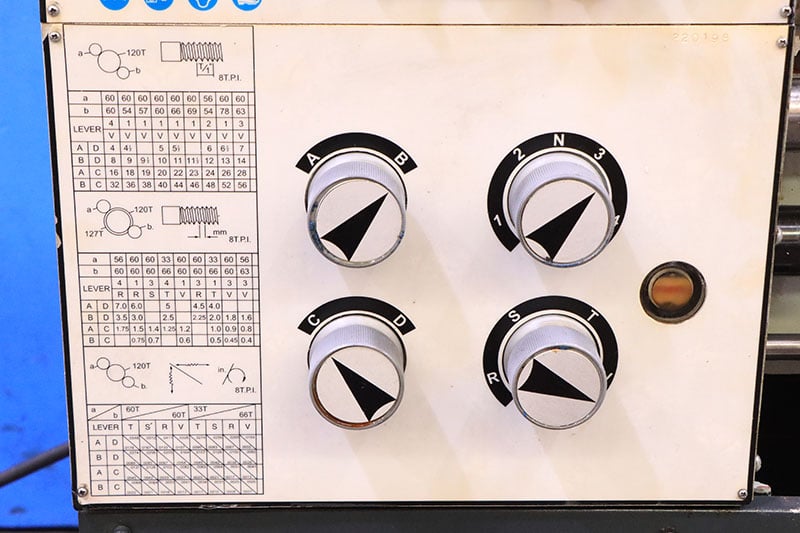

ENGLISH THREADING RANGE .............. 4 - 56 TPI
METRIC THREADING RANGE ............... .4 - 7 mm
LONGITUDINAL FEED RANGE .............. .003" - .0663" IPR
CROSS FEED RANGE ..................... .001" - .0221" IPR
TAILSTOCK SPINDLE TAPER .............. #3MT
TAILSTOCK SPINDLE TRAVEL ............. 4-1/2"
APPROX FLOOR SPACE ................... 76"L x 29"x 42"
APPROX WEIGHT ........................ 1,650 LBS
EQUIPPED WITH:
INCH… METRIC THREADING
4-JAW CHUCK
STEADY REST
FOLLOW REST
FACEPLATE
TOOLPOST
THREAD DIAL
MICROMETER CARRAIGE STOP
FOOT BRAKE
COOLANT SYSTEM
HARDENED BEDWAYS
3 HORSE POWER MAIN MOTOR
PURCHASED FROM A COLLEGE
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
Get Your Price from Machinery Values Inc!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
14" x 40" Sharp #1440, Engine Lathe, 8.62" Swing Over Cross Slide, D1-4 Camlock, 3 HP, 220/440 V., 1990
Category: Engine Lathes
Seller: Aucto
Location: San Francisco, CA
Mfr: Sharp
Model: 1440
Year: 1990
The Sharp 1440 manual precision lathe s a 14 inch swing over bed, 8.62 inch swing over cross slide, and 40 inch distance between centers. The unit is a 3 HP motor and a D1-4 camlock spindle with a 1.5 inch bore. The headstock provides multiple spindle speeds up to 1,800 RPM. The machine includes a removable gap bed ...more
JUST ADDED!

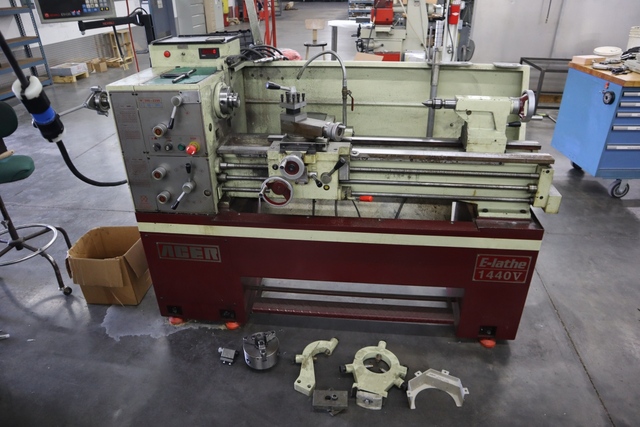

14" x 40" Acer #E1440V, engine lathe, 8-5/8" swing over cross slide, 1-1/2" bore, D1-4", 36-2,200 RPM, 3 HP, Newall 2-axis digital read out, 2011
