14" x 36" Cincinnati, universal cylindrical grinder, 12" x 1.5" x 5" grinding wheel, 7.5 HP, 1962

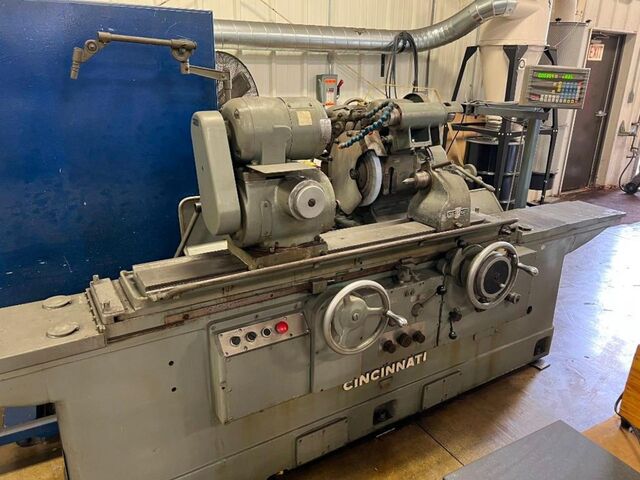

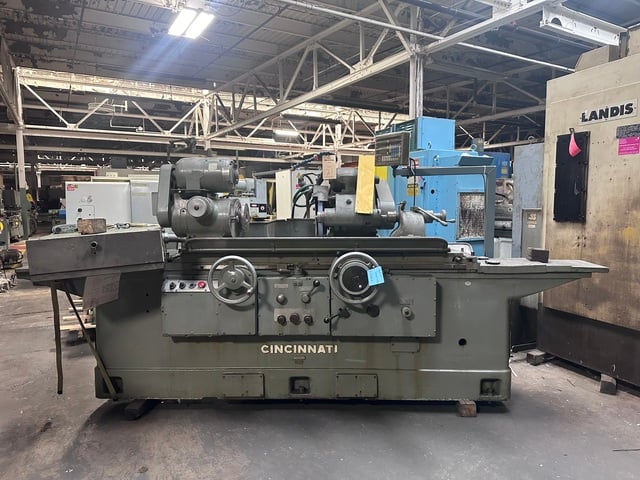

Cincinnati 14 X 36 grinder, from 1962. Features include 14" swing, 36" centers, 7.5 hp power, 12" grinding wheel dia., and infinite table traverse speeds. Comes equipped with auto pick feed and vari-speed work head drive. Ideal for cylindrical grinding tasks.

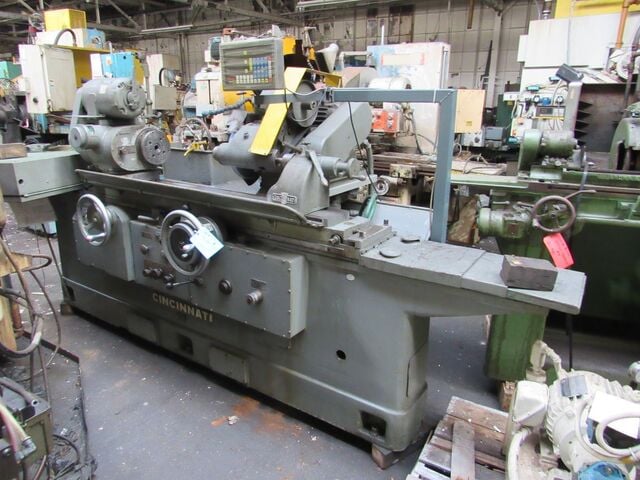

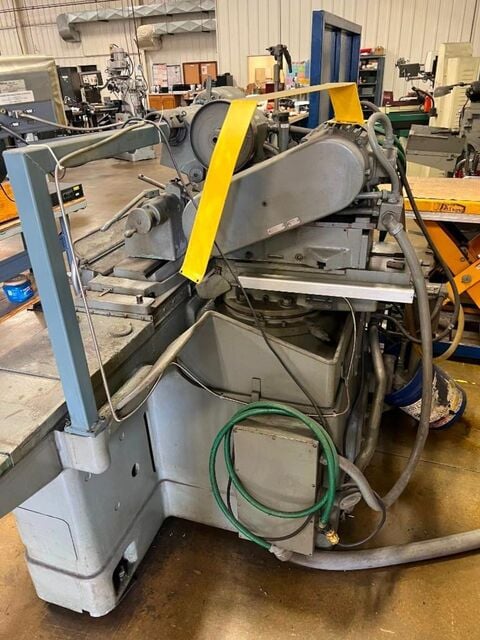

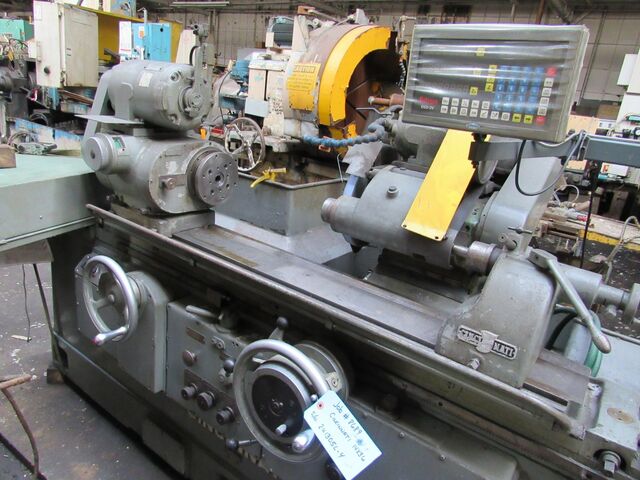

14 x 36 CINCINNATI UNIVERSAL CYLINDRICAL GRINDER

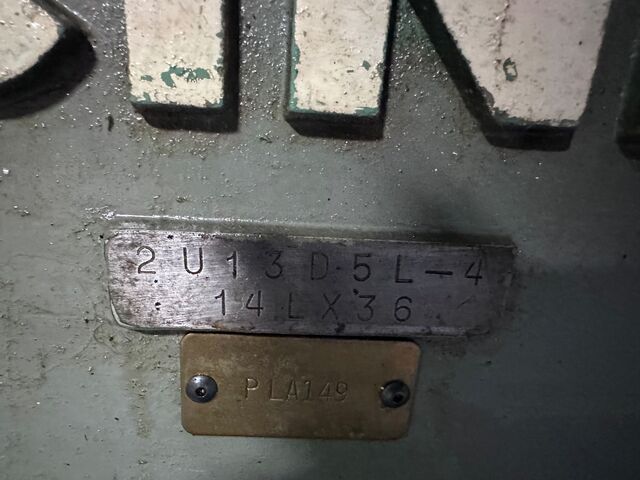

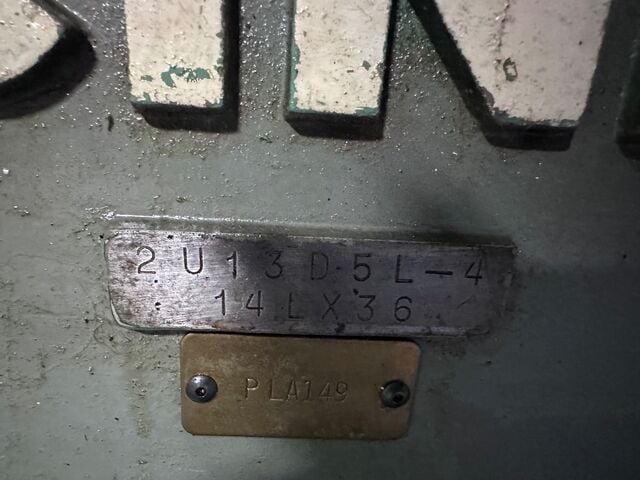

S/N 2U13D5L-4 Year:1962
STANDARD CATALOG SPECIFICATIONS

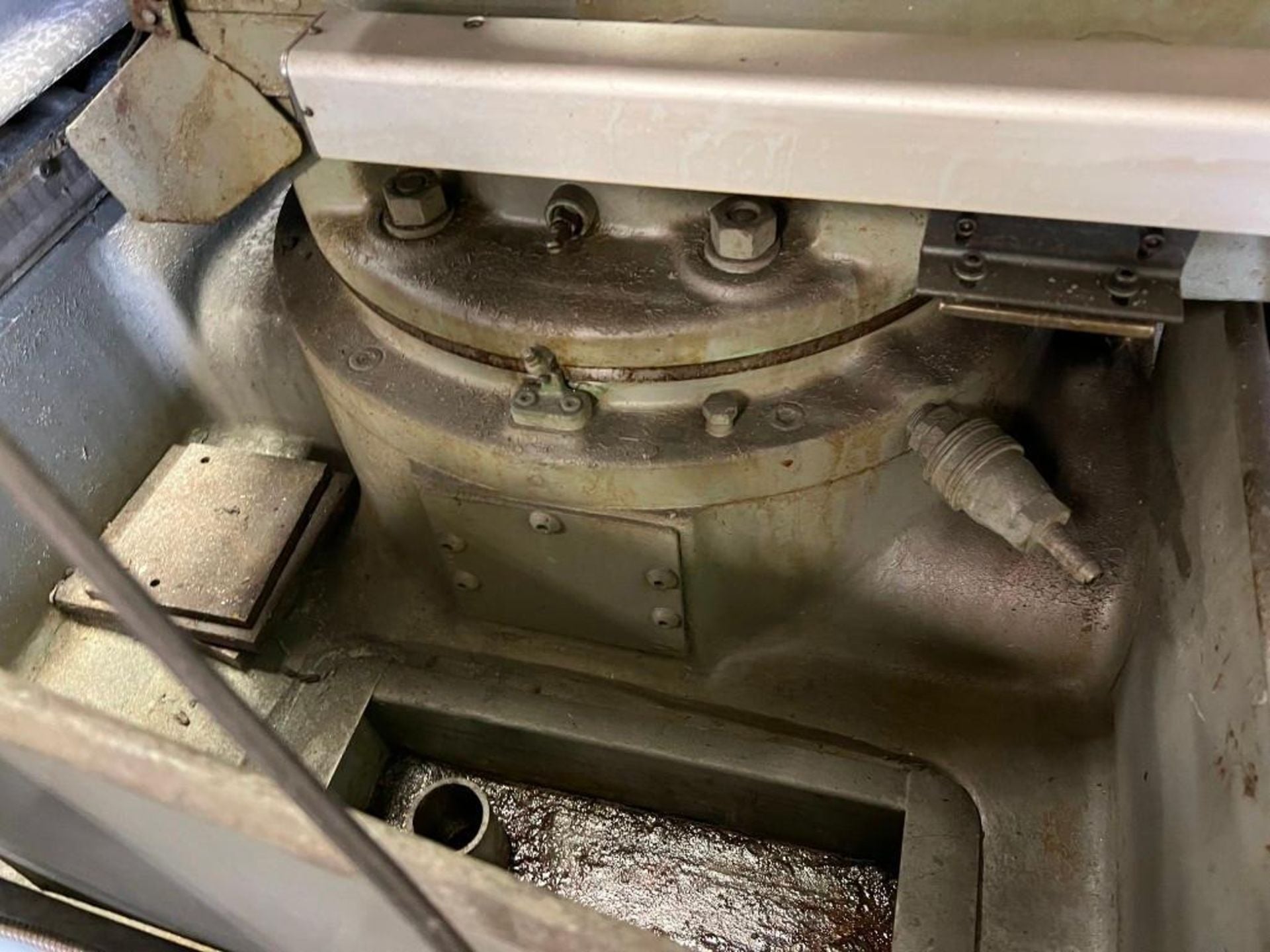

Swivel range (lower swivel, right left).......... 90 degrees
(upper swivel, right left)..........30 degrees

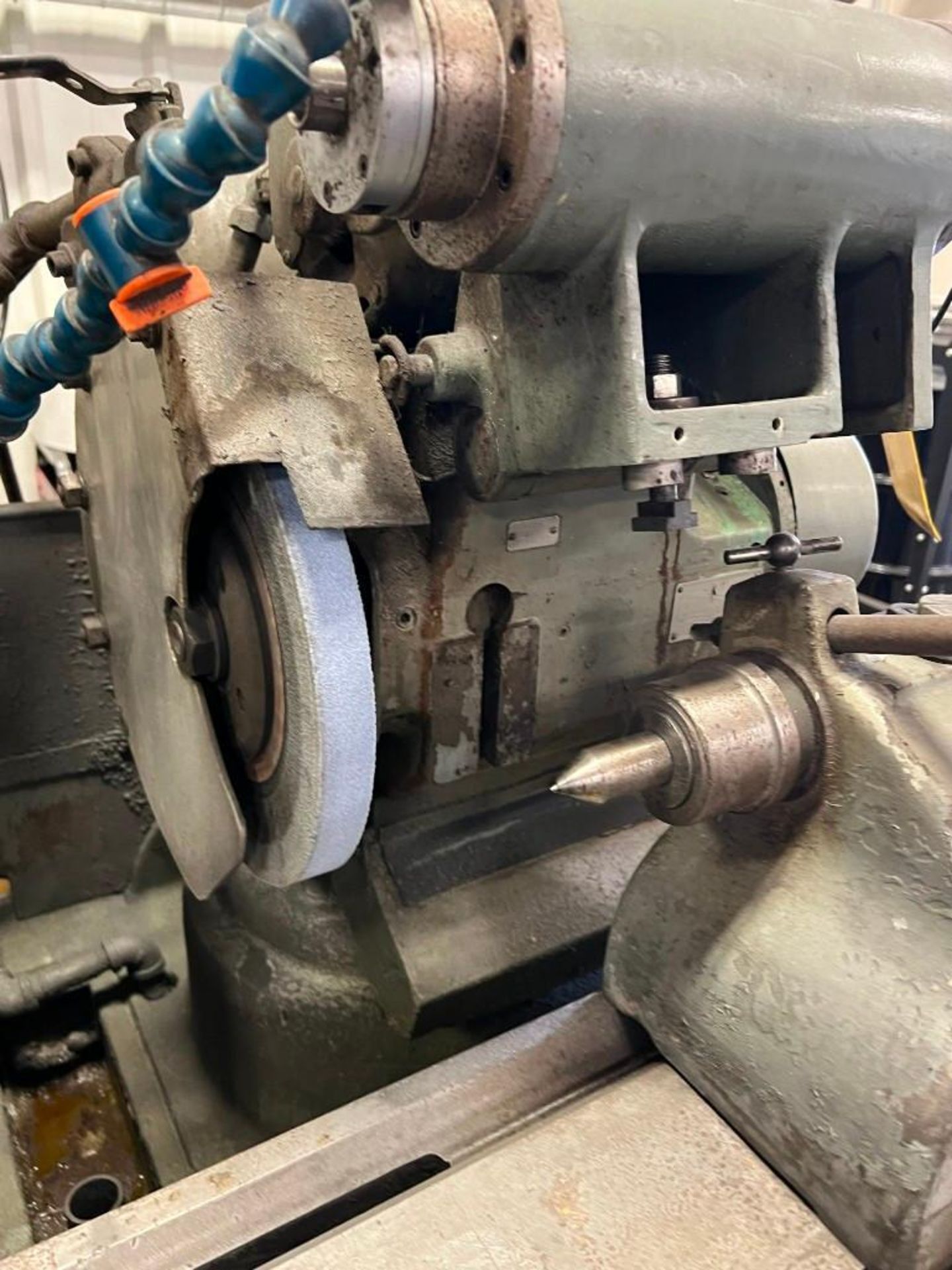

Grinding wheel (dia. x face x hole)............. 12 x 1 1/2 x 5
CROSSFEED
Automatic infeed at table reversal:
Diameter reduction........ (low).............. .0002 to .005
(high)..............0005 to .0125
Wheelhead movement per turn of cross feed:
Handwheel................ (low).............. .050
(high)..............250
Minimum infeed increment in terms of:
Diameter reduction............................ .00005

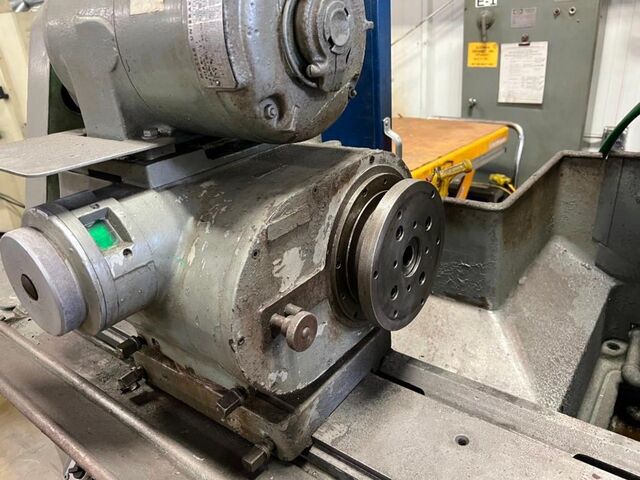

HEAD STOCK FOOT STOCK
Taper hole in head stock foot stock spindles..... #9 B S
Number of work rotation speeds..................... Variable
Headstock spindle nose, American lathe standard... 5
Headstock swivel: (toward wheel head)............. 90 degrees
(away from wheelhead).......... 30 degrees
TABLE
Number of table traverse speeds.................... Infinite
Rangeo f table traverse speeds (in per min)........ 3 ‑ 240
Minimum movement required to reverse table......... 3/32
Accuracy of table reversal at all traverse rates... .004
Independent right hand and left hand tarry,
seconds............................................0 to 5
Mechanical hand table traverse per revolution
of handwheel.................. (Rapid)............ 15/16
(Slow)............. 0.2

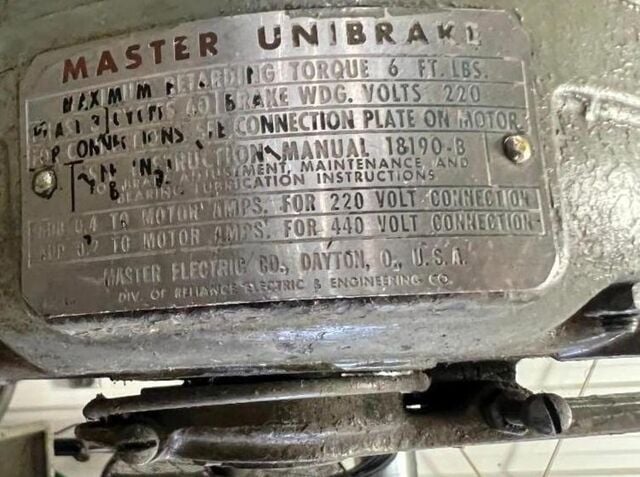

POWER REQUIREMENTS
(Electrical equipment included with machine)
Wheelhead motor...................................7.5 HP
Hydraulic pump motor............................... 1 HP
Headstock motor................................... 3/4 HP
Internal grinding attachment motor....... 2 HP - 3750 R.P.M
Cutting fluid pump motor........................... 1/4 HP
SPECIFIC SPECIFICATIONS
Maximum swing over table........................... 14 15/16
Maximum diameter machine will grind with:
Full size wheel.................................... 14 15/16
Minimum diameter machine will grind with:
Either full size or worn out wheel................. 0
Nominal distance between centers................... 36
Distance from floor to centers..................... 42 1/4
Swivel table graduated to angle of:
Toward wheel head.................................. 10 degrees
Away from wheel head............................... 3 degrees
Swivel table graduated to taper per foot of:
Toward wheel head.................................. 4 1/2 degrees
Away from wheel head............................... 1 1/4 degrees
EQUIPMENT FEATURES
Lever operated tail stock with truing attachment.
Left and right tarry at end of table stroke.
Selfcontained coolant and hydraulics.
Flat table.
Auto pick feed.
Swing down internal attachment.
Live/dead center work head.
Vari-speedwork head drive.
PRIVATE Hydraulic table travel.
Standalone electrical.tc' \l 1 Hydraulic table travel
