14" x 24" Kellenberger #600-U, universal cylindrical grinder, 15" outside dimension x 1.9" width x 5" bore wheel, 4 HP, 3000 RPM, 1986

Kellenberger 600U Universal Cylindrical Grinder from 1986. Key specs include 14" swing, 24" centers, 15.7" grinding wheel, and 4 hp power. Equipped with automatic cycle, internal attachment, and 360-degree work head swivel.

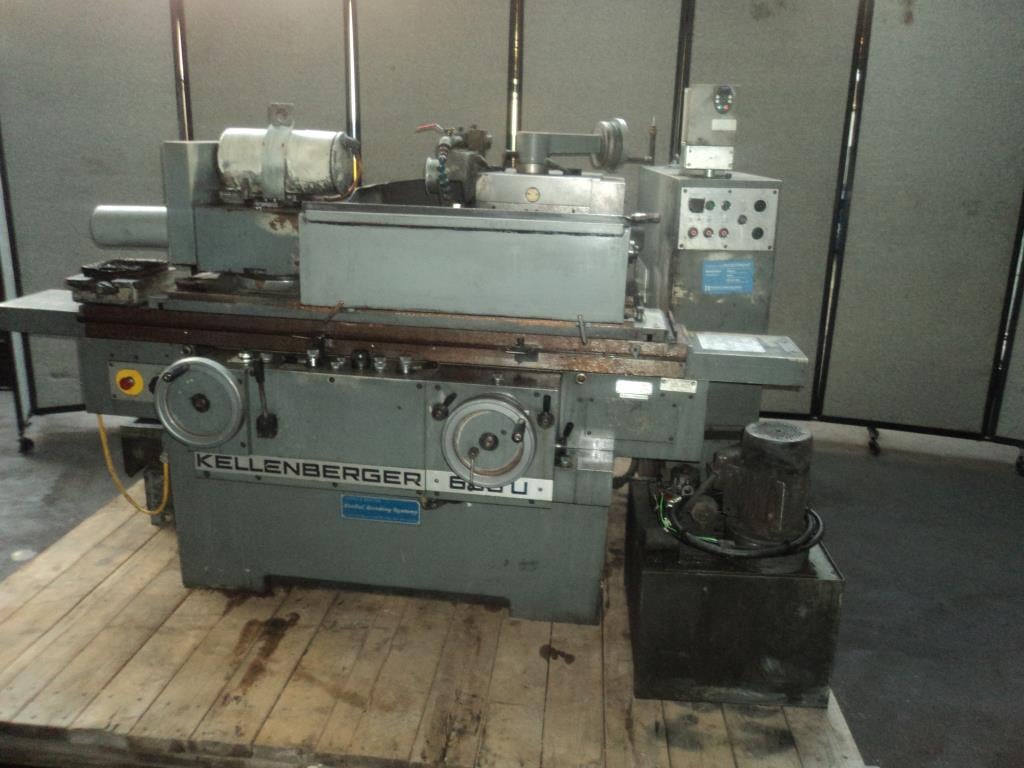

14 X 24 KELLENBERGER MODEL 600 U
UNIVERSAL CYLINDRICAL GRINDER
S/N 32460-2240 Year:1986
STANDARD SPECIFICATIONS
14" Actual swing over table
24" distance between centers
TABLE
35 7/16" Maximum travel of table
11 Degrees maximum swivel
WHEEL SLIDE
11.2" Maximum travel
137/64" Forward reverse rapid wheel slide
WHEEL HEAD
15.7" O.D. x 1.9" width x 5" bore
1500,1700, 2200 R.P.M. spindle speeds
WORK HEAD
360 swivel
20-400 R.P.M. speeds infinitely variable
5 Internal taper of spindle morse
MOTORS
4 H.P. 3000 R.P.M. wheel head
220/440/3/60 cycles
EQUIPMENT FEATURES
Automatic cycle.
Internal attachment.
Pick feed.
Locking swivel wheel head.
Coolant tank pump.
Stand-alone electrical.
Swing around internal grinding attachment.
OD/ID facing spindle set up.
Face grinding wheel set up with 7.5” diameter wheel.
15.7” Diameter OD wheel on main spindle.
Approximate weight: 6000 lbs.
Specifications are deemed accurate, however, subject to verification or prior sale.
