For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

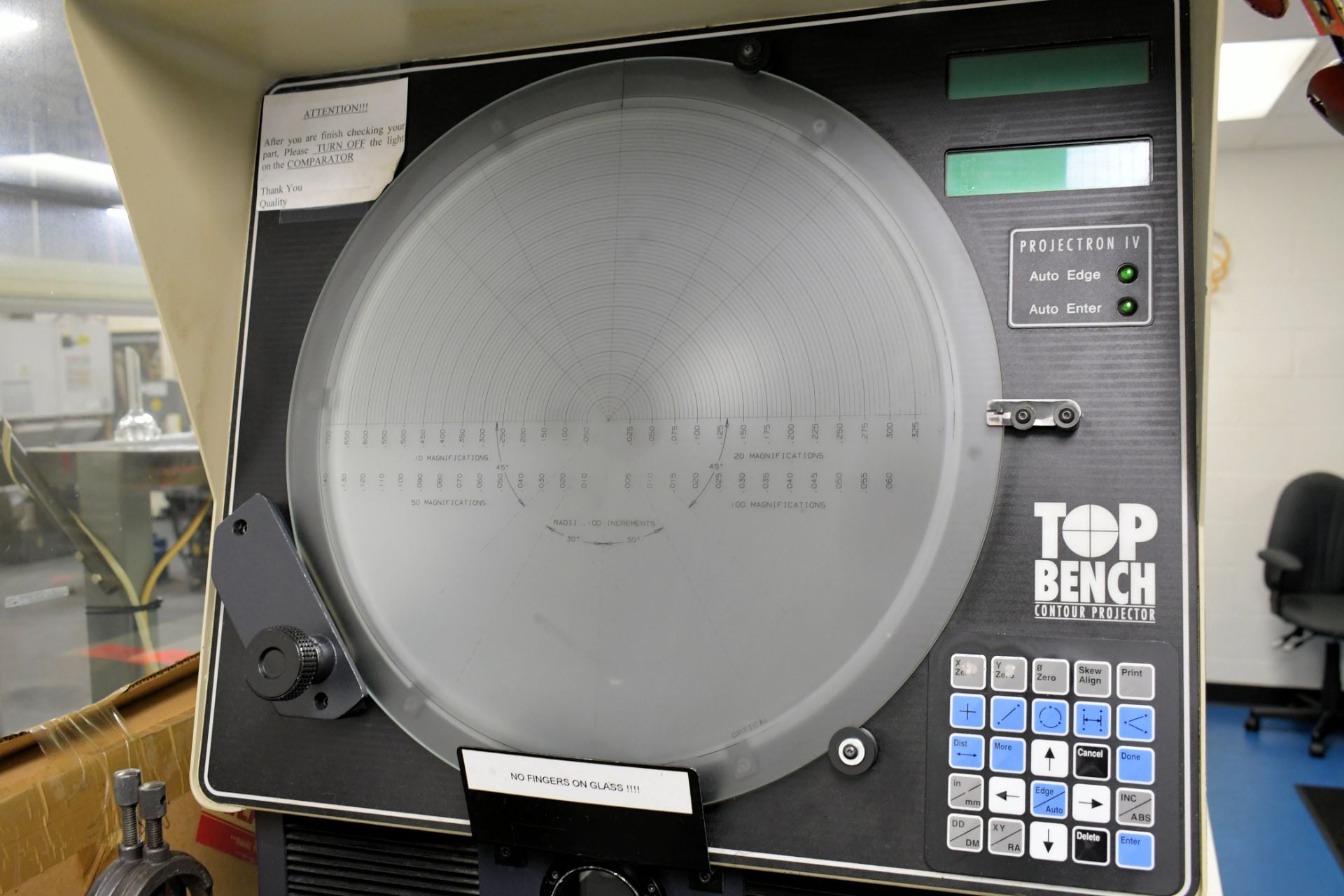

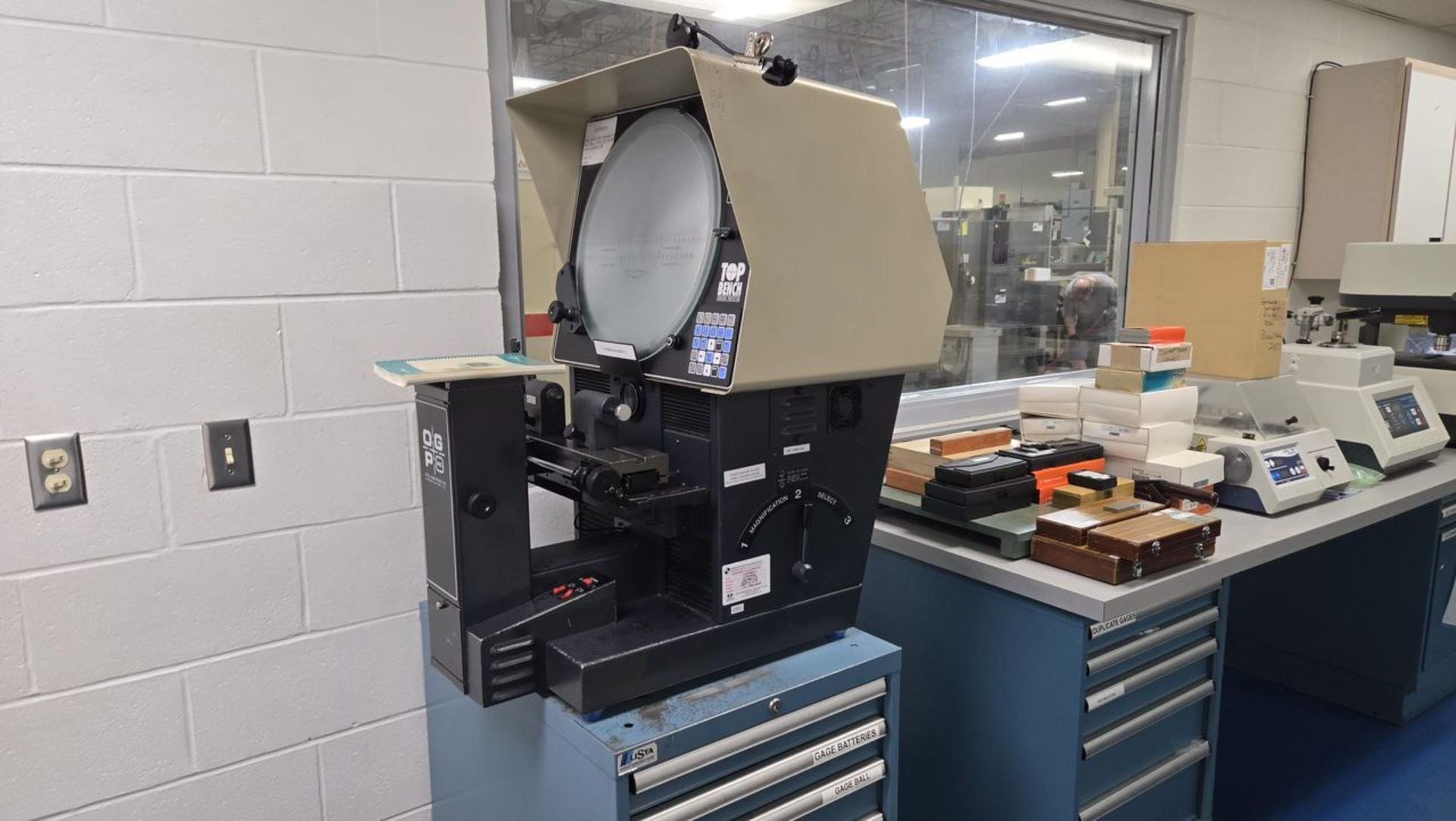

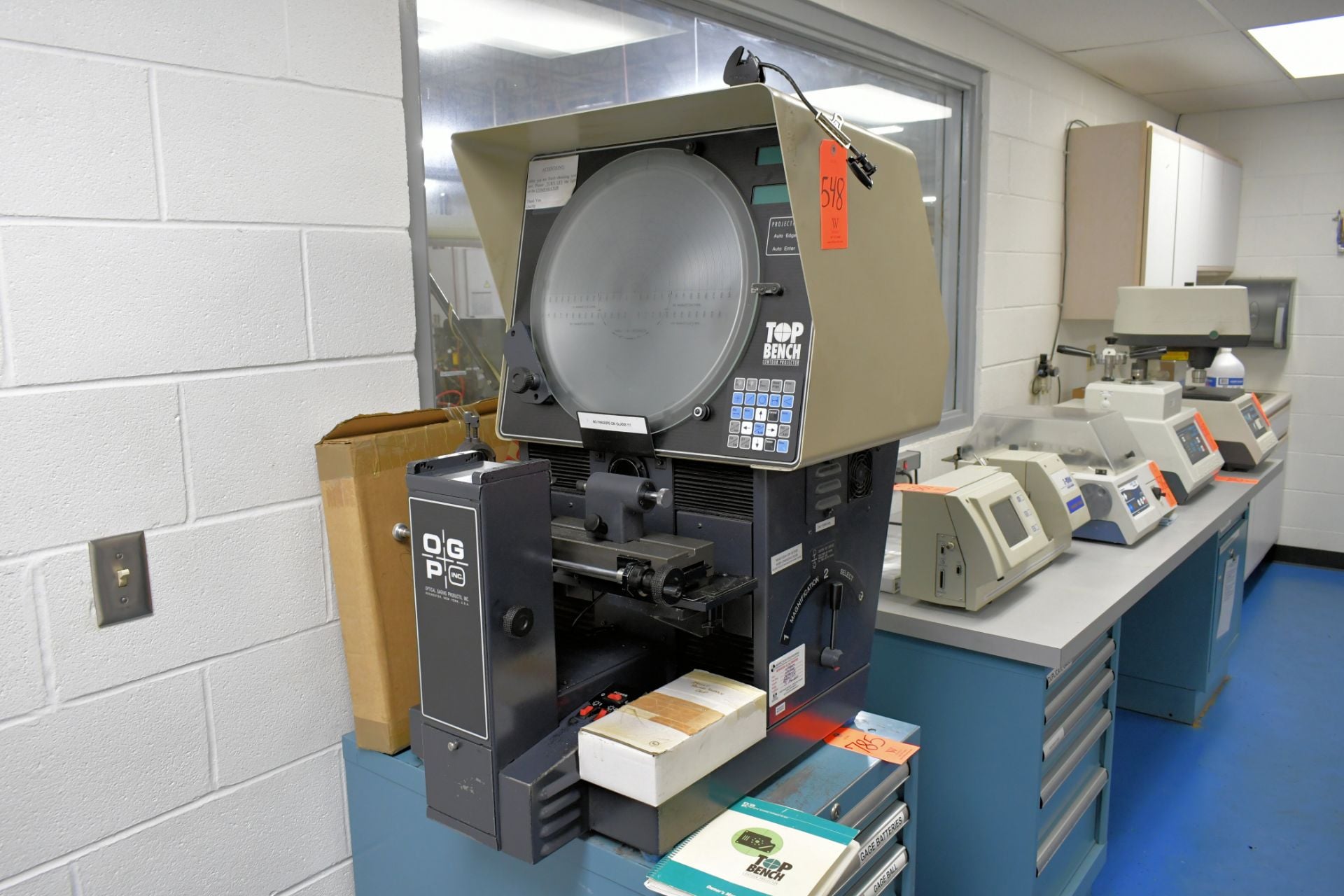

14" OPTICAL GAGING PRODUCTS (OGP)
OPTICAL COMPARATOR WITH DIGITAL READOUT
(PROGRAMMABLE GEOMETRIC FUNCTIONS)
&…"PROJECTRON IV" EDGE DETECTION
MODEL: TOP BENCH…
S/N: B08061133
MFG. APRIL, 1995
SPECIFICATIONS:
SCREEN DIAMETER ............... 14"
TABLE SIZE: ................... 4-3/8" X 17-3/4"
MEASURING CAPACITY
-LONGITUDINAL TABLE TRAVEL .... 8"
-VERT. TABLE TRAVEL ........... 6"
TABLE LOAD CAPACITY ........... 55 LBS.
ANGULAR MEASURING CAPACITY ....″60° CHART ROTATION
IMAGE TYPE .................... FULLY CORRECTED/ERECT
FLOOR SPACE ............ 24" L-R x″6" F-B x 41" HIGH
APPROX. WEIGHT ................ 450 LBS
EQUIPMENT:
BUILT IN…"OGP" GEOMETRIC DIGITAL READOUT
SYSTEM w/PROGRAMMABLE GEOMETRIC FUNCTIONS
OGP…"PROJECTRON IV" EDGE DETECTION
BUILT IN SURFACE ILLUMINATION

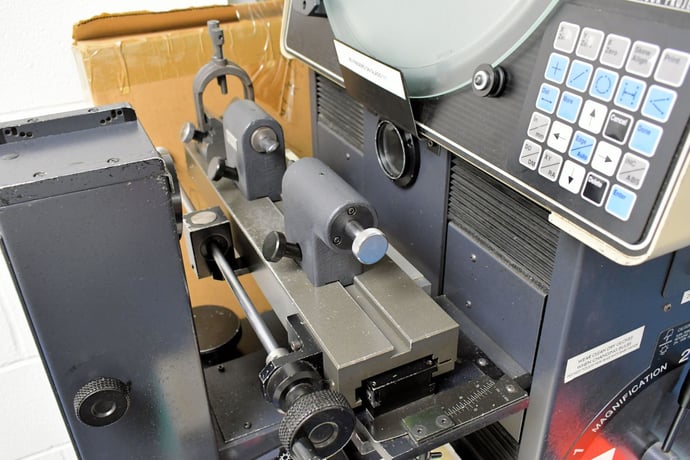

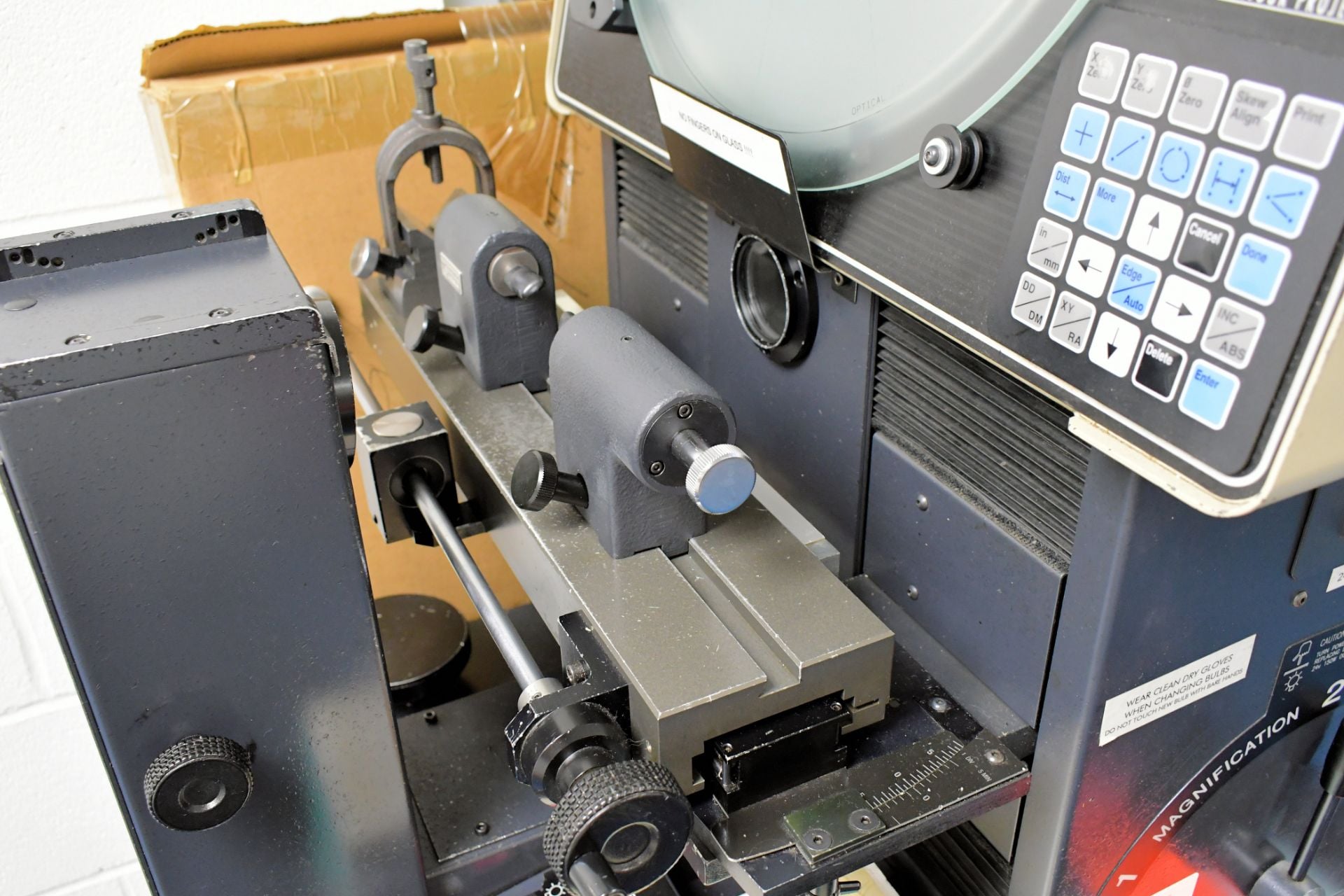

MANUAL TABLE TRAVERSE
DIGITAL ANGLE DISPLAY
THREE POSITION LENS TURRET
COMES WITH 10X, 20X… 50X LENSES
TUNGSTEN HALOGEN PROJECTION
1,200 PEAK WATTS
350 CONTINUOUS WATTS
ELECTRICAL - 1/60/115 VOLTS,″.0 AMPS
SPECIAL NOTE, CALIBRATED
LAST ON 10/24/2024 BY:
INSPECTION ENGINEERING
WESTLAKE, OH
(440) 892-9277
REPORT #2429801V3
FANATSTIC DESCRIPTION FROM OGP,
OF THIS MODEL'S UNIQUE DESIGN:
REVOLUTIONARY ACCUCENTRIC LENS SYSTEM",
(PATENTED):
"THE ACCUCENTRIC OPTICS IN TOP BENCH PRESENT
A FULLY CORRECTED, ERECT AND UNREVERSED IMAGE
OF THE HIGHEST QUALITY.… THE IMAGE ON THE
SCREEN APPEARS EXACTLY THE SAME WAY AS YOU
SEE THE PART STAGED ON THE WORKTABLE.
SO THERE'S NO WONDERING WHICH WAY TO MOVE
THE TABLETO MEASURE A DIMENSION.… YOUR
HAND-EYE COORDINATION IS NATURAL, FATIGUE
IS MINIMIZED, AND PRODUCTIVITY IMPROVED.
THE ACCUCENTRIC OPTICS IN TOP BENCH ARE FULLY
TELECENTRIC.… THIS ENSURES THAT THE
MAGNIFICATION OF THE IMAGE REMAINS ACCURATE
EVEN WHEN DIFFERENT OPERATORS FOCUS THE
SYSTEM AT DIFFERENT POSITIONS.… IT ALSO MEANS
A CONSTANT WORKING DISTANCE, OUTSTANDING
DEPTH OF FIELD, SHARP IMAGE DEFINITION AND
NEGLIGIBLE DISTORTION.
ONLY TRUE TELECENTRIC SYSTEMS CAN MAKE
THIS CLAIM.… DON'T BE FOOLED BY THOSE SYSTEMS
WITH SIMPLE OPTICS THAT PROMISE…"TELECENTRIC
ILLUMINATION". TO RECEIVE THE BENEFITS
OF TELECENTRICITY, THE ENTIRE OPTICAL SYSTEM
MUST BE DESIGNED ACCORDINGLY. OGP, WHO
INTRODUCED THE TELECENTRIC RELAY LENS
PRINCIPLE IN 1945, IS UNIQUELY QUALIFIED TO
PROVIDE THE UNSURPASSED OPTICAL QUALITY YOU
DESERVE IN A CONTOUR PROJECTOR.
OGP'S EXCLUSIVE FRESNEL LENS TECHNOLOGY
REDIRECTS ALL LIGHT TOWARDS THE NORMAL
VIEWING POSITION.… NO LIGHT IS WASTED,
AND YOU GET THE BRIGHTEST, MOST EVENLY
ILLUMINATED IMAGE IN THE INDUSTRY.
THROUGH-THE-LENS SURFACE ILLUMINATION
DELIVERS BRIGHTER, MORE EVENLY ILLUMINATED
IMAGES THAN THE…"HIGH INTENSITY" FIBER OPTICS
FOUND ON OTHER SYSTEMS. AND YOU WON'T HAVE
TO ADJUST UNWIELDY FIBER OPTIC CABLES
TOP BENCH USES A UNIQUE OPTICAL FOCUSING
METHOD THAT REMOVES THE REQUIREMENT FOR A
THIRD AXIS OF MOTION FOR THE WORKTABLE AND
INCREASES THE ACCURACY OF HORIZONTAL AND
VERTICAL MOTIONDUAL LCD DISPLAYS PROVIDE
BRIGHT, EASY TO READ COORDINATE AND GEOMETRIC
INFORMATION AND A WIDER VIEWING ANGLE THAN
LED DISPLAYS OGP'S EXCLUSIVE…"PROJECTRON IV"
AUTOMATIC EDGE DETECTION IS INTERNALLY
MOUNTED AND PERMANENTLY CALIBRATED.… YOU
WON'T HAVE TO WORRY ANYMORE ABOUT THOSE
FLIMSY OVER-SCREEN UNITS YOU FIND ON OTHER
SYSTEMS.
HELIX MOTION IS INCORPORATED WHERE IT
BELONGS, THROUGH A PIVOTING WORKTABLE.…
SAY GOOD-BYE TO THE IMPROPER ILLUMINATION
YOU GET WITH A PIVOTING LAMPHOUSE
THE HARD COATED WORKTABLE ON TOP BENCH
FEATURES 8" OR 12" OF TRAVEL AND AN INTEGRAL
DOVETAIL SLOT FOR EASY MOUNTING OF FIXTURING
ACCESSORIES.… PATENTED BEARING CONSTRUCTION
ENSURES YOU OF STRAIGHT LINEAR MOTION,
HIGH ACCURACY, AND LONG LIFE.
THE TOP BENCH SYSTEM CAN BE EQUIPPED WITH
A THREE POSITION INTERNAL LENS TURRET FOR
FAST CHANGING OF MAGNIFICATION.… THE TURRET
SENSES AND DISPLAYS WHICH MAGNIFICATION LENS
IS IN USE AND AUTOMATICALLY SETS THE CORRECT
EDGE DETECTION PARAMETERS.
THE EXCLUSIVE ACCUCENTRIC LENS SYSTEM (PATENTED)
PROVIDES AN UNPRECEDENTED 5" OF WORKING
CLEARANCE, REGARDLESS OF MAGNIFICATION.…
MAXIMUM WORKPIECE DIAMETER IS A STAGGERING
8", EVEN AT 100x!… AND SINCE ALL LENSES ARE
ENCLOSED, THERE'S NO CHANCE OF EXPENSIVE
COLLISIONS."
** EXCEPTIONAL CONDITION… APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
