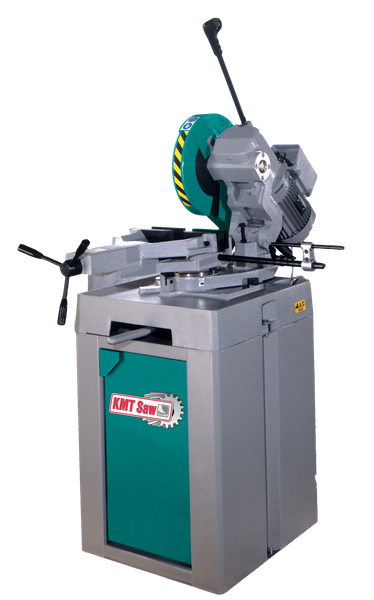

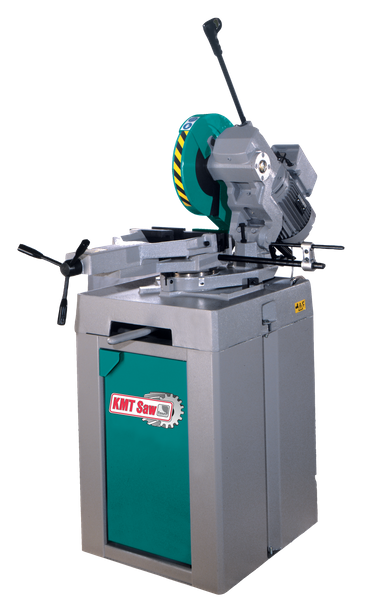

14" KMT #C-315/350, Manual Cold Saw, 6.25" Vise Opening, 30/60 RPM, 3.5 HP, 230/460 V, new

Description

Kalamazoo Machine Tool 14″ Manual Cold Saw, C 315/350

Inventory # 7848

Model: C 315/350

Made in Italy

Description:

For tubes, pipes, light structurals. Hinge type machines are generally not considered prouduction machines, but may be used in production under carefully considered applications

Specifications:

Max. Blade Size: 14″ (Ships with a 12″ Blade)

Capacity:

@ 0°:

Round: 4″

Square: 3 1/2″

Rectangle: 3 3/4″ x 5″

@ 45°:

Round: 3 3/4″

Square: 3 3/4″

Rectangle: 3 3/4″ x 3 3/4″

Vise Opening: 6 1/4″

Blade Speed: 30 / 60 RPM (Optional 24 – 105 RPM, with Single Phase)

Motor: 3.5 HP / 230v, 460v / 3ph

Standard Features:

Takes up to 14″ blade (Ships with a 12″ Blade)

Miters up to 45° right and left vise also swivels for slotting capability

Built-in flood coolant

Material stop

Storage base included

Equal clamping on both sides of vise

(1) 12″ blade included

Tool kit

Standard Equipment:

One HSS Blade

Low Voltage Control

Totally Enclosed Worm Gear Transmission

Full Coolant System

Full Blade Guarding

Operators Manual Parts List/Schematics

Mechanical Specifications:

Dimensions: 24″ x 23″ x 39 3/4″ H (Workheight)

Weight: approx. 650 lbs.

Contact us for special pricing and availability

FOB Factory

Optional Equipment:

Single Phase Motor

14″ Blade

12″ Blade
