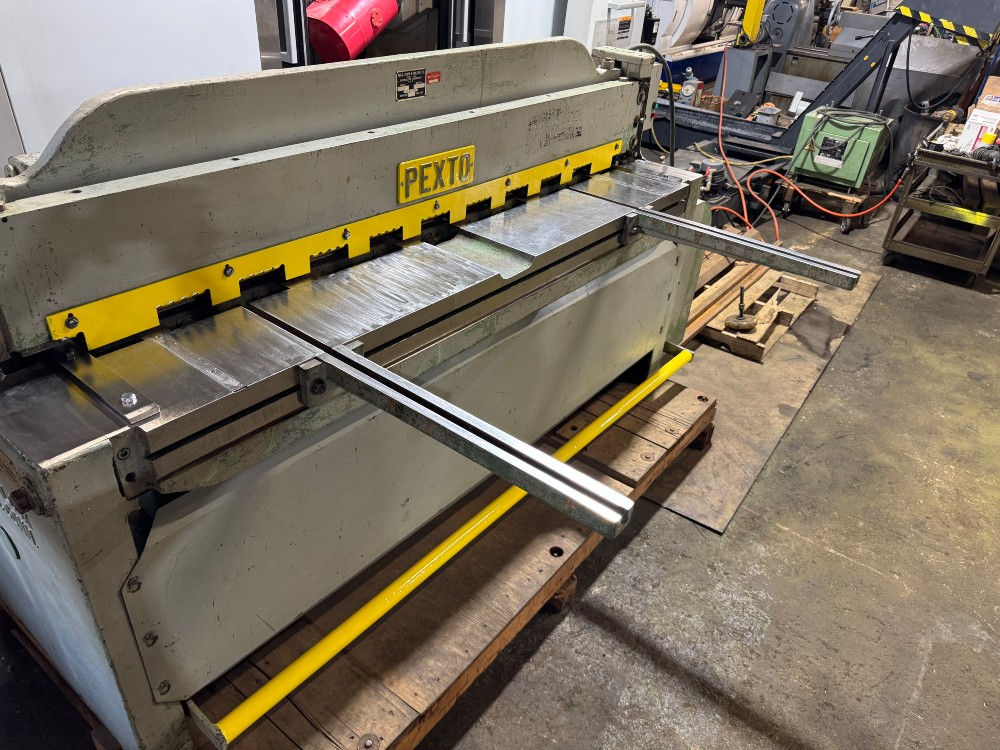

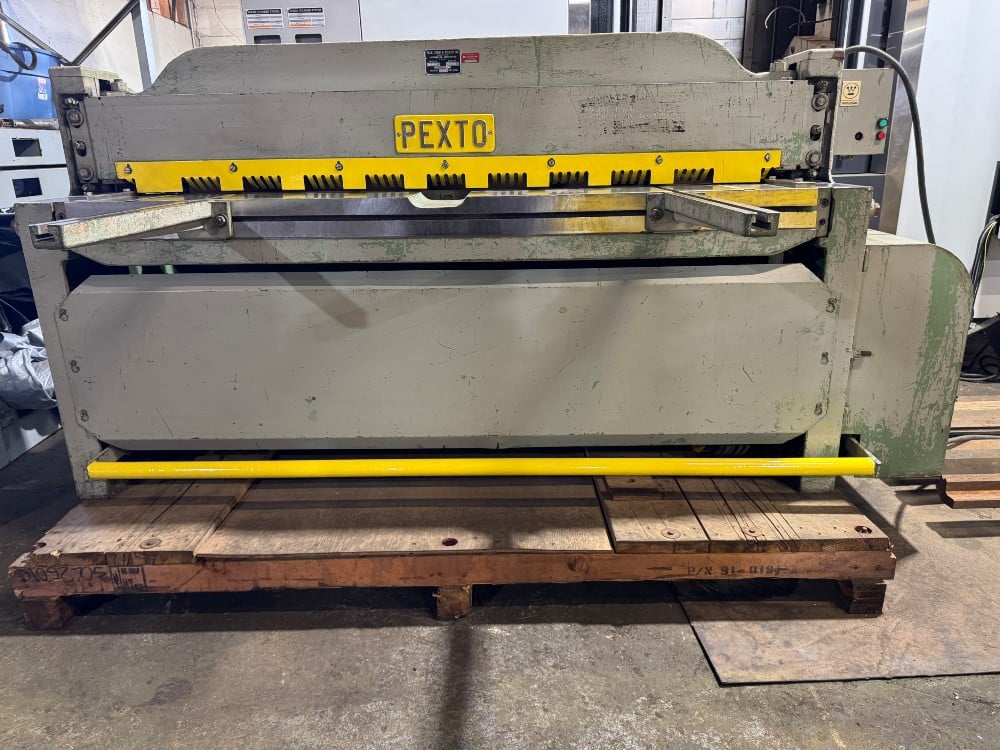

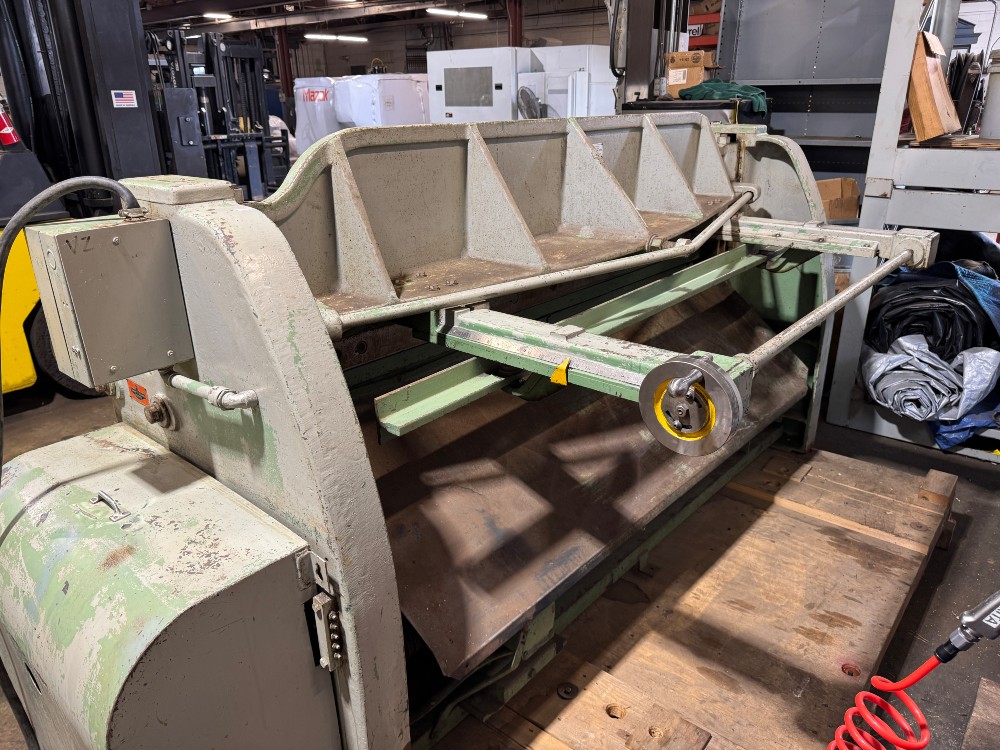

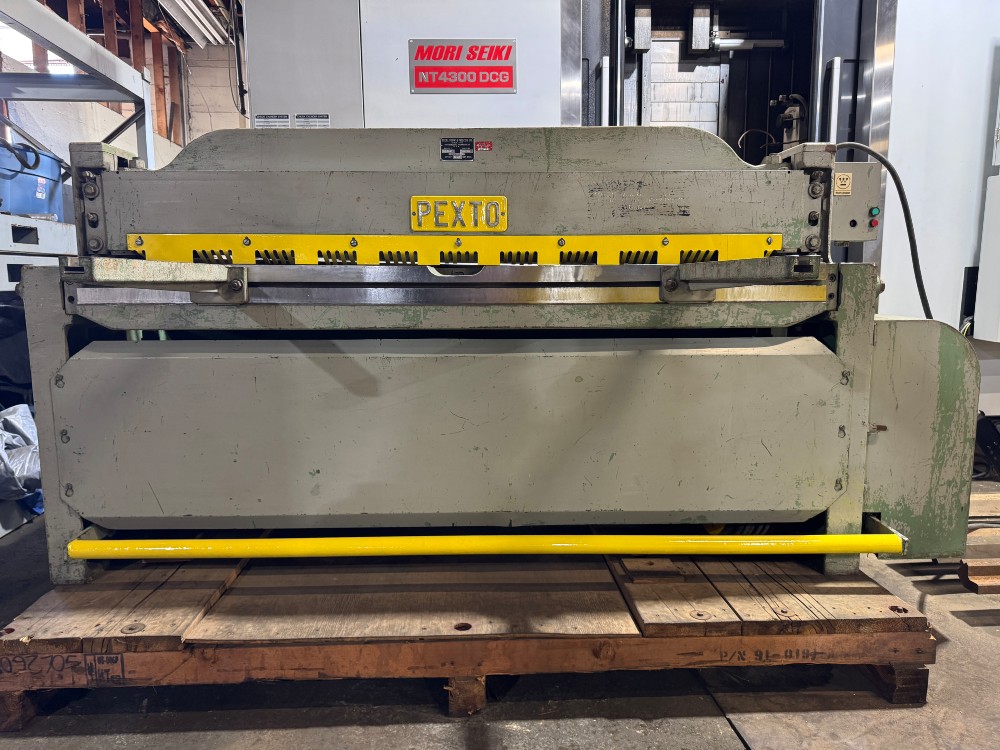

14 gauge x 6' Pexto #14-U-6F, Mechanical Power Squaring Shear, 18" back gauge, 12 hold-downs, 62 SPM, (2) 24" support arms, 3 HP, 220/440 V.

PEXTO 6’ x 14Ga. Mechanical Shear
18”ROMBG 2-24” support Arms

Stock#RM890

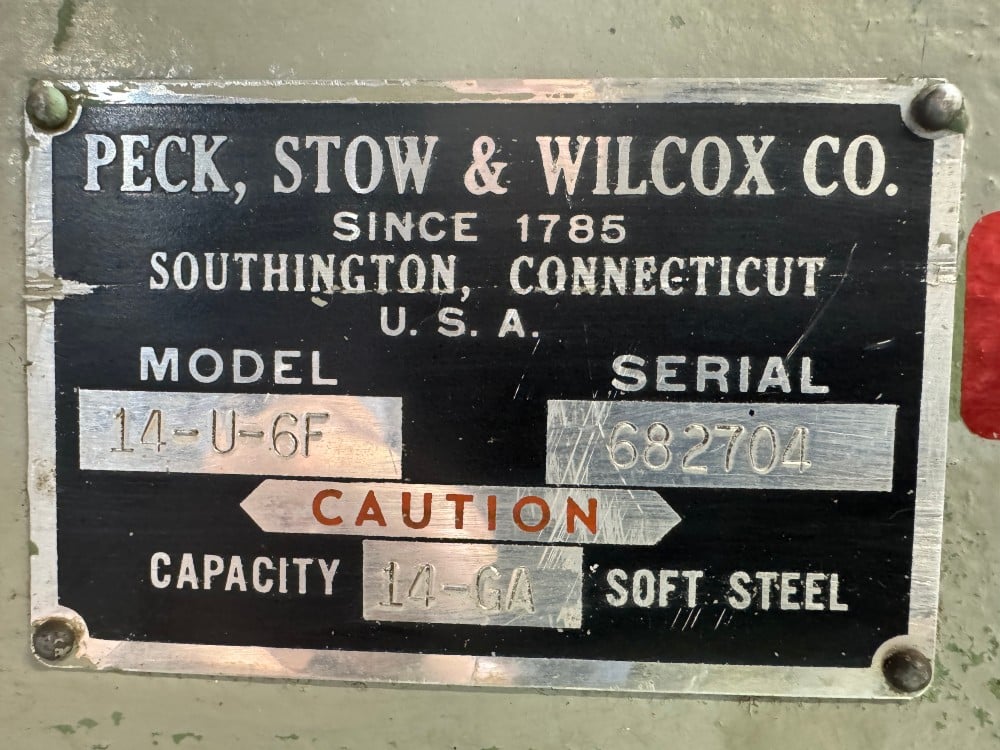

Model#14-U-6F
Serial#682704

Max. Thickness Capacity (Mild Steel) 14 Gauge (.0747")
Max. Thickness Capacity (Stainless) 16 Gauge (.0598")
Nominal Cutting Length 72 Inches (6 Feet)
Actual Knife Blade Length 73-1/2 Inches
Blade Rake Angle .312" per foot
Strokes Per Minute (SPM) Approx. 62 SPM
Floor to Top of Bed Height 34 Inches
Number of Hold-Down Clamps 12 mechanical hold-downs
Drive & Motor Specifications
• Main Motor Power: 3 HP
• Motor RPM: 1800 RPM
• Standard Factory Electricals: 220V / 440V, 3-Phase, 60Hz
• Control Configuration: Full-length mechanical foot treadle with automated spring return.

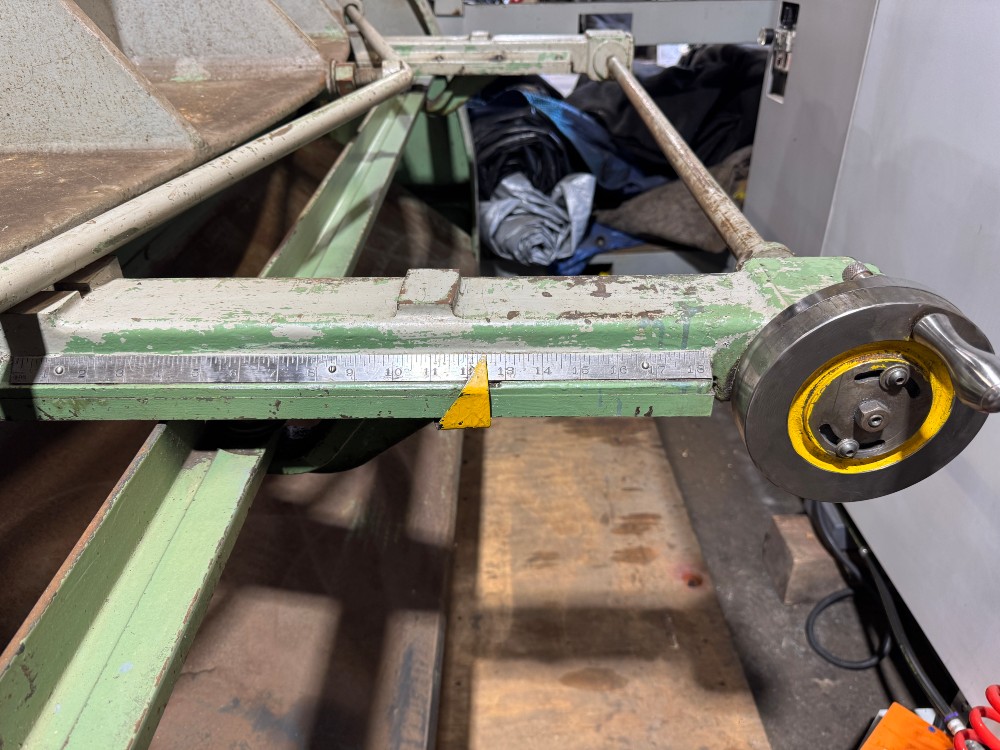

• Rear Gauge Max Range: 18 Inches
• Front Support Material: Two (2) 24" front-mounted material support arms with integrated bed-alignment slots.

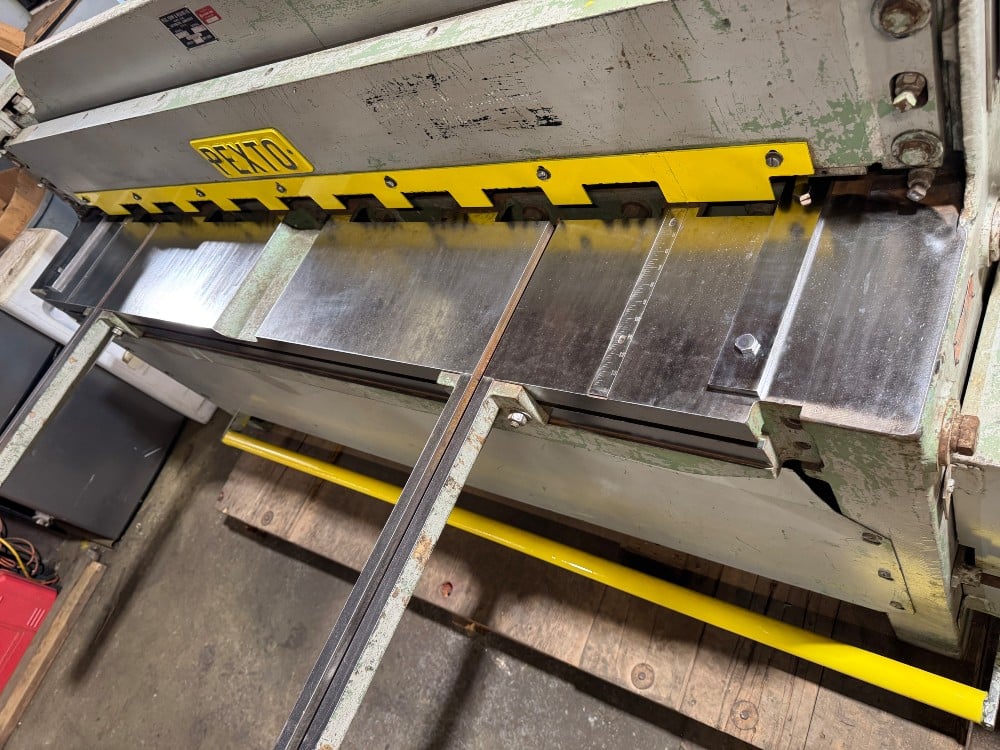

• Bed Design: Machined surface featuring standard T-slots for optional front-side squaring or bevel gauges.
Physical Footprint
• Estimated Shipping Weight: 4,000 lbs
• Approximate Floor Dimensions: 103" Long (Left-to-Right) x 55" Wide (Front-to-Back, without front arms attached) x 50" High.
