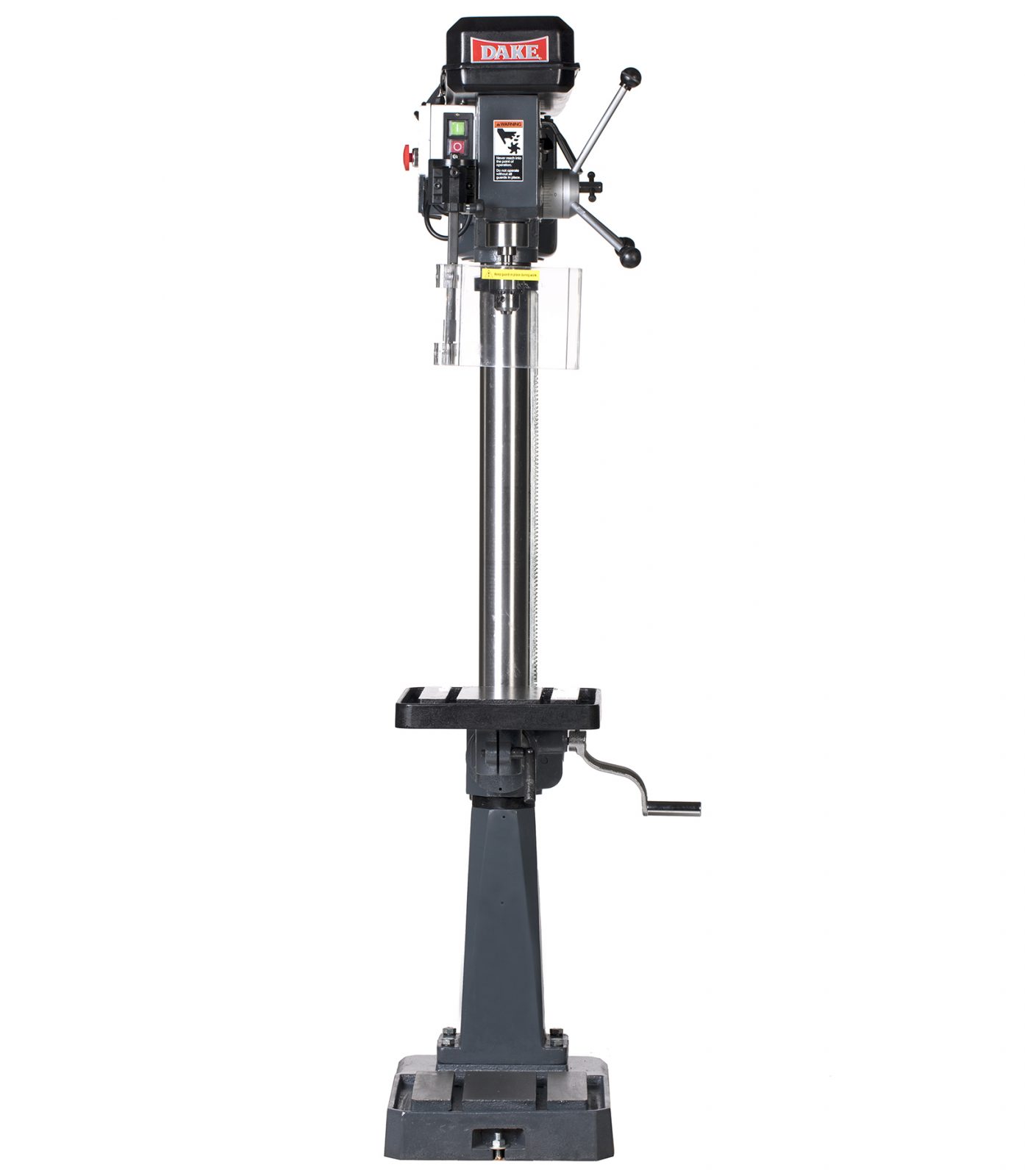

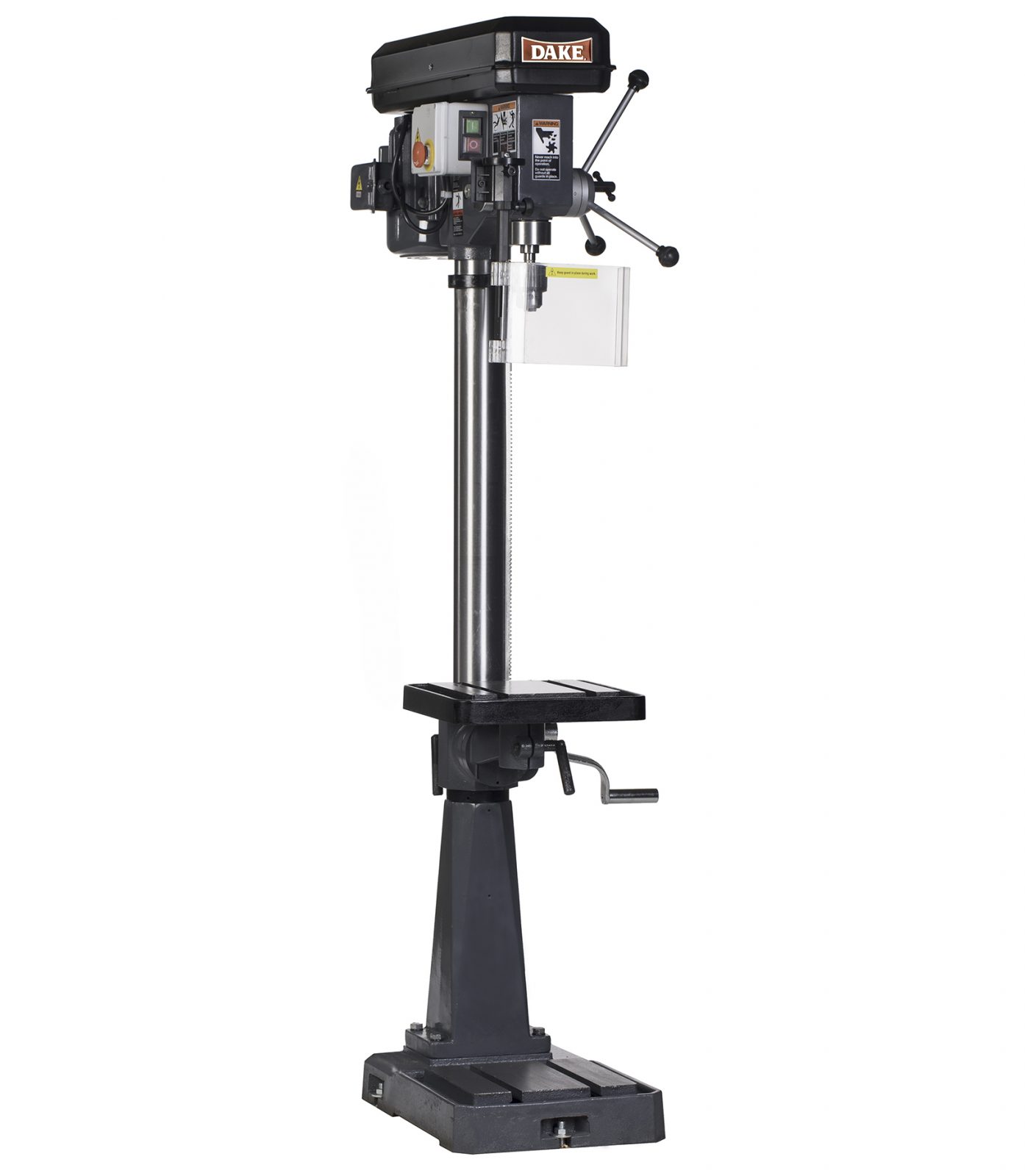

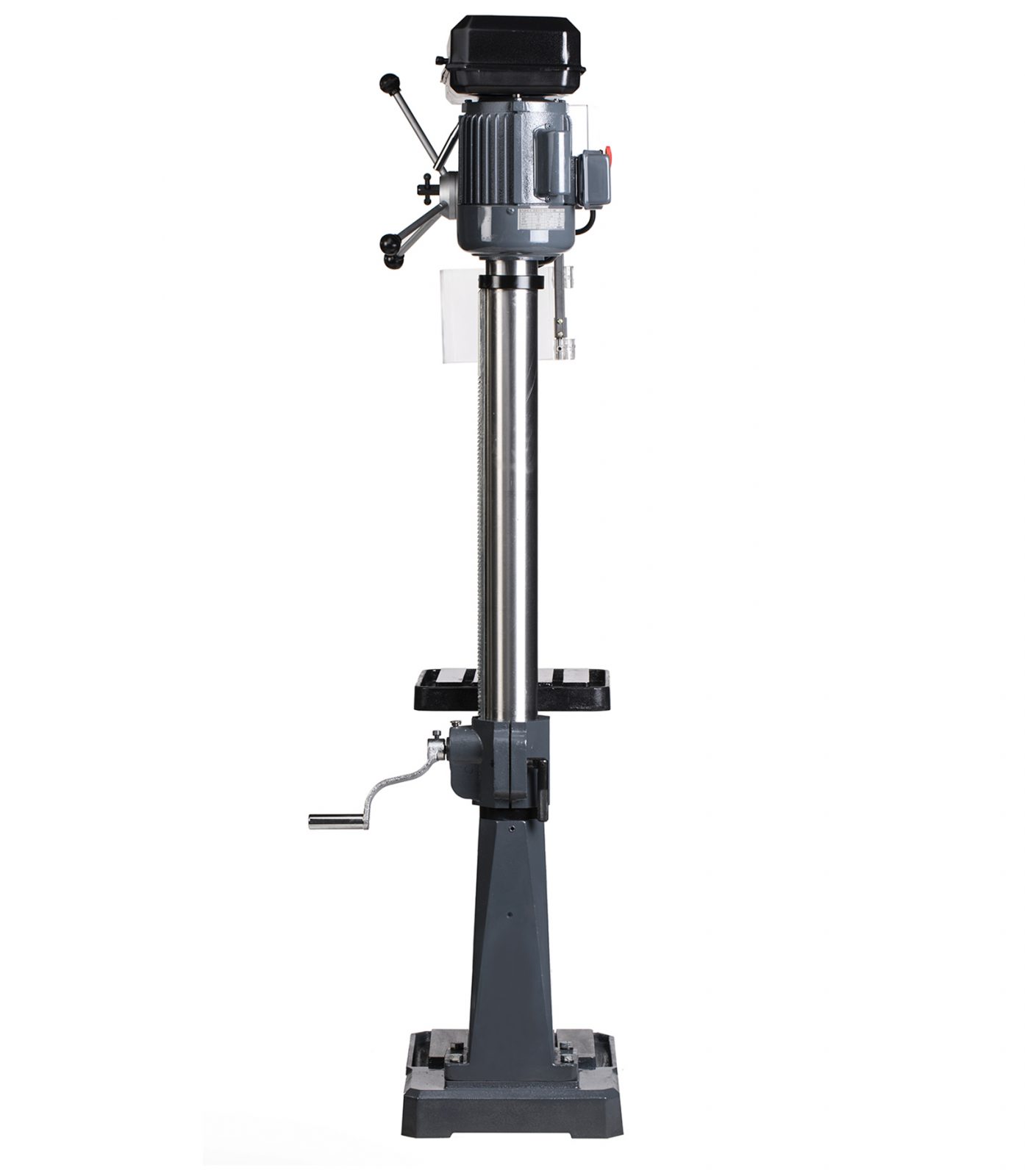

14.12" Dake #SB-16, Drill Press, 5/8" Drill capacity, 14.125" Work diameter, 11.75" x 11.75" Table, 3.125" Spindle Travel, 1/2 HP, 240-3400 RPM, 110/220/440 V, new

Description

Dake 5/8″ Drill Press, SB-16

Inventory # 6208

Model: SB-16

P/N: 977200

Specifications:

Drill Capacity: 5/8″

Spindle Taper: M.T. # 2

Working Diameter: 14 1/8″

Number of Speeds: 9

Spindle Speed: 240 – 3,400 RPM

Spindle Travel: 3 1/8″

Column Diameter: 3 1/8″

Table Depth: 11 3/4″

Table Width: 11 3/4″

Spindle to Table: 28 1/2″

Spindle to Base: 49 1/4″

Motor: 1/2 HP / 110v, 220v, 440v / 1ph OR 3ph (Please Specify Desired Voltage at Time of Order)

Standard Features:

A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes

Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation

Bench and floor models both have machined table and base surfaces with t-slots for mounting and fixturing

Quick release belt tensioning for fast, easy speed changes

CE safety electrical package features push button on/off switch, emergency stop button, low voltage controls, thermal overload, and interlock safety switch for belt cover

Massive cast head, machined column, and sturdy cast base reduces vibration

Quick bit changes with standard Morse Taper (M.T.), common adapters or standard keyed chuck

Handle has 3 spokes with spring return for precise operator control and ergonomic operation

Standard Equipment:

1/2″ keyed chuck

Drift for bit removal

Plexiglas chip and chuck guard

Mechanical Specifications:

Dimensions: 12 1/2″ x 19 5/8″ x 64″ H

Weight: approx. 230 lbs.

FOB Factory – Contact us for Availability
