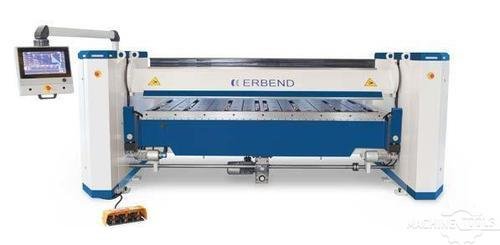

126" Erbend #MFD-3220, Folding Machine, 14 gauge max Thickness, 2020

Spec

Max Thickness: 0.078″
Max Thickness (gauge): 14 gauge
Overall Length: 10.49′
Dimensions: 98.4” / 175.19” / 74.80″
Weight: 12,500 lbs
Model: MFB 3220
Maximum foldable sheet length: 10.49 ft (3220 mm)
Maximum thickness capacity: 0.078” (2 mm, 14 gauge steel)
Clamping beam (Z Axis):
Opening height (no tools): 6.3 in (160 mm)
Clamping speed: 2.36 in/sec

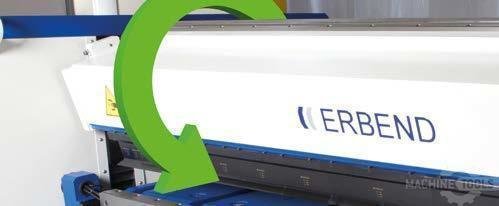

Folding beam (Y Axis):
Folding angle: 0–150°
Folding speed: 65°/sec
Folding beam adjustment (A Axis): 1.37” (35 mm) – manual
Back gauge system (X Axis):
Speed: 9.8 in/sec
Min/max gauging: 0.078” – 39.37” (2–1000 mm)
Rotation of clamping beam (C Axis): rotational speed 20°/sec
Beam tooling: sharp nose and goats foot tooling included
Back gauge & sheet support: 1000 mm servo arms, sheet support table with ball casters
Controller: ERFOLD Basic CNC line-by-line touchscreen
Safety features: 3-step foot pedal with panic function, front light barriers, LED status lights

Description

Erbend MFC 3230 is a folding machine line from Mac-Tech, which was founded in 1984 to provide premium Metal fabricating machinery and services to the manufacturing community. This new line is an exciting offering that brings great value and performance to our customers. We utilized a common platform of software, CNC and electronics that our press brake products use for efficient support and training. Metal folding has been a part of our company history for over 30 years and Mac Bend is offered with great pride, knowledge and support. Thank you for your consideration and keep on bending America!
