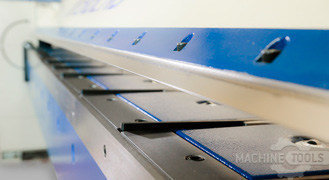

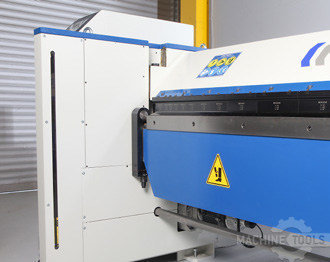

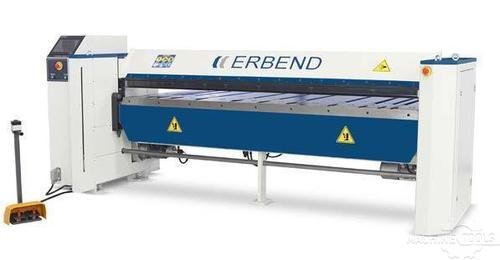

126" Erbend #MFC-3230, Folding Machine, 16 gauge max Thickness, 2020

Spec

Max Thickness: 0.059″
Overall Length: 10.5′
Dimensions: 53″ x 165″ x 66.9″
Weight: 4739 lbs
Control: CNC (Erfold
Model: MFC 3215
Maximum sheet length: 10.49 ft (3220 mm)
Maximum thickness (full length): 16 gauge steel
Material capacity:
Mild steel: 16g
Stainless steel: 19g
Aluminum: 0.10”
Clamping beam (Z Axis):
Opening height (no tools): 4.72 in (120 mm)
Geometry: 35°
Drive power: 1 hp (750 W)
Folding beam (Y Axis):
Drive power: 2 hp (1500 W)
Folding angle: 0–135°
Folding beam adjustment (A Axis): height 1.38 in (35 mm)
Back gauge system (X Axis):
Drive power: 0.5 hp (400 W)
Min/max gauging: 0.024–29.53 in (6–750 mm)
Dimensions (WxLxH): 53.15” x 165.35” x 66.93”
Weight: 4,739 lbs

Description

Erbend MFC 3230 is a folding machine line from Mac-Tech, which was founded in 1984 to provide premium Metal fabricating machinery and services to the manufacturing community. This new line is an exciting offering that brings great value and performance to our customers. We utilized a common platform of software, CNC and electronics that our press brake products use for efficient support and training. Metal folding has been a part of our company history for over 30 years and Mac Bend is offered with great pride, knowledge and support. Thank you for your consideration and keep on bending America!
