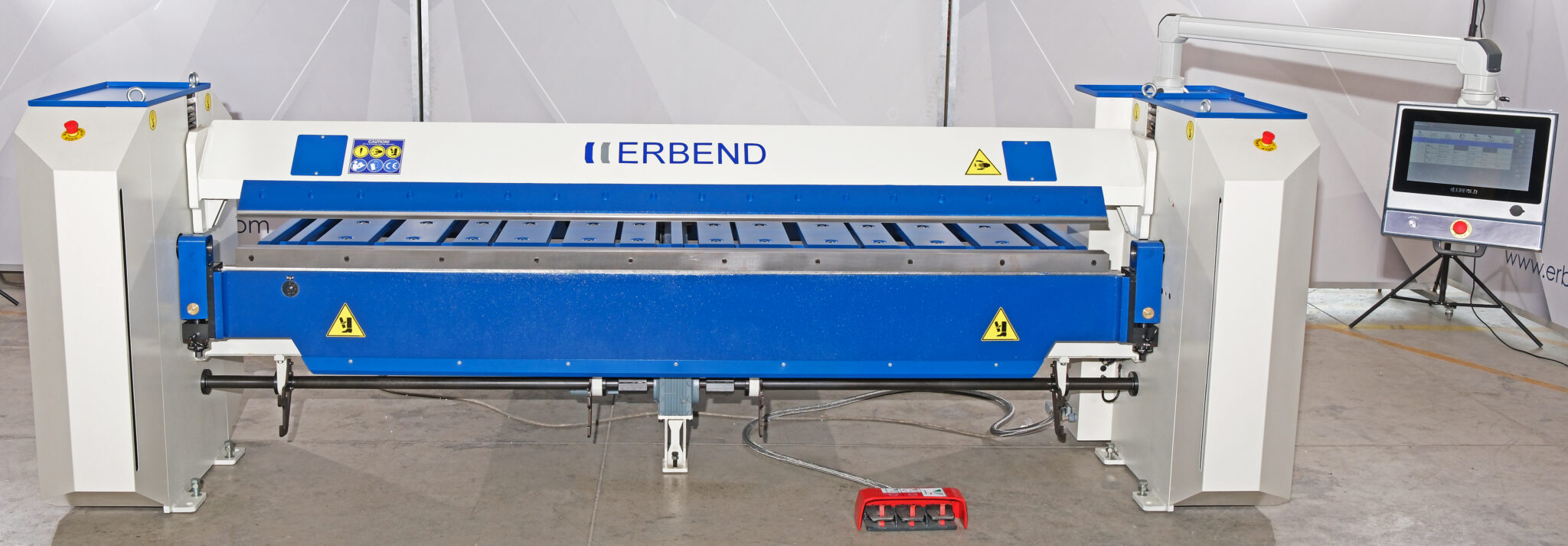

126" Erbend #MFC-3215, CNC Folder, 16 gauge, 4.72" Open Height (No Tools), 1.38" Beam Adjustment, new

Description

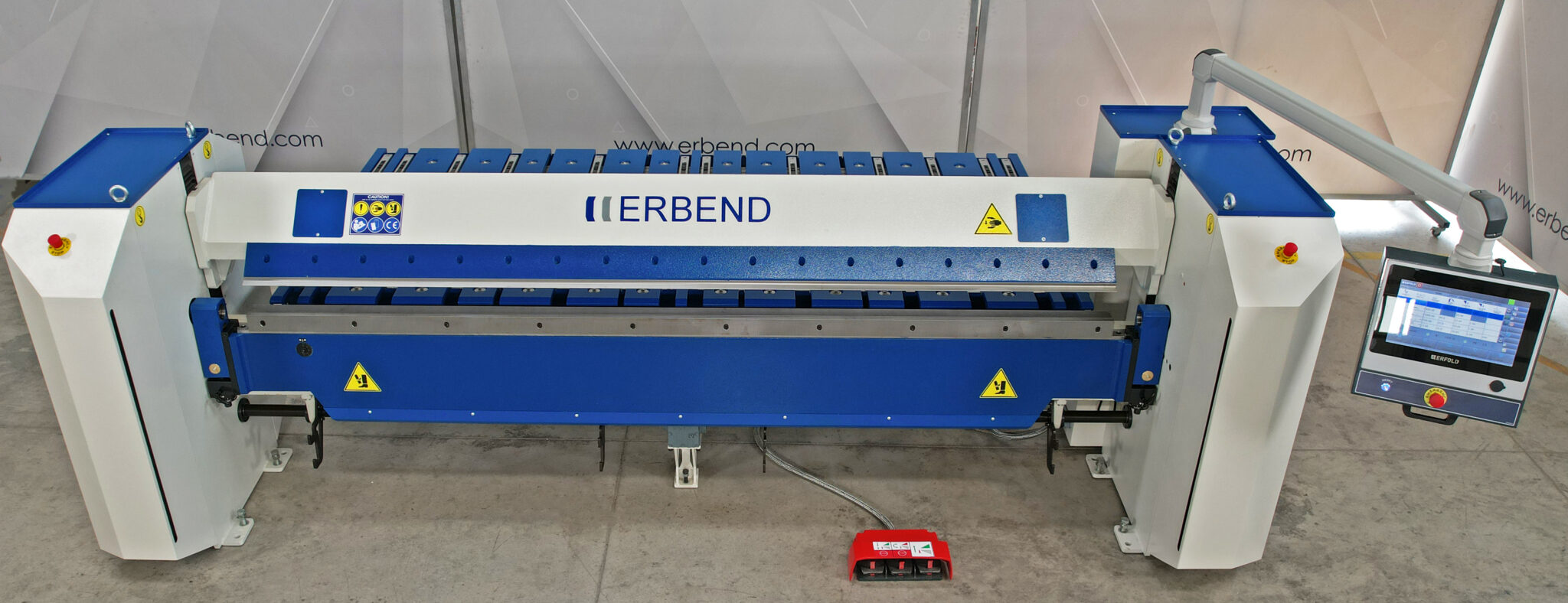

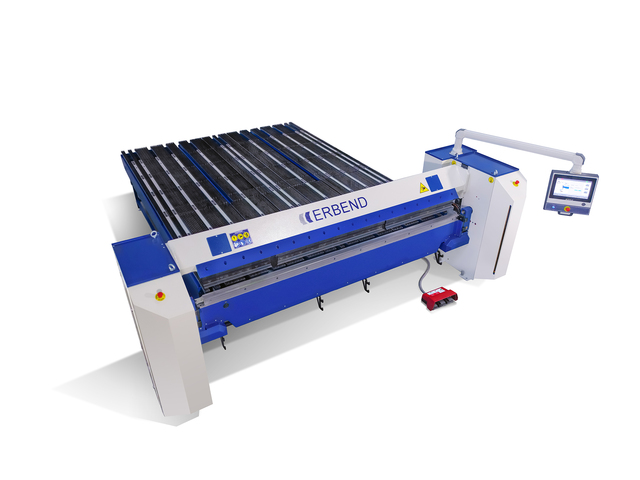

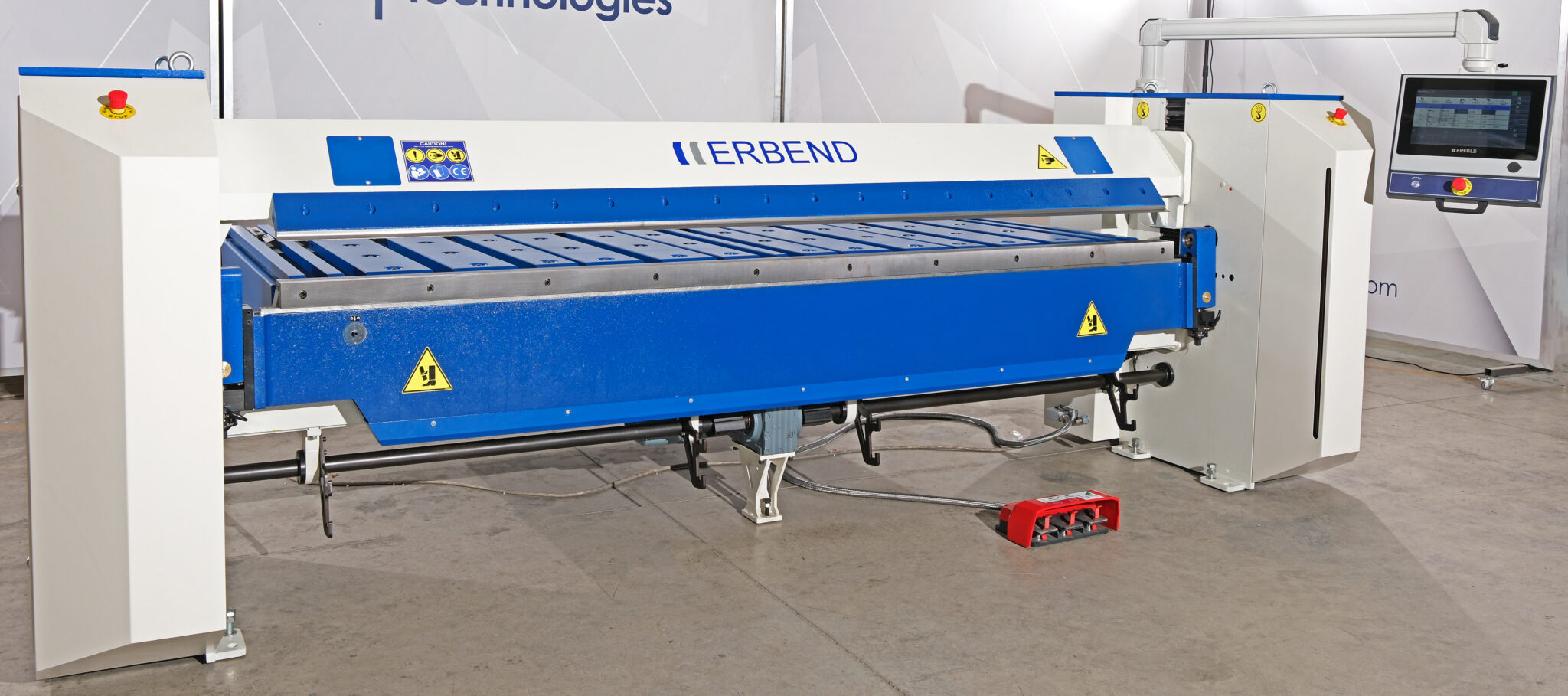

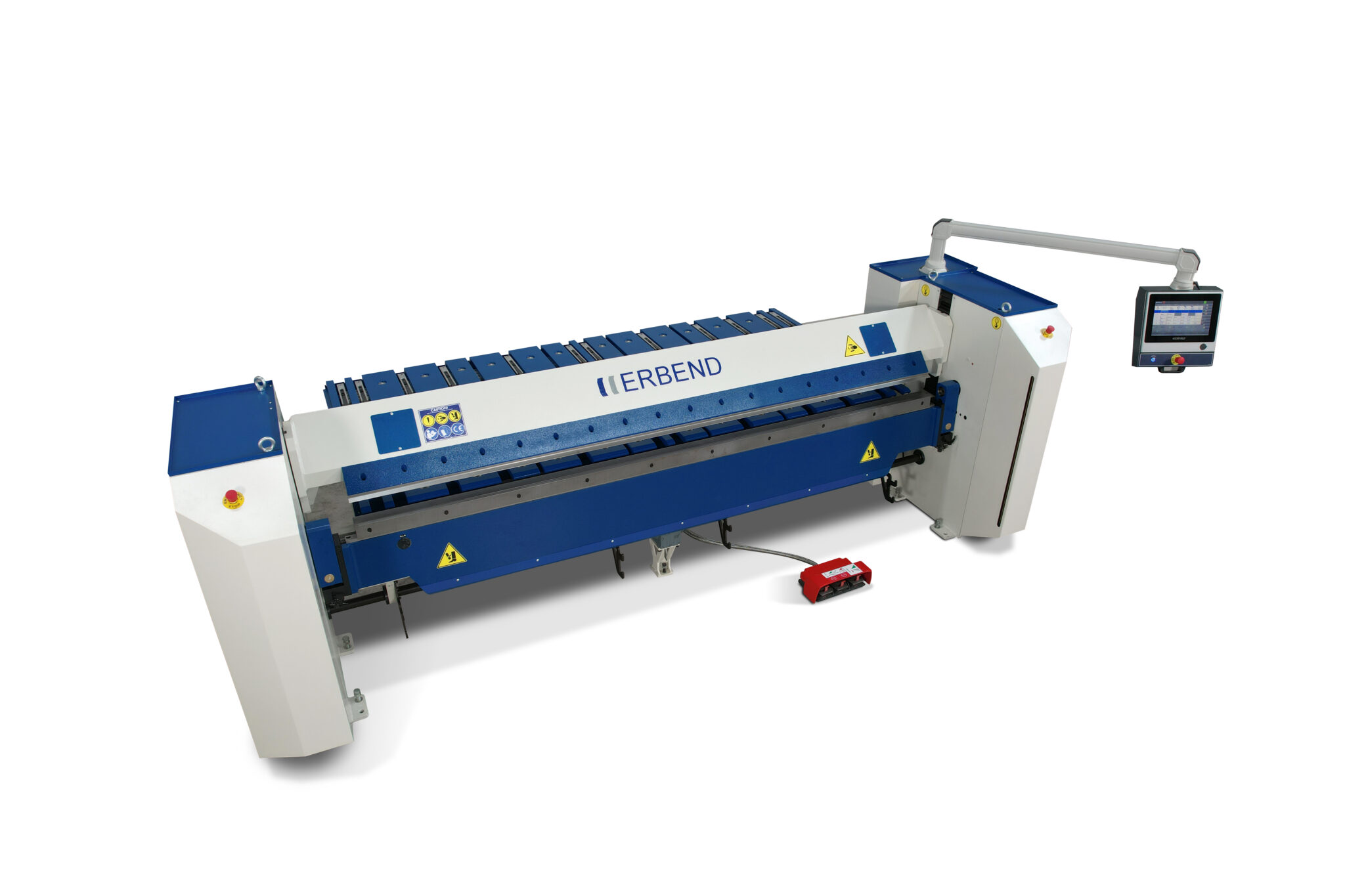

Erbend 10′ x 16 Gauge CNC Folder, MFC 3215

Inventory # 9698

Model: MFC 3215

Made in Turkey

Specifications:

Max. Sheet Length: 126″ (3,200mm)

Capacity:

Mild Steel: 16 Gauge (1.5mm)

Stainless Steel: 20 Gauge (1mm)

Aluminum: 14 Gauge (2mm)

Clamping Beam (Z-Axis):

Drive Power: 1.1 HP

Opening Height (No Tools): 4.72″ (120mm)

Clamping Speed: 2 3/4″ /Sec.

Folding Beam (Y-Axis):

Drive Power: 2.2 HP

Folding Speed: 75° /Sec.

Folding Beam (A-Axis):

Drive Power: 1.1 HP

Adjustment Height: 1.38″ (35mm)

Backgauge System (X-Axis):

Drive Power: 0.4 HP

Gauging: 0.024″ Min. to 29.53″ Max.

Electrics: 480v / 3ph

Rated Power: 3.93 kW (5.27 HP)

Standard Features:

AC motorized drive X, Y, Z, C-Axis (clamping, folding, back gauge, and clamp rotation)

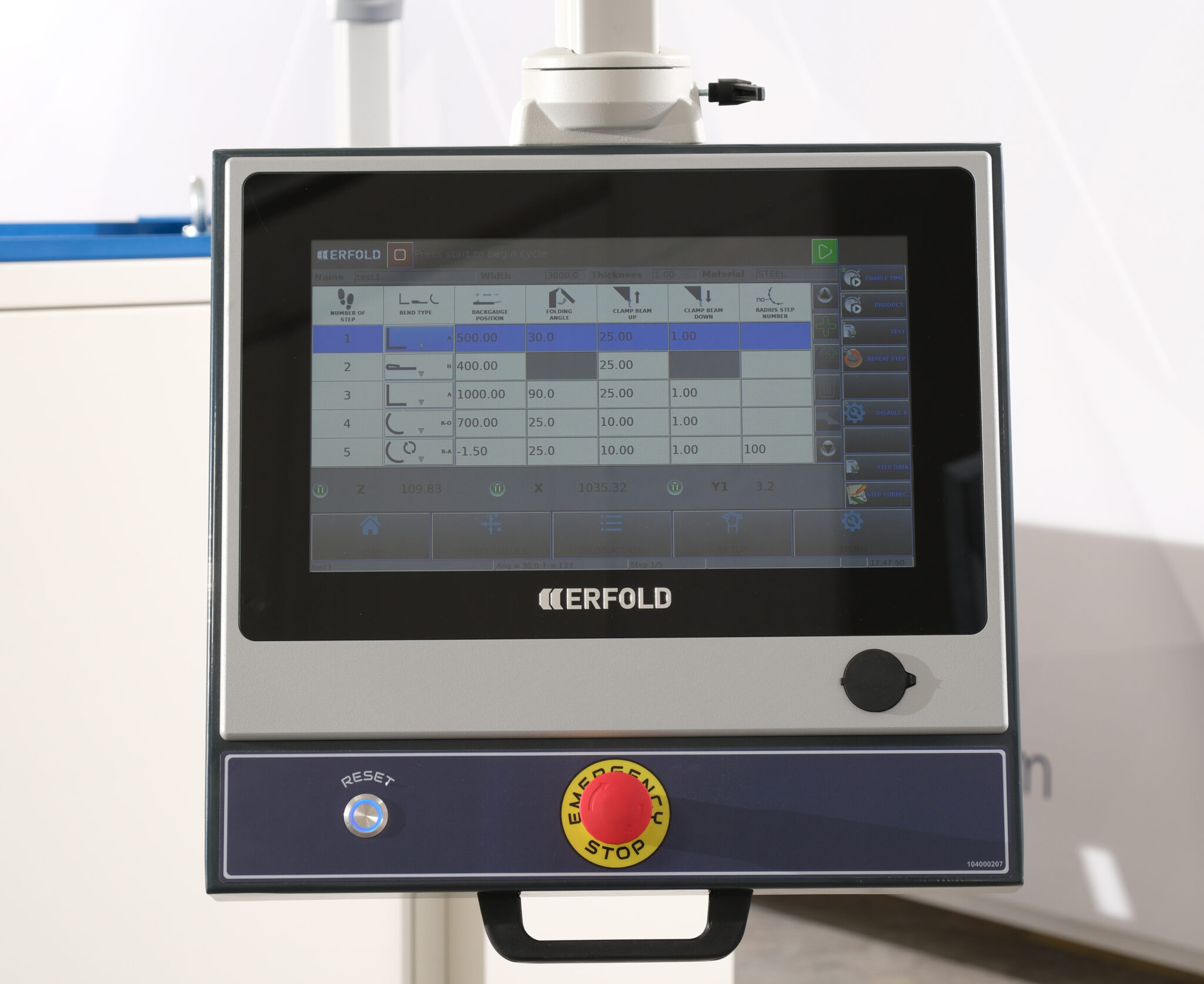

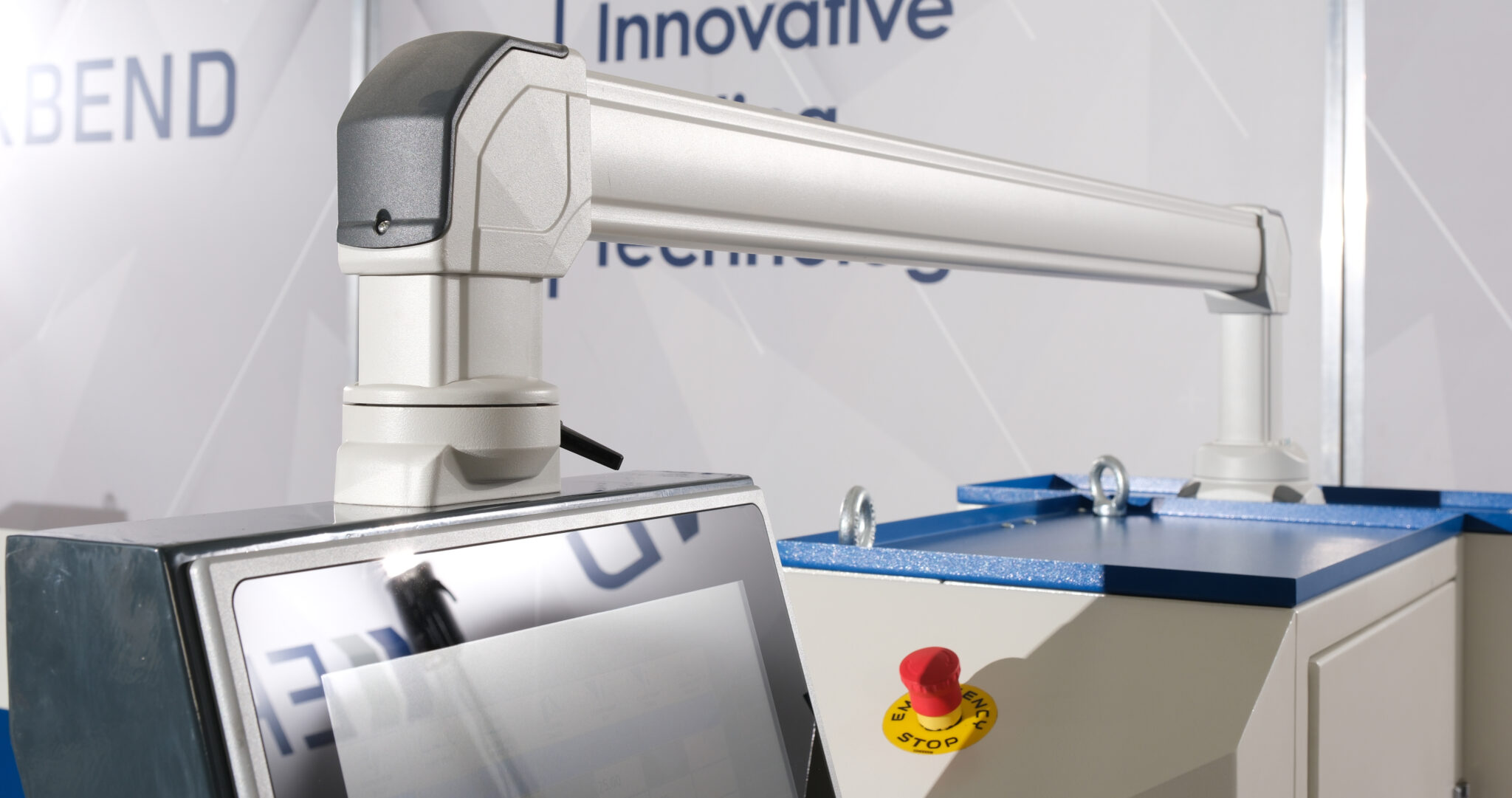

15.6″ touchscreen ERFOLD BASIC CNC line by line and 2D software control

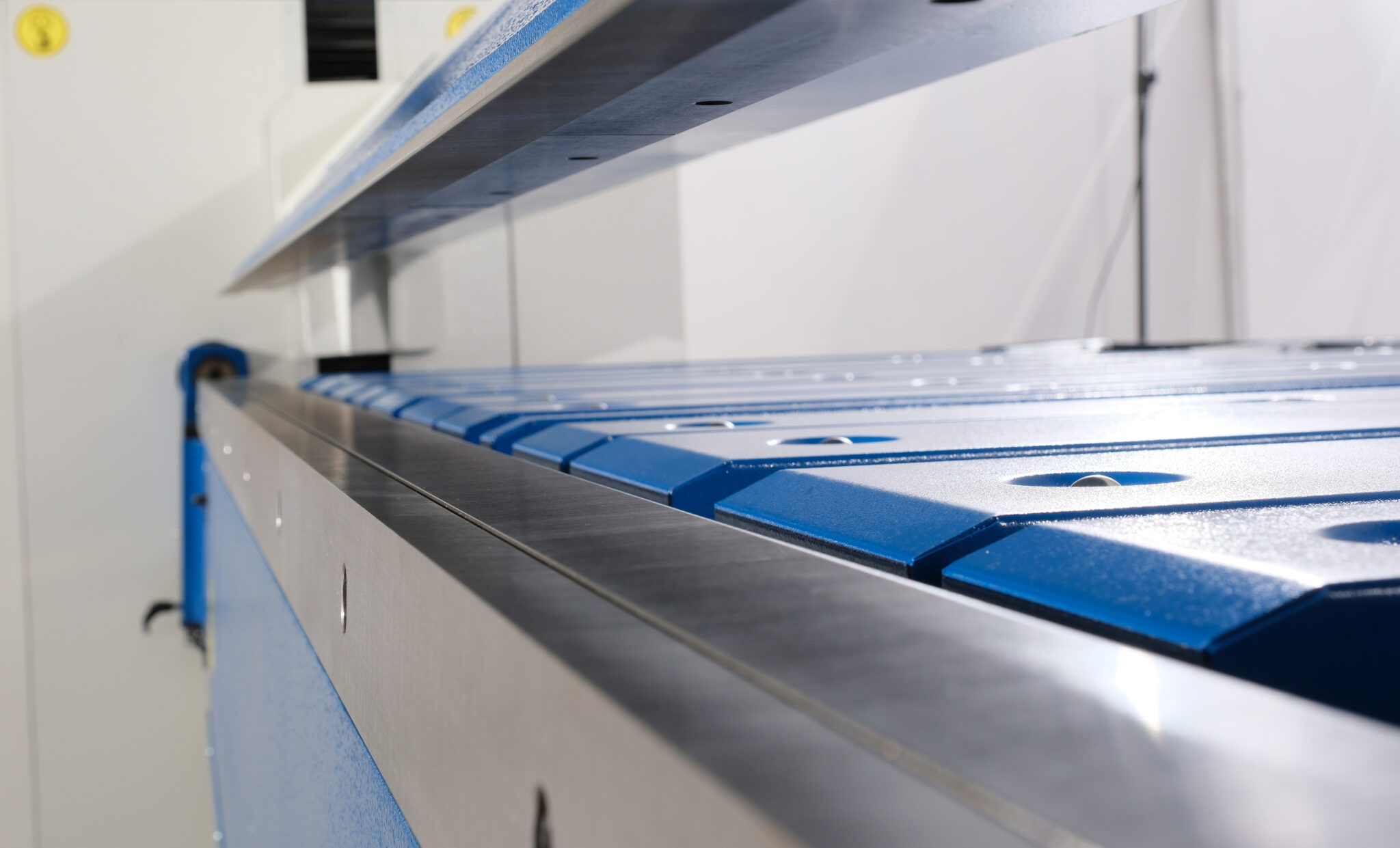

Flat rail bottom beam tool for feather grooves

Clamping beam open height of 6.29″ (160mm) without tooling

3 1/2″ (90mm) goats foot tools on station one

R1 or 20° sharp nose clamping beam tools on station two

Folding beam tools, two sets: .59″ (15mm) & .98″ (25mm)

Manual folding beam adjustment 1.37″ (35mm) (A-Axis)

Front horizontal light barriers

LED function lights (red, green, & blue)

Three switch foot pedal

Equipment Included:

ERFOLD Advanced 2D Graphical Control

Manual Mechanical Crowning System

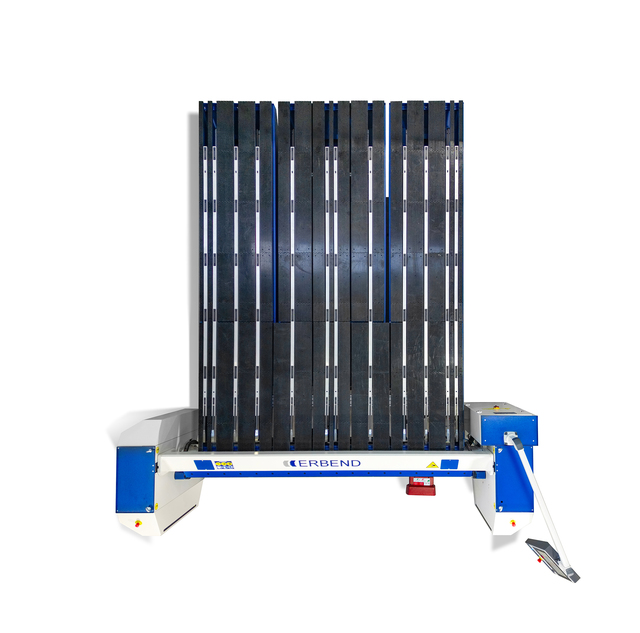

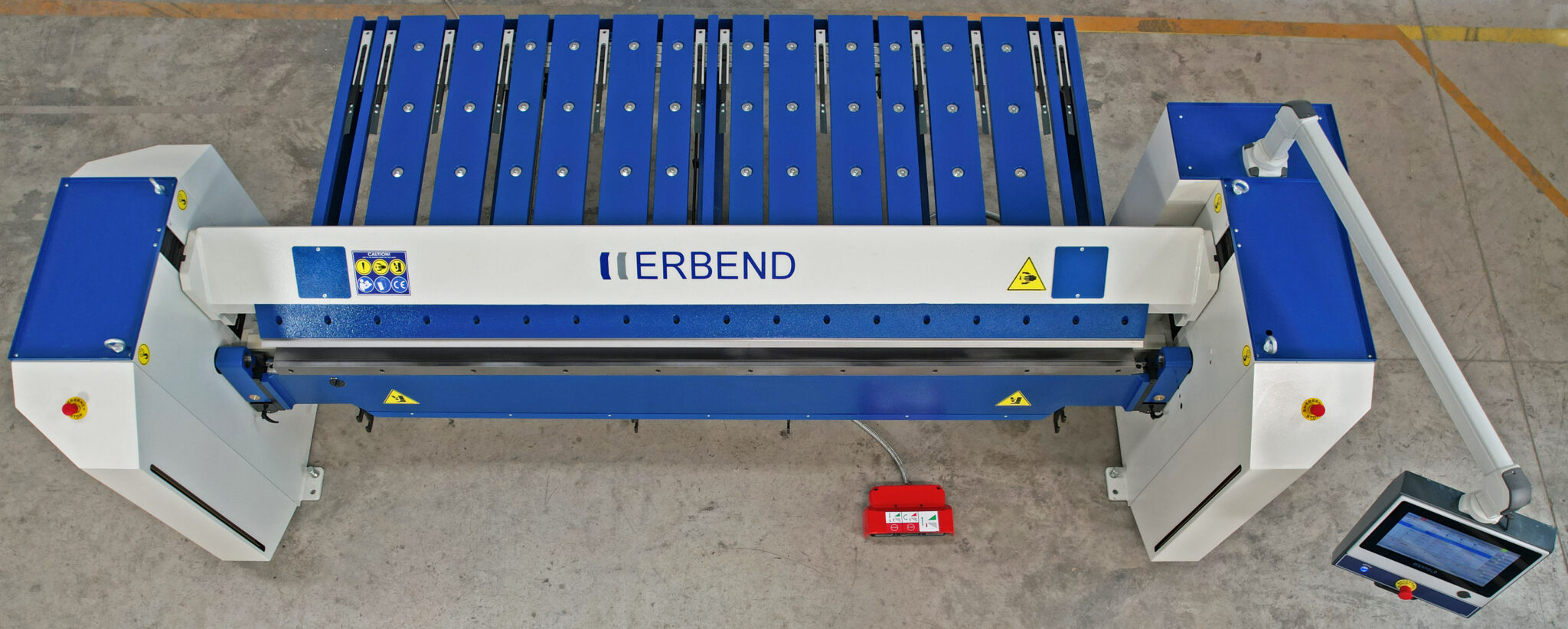

36.37″ (1,000mm) Motorized Back Gauge and Sheet Support Table with Ball Casters

Mechanical Specifications:

Dimensions: 175″ x 88″ x 73″ H

Weight: approx. 6,950 lbs.

FOB Factory – Contact us for Pricing and Availability
