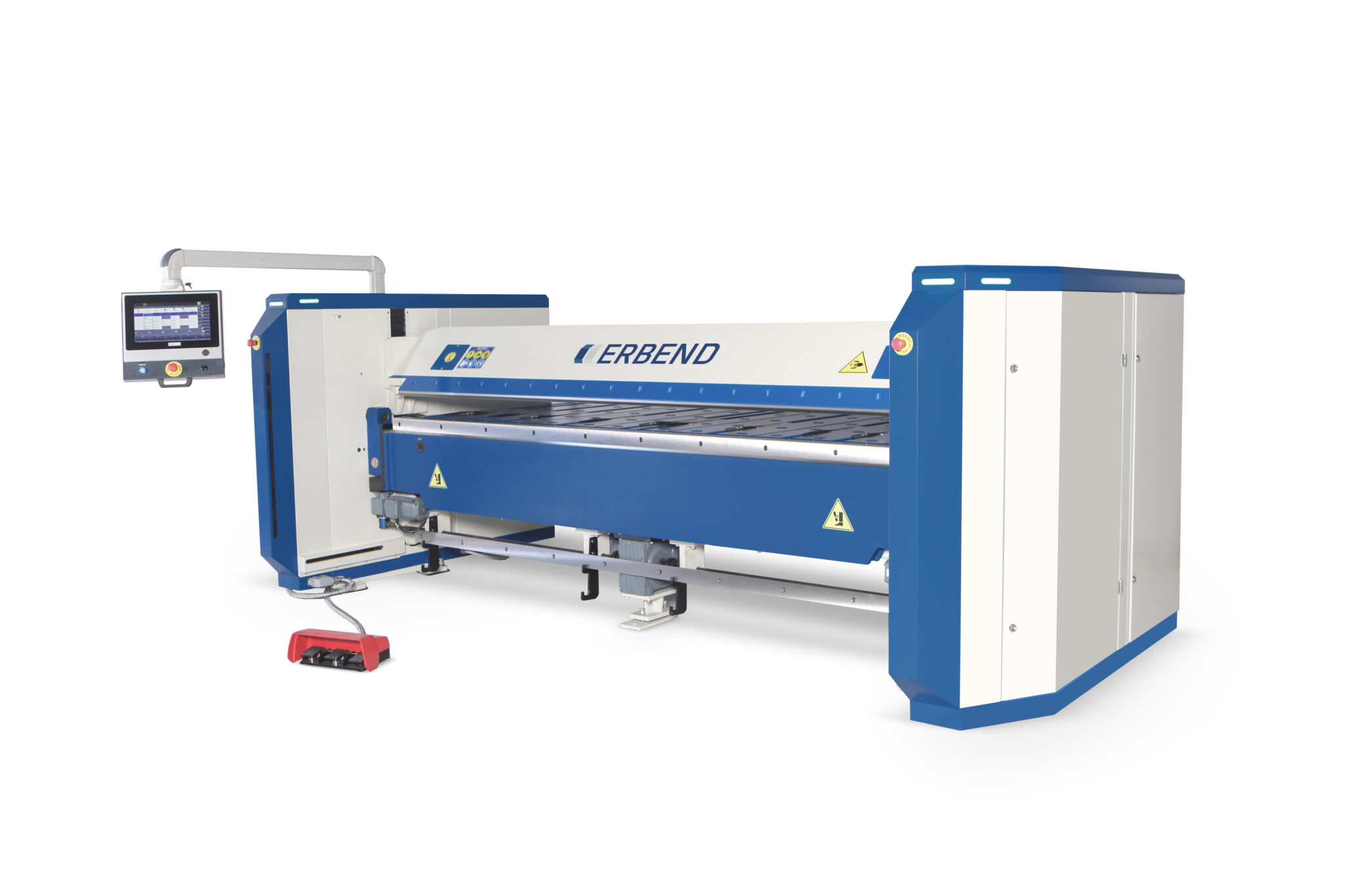

126" Erbend #MFB-3220, CNC Folder, 14 gauge, 6.3" Open Height (No Tools), 1.38" Beam Adjustment, new

Description

Erbend 10′ x 14 Gauge CNC Folder, MFB 3220

Inventory # 9699

Model: MFB 3220

Made in Turkey

Specifications:

Max. Sheet Length: 126″

Capacity:

Mild Steel: 14 Gauge (2mm)

Stainless Steel: 18 Gauge (1.2mm)

Aluminum: 11 Gauge (3mm)

Clamping Beam (Z-Axis):

Drive Power: 2 HP

Opening Height (No Tools): 6.3″ (160.02mm)

Clamping Speed: 2.36″ /Sec.

Folding Beam (Y-Axis):

Drive Power: 4 HP

Folding Angle: 0 – 150°

Folding Speed: 65° /Sec.

Folding Beam Adjustment (A-Axis):

Adjustment Height: 1.37″ (35mm)

Adjustment: Manual

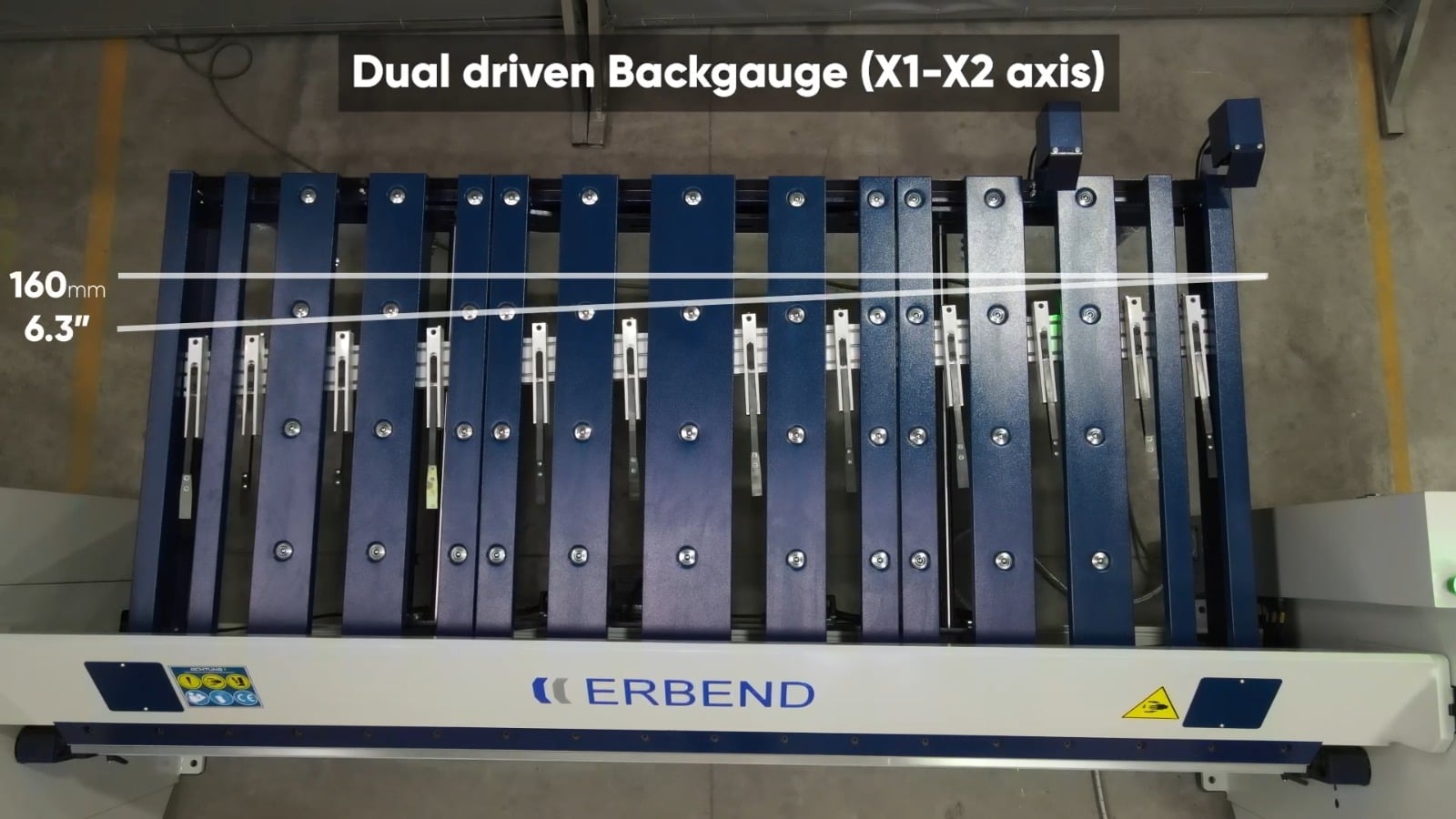

1M Backgauge System (X-Axis):

Drive Power: .53 HP

Speed: 9.8″ /Sec.

Gauging: 0.078″ Min. – 39.37″ Max.

Clamping Beam Rotation (C-Axis):

Rotational Speed: 20° /Sec.

Motor: 480v / 3ph

Standard Features:

AC motorized drive X, Y, Z (clamping, folding, backgauge)

15.6″ touchscreen controller on swivel arm with ERFOLD BASIC CNC line by line and 2D software control

Flat rail bottom beam tool for feather grooves

Clamping beam open height 6.29″ (160mm)

Manual folding beam adjustment 1.38″ (35mm) (A-Axis)

45° clamping beam geometry with 30°/R1 sharp nose clamping beam tools

Folding beam tools, two sets: .59″ (15mm) & .98″ (25mm)

Front light barriers

LED function lights (red, green, & blue)

Three switch foot pedal

Equipment Included:

ERFOLD Advanced 2D Graphical Control

36.37″ (1,000mm) Motorized Back Gauge and Sheet Support Table with Ball Casters

Mechanical Specifications:

Dimensions: 176″ x 91″ x 75″ H

Weight: approx. 10,360 lbs.

FOB Factory – Contact us for Pricing and Availability
