Description

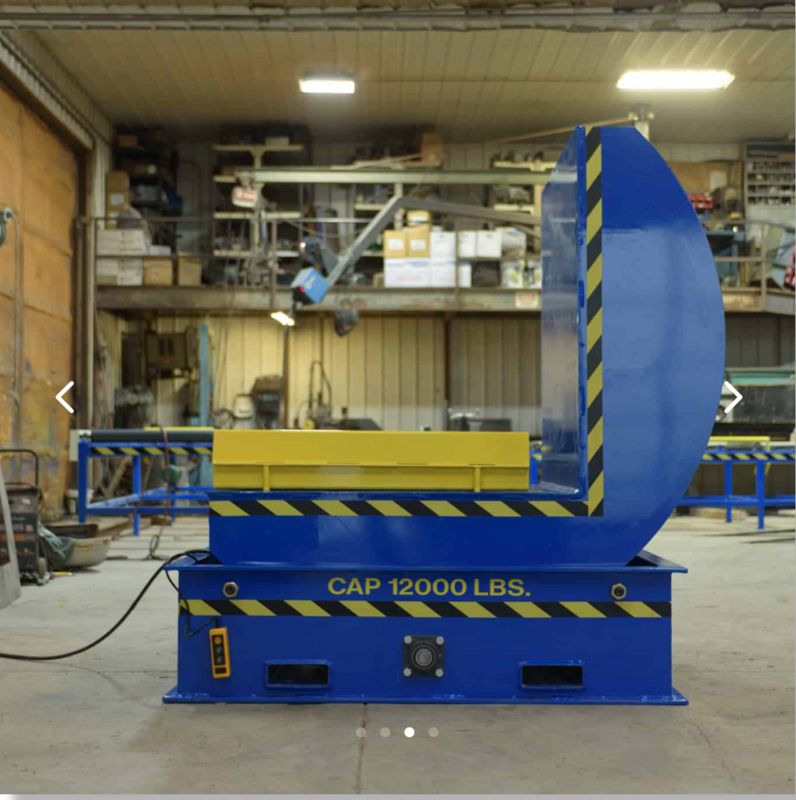

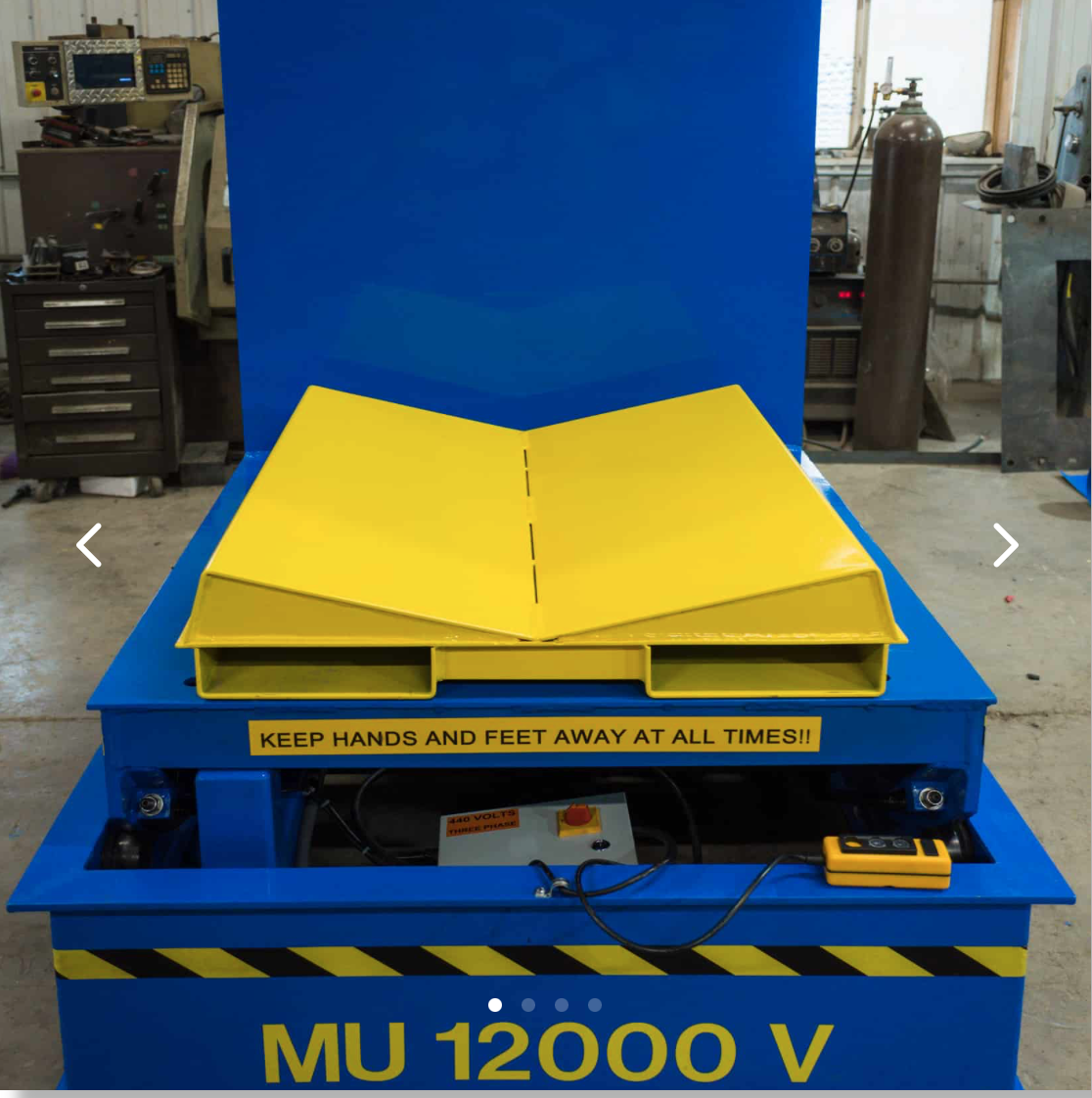

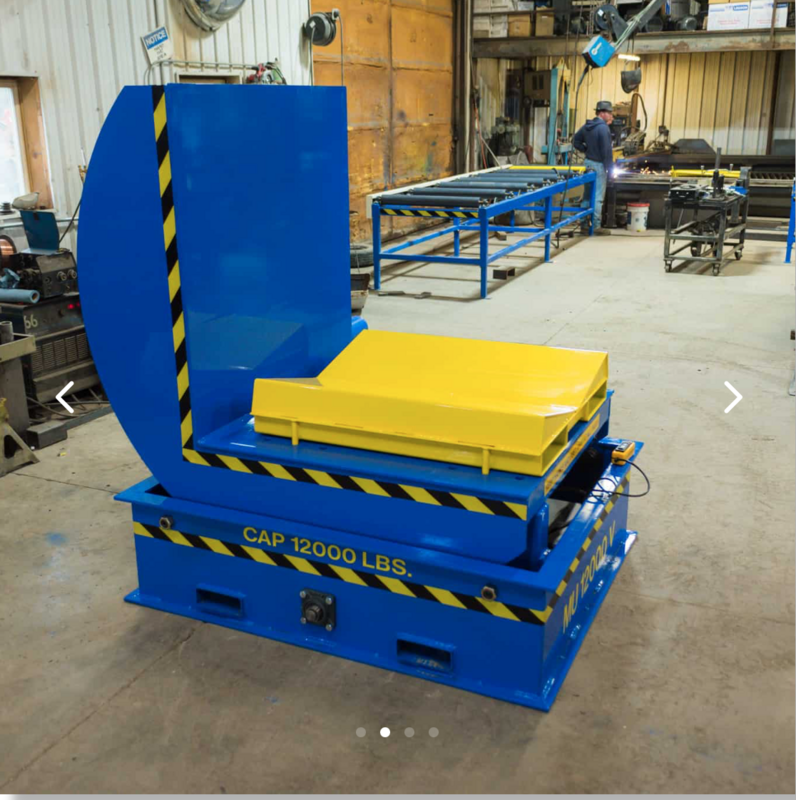

Introducing the new Coilquip MU 12000V72 Coil Upender, designed to handle up to 12,000 lb and 72" OD coils. Featuring a 2hp eurodrive motor, dual #80 chain drive, and adaptable v-saddle, it's a robust solution made in the USA. FOB Rochester, IN. Brand new, made-to-order 12,000 pound capacity 72" O.D. coil maximum Removable, 3-position v-saddle Deck dimensions 48" x 48" 2hp eurodrive motor and gearbox Dual #80 roller chain drive 208-230/460/3/60 or 230/1/60 Dimensions approx. 58" L x 78" W x 78" H Weight approx. 3,000lb Fork slots for easy relocation MADE IN USA FOB Rochester, Indiana Deposit of 50% and purchase order must be received before the requested machine can enter the production queue. Delay in payment will result in longer lead time. Payment Terms: 50% w/PO, 50% Prior Shipping FOB: Rochester, Indiana Deliver: 4 - 6 Weeks from receipt of PO and Deposit Brand new, made-to-order 12,000 pound capacity 72" O.D. coil maximum Removable, 3-position v-saddle Deck dimensions 48" x 48" 2hp eurodrive motor and gearbox Dual #80 roller chain drive 208-230/460/3/60 or 230/1/60 Dimensions approx. 58" L x 78" W x 78" H Weight approx. 3,000lb Fork slots for easy relocation MADE IN USA FOB Rochester, Indiana Deposit of 50% and purchase order must be received before the requested machine can enter the production queue. Delay in payment will result in longer lead time. Payment Terms: 50% w/PO, 50% Prior Shipping FOB: Rochester, Indiana Deliver: 4 - 6 Weeks from receipt of PO and Deposit
Inquire Further with Universal Press & Machinery (UPM)!
Introducing the NEW 2026 COILQUIP HU12000V Hydraulic Coil Upender. With 12,000 lb capacity, 60" coil OD, and advanced s like a removable V-saddle and dual hydraulic cylinders, it's a top choice for efficient coil handling. Made in the USA., 12000lbs. Capacity, Removable V-Saddle, Saddle has hardened pins with 3 ...more
, MFG: ATLAS, Fenton, MI, S/N: Job No. F663.00, Year: 1995, Capacity 12,000lbs, Bundle Turnover with 2 sets of chains for in/out feed of material, Gap(Distance between conveyor chain when full open): 36", Width(Opening Left to Right between frames): 89", Depth: From frame to frame is 112.5", 94" of ...more
Atlas Bundle Turnover, Capacity: 12,000 lbs., -Bundle Turnover with 2 Sets of chains for in/out feed of material., -Gap (Distance between conveyor chain when fully open): 36", -Width (Opening Left to Right between Frames): 89", -Depth: From frame to frame is 112.50", 94" of Flat Chain, -Pass Height: 53" (to be ...more
