For Sale by MRO Exchange
Description

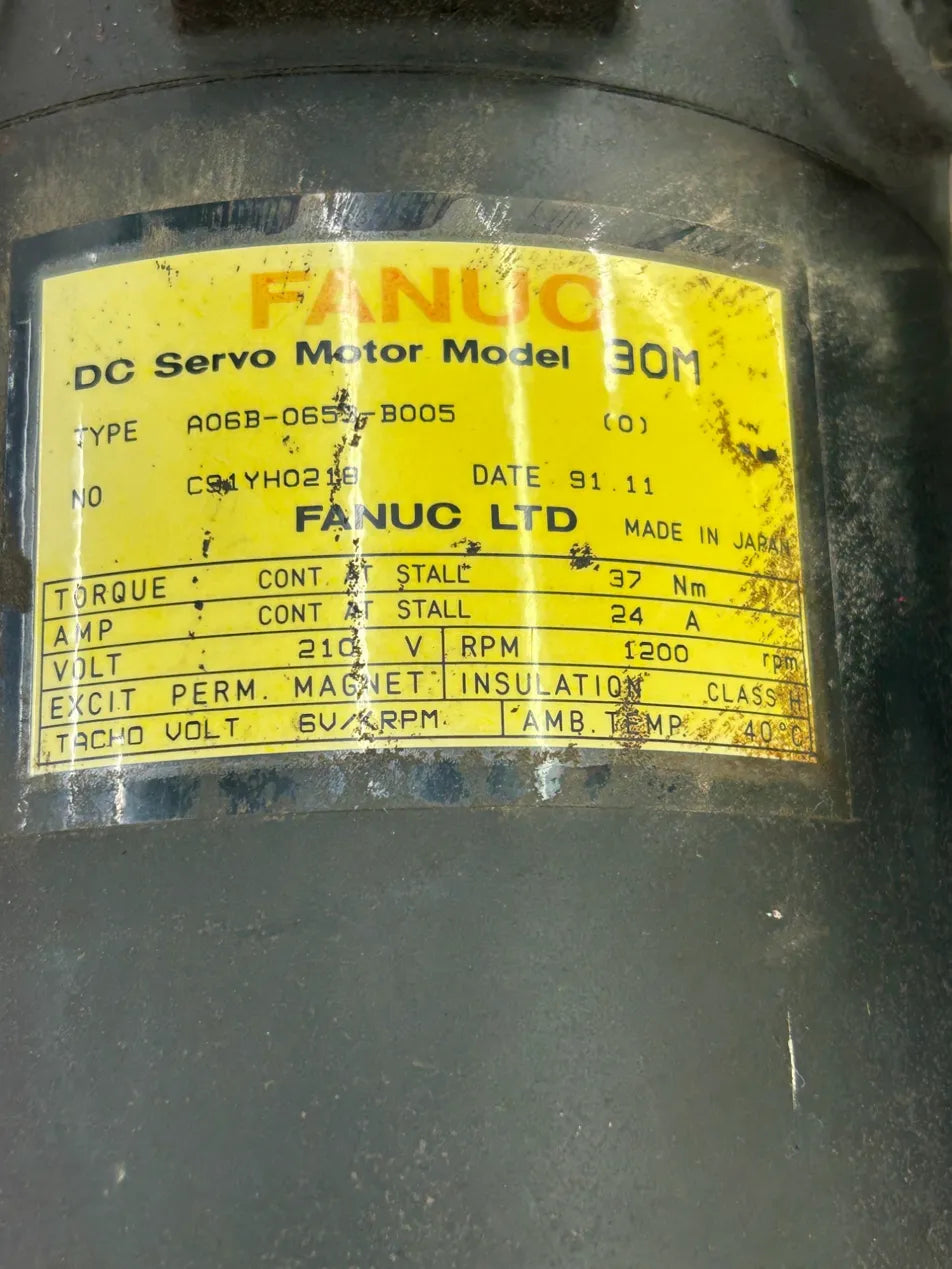

A DC Servo Motor from Fanuc in the 30M series, part number A06B-0653-B005, rated for continuous stall torque of 37 Nm at 24 A and 210 VDC. Rated speed is 1200 RPM. Excitation is by permanent magnet. Tacho generator output is specified at 6V per 1000 RPM. Insulation class is H and ambient temperature rating is 40 degrees C. Serial number C91YH0218 and date code 91.11 are visible on the nameplate. Manufactured by Fanuc Ltd. and made in Japan.

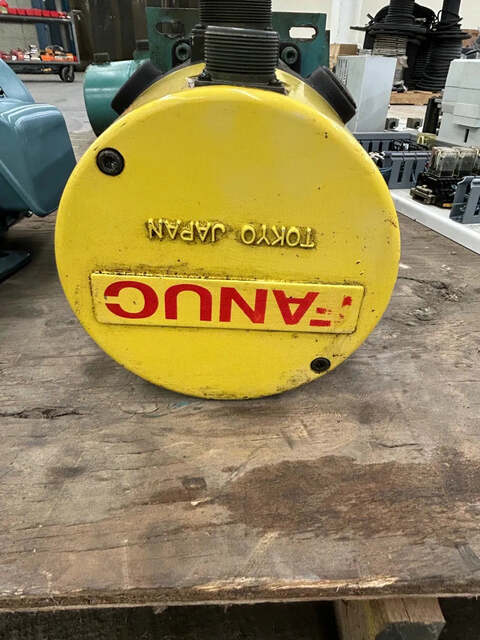

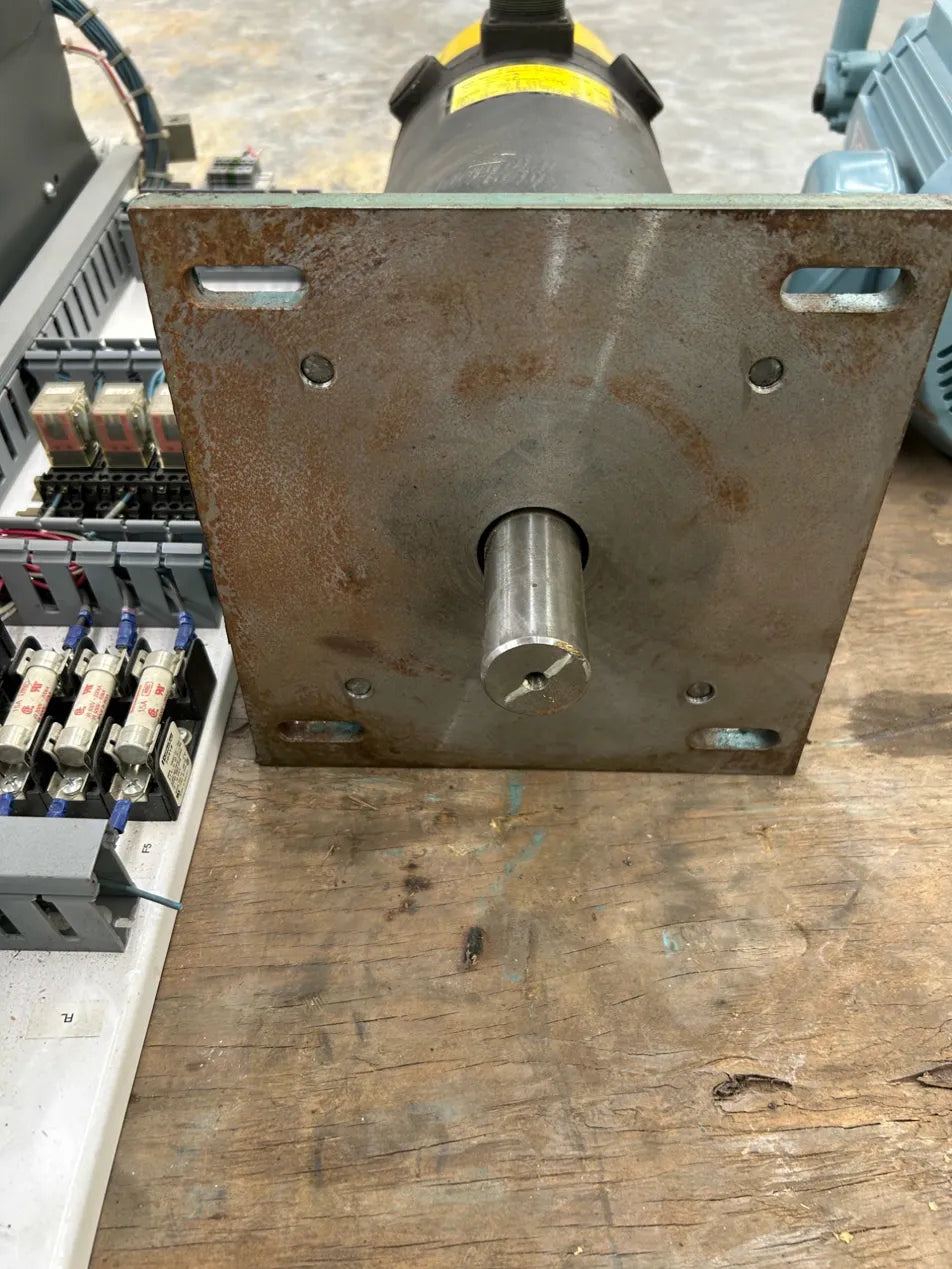

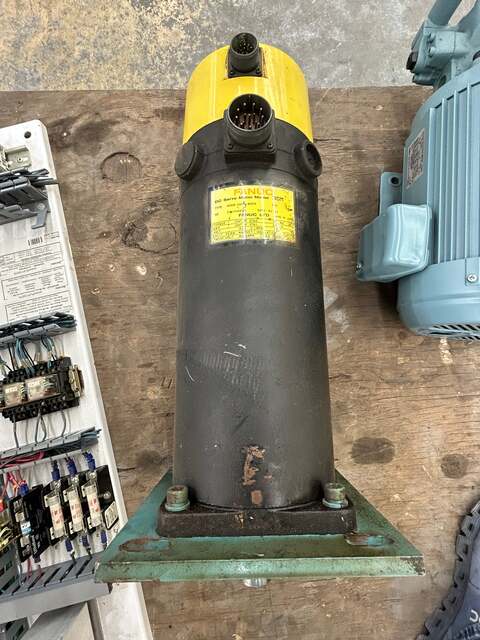

The motor body is finished in black with a yellow end cap, and two multi-pin circular connectors are present at the rear. The output shaft protrudes through a steel mounting flange plate visible in the photos, with a smooth cylindrical shaft end shown. No timing pulley or gear is installed on this unit. The yellow end cap bears the cast text "FANUC" and "TOKYO JAPAN."
The A06B-0653 30M platform is widely used in legacy Fanuc 0, 6, 10, 11, and 15 series CNC control systems as an axis drive motor. This MPN is cross-referenced in the market as A06B0653B005 and is compatible with Fanuc DC servo amplifier systems requiring a 37 Nm continuous torque rating.
Stock # 0226-747
Inquire Further with MRO Exchange!
