1200 Amps, Siemens #Pioneer Switchgear Main Switch GFI, 277/480 Volts, 3 phase, 4 wire, Nema 3R

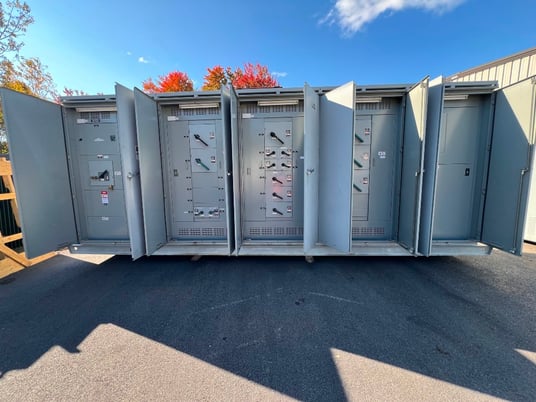

SIEMENS PIONEER SWITCHBOARD/SWITCHGEAR

1200 AMP, 277/480V, 3 PHASE, 4 WIRE

NEMA 3R OUTDOOR

SECTION 1:

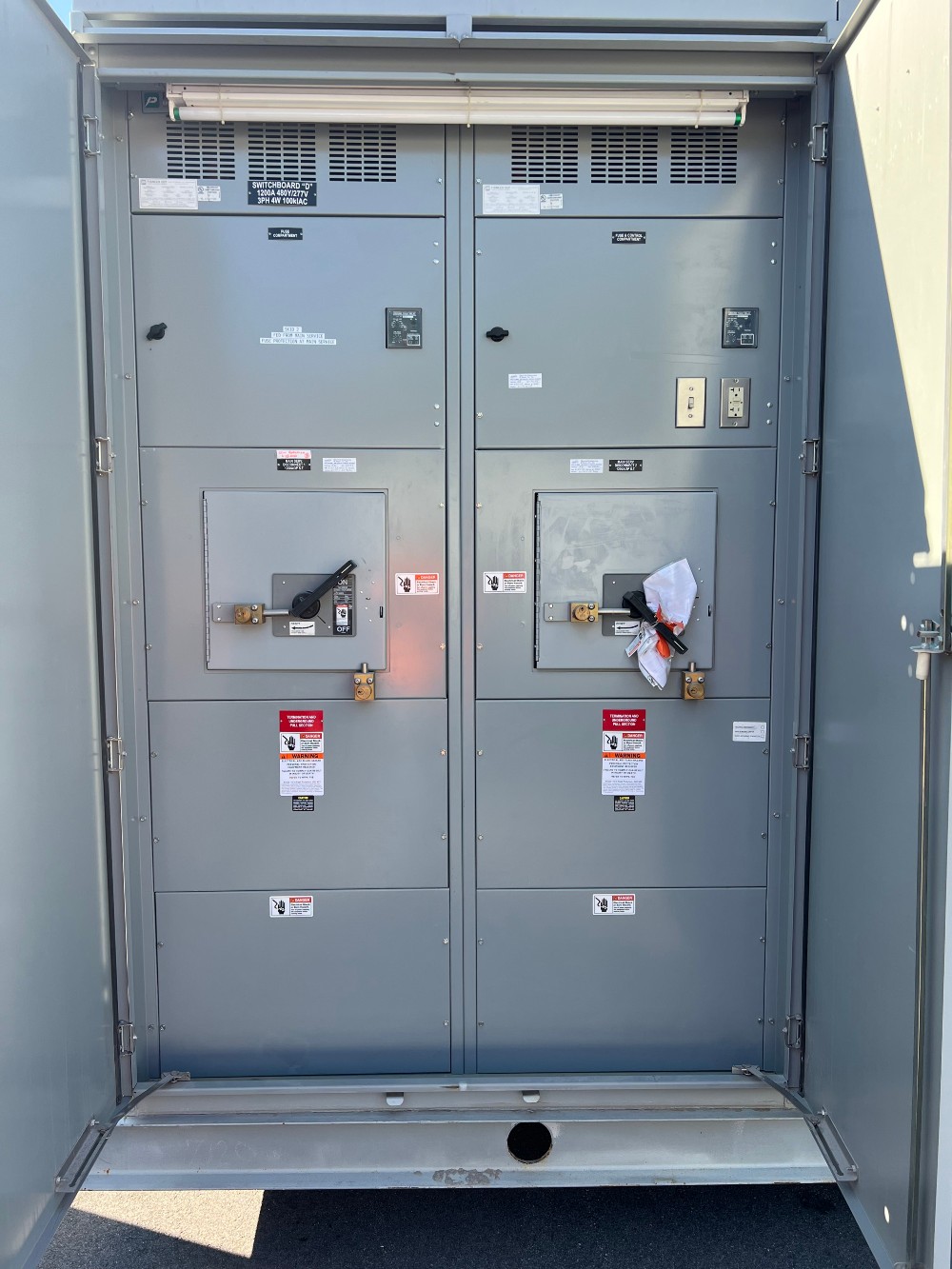

SIEMENS HCP386H 1200A MAIN SWITCH

GROUND FAULT RELAY

KIRK KEY INTERLOCK

SECTION 2:

SIEMENS HCP386H 1200A MAIN SWITCH (SECONDARY/TRANSFER)

GROUND FAULT RELAY

KIRK KEY INTERLOCK

SECTION 3:

MDP SECTION

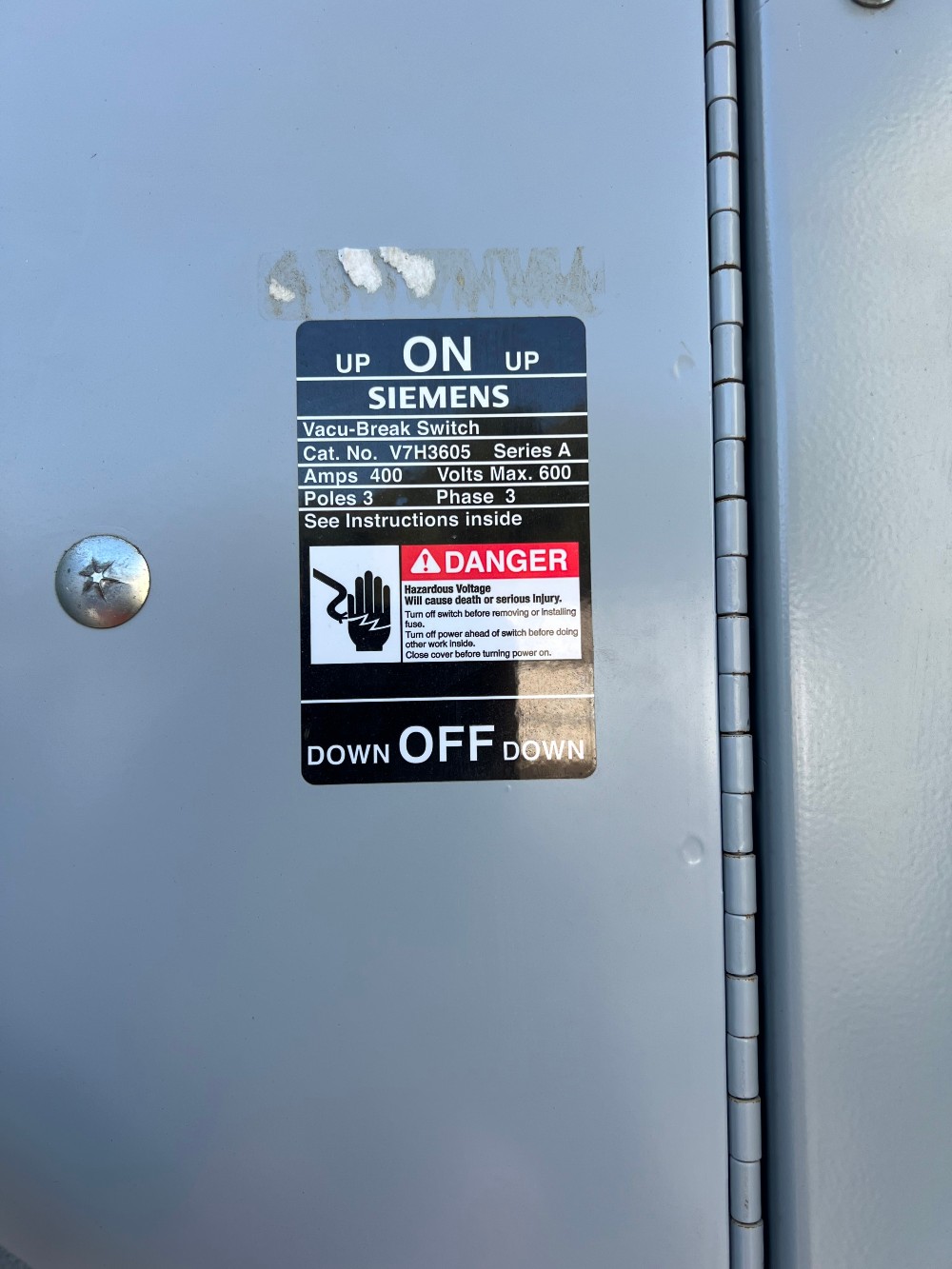

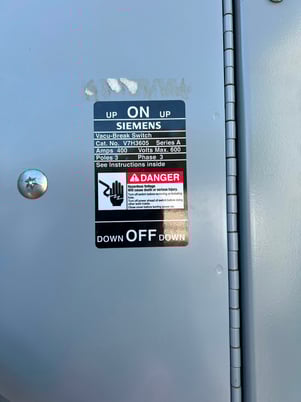

(2X) V7H3605 SWITCH, 400A 600V 3P

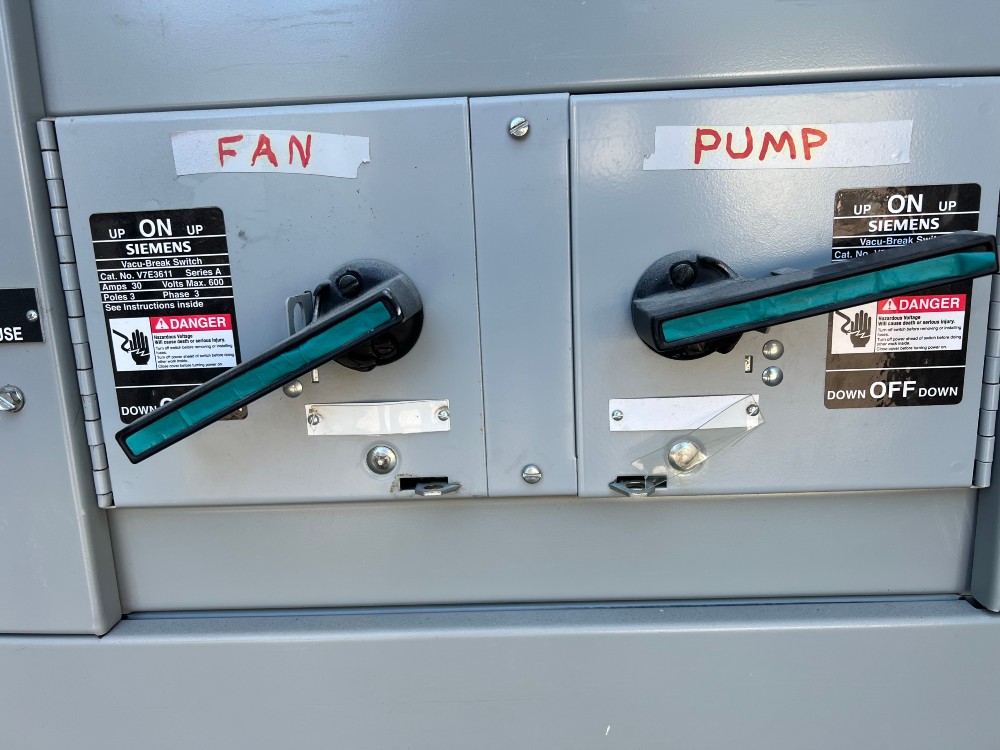

(1X) V7E3611 TWIN SWITCH, 30A 600V 3P

SECTION 4:

MDP SECTION

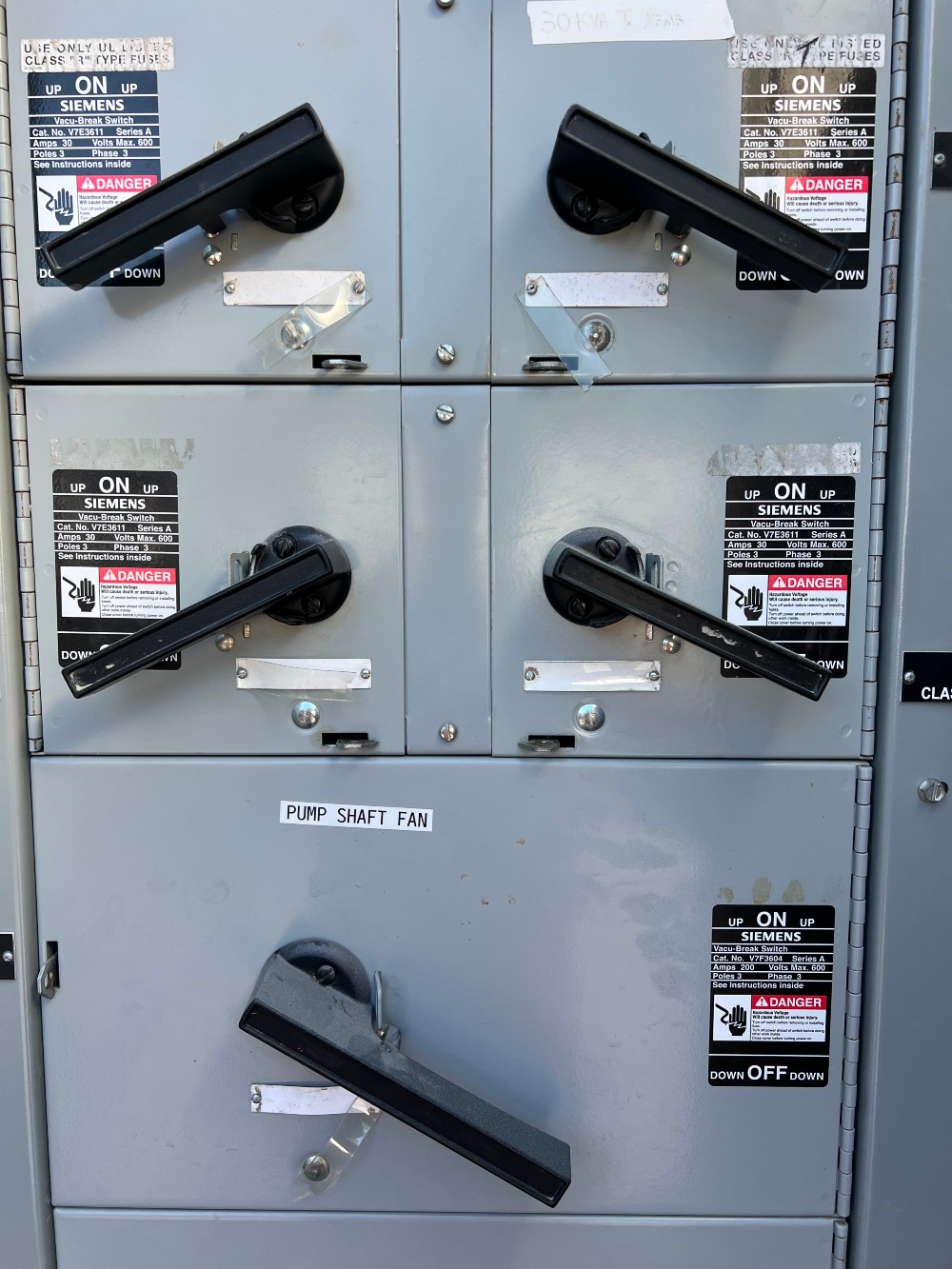

(1X) V7H3605 SWITCH, 400A 600V 3P

(2X) V7E3611 TWIN SWITCH, 30A 600V 3P

(3X) V7F3604 SWITCH, 200A 600V 3P

SECTION 5:

MDP SECTION

(1X) V7H3606 SWITCH, 600A 600V 3P

(2X) V7H3605 SWITCH, 400A 600V 3P

SECTION 6:

MDP SECTION

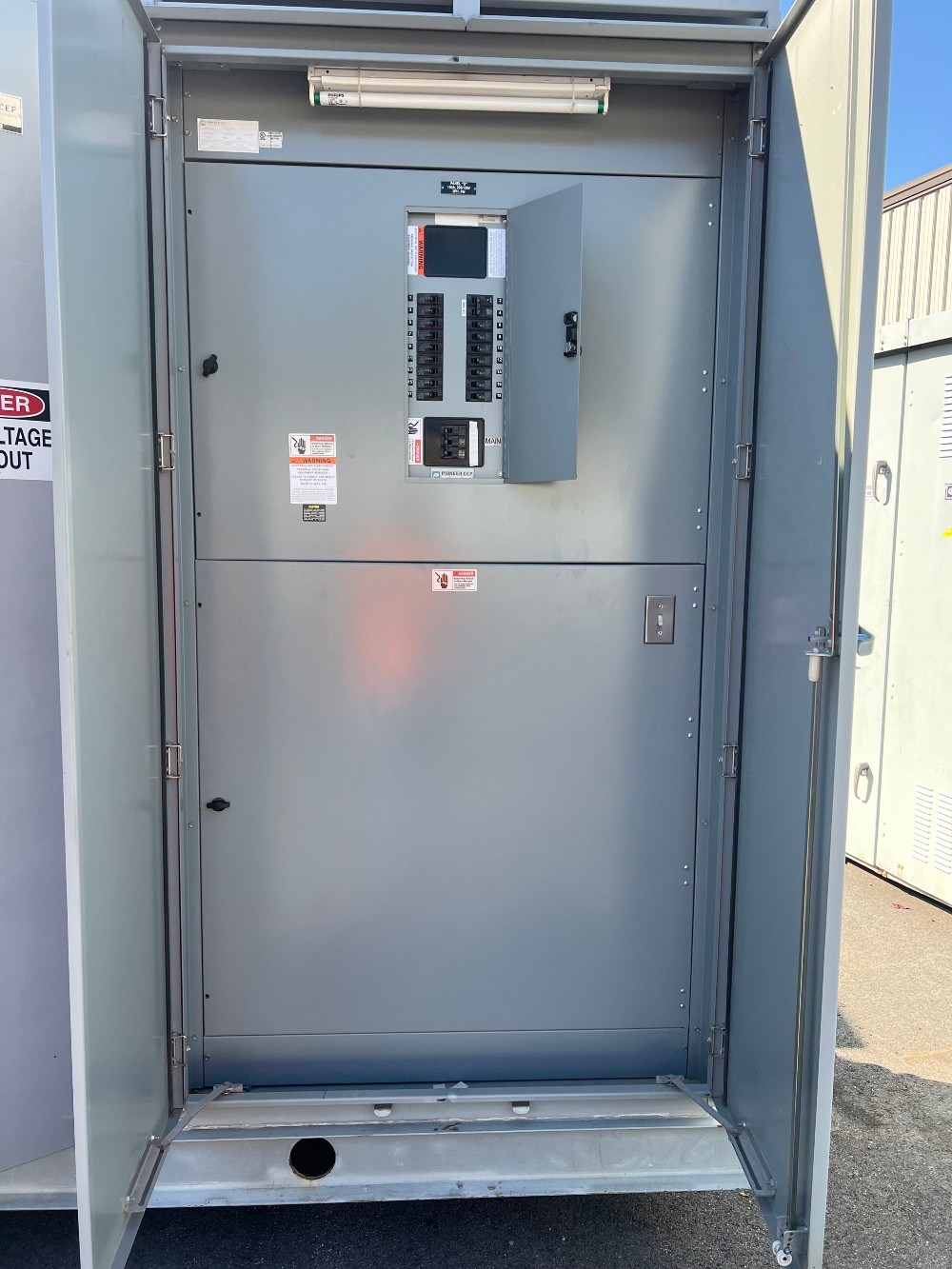

SIEMENS P1 PANELBOARD

100A B3100 MAIN CIRCUIT BREAKER

120/208V, 3 PHASE, 4 WIRE

SPACE FOR DRY TYPE TRANSFORMER (NOT INCLUDED)
