12' x 6' Vibco, vibratory table, 2000 lb. capacity, (2) vibration units, pneumatic isolators, (6) concrete pods, variable speed switch, 150 hours, 2001

Custom 12' Vibco Vibratory Table (2001)

Description

Operating Hours: 150
Heaviest Casting: ~2,000 lbs
Electricity: Single-Phase or 3-Phase
Vibration Table Dimensions:
-Length: 146"
-Width: 74"
-Height: 24" with compressed air in system
-Height: 21" without compressed air in system
Steel and Aluminum Schedule:
-Sub frame Construction: 2" X 6" X .250"
(refers to black structure in photo)

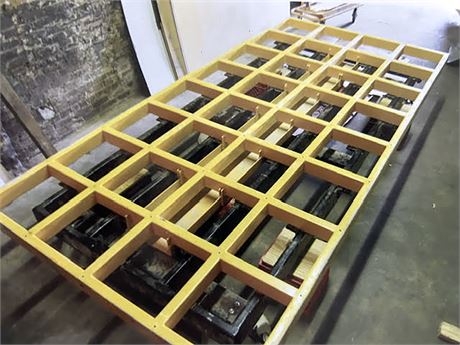

-Top Frame Grid: 2: X 4" X .120"
(refers to what is yellow structure in photo)
24" X 24" grid
-Top surface is 1/2" thick aluminum plate
-"U" channel "vertebrae" 12" X 2" X .500"

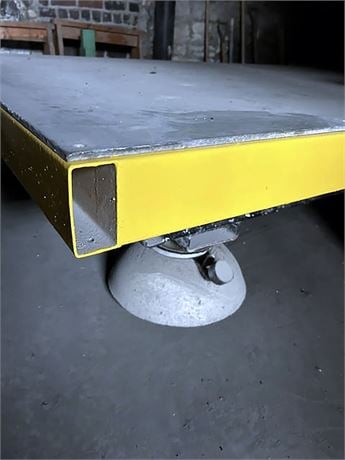

Concrete Pods (6 footings):
-Each pod has pneumatic isolation mounts between bottom of sub frame and concrete pods.

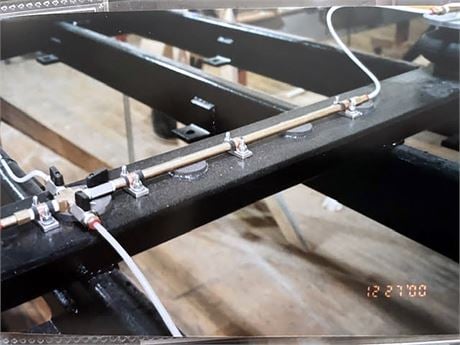

-Each pod includes pressure gauge and valve plumbed with high pressure pneumatic lines.
-Each concrete pod has 5 adjustable steel glides on bottom surface.

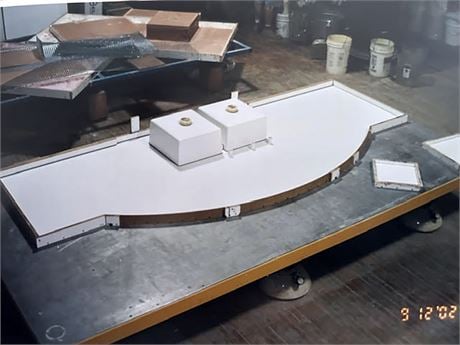

*The table was used for casting various concrete products including countertops, fireplace surrounds, tables, sinks, water gardens, pavers, Japanese soaking tubs and more*

Equipped With

Inflatable isolators,

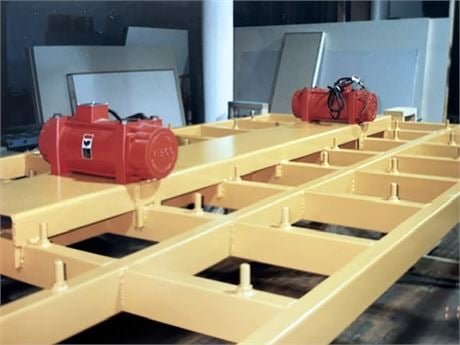

(2) Vibration units,

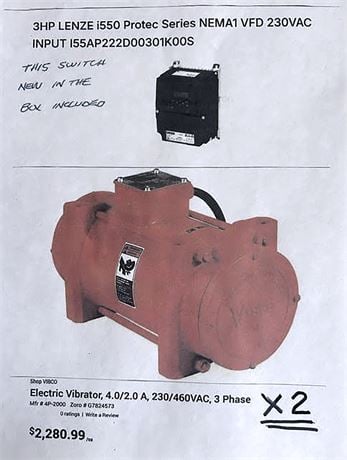

brand new variable speed switch (converts 3-phase to single-phase)
