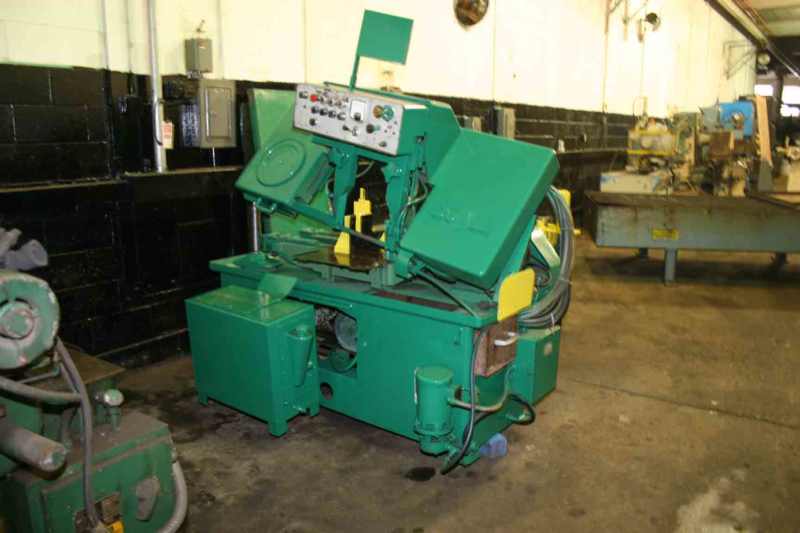

12" x 16" DoAll #C-80, horizontal band saw, 144" x 1" band, 60-350 FPM

Pre Owned DoAll C-80 Horizontal Band Saw
Serial Number: 190-77946
GENERAL SPECIFICATIONS:
CAPACITY:
 ROUNDS 12-3/4" DIAMETER
 FLATS 12" x 16"
BAND WIDTH 1"
BAND LENGTH 144"
VARIABLE BAND SPEEDS. 60 to 350 FPM
WHEEL DIAMETER 16"
BED HEIGHT 30-1/2"
LOAD CPACITY 4,000 LBS.
MAX. STOCK INDEX AT SINGLE STROKE 24"
HEIGHT OF HYDRAULIC VISES 6-1/4"
APPROX. WEIGHT 4,500 LBS.


EQUIPPED WITH:

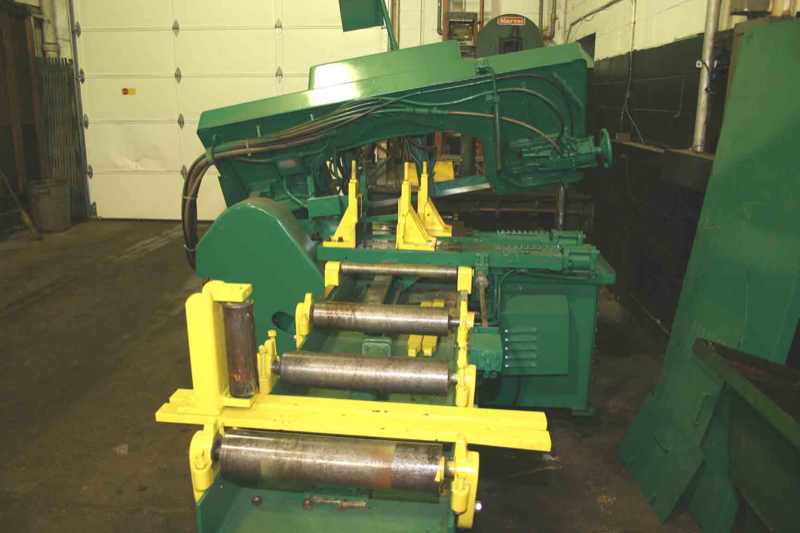

- 6' HYDRAULICALLY CONTROLLED FULLY AUTOMATIC
 SHUTTLE-TYPE BAR FEED PREMITTING STOCK INDEXING OF
 LENGTHS UP TO 24"
 - HYDRAULICALLY CONTROLLED INFINITELY VARIABLE BLADE SPEEDS
 - HYDRAULIC CLAMPING TO STOCK INDEXING AND WORK HOLDING
 VISES
 - EXCLUSIVE THREE-POINT HEAD SUPPPORT SYSTEM WITH OUTBOURD HEAD
 CYLINDER PROVIDES MORE STABILITY FOR STRAIGHTER CUTS.
 - HYDRAULIC BAND TENSION CONTROL
 - COUNTER ASSEMBLY TO BE SET FOR THE NUMBER OF PIECES AFTER
 THAT NUMBER THE SAW WILL AUTOMATICALLY STOP AT A
 PREDETERMINED NUMBER
 - WORK HEIGHT SELECTOR DIAL TO SET CLEARANCE BETWEEN TOP
 OF WORKPIECE AND BOTTOMOF BLADE
 - STOCK INDEX SCALE GRADUATED FROM 0 TO 24" ON SIDE OF
 INDEX TABLE
 - MANUAL WORK LIFT ROLLER AT END OF INDEX TABLE
 - SELF-CONTAINED COOLANT SYSTEM
 - 5 HP 3/60/230-460 VOLT COMBINATION BLADE DRIVE &
 HYDRAULIC PUMP MOTOR
