For Sale by N S Machine Corp.
Description
Manufacturer: American Steeline, Airam
Size / Capacity: 12 stand
Stock Number: 13595
Features:
10,000 lb American Steelline decoiler
12-stand rollformer
Airam cutoff press
Tooling
Specifications:

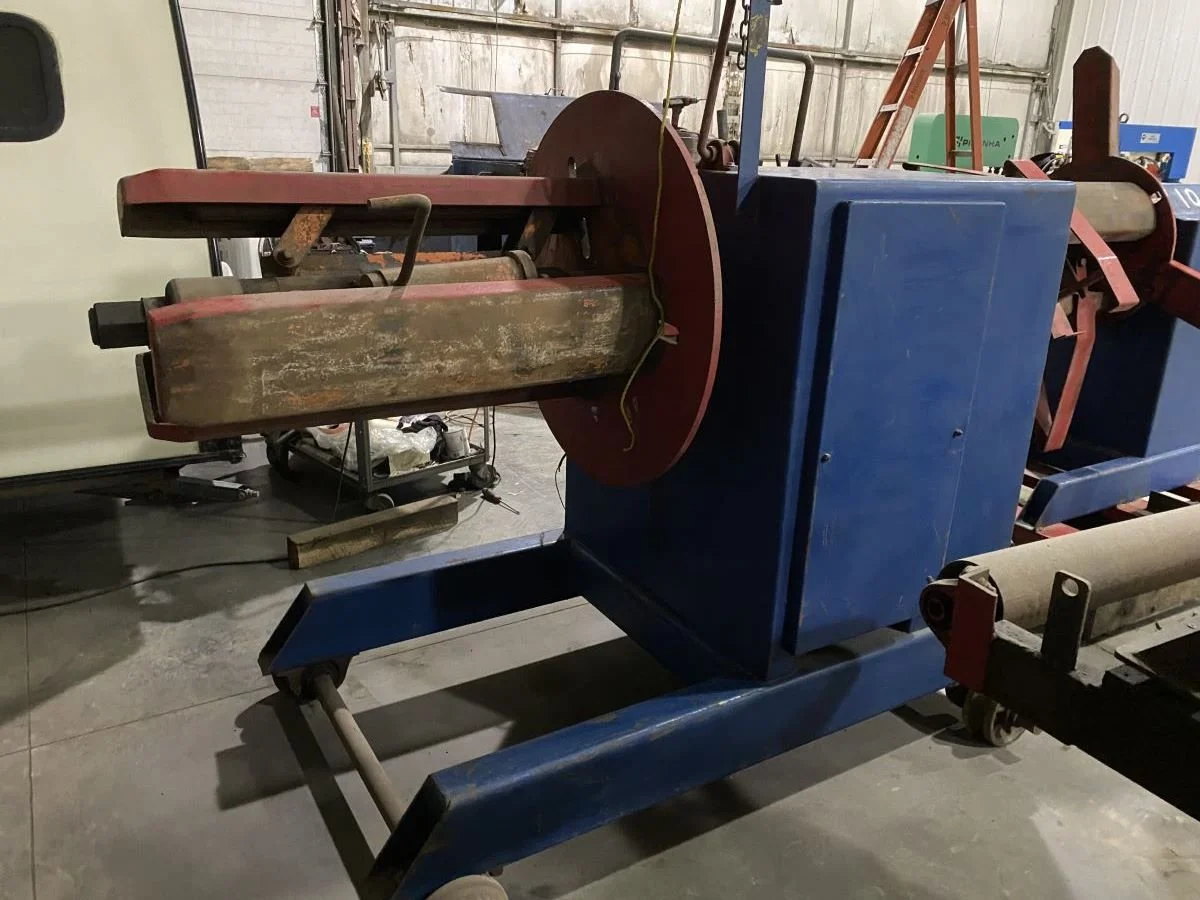

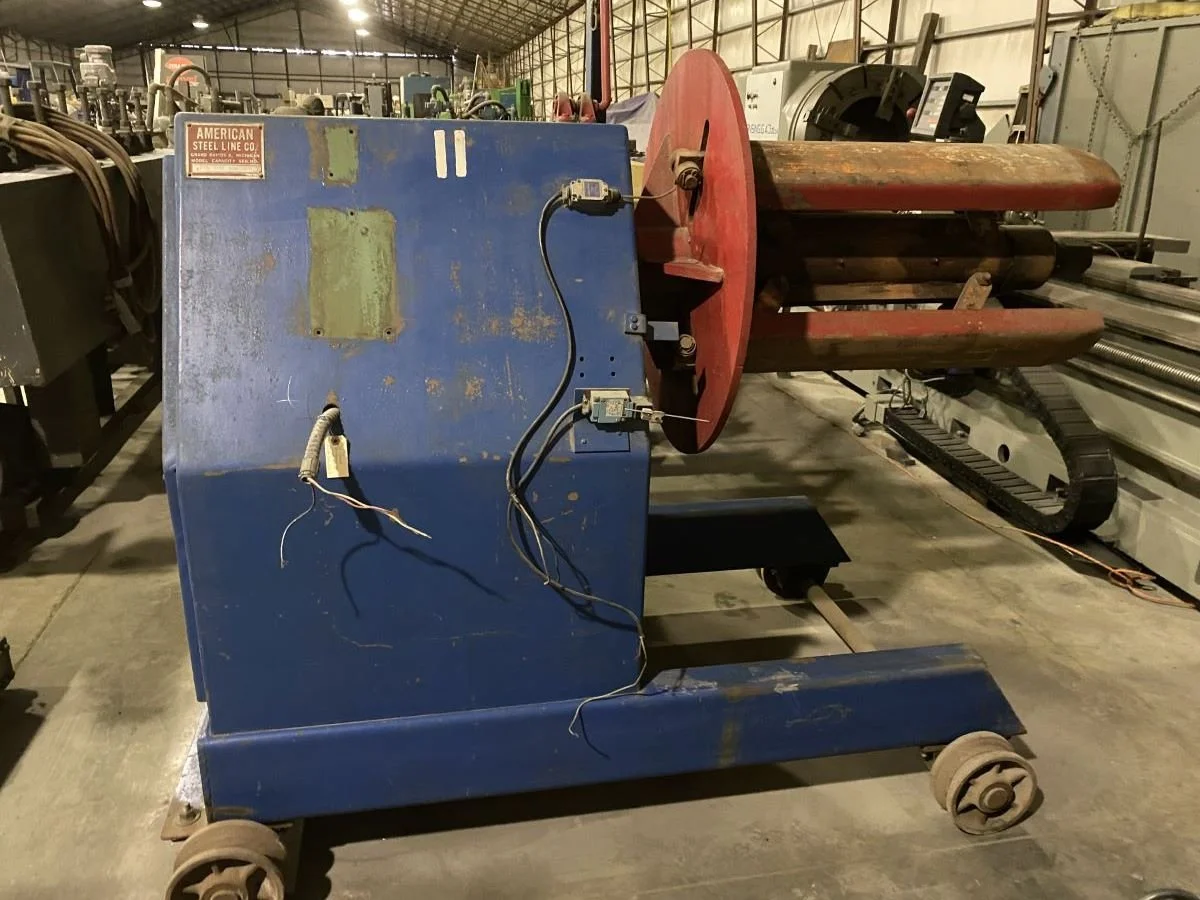

Decoiler - American Steel Line
... Model - 1000
... Serial - 6024
... Maximum coil weight - 6,000 lbs.
... Maximum coil width - 28"
... Maximum coil OD - 35"
... Maximum coil ID - 25"
... Minimum coil ID - 14"
... Decoiler dimensions - 82" x 49" x 77" high
... Decoiler weight - 3,000 lbs.

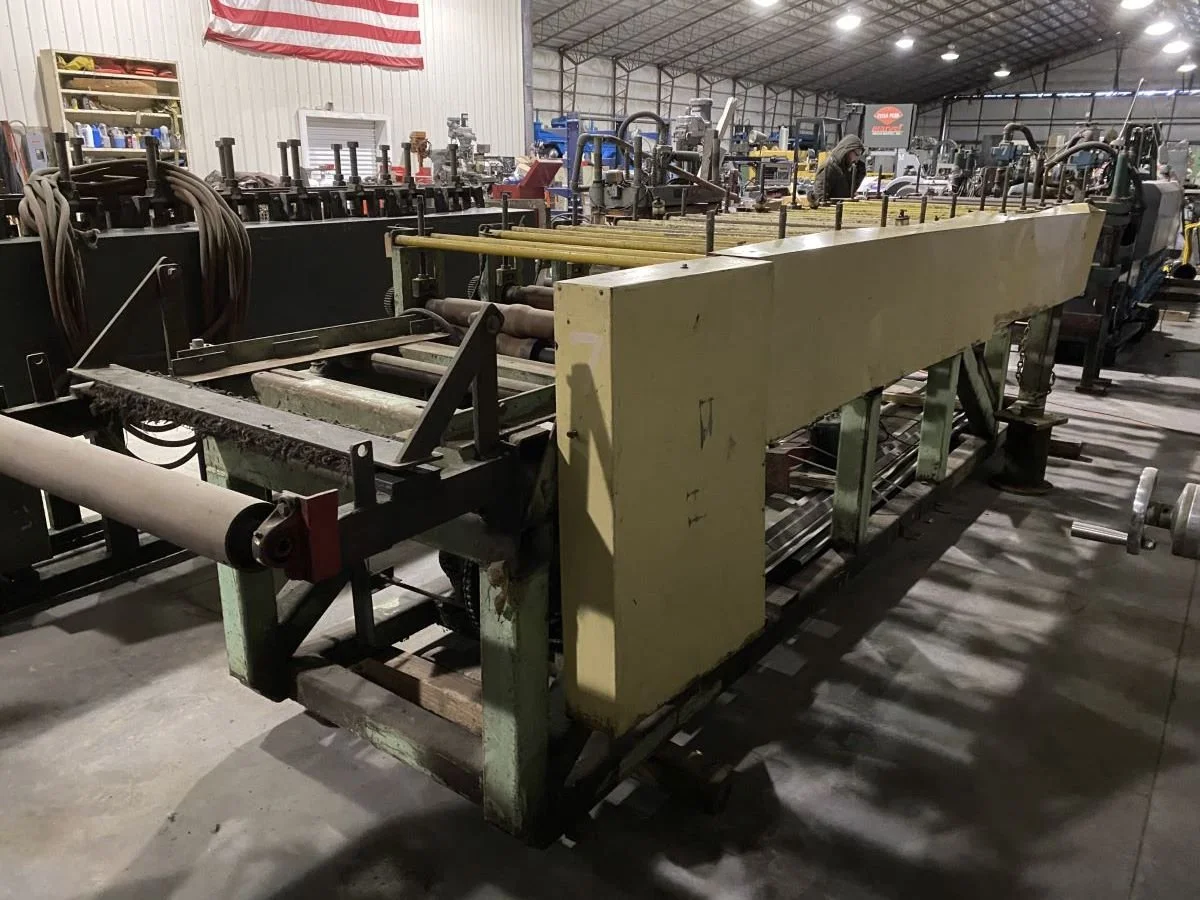

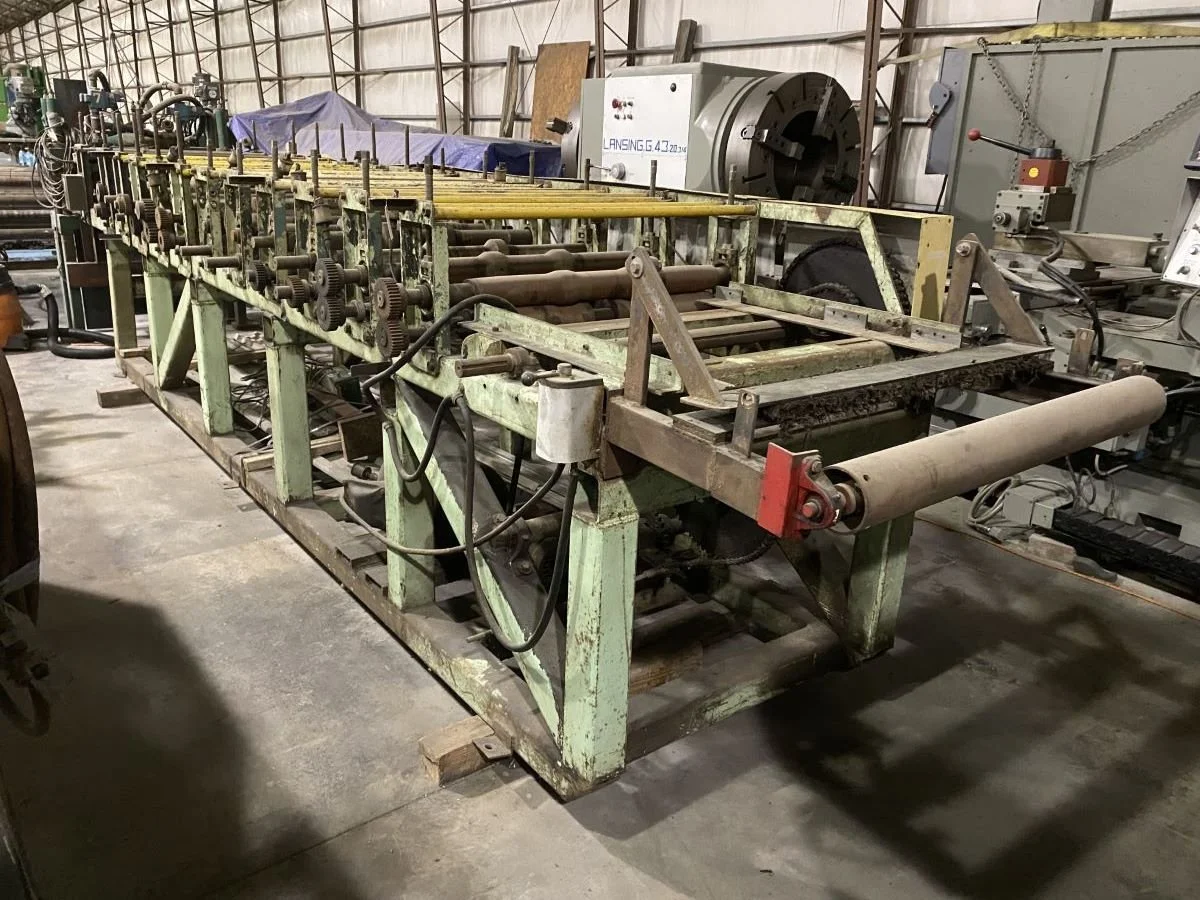

Rollformer - 12 stand
... Roll space - 32"
... Arbor diameter - 2"
... Horizontal centers - 14"
... Vertical center range - 3-1/2" to 7-3/8"
... Vertical center, as currently tooled - 3-1/2"
... Motor - 5 HP / 1750 RPM
... Power requirements - 220/440V, 3PH, 60 CY, 14/7A
... Rollformer dimensions - 228" x 51" x 58"
... Rollformer weight - 7,500 lbs

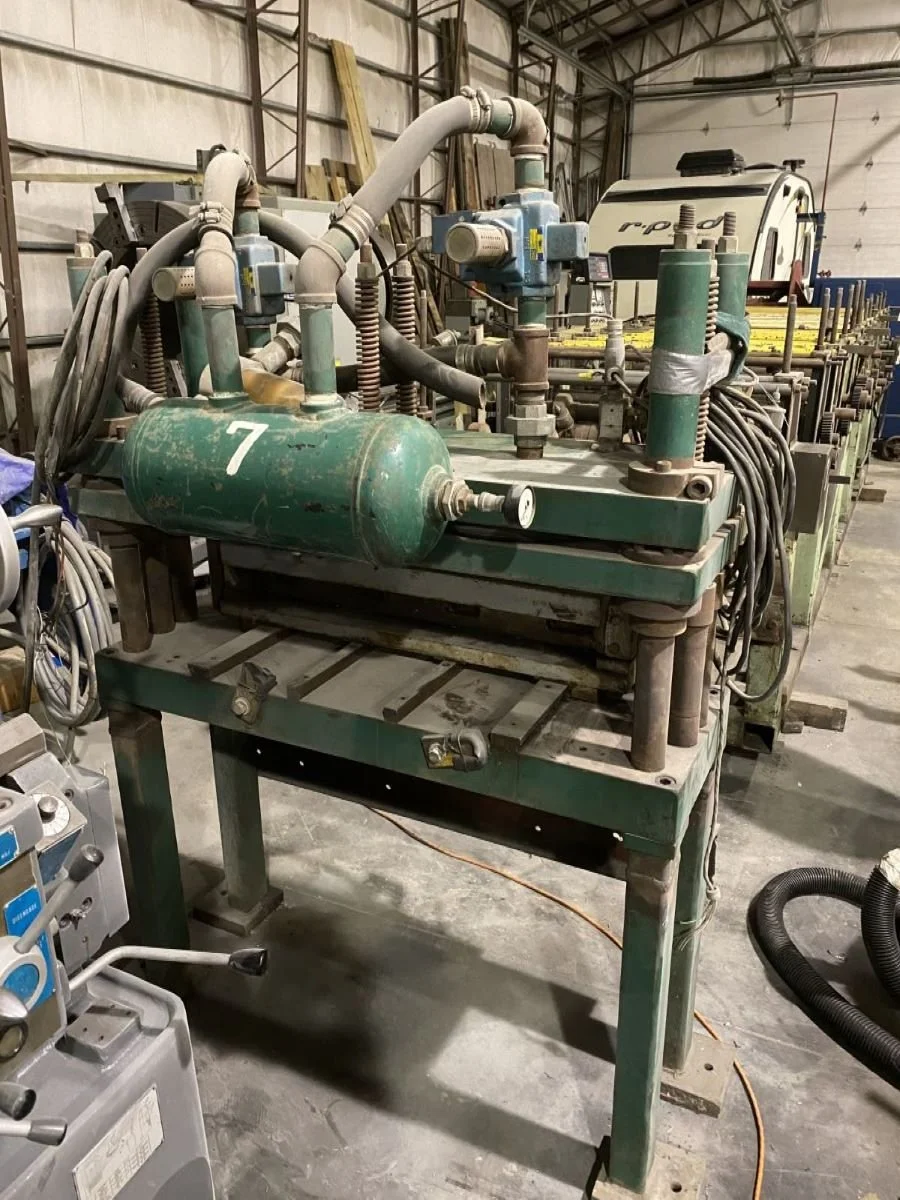

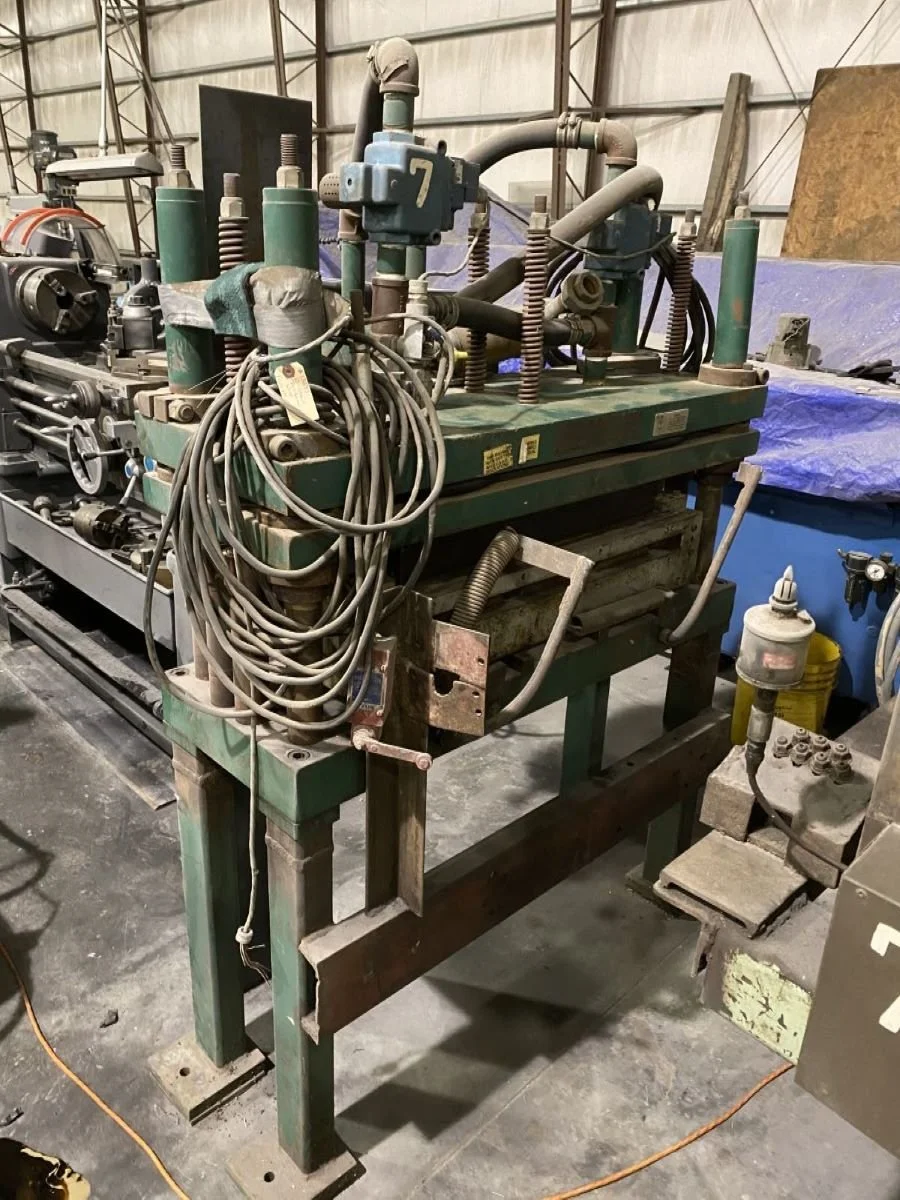

Cutoff press - Airam
... Bed size - 45" x 15"
... Distance between tie bars - 38-1/4"
... Diameter of tie bars - 2"
... Cutoff press dimensions - 51" x 30" x 69" high
... Cutoff press weight - 3,000 lbs.
Inquire Further with N S Machine Corp.!
