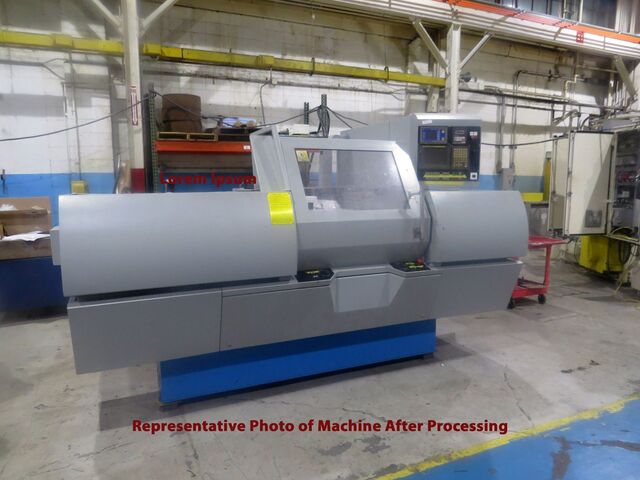

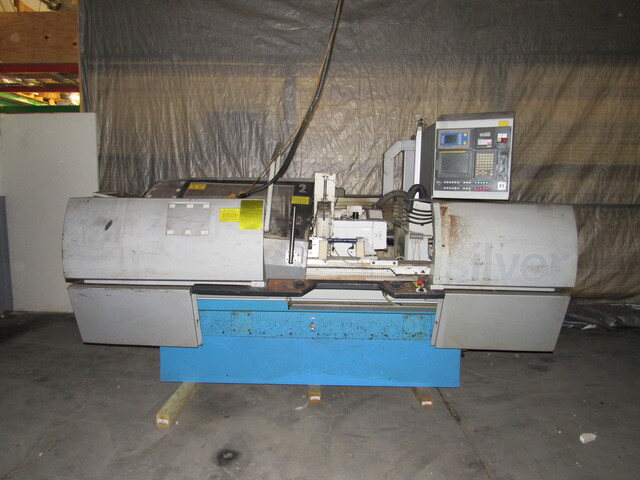

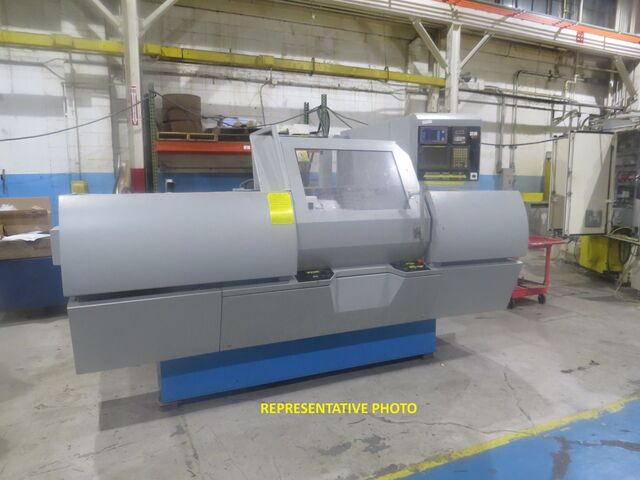

11.4" x 31" Junker #EJ29, CNC universal grinder, 11"-16" diameter x 2" width grinding wheel, 6" H of centers, 11" Rotating diameter

Erwin Junker EJ29 Silver CNC Universal Grinder, Fanuc 21I-TB Control, SBS Balancer, Hydraulics In Base
ERWIN JUNKER EJ29 SILVER CNC CYLINDRICAL GRINDER
S/N 3323 2006
EJ 29 Silver is a multi-functional cylindrical grinding machine for manufacturing single components and batch lots. This machine type covers a wide range of grinding applications. Designed for complex applications that require a high level of workmanship. Software on the CNC control system, FANUC 21i, offers simple operation and programming. It offers large-scale digital axis drives and a precise absolute measuring system in all CNC axes. Separate electronic hand wheels for the X- and Z-axis allow the grinding operator to operate manually. FANUC 21i-TBCNC Control (X/Z/C Axes)
STANDARD SPECIFICATIONS
Swing…………..…………………………………………………11.47” x 31”
Height of centers …………………………………………..……..6”
Rotating diameter……………………………………………max. 11”
Width of turning centers…………………………………….max.31”
Grinding length………………………………………….......max. 31”
Grinding wheel diameter…………………………………....11” – 16”
Grinding wheel width…………………………………….......max.2”
Grinding wheel bore hole………………………………...………...5”
Grinding wheel circumferential speed………………………...….45 m/s
Workpiece weight between turning centers…………………max. 80 kg
Total connection value……………………………………approx. 20 kVA
Weight of the basic version of the machine………………approx. 5600kg
Dimensions of Machine……………………….approx. 137” x 85” x 81” tall
EQUIPPED WITH
Fanuc 21i-TB Controls
SBS Balancer SB4500
Fanuc Servo Driven Head Stock
Fanuc Servo Driven Table Traverse
Manual B-Axis
Fanuc Servo Plunge
Air Chuck Actuator
Hydraulic Lever Operated Tailstock
Attached Electrical Panel
Hydraulic Unit
Specifications are deemed accurate, however, subject to verification or prior sale.
