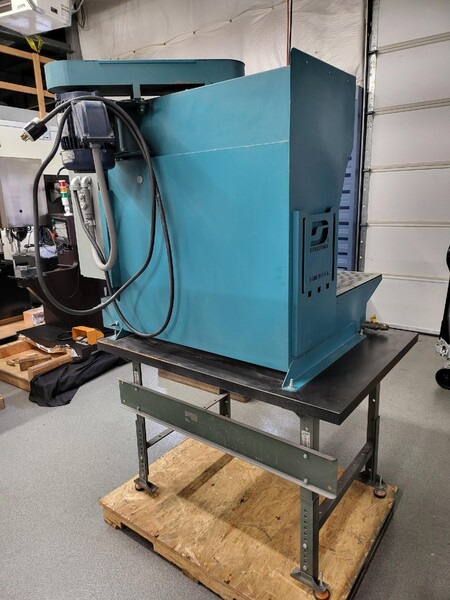

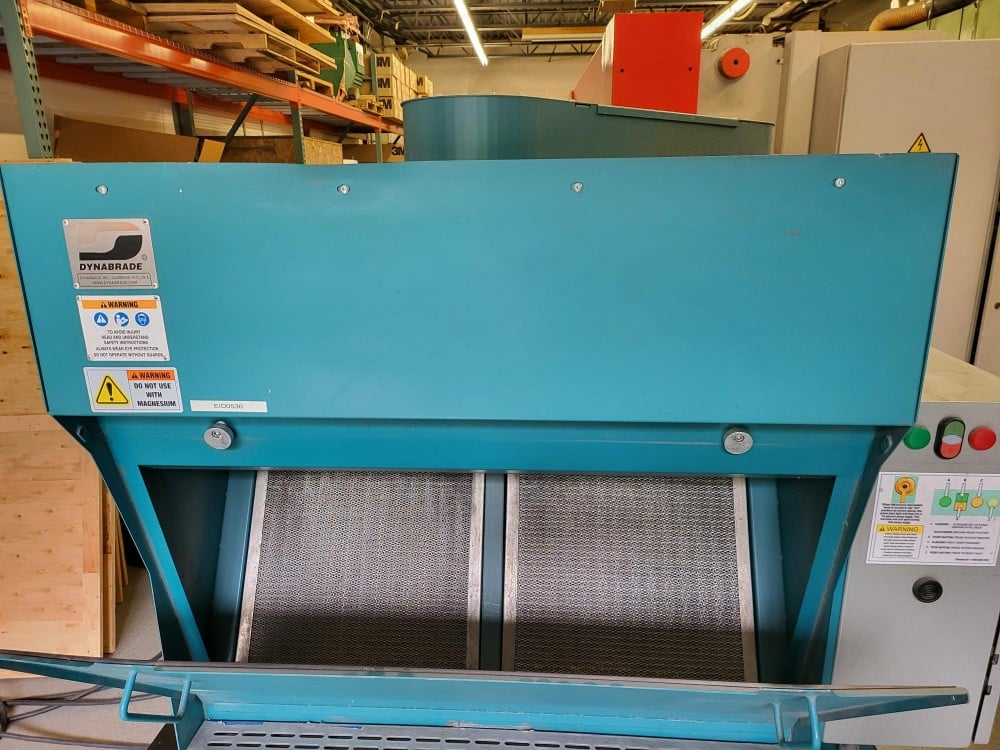

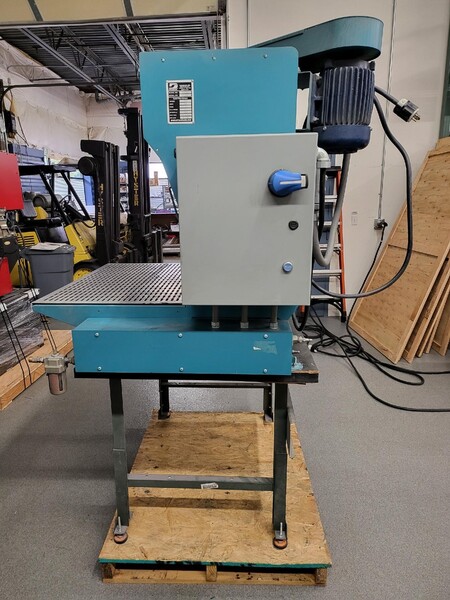

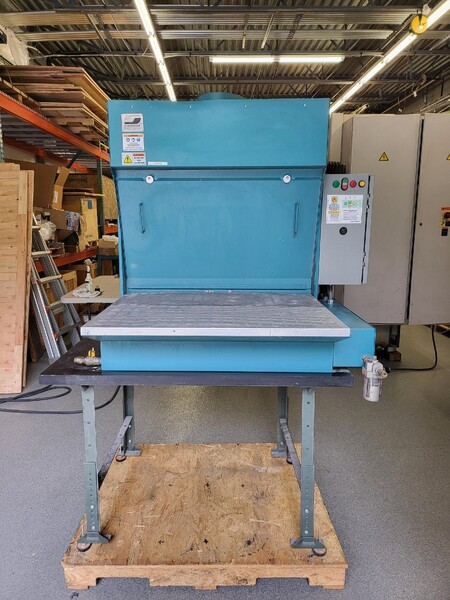

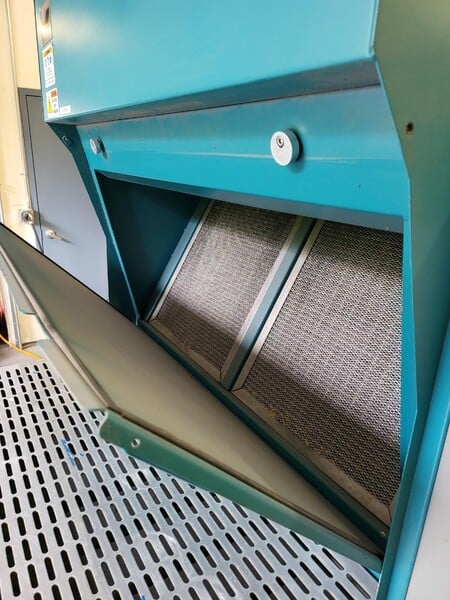

53" x 45" Dynabrade #64350, downdraft table, 2014

Dynabrade Dowdraft Table

Model 64350

Specifications:

Horsepower 1HP

Voltage 230V

Vacuum Suction 1,000 CFM

Motor Frequency 60 Hz

Sound Level 85 dB

Current 3.0Ah

Dimensions:

Height 46”

Depth 45”

Width 53”

Weight 518lbs

Meets These NFPA Requirements:

• Interlock Pneumatic Valve with Blower and

Time-Delay. Tools operate only when

Downdraft Table is running!

• ClassII, Group E Explosion-Proof Motor
• Aluminum Top for Non-Spark Work Surface
• Non-Spark Aluminum Blower on Collector’s

Clean-Air Side

• Automatic Water Level Control
• Vented Sump (Main Tank)

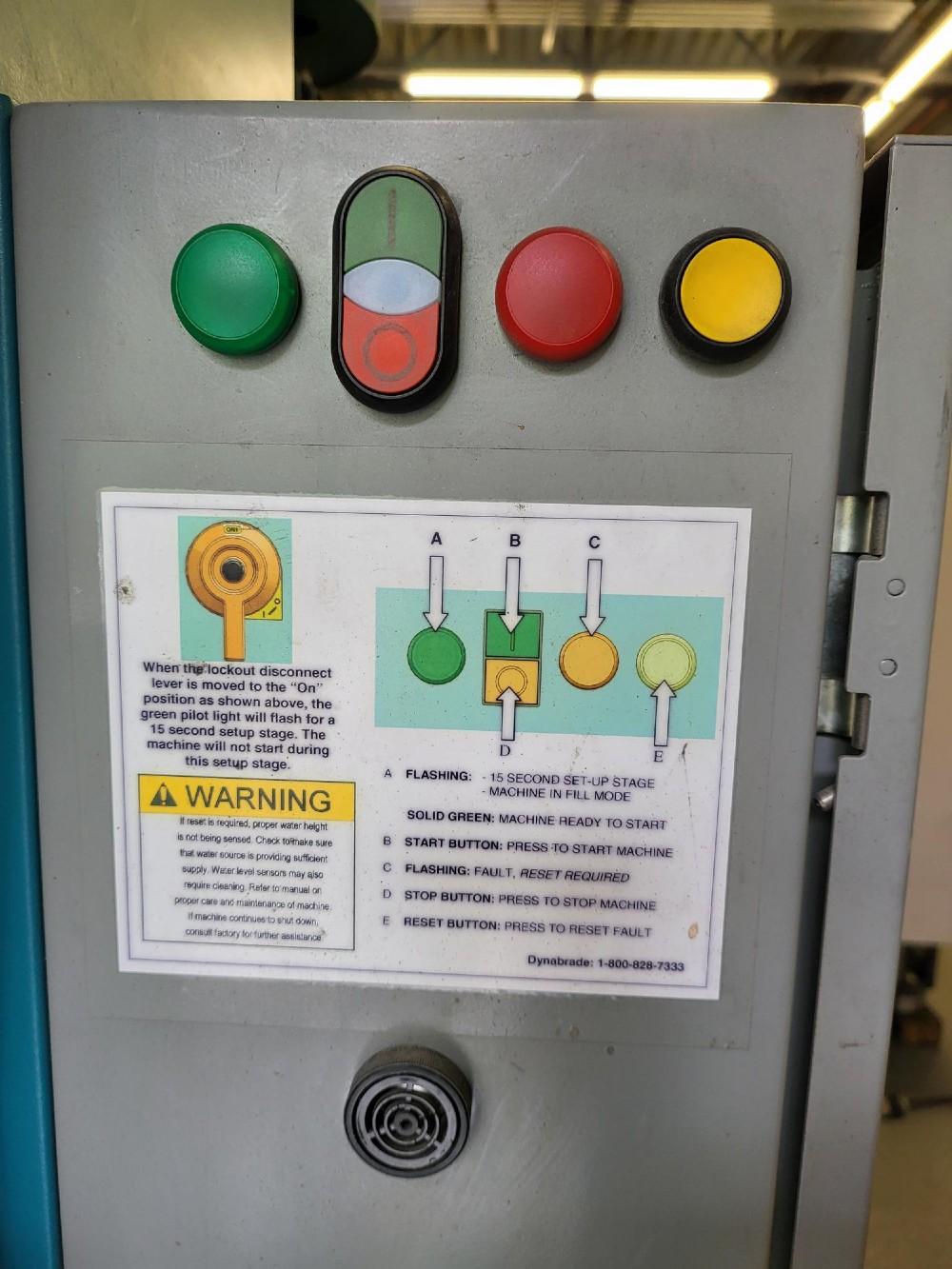

• Low Voltage Control
• Lockable Fused Power Disconnect

Features & Benefits:

Model 64350

• Greatly decreases potential flammability of work area, when

removing material from volatile substances.

• Models 64300/64304 include working area 18" wide x 36"

long.

• Models 64350/64354 include larger working area of 26"

wide x 36" long.

• Unique “tabletop” design is available only from Dynabrade!
• Sturdy stainless steel construction, with powder coat finish.
• 25 gallon capacity; 1,000 CFM.
• Overload protection / fused disconnect for safety.
• Requires no tools to access internal compartment.
• Optional side shields are available.
• Easy system maintenance. No paper filters to replace!
