100 Ton, Machineco (Canadian Press division) #HFP-100, H-frame hydraulic press, 16" stroke, 10 HP, 9" bore

(2023) call for updates

100 ton Hydraulic “Canadian Press” Paint choices.

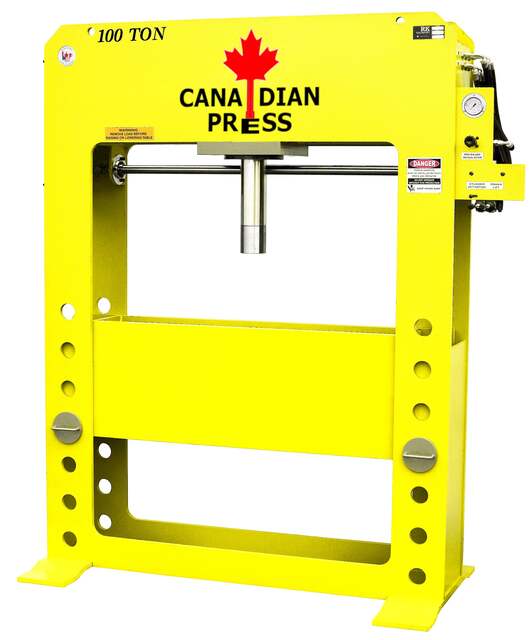

NOTE: On special order we can give your new Canadian Press (normally yellow) any colour paint that is available.

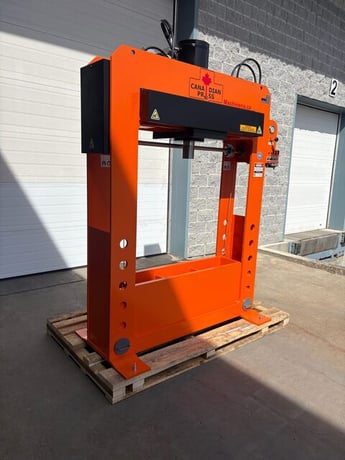

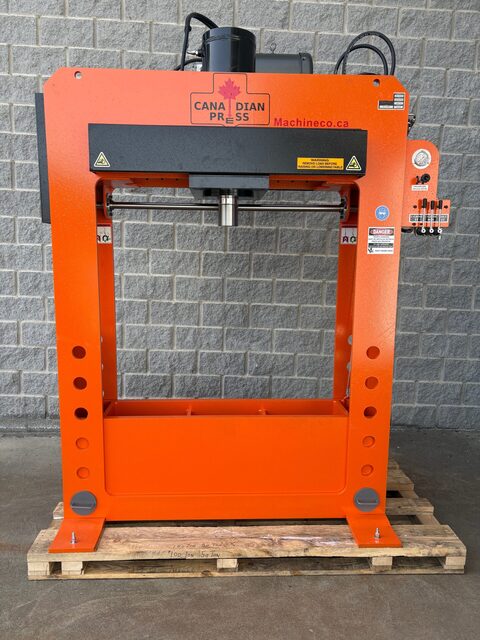

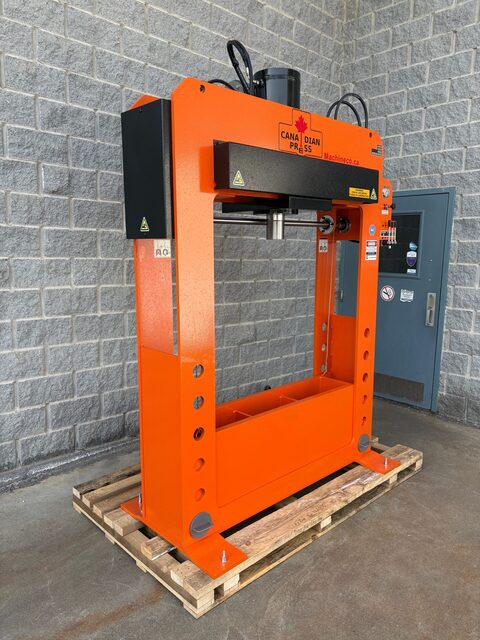

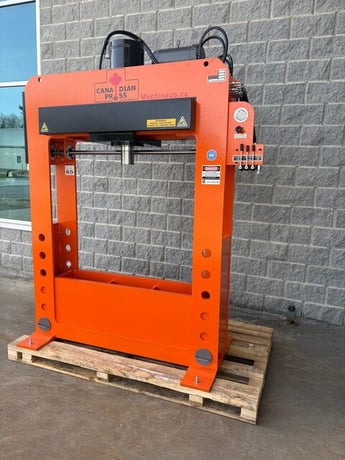

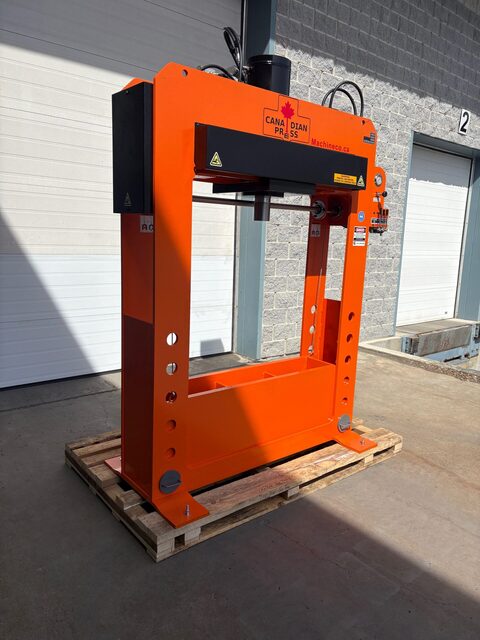

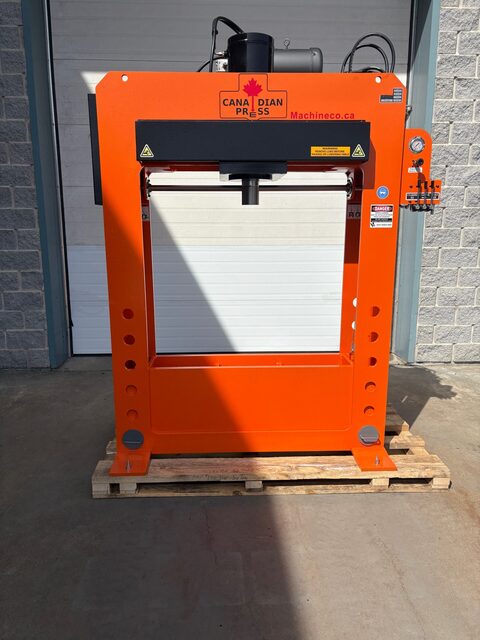

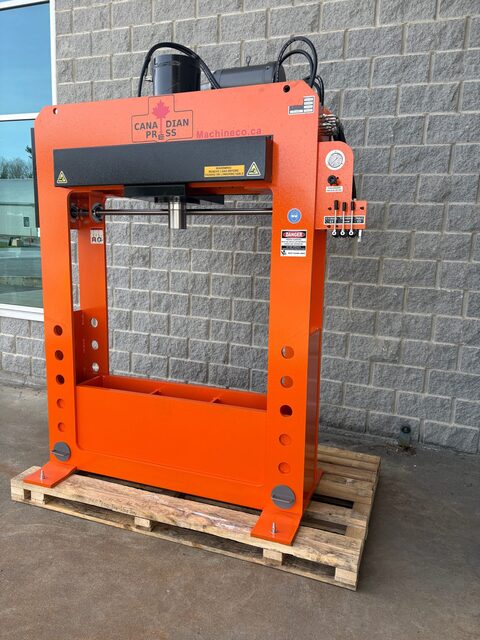

See the attached 5 views of our 100 ton model of Canadian Press, (Moving Work Head). now in Snap-On orange colour.

(2023) call for updates

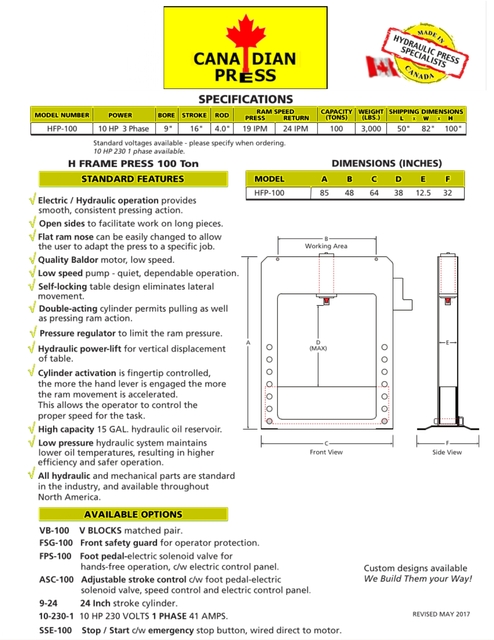

Specifications:

Manufacturer: MachineCo (Canadian Press Division)
Model Number: HFP-100*
Power: 10 HP. 3 ph* (10 HP 1-phase 230 V optional)
Bore: 9″ (230 mm)
Stroke: 16″ (406 mm)
Rod diam: 4.0″ (`02 mm)
Ram Speed: 19 IPM Press | 24 Return
Capacity: 100 Tons (200,000 lb./ 90,720 kg)
Weight: 3,000 lbs (1361 kg)
Dimensions: 50″ Length x 82″ Width x 100″ Height

NOTE * Solid 1-Piece frame plate; no welds
* Pressure/Load regulator included

Made in N. America, USA parts., assembled in Canada

* All Standard 3 Phase Voltages available- Same Price, Other Options Are Available At Extra Cost.including
Broaching, extra width, hgt, or stroke, foot pedal, front & rear safety guards, V-blocks,Emerg. Stop, stroke control
We build them YOUR way. Call now: 514-867-3131
