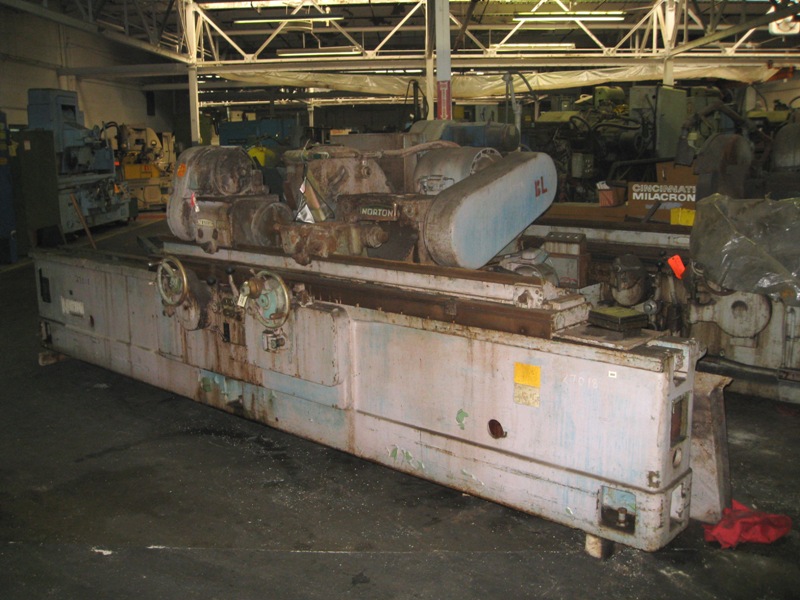

10" x 72" Norton #CTU, plain cylindrical grinder, 30" x 3" x 12" grinding wheel, 2-240 IPM, 1953

10x72 Norton, Hydraulic Table Traverse, Single Speed Hand Table Traverse W/ Interlock, Swivel Table, Adjustable Dwell Control, As Is.
10 x 72 NORTON CTU PLAIN CYLINDRICAL GRINDER
S/N 25332 Year: 1953
STANDARD CATALOG SPECIFICATIONS
Nominal length..................................... 72
Nominal swing...................................... 10
Maximum diameter work ground, w/30 wheel.......... 10
GRINDING WHEELS
Standard...........................................30 x 3 x 12
WHEEL AND WORK CENTER DISTANCES:
Maximum.........(10) 21Minimum............... (10) 8 1/4
Automatic rapid advance stroke (max)............... 4
(On semi-automatic machines)
STEADY REST:
Maximum work diameter accommodated................. 4 5/8
Swivel table adjustment (in/per/ft on dia.):
Machine length..................................... 72
Maximum taper (inches)............................. 1 1/2
Maximum taper (degrees)............................ 3 1/2
Note: Actual tapers ground depend on wheel diameter,
work diameter and length, also on the location of
the taper with reference to the pivot point.
HEAD STOCK
Center diameter.................................... 1 3/4
Center taper....................................... No. 14 Jarno
Work speeds, AC Motor (10 C-5).......... 50-80-125-200 RPM
Work speeds, DC Motor (w/1 belt change)............ 30-275 RPM
FOOT STOCK
Center diameters................................... 1 3/4
Center taper....................................... No. 14 Jarno
WHEEL SPINDLE
Large bearing (L.H.)..................... 3 1/2 x 8 5/16
Small bearing (R.H.)..................... 3 1/4 x 7 1/8
TABLE
Range of speeds (in/per/min)....................... 2 - 240
Number of speeds................................... Infinite
EQUIPMENT FEATURES
PRIVATE Head stock dead center type, including No. 14 Jarno center
(1 3/4 Diameter).tc' \l 1 Head stock dead center type,including No. 14 Jarno center (1 3/4\ Diameter).
PRIVATE Foot stock, lever type, including No. 14 Jarno center tc' \l 1 Foot stock, lever type, includingNo. 14 Jarno center
PRIVATE (1 3/4 Diameter).tc' \l 1 (1 3/4\ Diameter).
3 3/8 face, straight side wheel.
Hydraulic table traverse.
Single speed hand table traverse with interlock.
Swivel table.
Adjustable dwell control.
PRIVATE Automatic force feed lubrication to table and gravity feed to wheel slide ways.
Automatic filtered wheel spindle lubrication.
Steel tape-type base way covers.
Hand grinding wheel feed.
PRIVATE Complete coolant system with selector switch to provide automatic or manual control.tc' \l 1 Complete coolant system withselector switch to provide automatic or manual control.
Automatic work start and stop.
Wheel speed safety control.
PRIVATE Work drive motor, 1 HP, 1200 RPM AC, totally enclosed ball bearing with control.tc' \l 1 Work drive motor, 1 HP, 1200 RPMAC, totally enclosed ball bearing with control.
PRIVATE Wheel drive motor, 15 HP, 1800 RPM AC, totally enclosed ball bearing with control.tc' \l 1 Wheel drive motor, 15 HP, 1800 RPMAC, totally enclosed ball bearing with control.
Oil and lubricating pump drive motor 1 1/2 HP.
Automatic grinding cycle.
PRIVATE Adjustable rapid hydraulic wheel head advance with automatic cushioning.tc'\l 1 Adjustable rapid hydraulic wheel head advance with automaticcushioning.
PRIVATE Adjustable automatic rotating screw-type grinding wheel feed with dwell.tc' \l 1 Adjustable automatic rotatingscrew-type grinding wheel feed with dwell.
Automatic rapid wheel head retraction.
Specifications are deemed accurate, however, subject to verification or prior sale.
