10 gauge x 6' Roper Whitney #PX610-R, Mechanical Shear, 30" Back gauge range, (14) Hold-Down Feet, 45 SPM, 10 HP, 230/460 V, new

Description

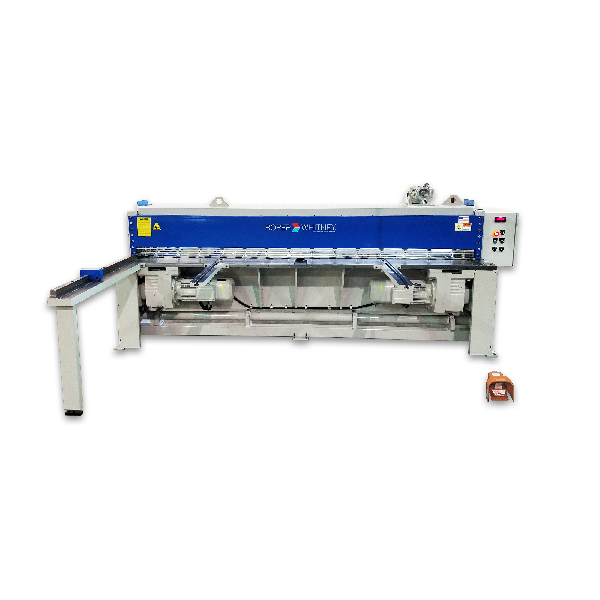

Roper Whitney Pexto 6′ x 10 Gauge Mechanical Shear, PX610-R

Inventory # 7916

Model: PX610-R

Made in USA

Description:

The Pexto PX series mechanical shears utilize a low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance. The PX series shears produce accurate distortion free shearing while minimizing material twist. The PX610-R has an oversized motor and gear box making the machine capable of 45 strokes per minute. PX shears are ideal for high volume applications. The PX series also includes the unique powered 24″ back gauge system

A digital readout is standard for this system. The ball screw-driven back gauge provides quick, accurate cuts. PX series shears standard features include four-edge, high carbon, high chrome blades, independent, self-leveling hold down feet with neoprene inserts, single, continuous and jog stroke cycles, motor reverse switch, precision-machined T-slotted table. The table also has a hand well with dual inch/metric inlaid bed scales. PX shears incorporates non-metallic ram gibbs and low maintenance garlock bearings

Specifications:

Max. Shearing Capacity:

Mild Steel: 10 Gauge

Stainless Steel: 14 Gauge

Max. Cutting Length: 73″

Back Gauge Range: 30″

Strokes per Minute: 45

Number of Hold-Down Feet: 14

Motor: 10 HP / 230v, 460v / 3ph

Mechanical Specifications:

Dimensions: 48″ x 72″ x 96″ H

Weight: approx. 5,000 lbs.

Contact us for special pricing and availability

FOB Factory
