1 HP 3450 RPM Dayton 36VF61B Allis-Chalmers Motor

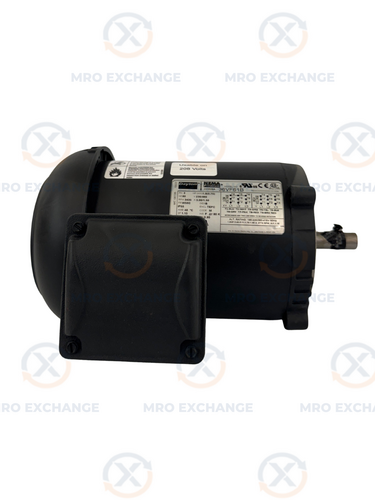

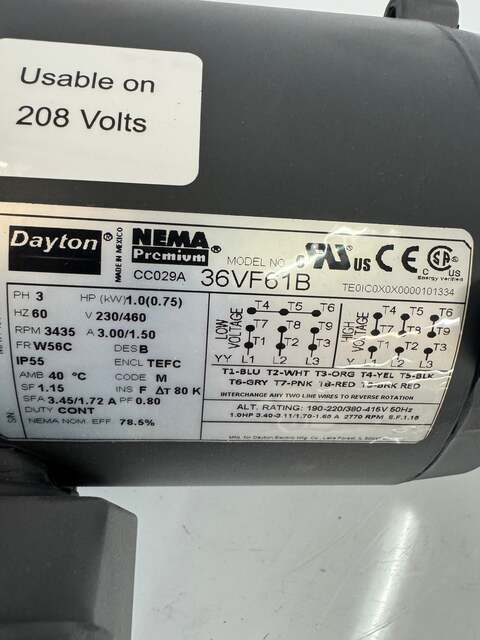

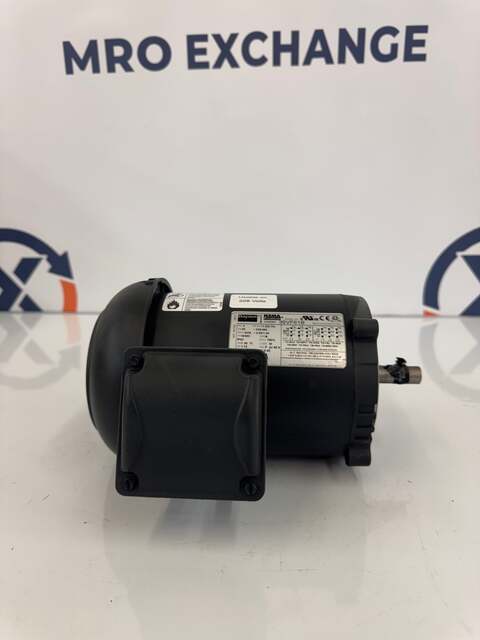

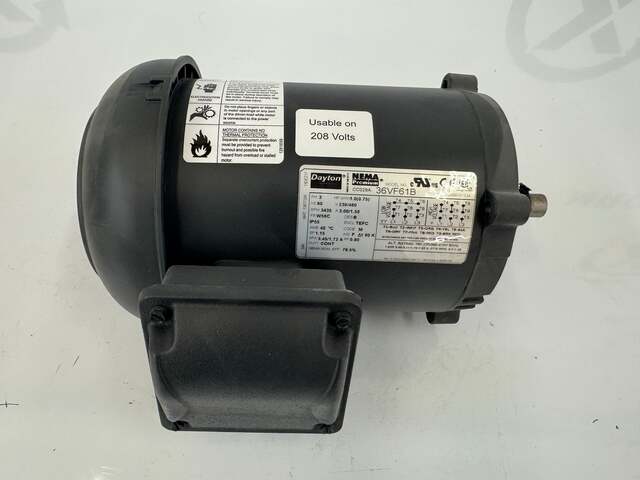

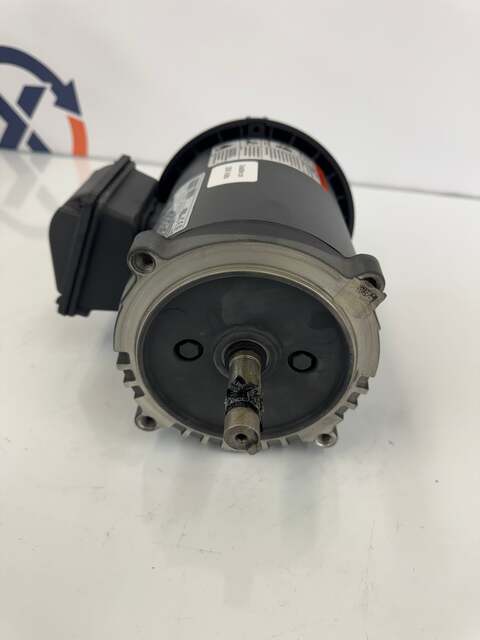

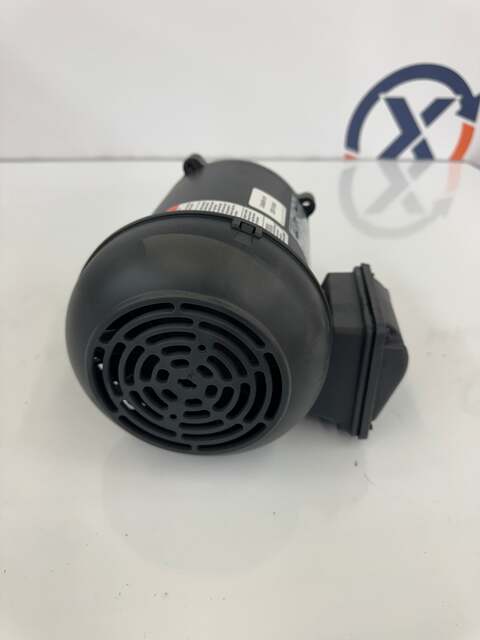

The Dayton 36VF61B is a 1 HP three phase AC general purpose motor rated for 230/460V, 60 Hz operation, with an alternate rating of 190/220/380/415V at 50 Hz. The nameplate also indicates it is usable on 208V. Full load current is 3.00/1.50 A at 230/460V, with a service factor amperage of 3.45/1.72 A and a power factor of 0.80. Nameplate speed is 3435 RPM, drawing 1.0 HP (0.75 kW) at a 1.15 service factor. Construction is a NEMA Premium efficiency design with a TEFC (totally enclosed fan cooled) enclosure, IP55 ingress protection, and a 56C face mount frame suitable for direct coupling to pumps, gear reducers, and similar driven equipment. Insulation class is F with an 80 K temperature rise and a 40 degree C maximum ambient. Duty is continuous, design code is B, and the motor is rated for continuous duty operation. NEMA nominal efficiency is 78.5 percent. The dual voltage wiring diagram is printed on the nameplate, with terminal leads color coded T1 through T9 and standard Y/YY connection schemes shown for both low and high voltage operation. Interchanging any two line wires reverses rotation. The motor carries cULus and CSA certifications. Manufactured for Dayton Electric Mfg. Co., Lake Forest, IL. MPN 36VF61B, catalog reference CC029A.

Stock # 0226-079
