Description
Description

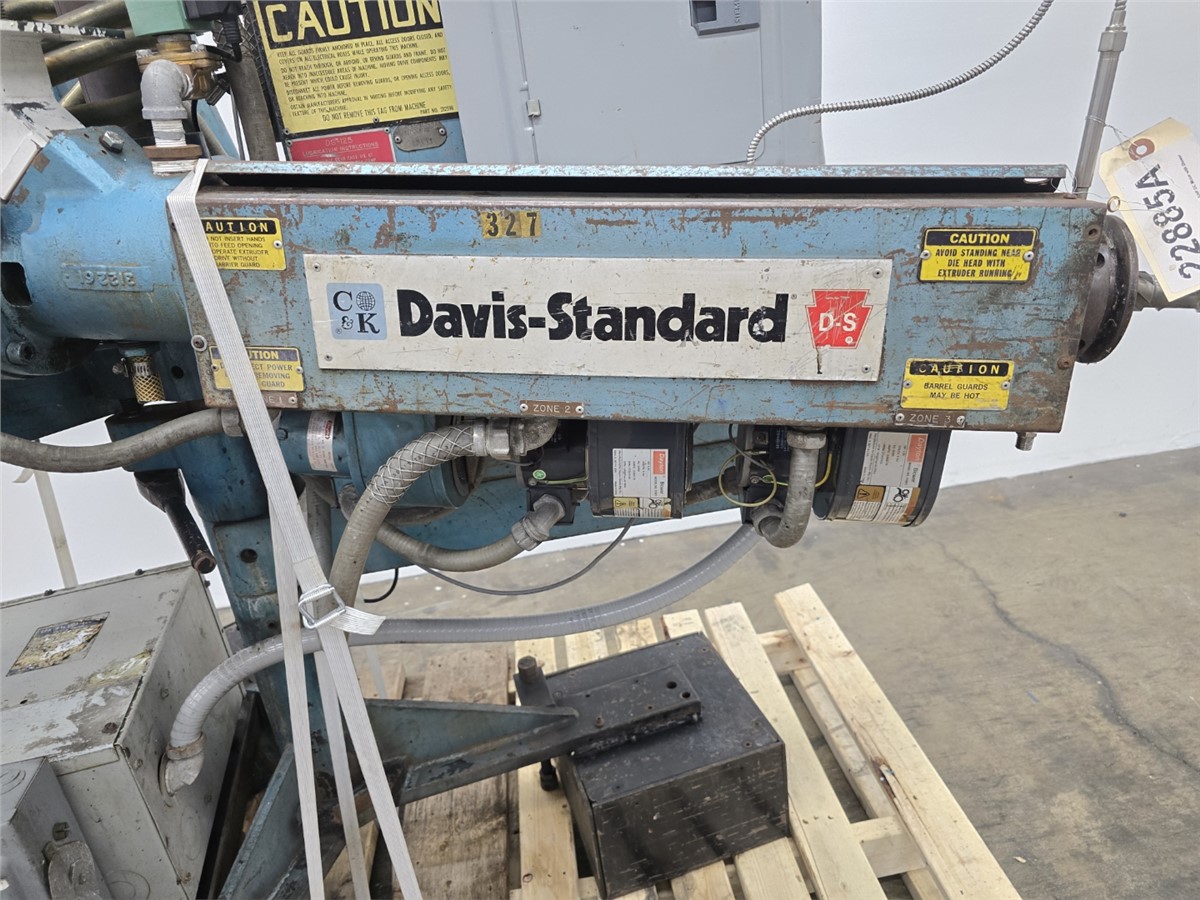

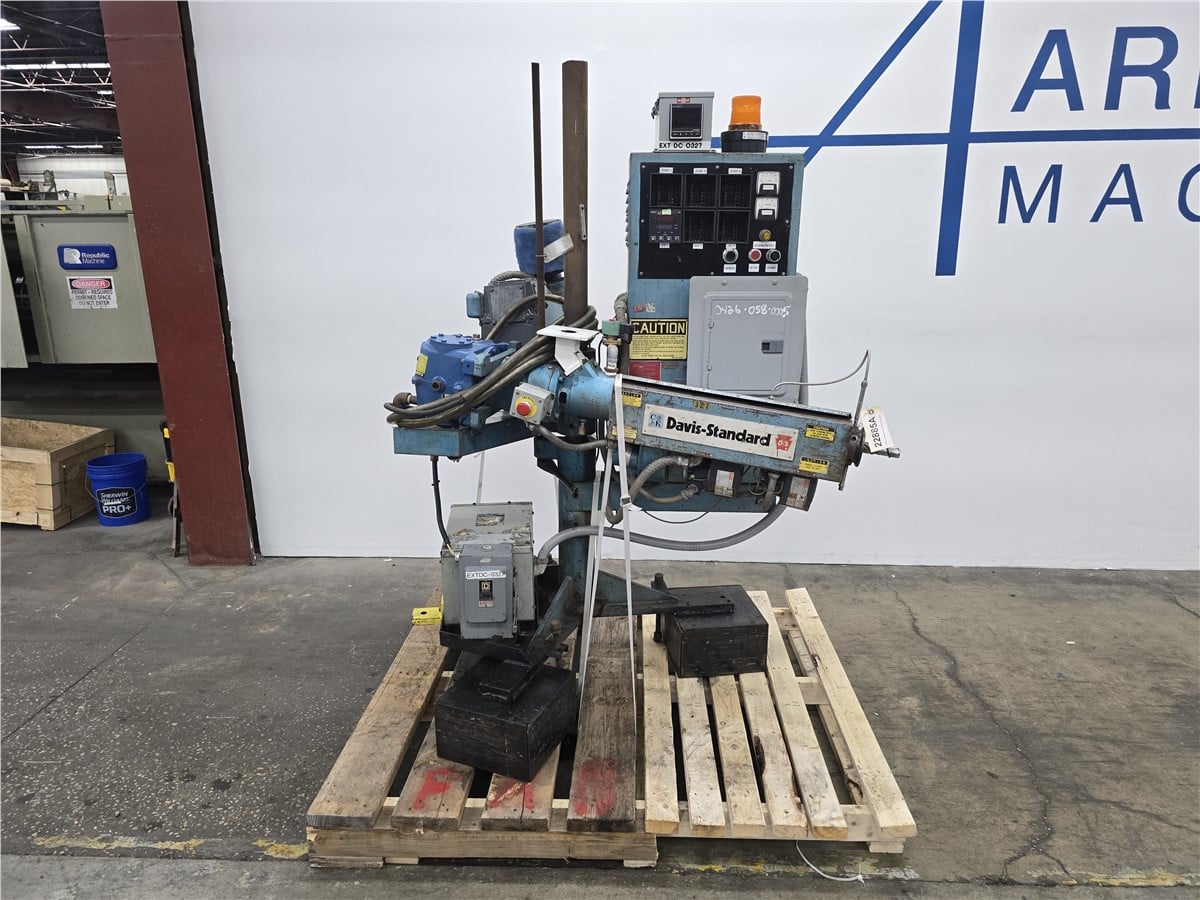

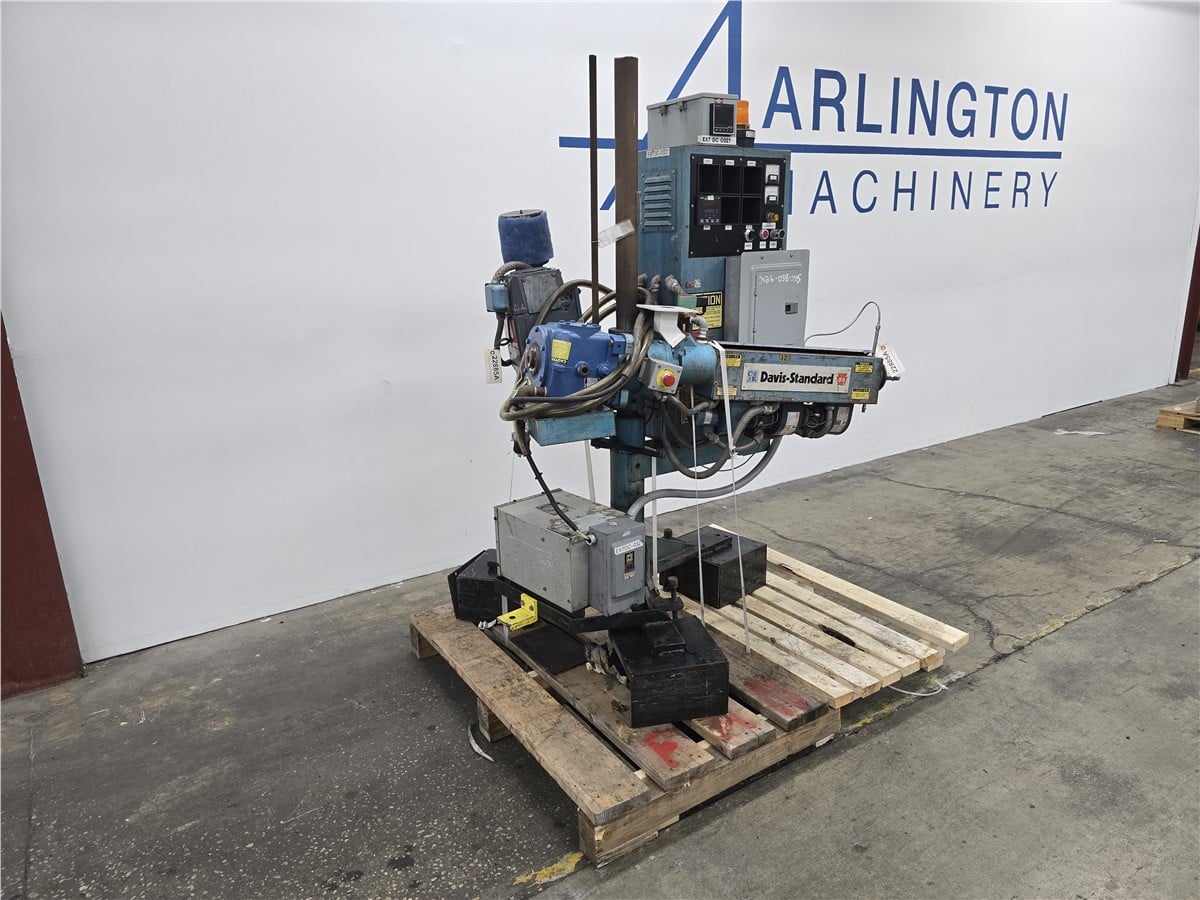

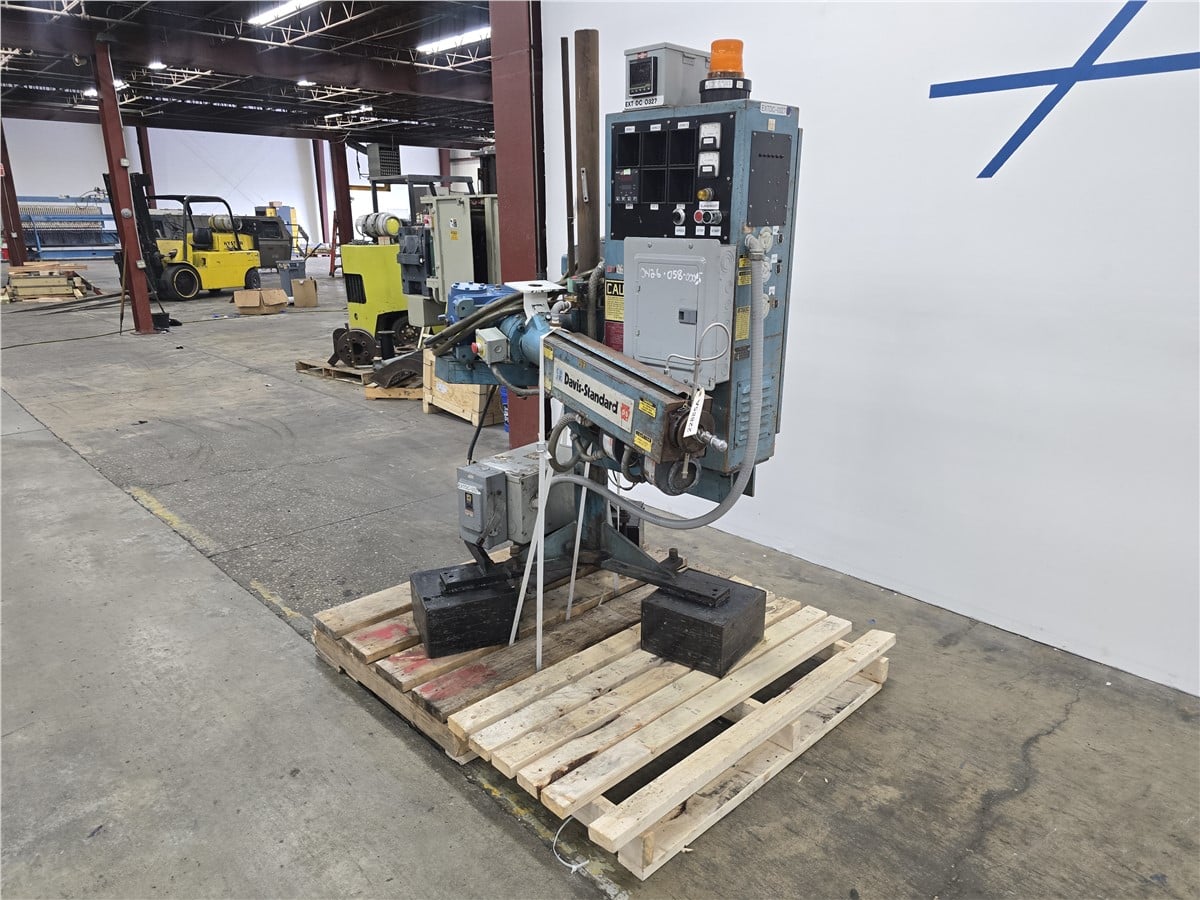

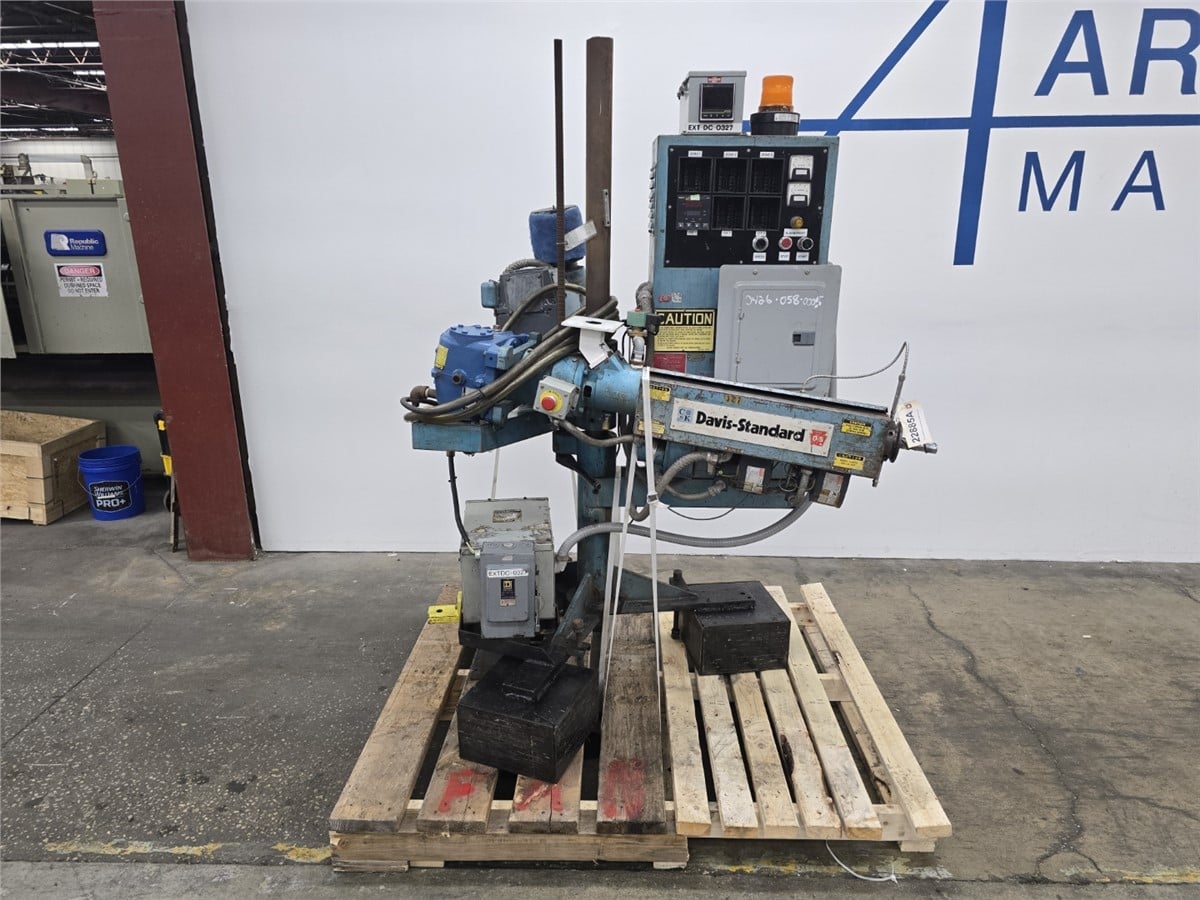

- Used 1.25" Davis Standard Pedestal Extruder, 24:1 L/D, 5 HP DC Motor with Blower
- Model: DSPA-125V-H24
- 3 Barrel Zones, 3 Die Zones, Air Cooled
- 5 HP Reliance DC-Motor, Drip Proof
- 1750 RPM
- 180 Volts, 24 Amps
- Straight Shunt Winding
- 1/3 HP Blower

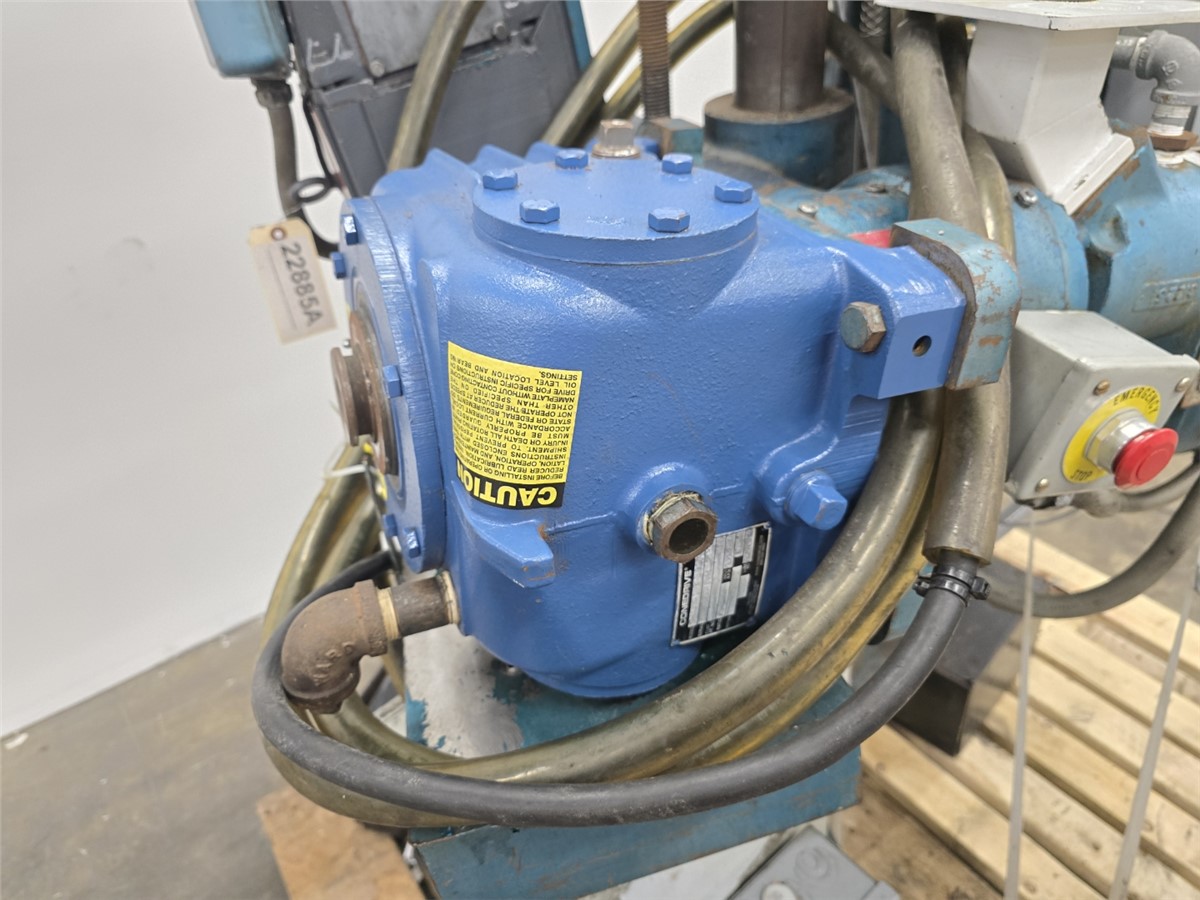

- 15:1 Conehead Reducer, Rated For 7 HP Max

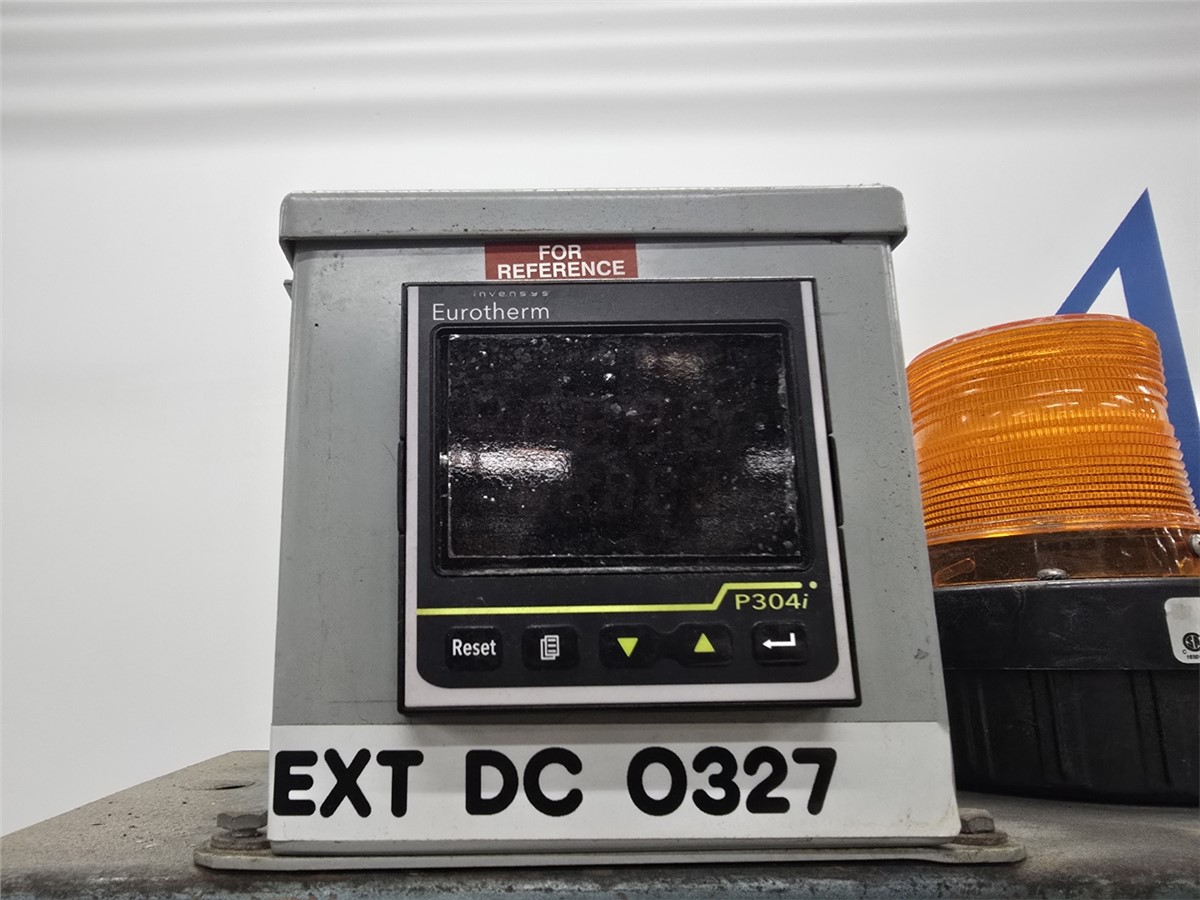

- Eurotherm P304i Melt Pressure Indicator

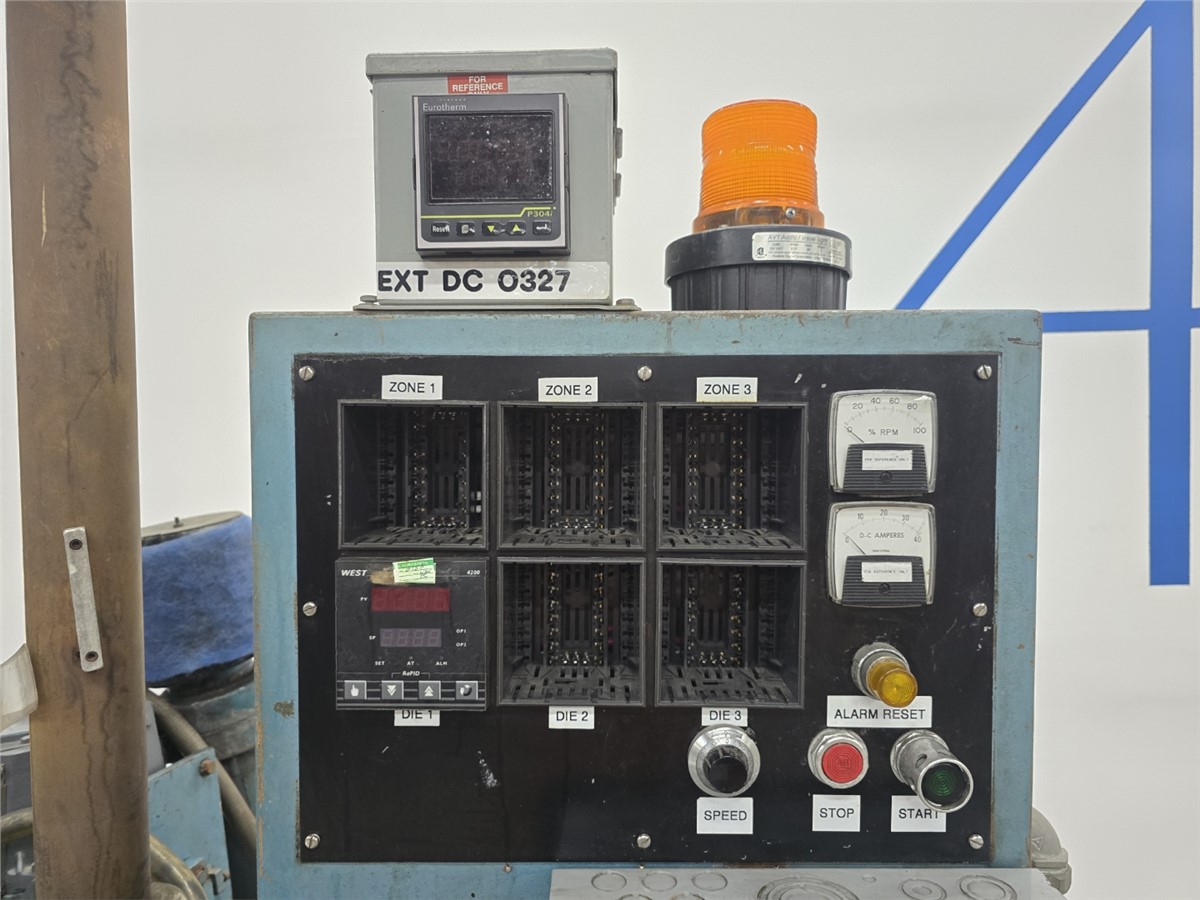

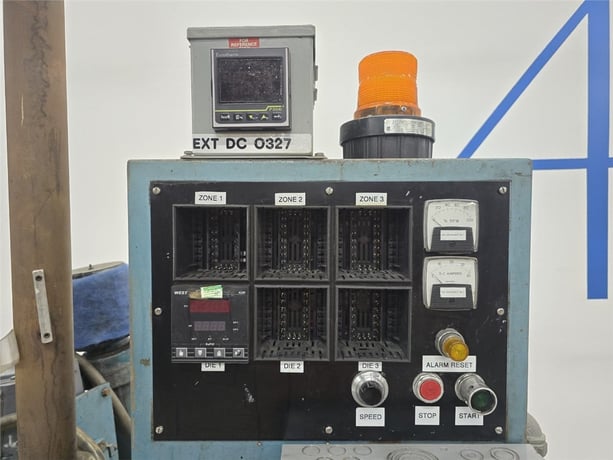

- Analog Motor RPM And Amp Gauge
- Speed Pot, Start/Stop Push Buttons
- SF: 1.25 @ Extr. RPM 99
- S/N: J49113
- S/O: 97364

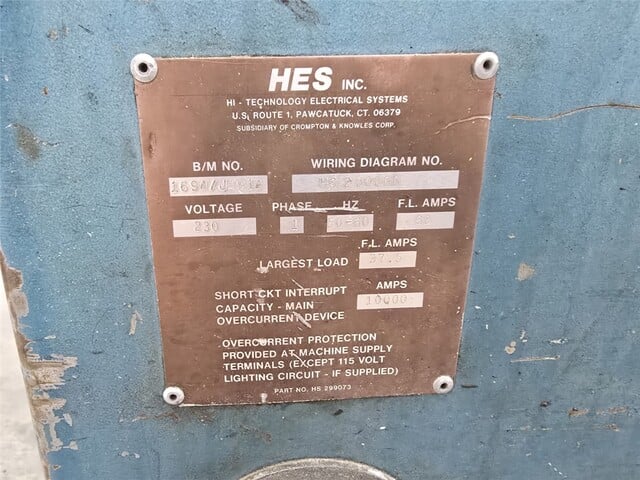

- 230/1/60, 68 FLA
- Approx. Dimensions: 64" x 55" x 79" H
- On Casters
- Sold As-Is
- *Missing Temp Controllers
- **Can Be Quoted Tested And Running With New Controllers. Please Call To Inquire
