For Sale by Revelation Machinery
Surplus Record Dealer Since 2017
Location: Chicago, IL
Contact Tim Wheeler
Phone Number: 816...> Show Phone Number 816-330-2138
Let the seller know you found their listing on Surplus Record!

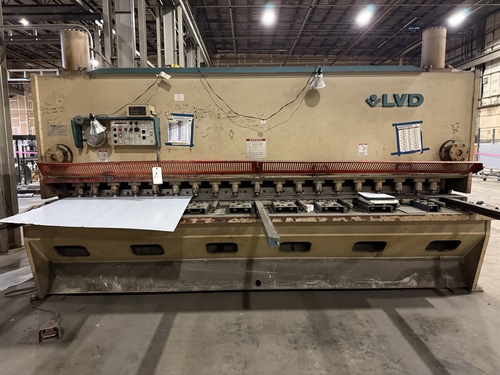

Description
Make: LVD
Model: 12-OH-50
Year: 1990
Machine Location: Illinois
Model: 12-OH-50
Year: 1990
Machine Location: Illinois
Specifications:
Max. Capacity: 1/2″ Mild Steel, 60,000 Psi
Length Of Cut: 146″
Distance Between Housings: 152″
Depth Of Gap: 4″
Rake Angle Adjustment Min./Max. Degree: 0.5/3.2
Blade Clearance Adjustment Min./Max. Inch: 0.002/0.050
Strokes/Min Min./Max.: 10/33
Noise Level: 70db
Power – 3ph 230v, 25hp, 55A
Capacity Of Hydraulic Oil Reservoir: 65 Gallons
Foundation Requirements: Flush-Floor
Thickness Of Side Housings: 1.50″
Working Height: 36″
Machine Length: 180″
Machine Width: 80″
Machine Height: 96″
Approximate Shipping Weight: 26,700 Lbs
Equipped with:

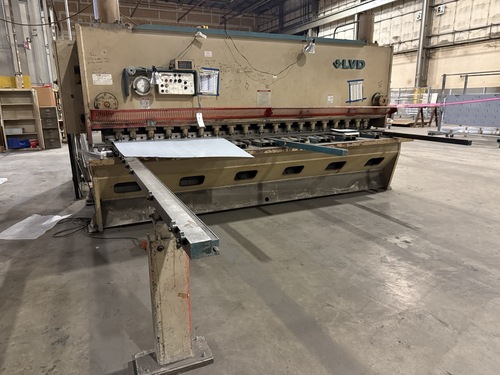

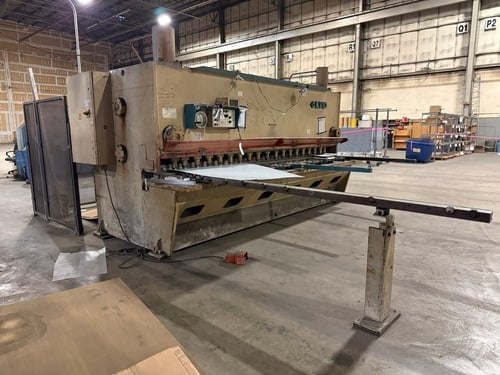

Squaring arm & sheet supports
powered back gauge
Adjustable blade gap
Variable rake angle
Get Your Price from Revelation Machinery!
