For Sale by MRO Exchange
Description
Product Specifications
- Manufacturer: Dutch Regulators
- MPN / Model: GBT15S 280N100 SSPE
- Product Type: Springloaded Back Pressure Regulator
- Inlet Pressure: 0 To 280 Bar
- Adjustable Range: 0 To 100 Bar
- Design Pressure: 0 To 280 Bar
- Seat Diameter: 7 mm
- Connections: 1/2 In. NPT
- Material: Stainless Steel 316L
Product Description

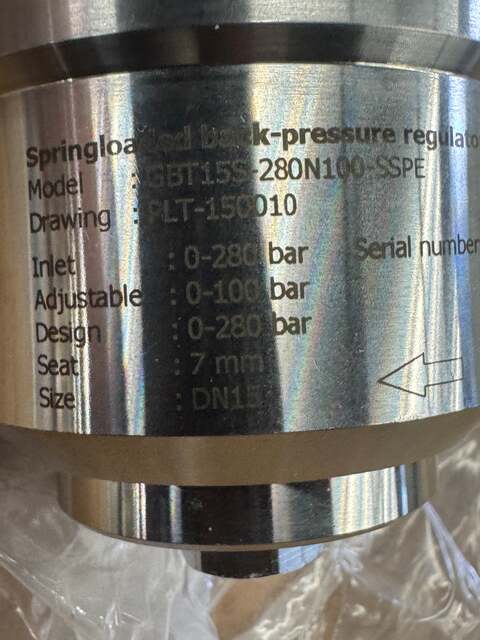

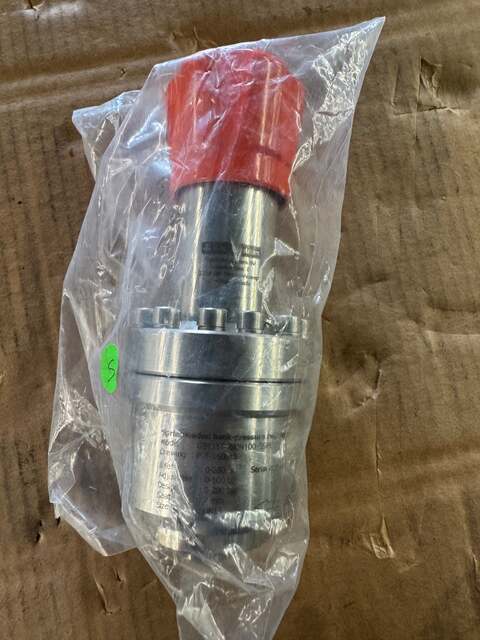

Dutch Regulators manufactures this springloaded back pressure regulator under model number GBT15S 280N100 SSPE, as marked on the unit nameplate along with drawing number PLT 150010. The nameplate confirms an inlet pressure range of 0 to 280 bar, an adjustable range of 0 to 100 bar, a design pressure of 0 to 280 bar, and a 7 mm seat diameter. Back pressure regulators of this type maintain a set pressure on the inlet side, opening to allow flow once the inlet pressure exceeds the setpoint, and are commonly used in process, laboratory, and fluid control systems where upstream pressure needs to be held steady. The body is stainless steel construction consistent with Dutch Regulators GBT15S series units. Buyers matching this exact catalog number for replacement or spare inventory should confirm the full typenumber, including adjustable range and seal material codes, against their existing unit before ordering.
Inquire Further with MRO Exchange!
Buyers Who Viewed This Listing Also Viewed:

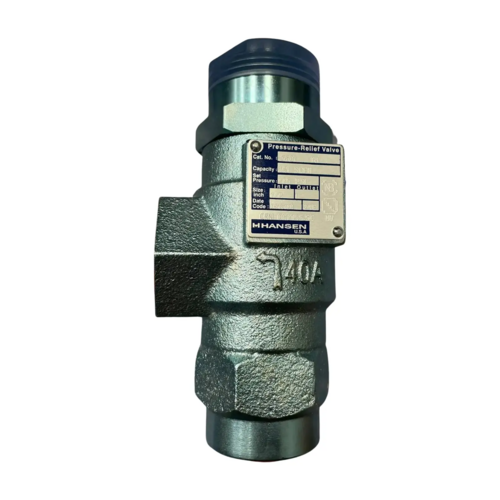

1/2" Hansen Technologies #H5601/275-P, pressure relief valve, 275 psi
1 -1/2" Singer Valve #106-PR-NPT, pressure relief valve, 150# class

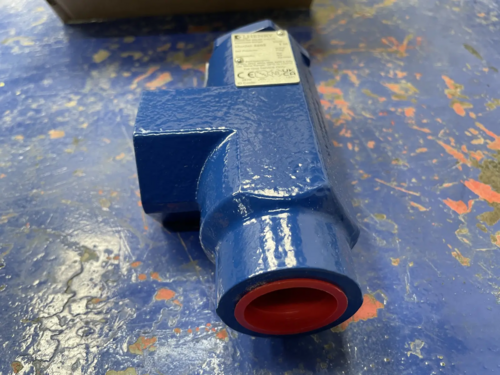

1 Henry #5603, Pressure Relief Valve
