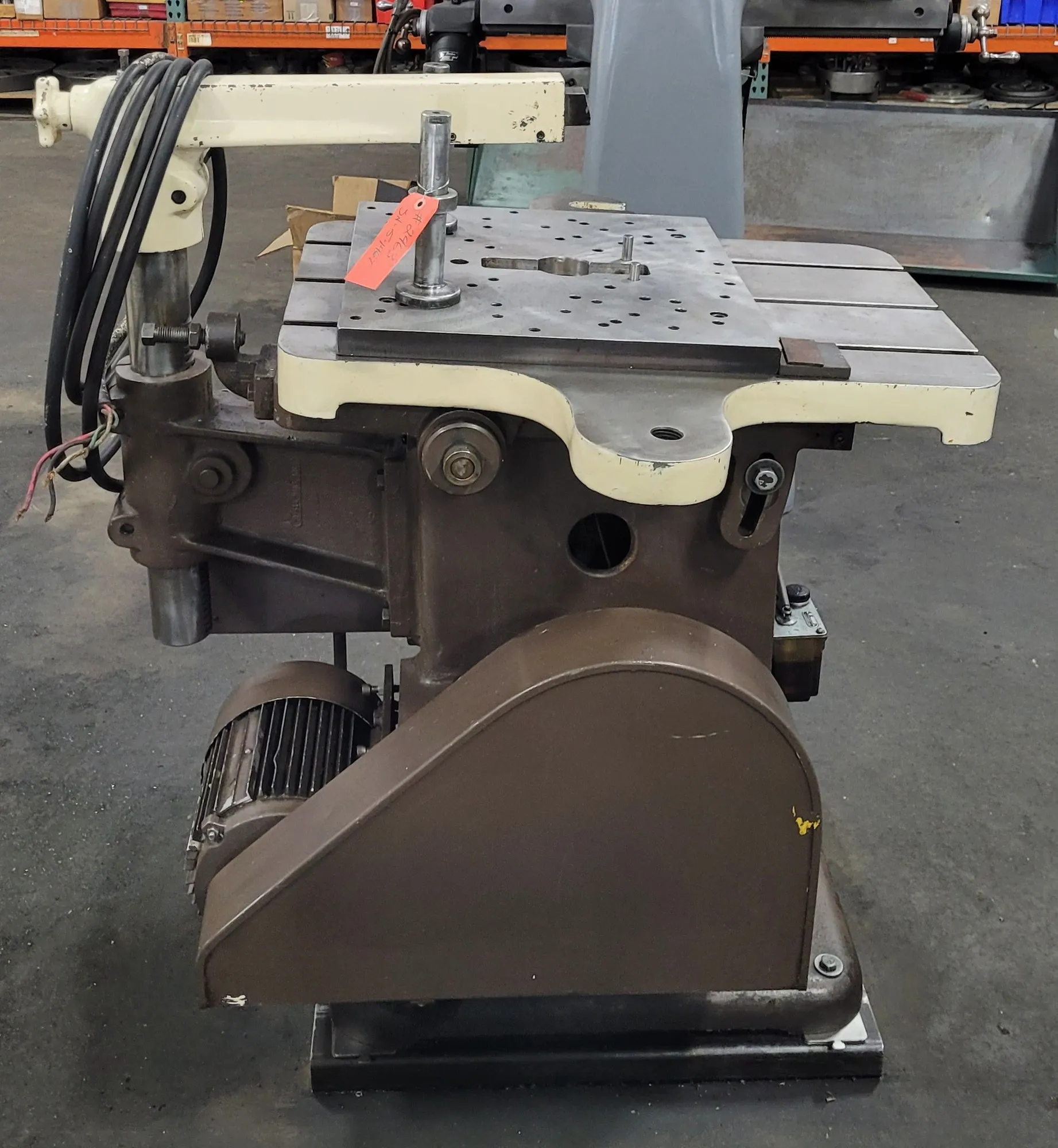

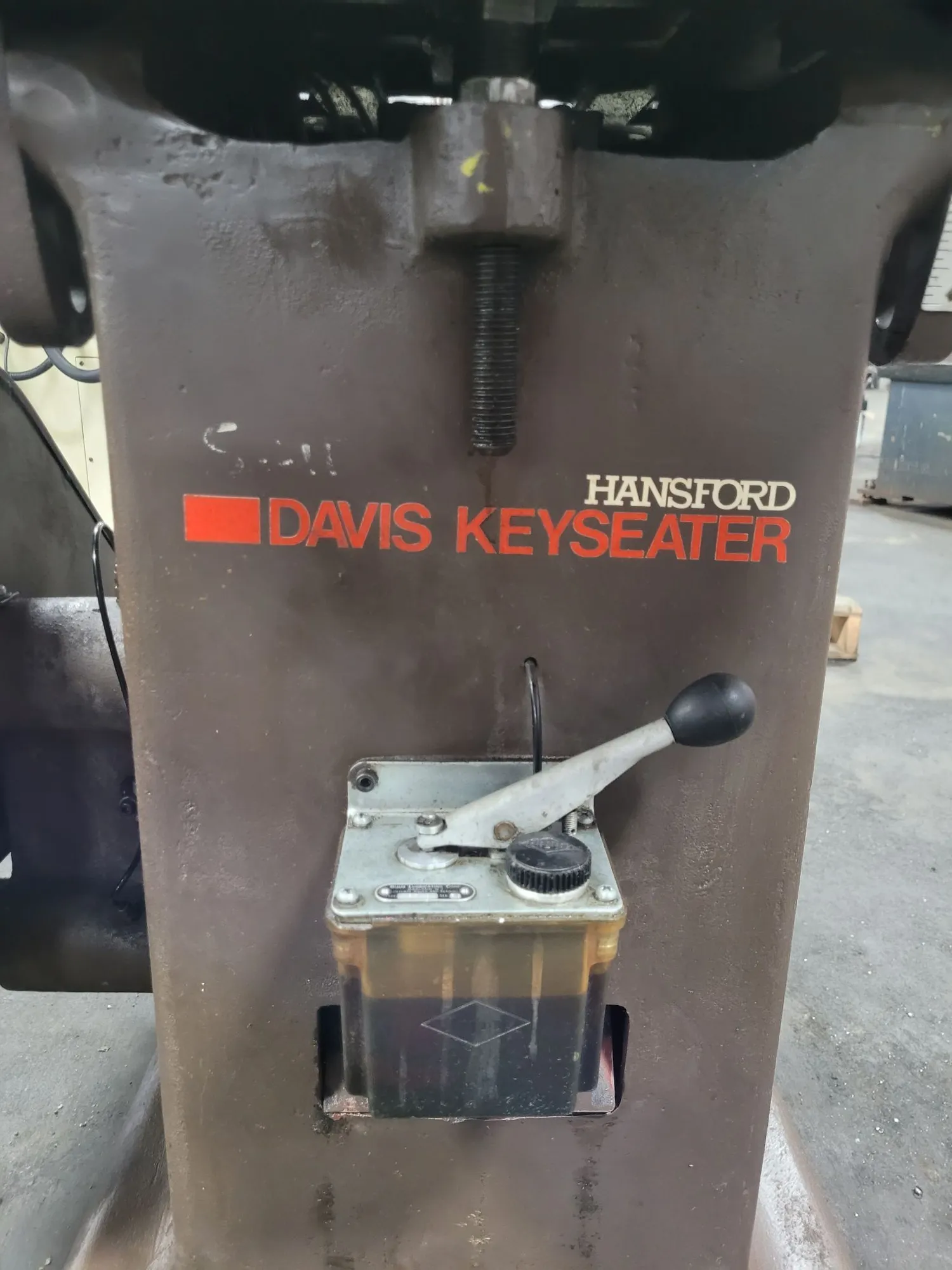

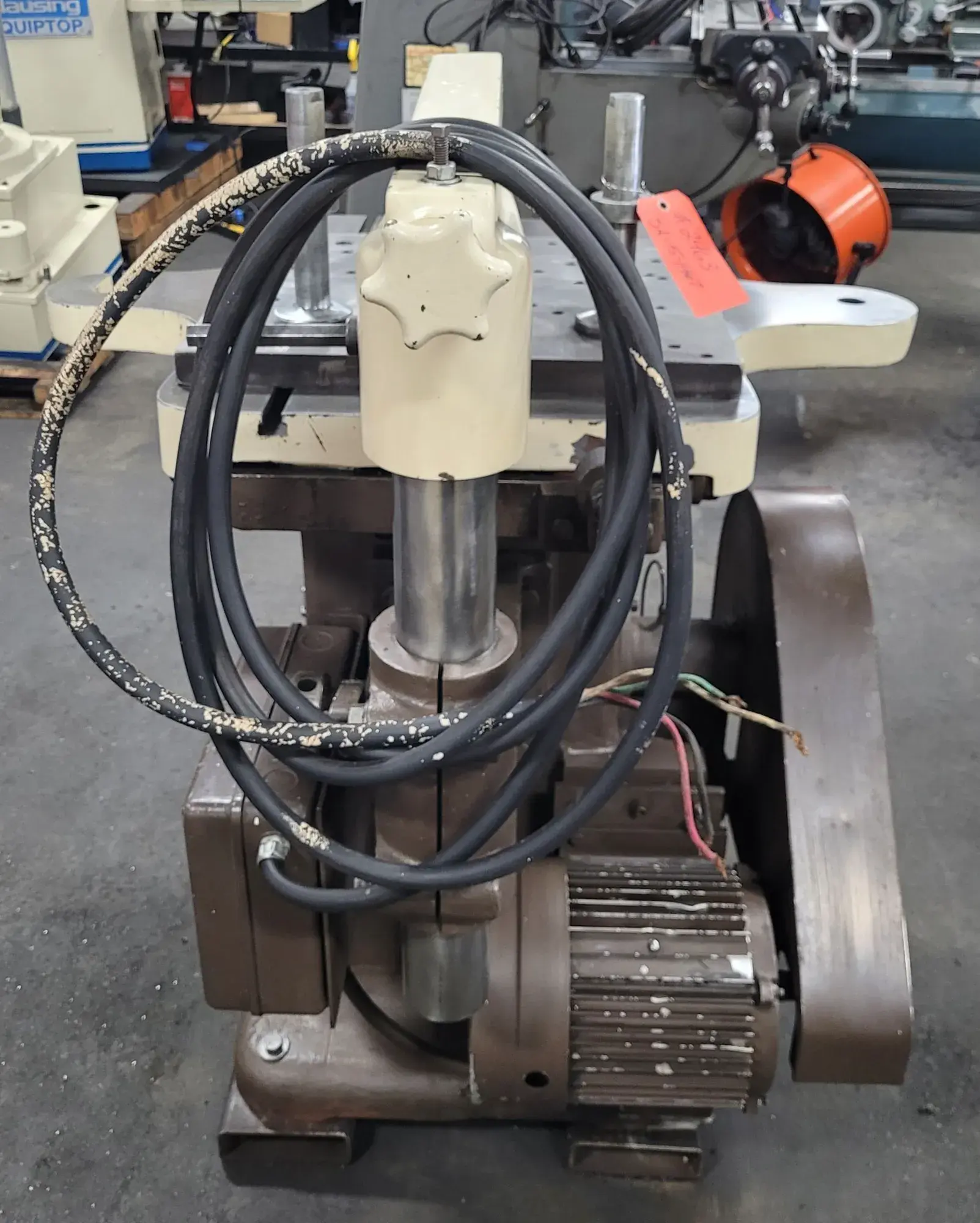

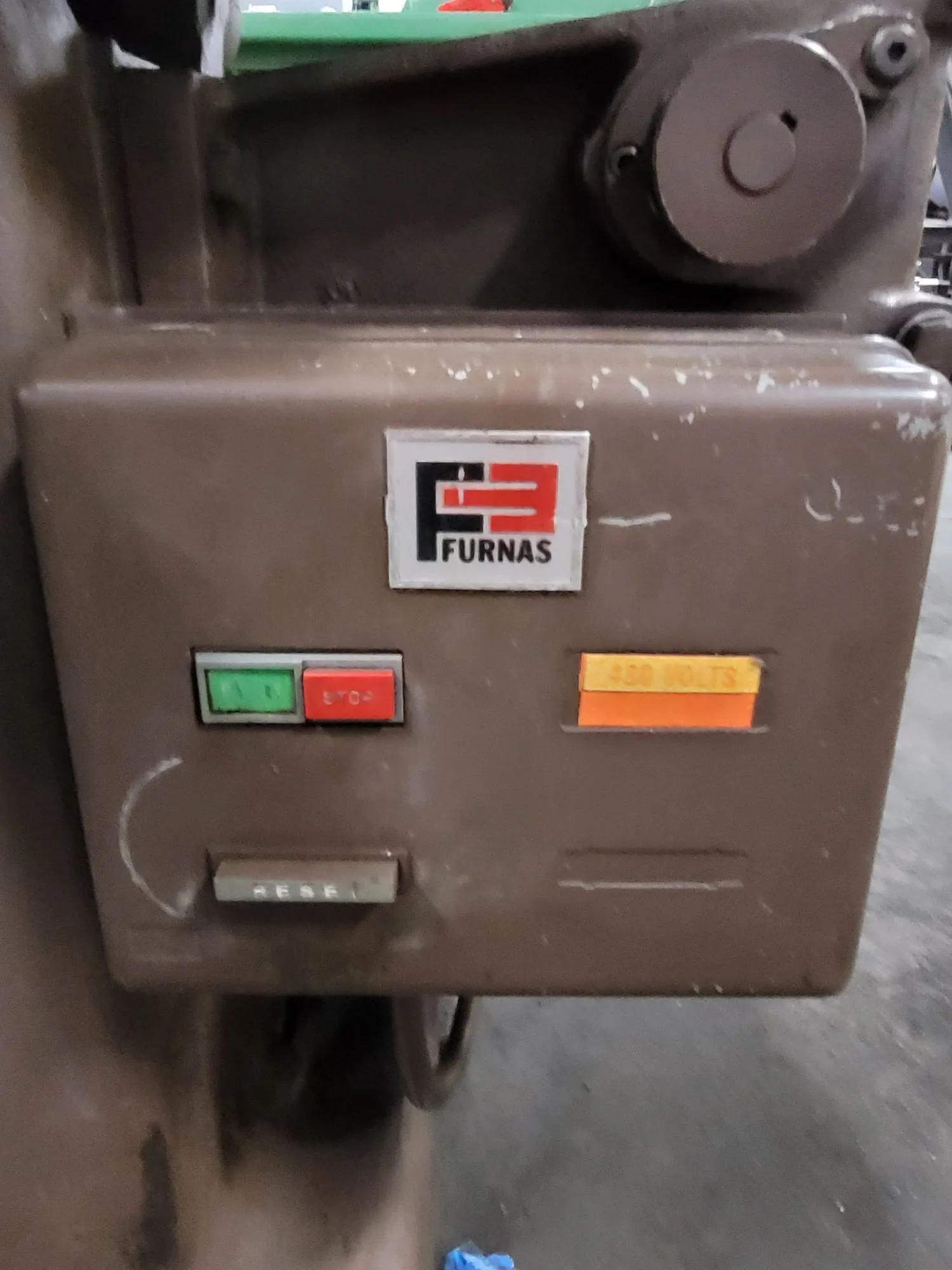

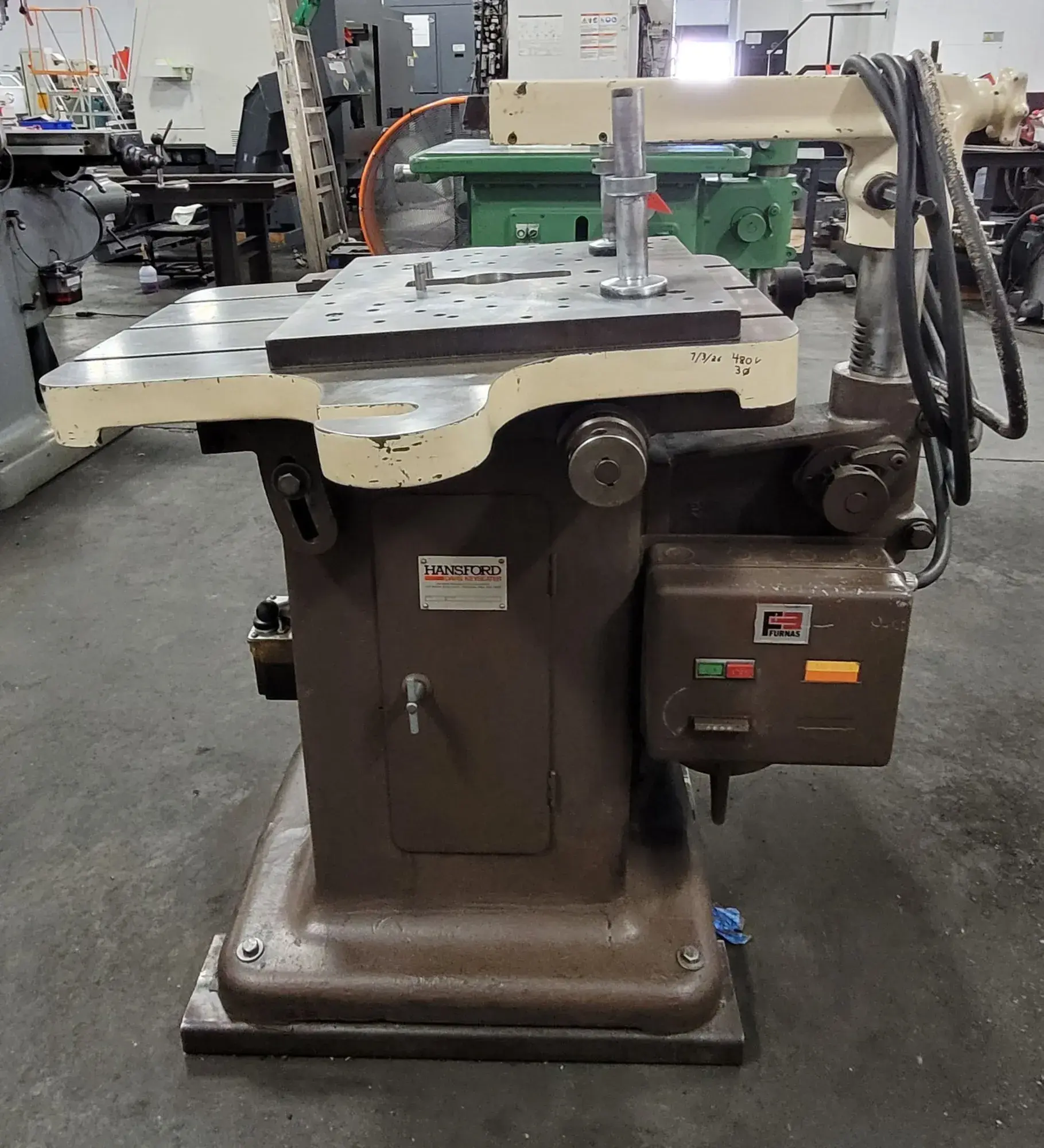

1/16"- 1-1/2" Hansford Davis #5, keyseater, 18-3/4" throat, 4-1/2" stroke, 48 SPM, 2 HP, 480 V.

$9,500 USD

Request Formal Quote

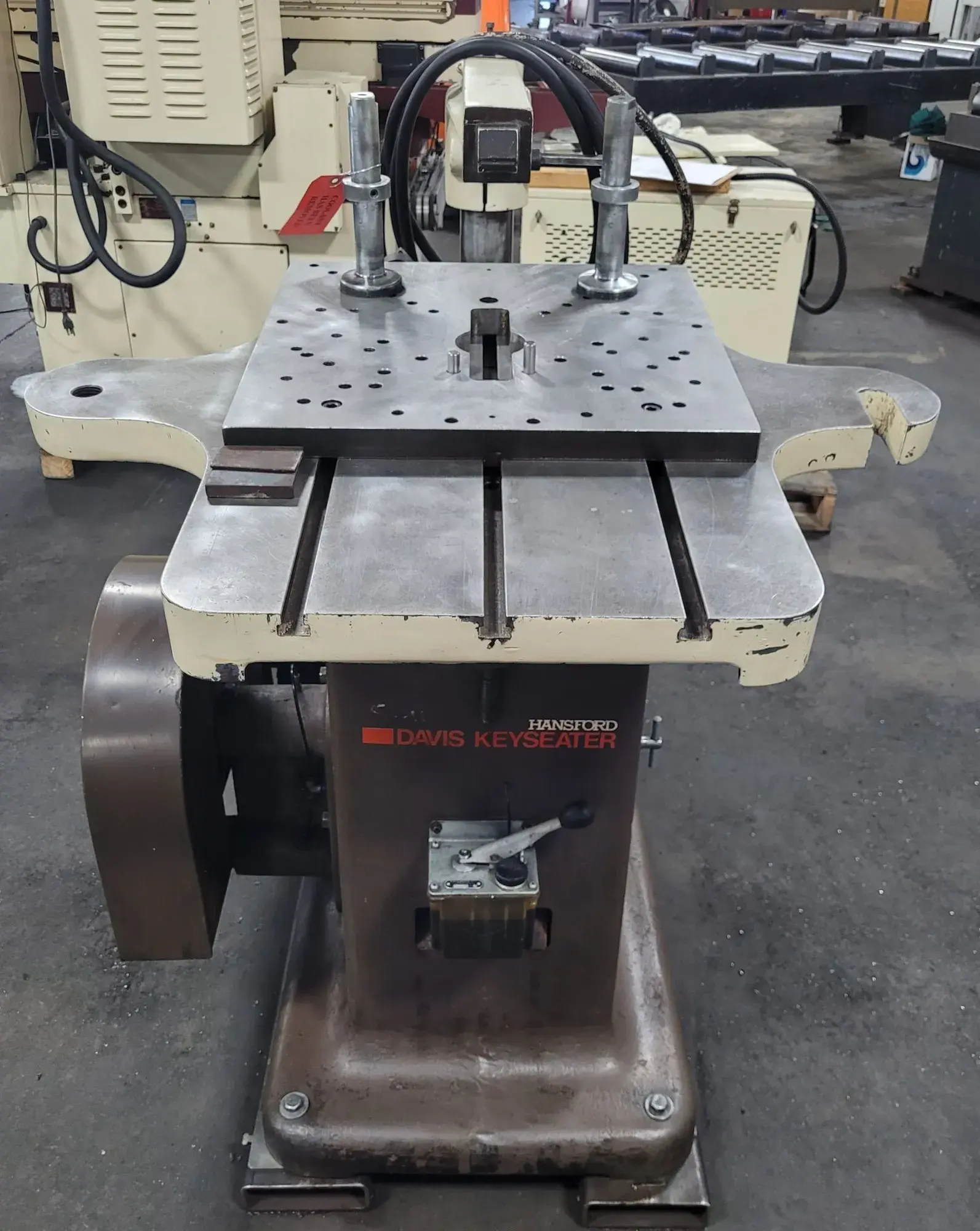

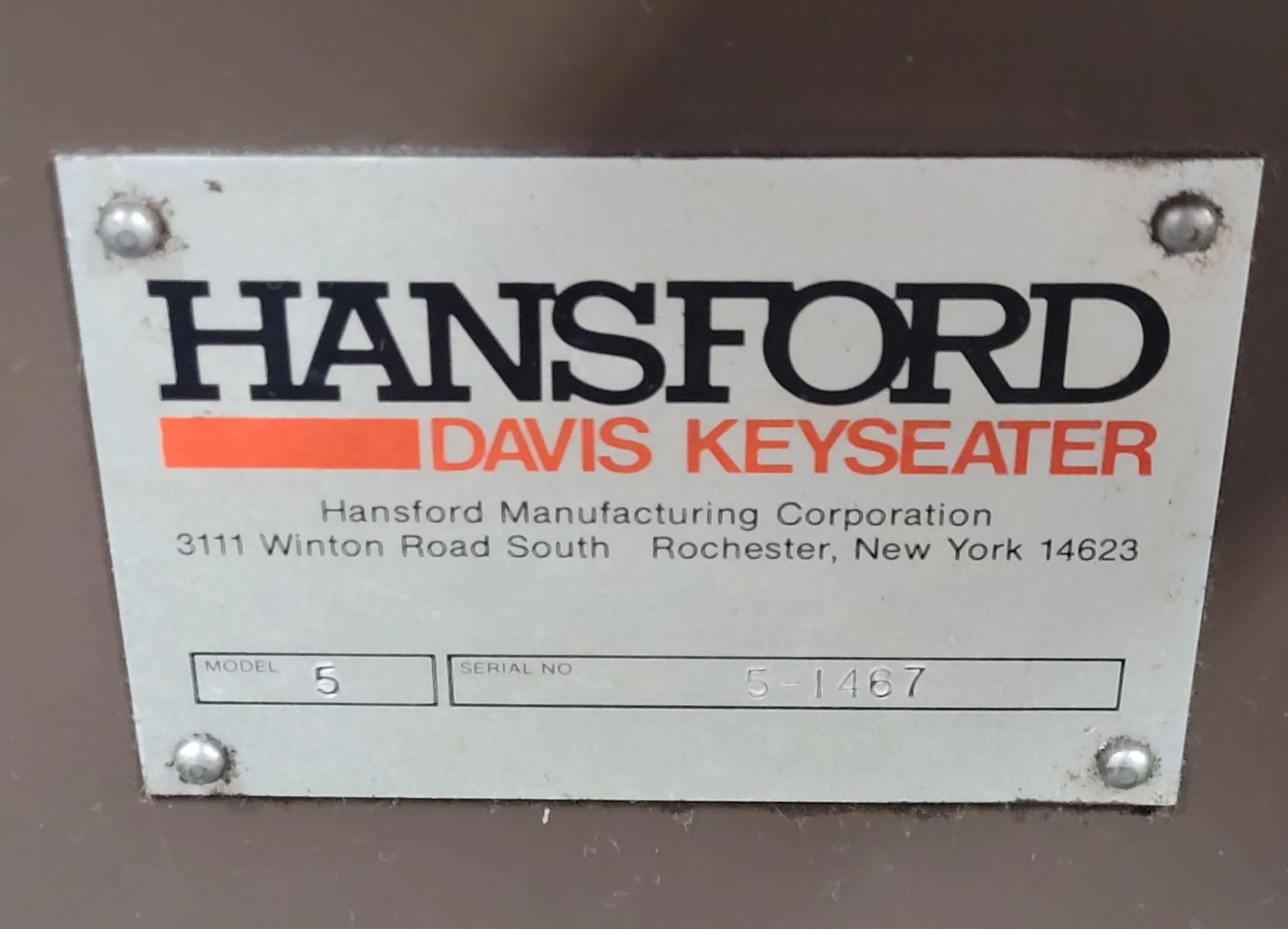

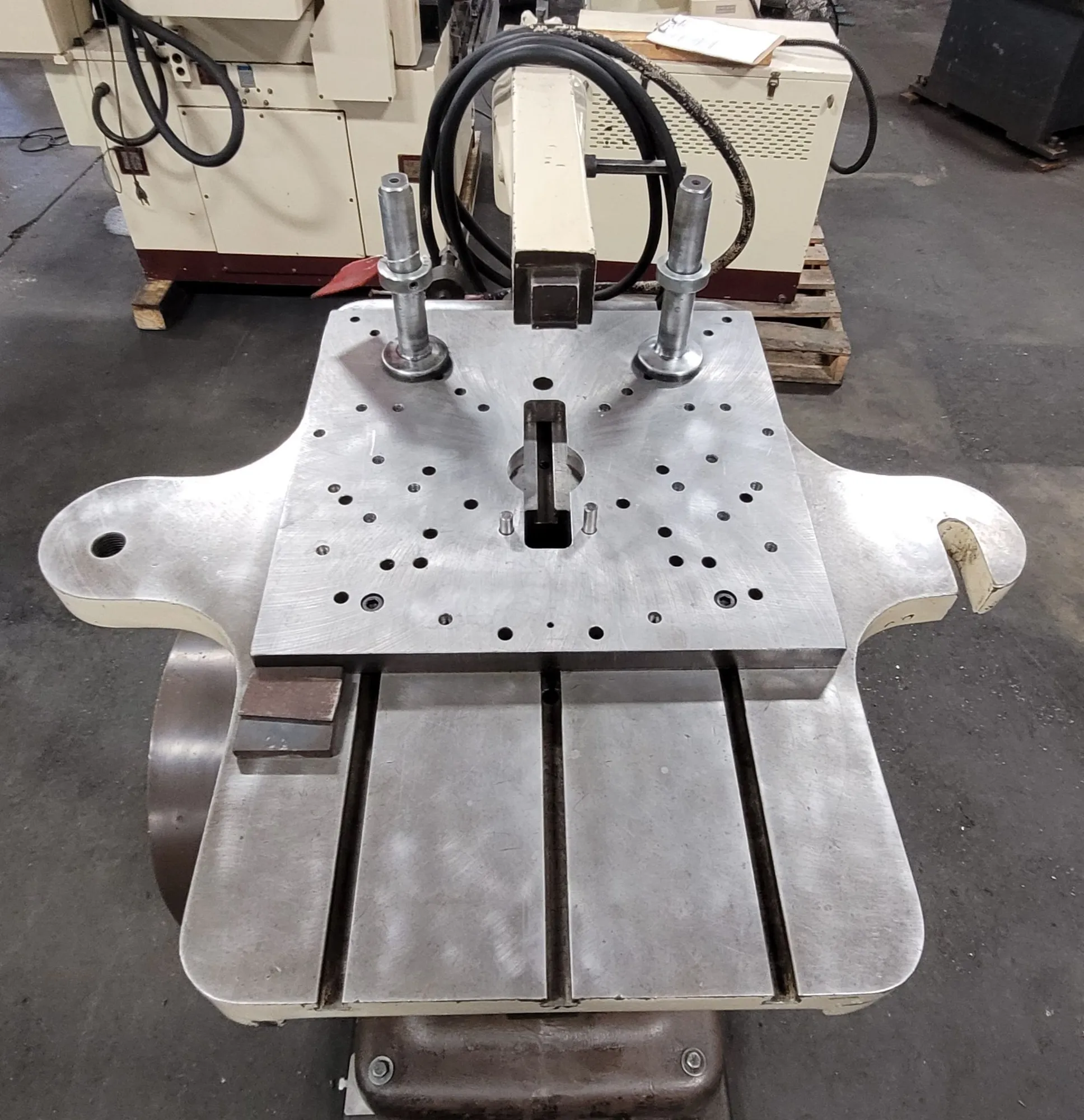

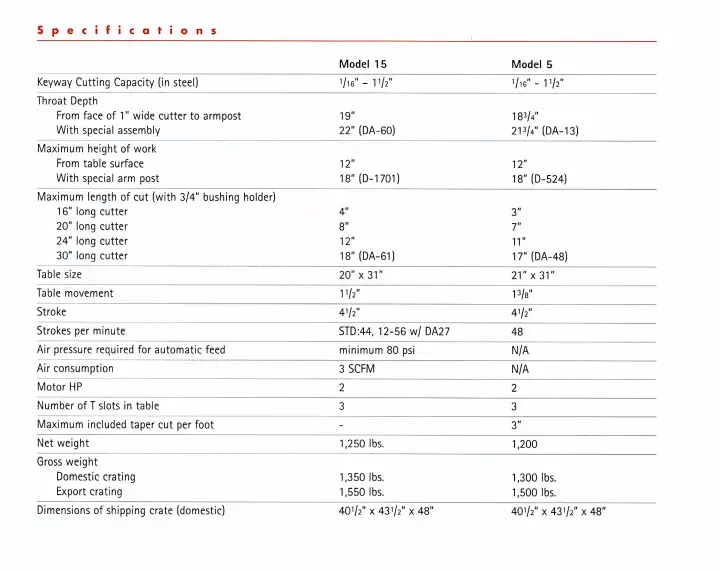

The Hansford Davis Model 5 Keyseater is a manually operated machine designed for keyway cutting. It features overall dimensions of 30 inches by 48 inches by 55 inches and weighs 1,800 lbs. Powered by a 2 HP motor wired for 480V operation, the keyseater delivers 48 strokes per minute with a 4-1/2-inch stroke length. It accommodates a keyway width capacity ranging from 1/16 inch to 1-1/2 inches, with a maximum keyway length of up to 17 inches depending on the tooling and cutter setup. The machine offers a throat depth of 18-3/4 inches from the face of the cutter to the arm post and supports a maximum included taper cut of 3 inches per foot. Its worktable measures 21 by 31 inches, provides 1-3/8 inches of table movement, and includes 3 T-slots for securing workpieces.
