.075" x72" Iowa Precision #SLEAR-2, Cut-To-Length Line, 20,000 lb., 72" coil, 20-24" ID, LR, 20-150 FPM, 2004

Specifications:
Manufacturer: Iowa Precision
Material: CRS, Aluminum, Galvanized, Pre-Painted
Maximum Coil Width: 72”
Minimum Coil Width: 6”
Thickness Range: .015” – .075”
Maximum Shear Strength: 45,000 PSI
Maximum Yield Strength: 45,000 PSI
Maximum Coil Weight: 20,000#
Coil I.D.: 20” – 24” (Nominal)
Line Direction: Left To Right
Mode Of Operation: Front Loop
Line Speed: 20 – 150 FPM
Stacker Length: 1’ – 10’
Maximum Bundle Size: 18” x 10,000# At 10’
Required Floor Space: 25’ x 45’
Equipment Included
Entry Coil Car:
Low Boy Type
Floor Mounted
Powered Lift And Traverse

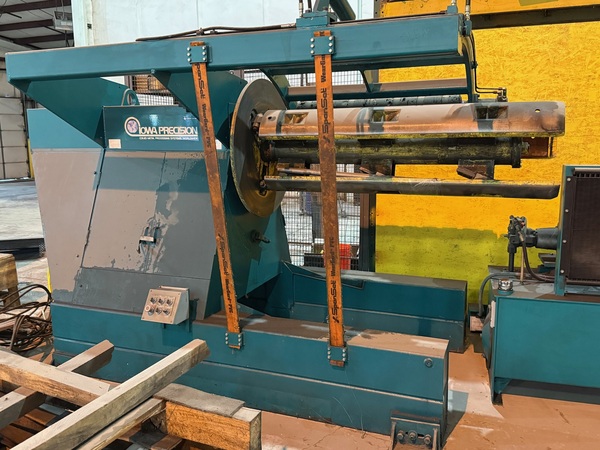

Uncoiler:
Mandrel Type
Powered Expansion
Feed-Up Drive
Hold-Down With Powered Snubber
Loop Control With Dancer Arm

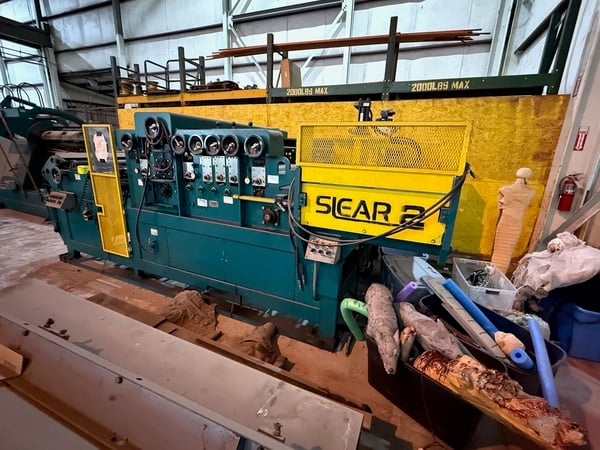

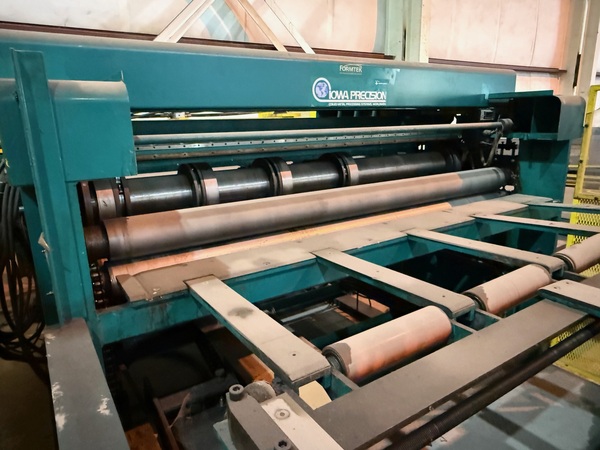

SLEAR Unit:
Extending Blade Peeler
Powered Tamper Roll
Manual Side Guides
Powered Entry Pinch Rolls
Slitter Head With Hub-Type Tooling
6” Diameter Arbor
Powered Pinch Rolls #2

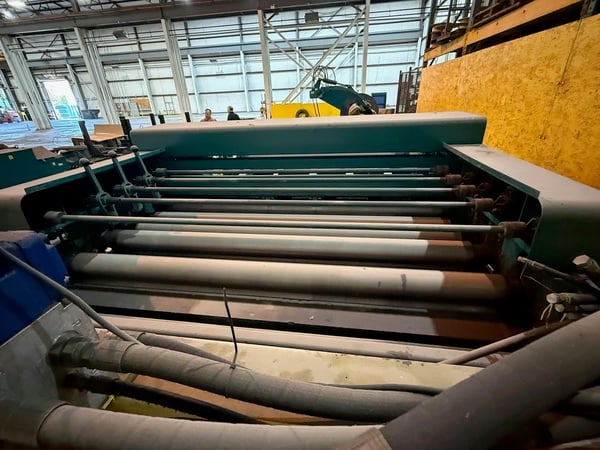

Flattener With Six (6) Work Rolls In 3/3 Configuration
Powered Exit Pinch Rolls

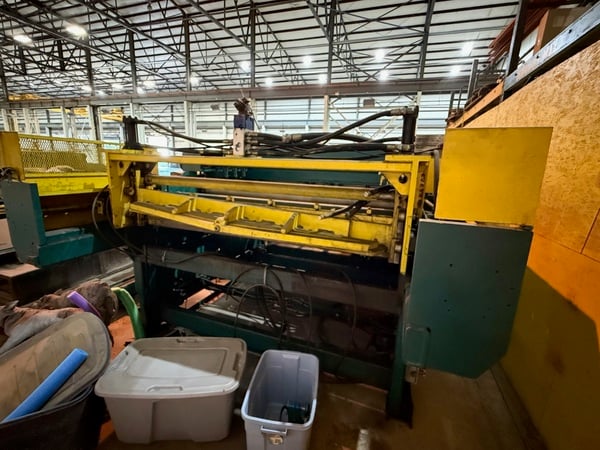

Down-Cut Shear On Traversing Track
Single Rake Blade
Stacker:
Manual Adjustable End Stop
Manual Adjustable Side Tampers

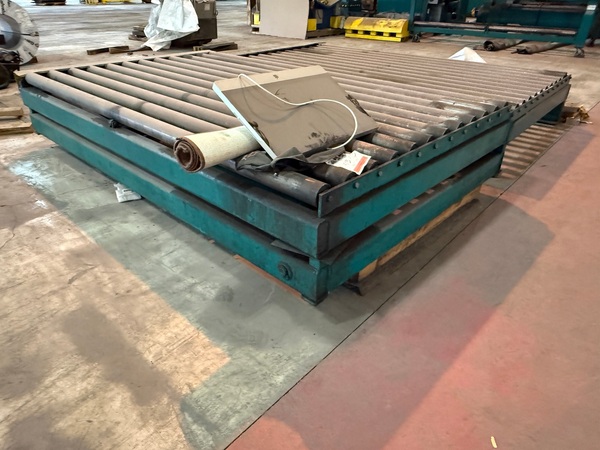

Lift Table With Powered Roller Conveyor Top
Two (2) Sheet Tampers
Four (4) Blank Dividers
Powered Side Discharge Conveyor:
10,000# Capacity
Electronics:

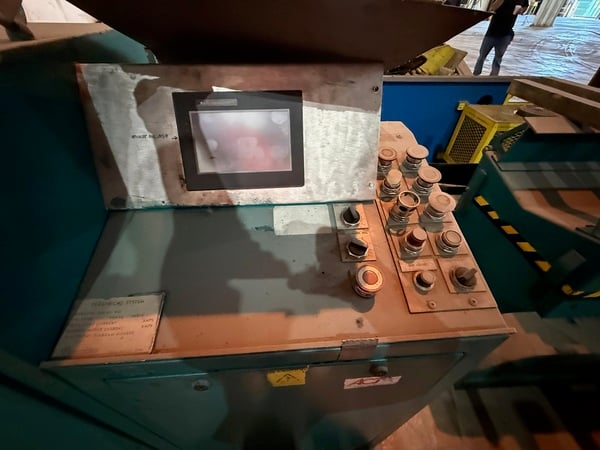

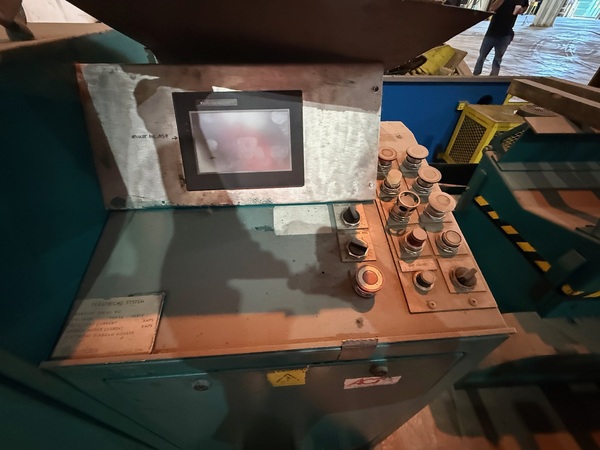

Main Operator Console With Allen Bradley Touchscreen And PLC
Auxiliary Control Consoles

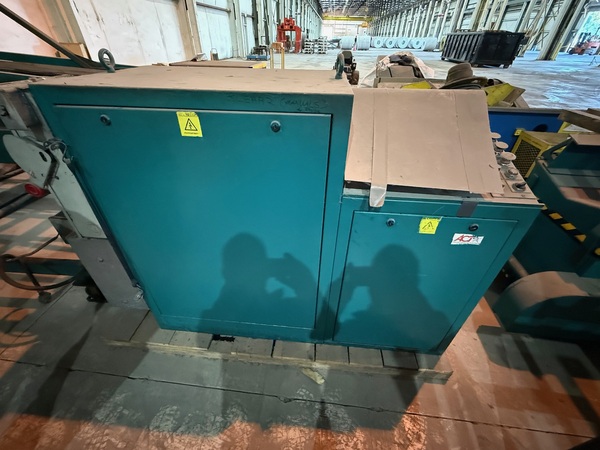

AC/DC Cabinet

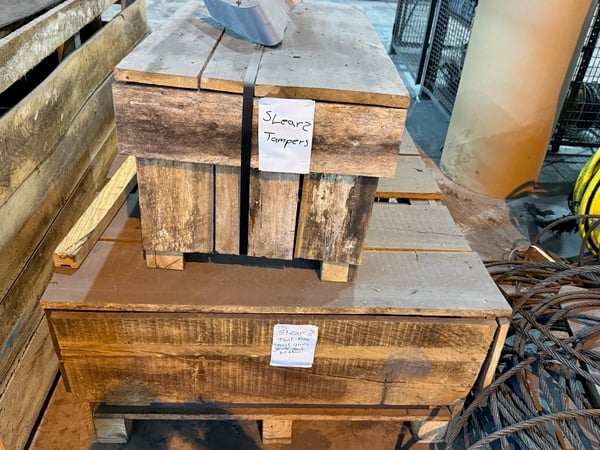

Spare Parts:
Tampers
Shear Blades
Miscellaneous
