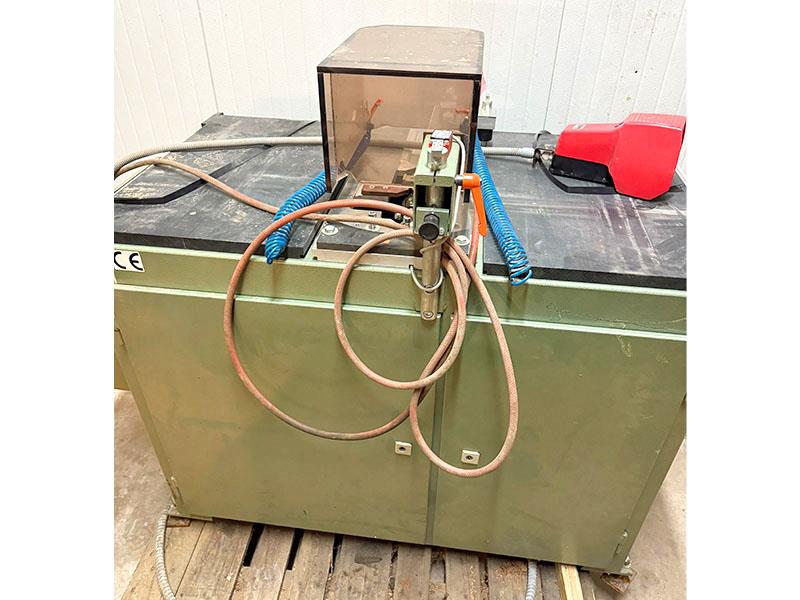

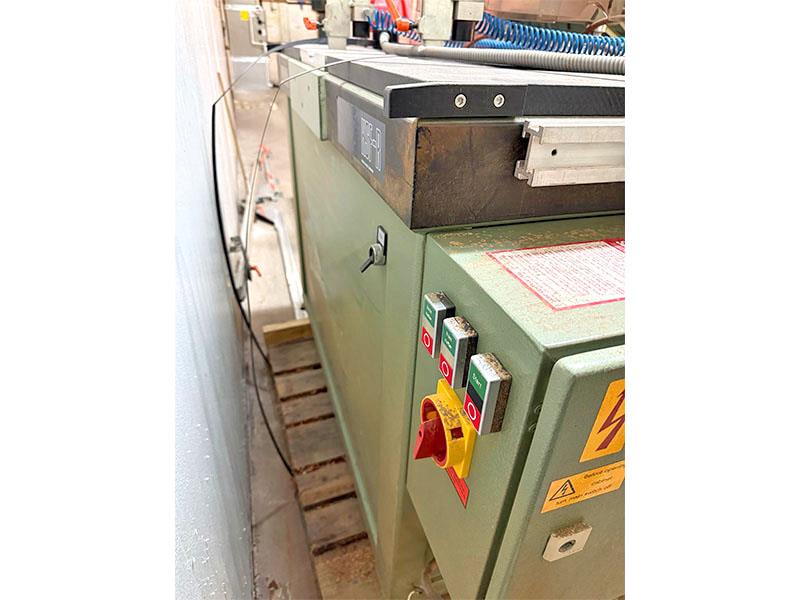

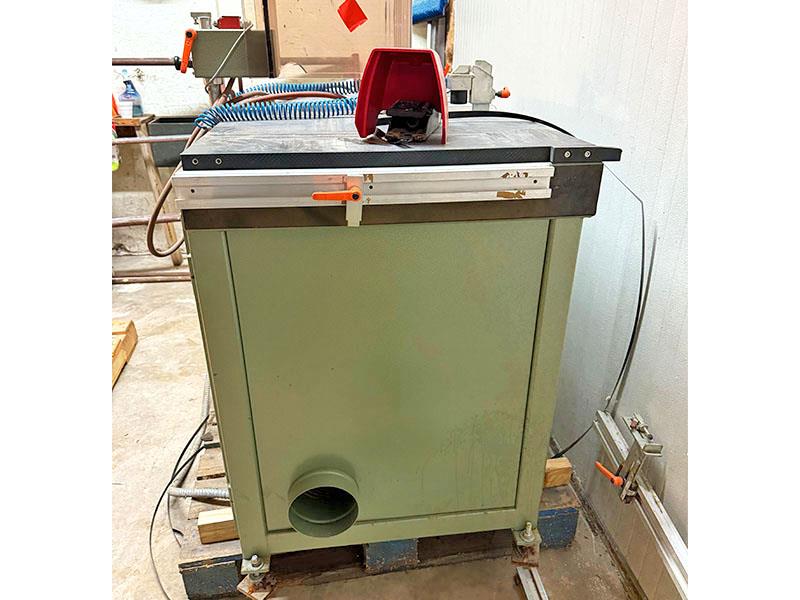

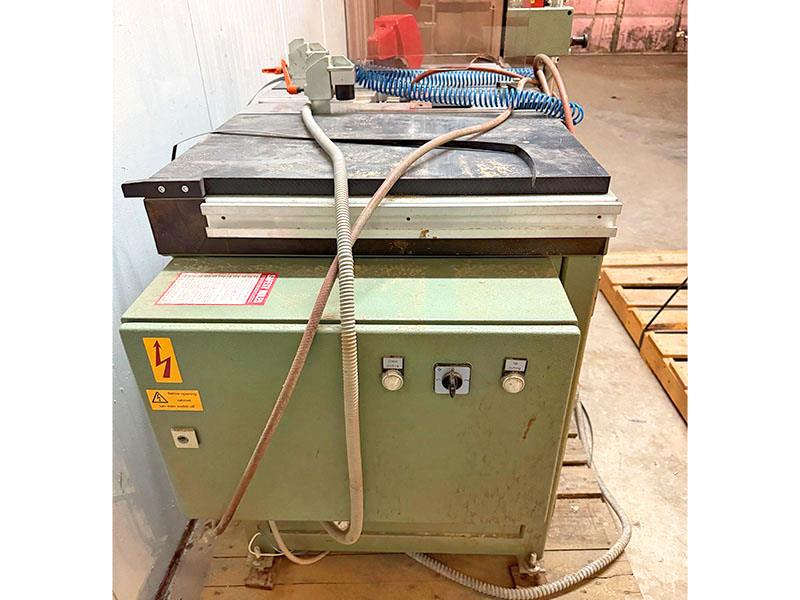

Stegherr #KSF-R, Closed Halving Joint Cutter, (2) 5.1" milling heads, 6.3" saw head, 1.2" x 2" workpiece size, 88 psi, (2) 1.5 HP, 7900 RPM, 1999

$8,910 USD

Request Formal Quote

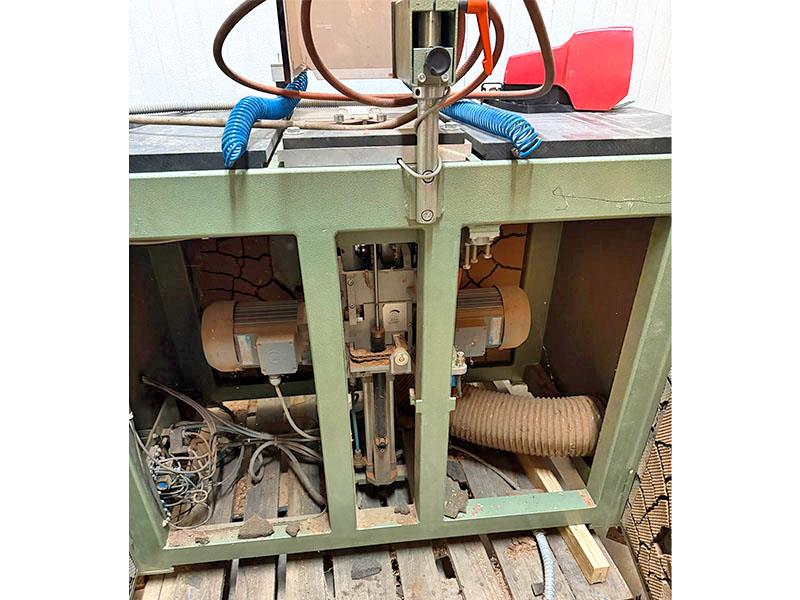

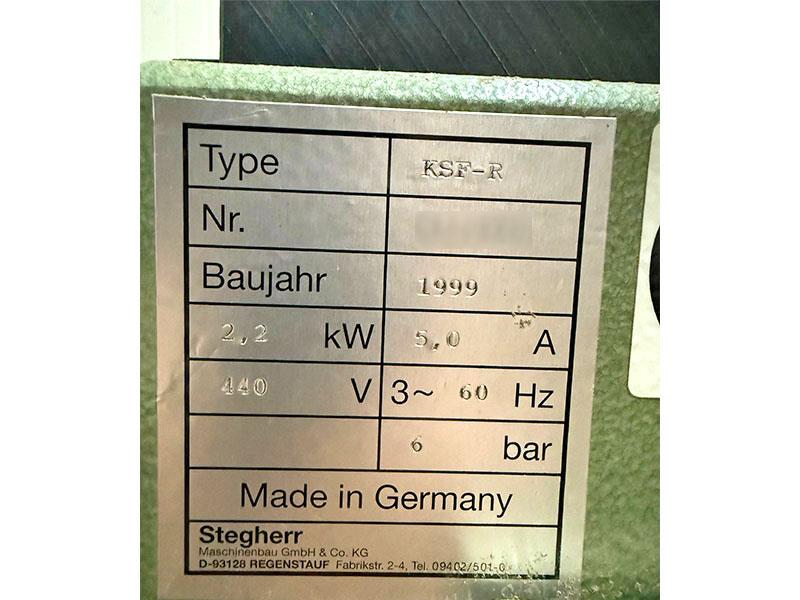

STEGHERR KSF-R CLOSED HALVING JOINT CUTTERSpecial cutter for quick and efficient production of closed halving joints of round, segment and more-centered arch sashes with straight sashes. With a special fence it is also possible to produce diagonal sashes. -- The arched elements for the frame and sashes are manufactured by gluing strips of wood in an arch press. The pressings are first cut to size at the ends, then the cross joints and outer sash-frame joints are cut using the KSF-R machine. -- The main machine assembly comprises (2) profile cutters and (1) slot miller driven by (2) motors. Milling work follows the climb-cutting principle. -- A stop system with a grid-type index plate permits precise and efficient manufacture of joints of the different arches with straight, star-shaped sashes. -- Motor: (2) 1.5 HP (1.1 kW); Pneumatic supply: 88 PS1 (6 bar); Tool Dia.: (2) 5.1" milling heads; Saw Head: (1) 6.3"; Speed: 7900 RPM; Max. Workpiece Size: 1.2" x 2"; Overall Machine Dimensions: 49" x 45" x 58"; Dust Collection: 6" dia. -- Optional Equipment: Fence for diagonal joints; Fence support for round arches and swivel fence up to max. 72" (1.83 m); Extension of fence support for round arches and of the swivel fence from 72" to 120" (1.83 to 3.05 m); Special design for cutting more-centered arches (2 holding-down devices, 1 timer); Foot pedal control.
