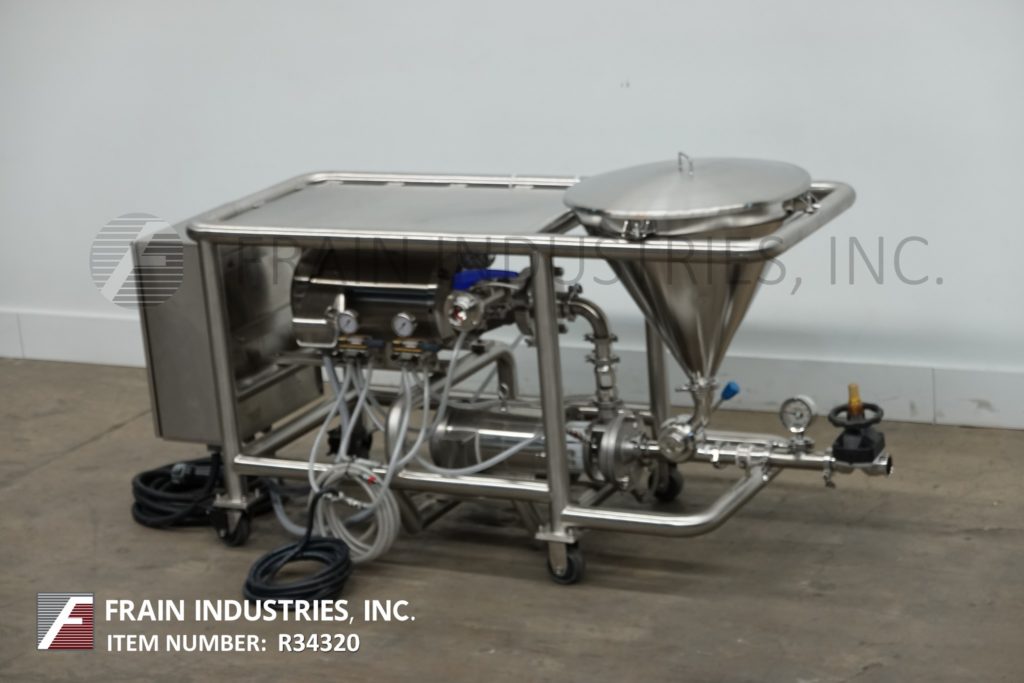

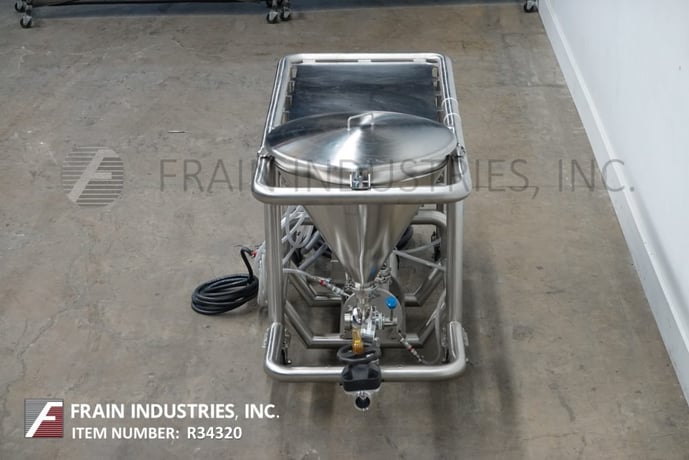

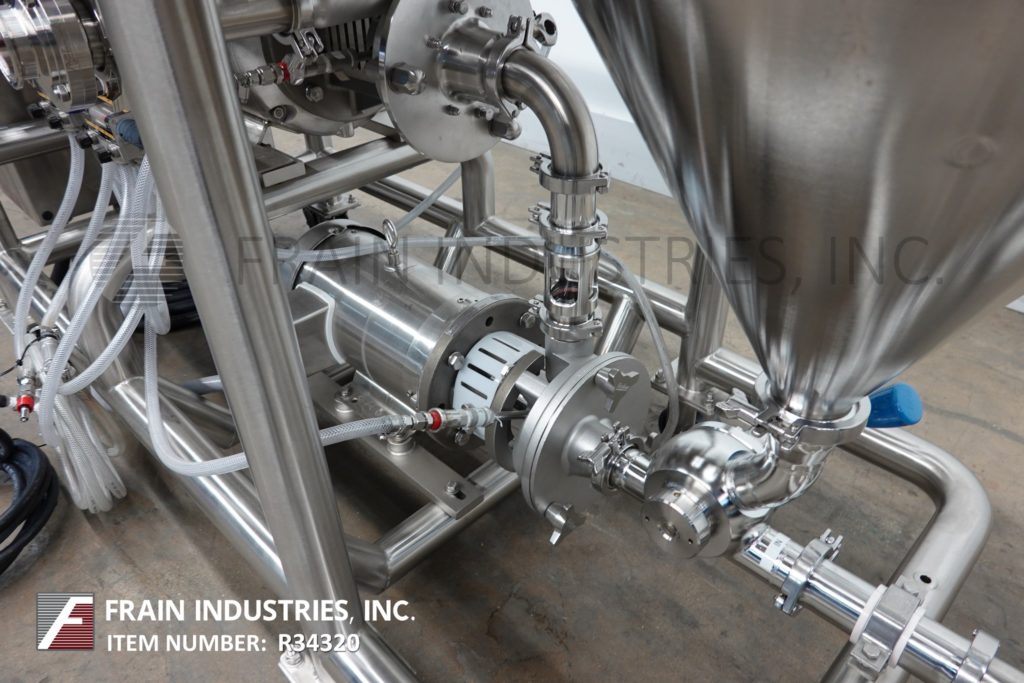

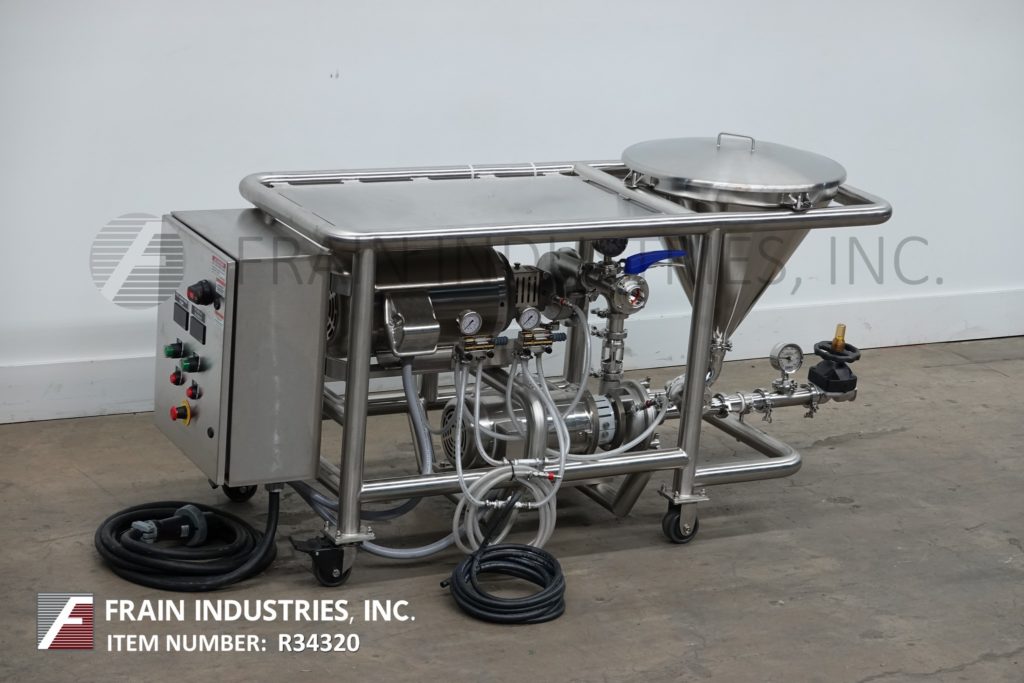

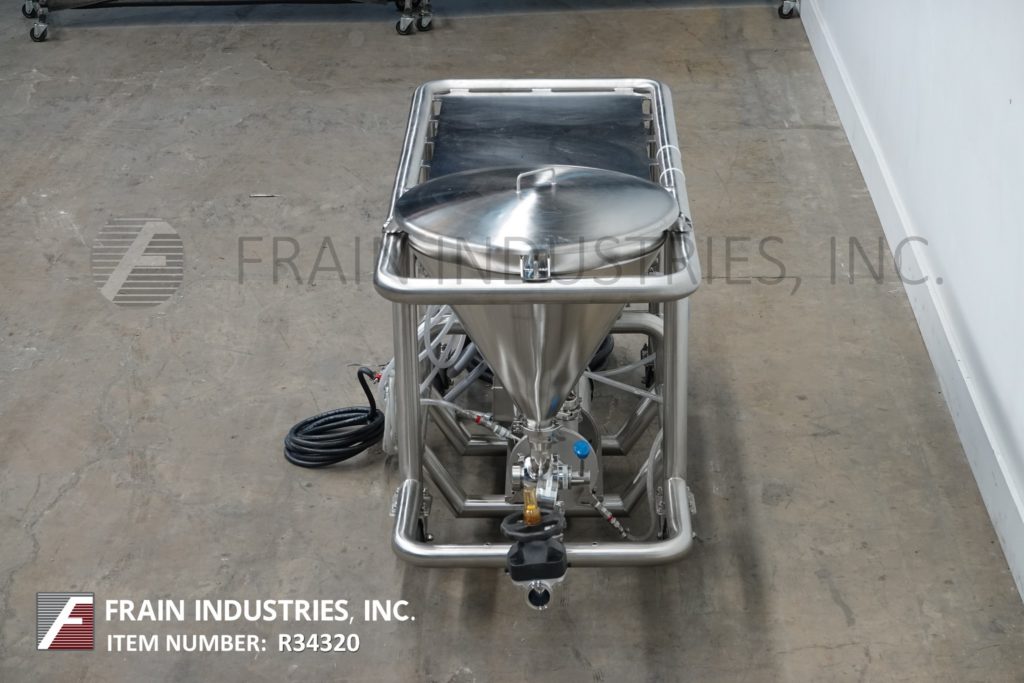

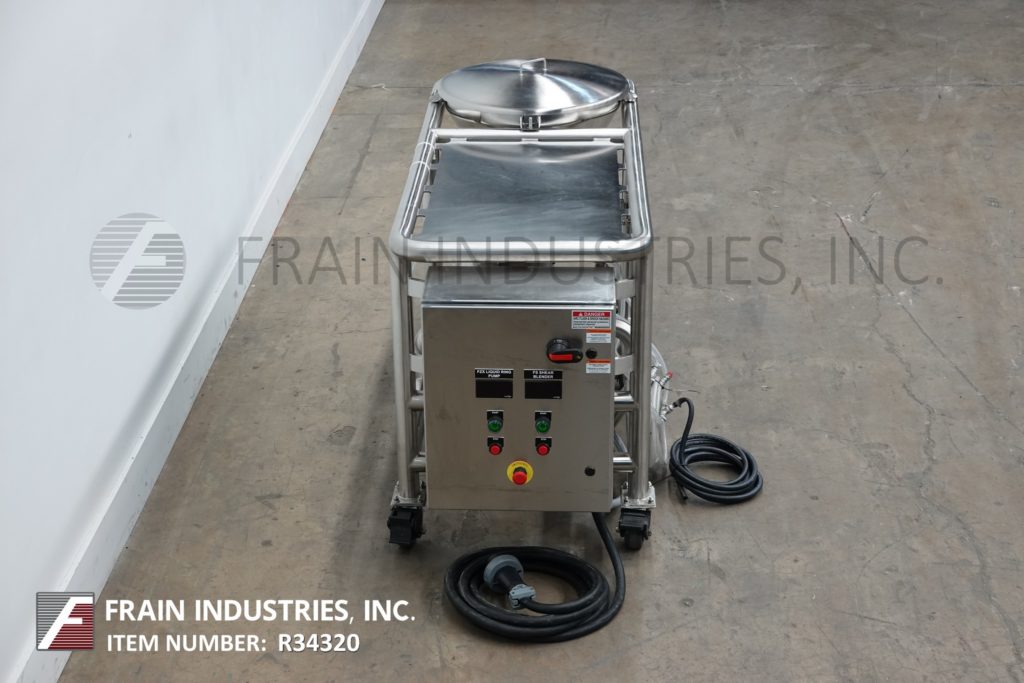

Fristam, 316 Stainless Steel, inline, integrated mixing system, incorporates Model FZX-2100 liquid ring pump with Model FS-3522 high shear mixer / emulsifier, 15 HP

Fristam, 316 stainless steel, in-line, integrated mixing system, incorporates Model FZX-2100 liquid ring pump with Model FS-3522 high shear mixer / emulsifier. Rated from 34 to 52 liquid gallons and 10 to 100 pounds of dry product per minute – depending on materials and application Equipped with 23-1/2" OD x 20" deep stainless steel conical dry product hopper with safety grid and lift off cover. Fristam Model FZX-2100 liquid ring pump has front 2½" OD liquid product in feed port with 5 Hp motor drive. Model FS-3522 high shear mixer has 15 Hp motor drive and 2½" OD / 2" ID discharge port. Control panel has FZX / FS pump and blender start, stop, e-stop push buttons. Mounted on (4) leg stainless steel push cart frame.

Operation: Fristam's powder mixer system provides a quick blending of wet and dry ingredients into single fluid stream with operating temperatures and cps ratings per application.

OAD: 80"L x 30"W x 44"H
