Used 10 hp Pfaudler agitator drive, size 5DTW, with seal housing and 10 hp flange mounted xp motor, serial# 500011-P.

Unused 750 gallon Pfaudler glass-lined 3 blade retreat curve agitator, 3" diameter x 104" long shaft, 44" span, 7115 glass steel, serial no. R178-1484.

Used 1,000 gallon Pfaudler glass-lined 3 blade retreat curve agitator, approx. 3" diameter x 108" long shaft, 30" span, for RW drive.

Used 330 gallon Pfaudler blender, stainless steel construction, approximately 57" diameter x 30" deep, jacketed sidewall, under driven sweep agitator, with cover.

Used Approximately 4 Gallon Glass Lined Pilot Reactor, Manufacturer: Pfaudler, National Board: 18306, Serial: E162-1038, Internal pressure: 25 psi @ 350F, Jacket pressure: 120 psi @ 350F, Top, center-mounted agitator, Mounted on (3) legs, PFAUDLER 4 Gallon, Capacity. 4 gal, National Board No. 18306, Internal pressure. ...more

Used 20 gallon Pfaudler reactor, 316 stainless steel construction, approximately 18" diameter x 18" straight side, removable dish top, dish bottom, rated 60 psi and full vacuum at 350 f internal, jacketed fro 90 psi at 350 f, 2.5 TWV Pfaudler agitator drive, anchor agitator, serial# E369-1492, national board# 28175.

Used Pfaudler approximately 20 gallon glass lined reactor. Rated 150 psi/full vacuum internal @ 650F. Jacket rated 115 psi @ 350F. 2.5 TW hydraulic drive. Mechanical seal. Insulated., PFAUDLER 20 Gallon, Capacity. 20 gal, National Board No. 35018, Internal pressure. 150 PSI, Jacket Pressure. 115, Material of ...more

Pfaudler reactor, 50 gallon capacity, glass-lined, measures 24" diameter x 24" straight side, rated 150 PSI/FV at 450 degrees Fahrenheit, internal; 150 PSI at 450 degrees Fahrenheit, jacket. Unit requires hydraulic motor, rated for 4.91 HP. Bottom head includes 1-1/2" center bottom discharge with manual valve. Reactor ...more

Used Pfaudler approximately 150 gallon glass lined clamped top reactor. 5' diameter X 6'2" straight side. 3-blade retreat curve agitator and H baffle. DTW drive with lubricator. 3 HP, 2.2 kW, 3 phase, 60 cycle, 208-230/460 volts., PFAUDLER 150 GALLON, Diameter. 60", Straight Side. 74", Material of ...more

Used 200 gallon Pfaudler glass-lined reactor body, RX series, approximately 39" diameter x 33" straight side x 14" deep cone bottom, rated 100 psi and full vacuum at 300 f, dual rated jacket for 100 psi at 200 f or 80 psi at 350 f, 4025 glass, 3" bottom outlet, stainless steel skin over jacket on 3 stainless steel ...more

, USED PFAUDLER 300 GALLON MODEL R POLISHED T-316L STAINLESS STEEL REACTOR. INTERNAL RATED 100 PSI AND FULL VACUUM @ 400 Deg.F. T-304 JACKET RATED 85 PSI @ 400 Deg.F, 70 PSI WHEN FULL VACUUM. 42" DIAMETER X 48" STRAIGHT SIDE. DISHED CLAMP TOP WELDED BOTTOM. 14" X 18" MANWAY WITH SIGHT GLASS. (2)6" & (3)4" TOP ...more

Pfaudler 200-Gallon Glass-Lined Jacketed Tank - Jacketed tank with a dish bottom and open top. Measures 39 diameter and includes a 3 center bottom outlet. Supports chemical storage or heating processes., Materials of Construction: Glass-Lined, Previous Use: Chemical Processing, Basis: FOB, Gallons: 200.

Pfaudler, 300-gallon glass lined reactor. Two-piece construction with bolt down head and dished bottom. Vessel dimensions: 48" inside diameter; 46" straight. Retreat curve glass lined impeller. (2) 1-1/2" overflows and 12" x 16" oval, spring assisted manway., Vessel, Designed Internal ...more

Used 300 Gal Pfaudler glass lined retreat curve agitator, approximately 76" overall length, 34" span, with level indication marks, DTW end.

Used Pfaudler 500 gallon glass lined anchor agitator for stuffing box. 3" X 76.5" long., PFAUDLER 500 GALLON.

Unused 1000 Gal Pfaudler glass lined fin baffle, 76" wet length, 83" overall length, 5" span, C flange mounted.

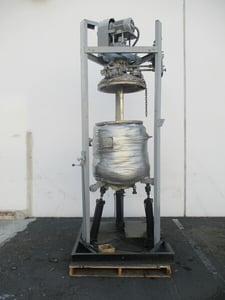

Find many great new & used options and get the best deals for PFAUDER STAINLESS JACKETED REACTOR 85 PSI AT 350 DEGREES NATIONAL BOARD # 35716. Free shipping for many products!.

Used 30" Pfaudler Main Cover, PFAUDLER 30".

For sale!!! A like new refurbished 300 gallon Pfaudler reactor with stand and mezzanine!!! This reactor was about to be put in production when project was changed. Our loss is your gain., New Gear box, New pneumatic gate for for auger feeder New outlet valve, New baffle guides for Hot Oil, New Mixer motor an gear box ...more

Used Pfaudler size 5RW agitator drive. New bearings. 3-1/2" shaft size, model #FMDWV-50500E.D, serial #5-00.3-4-P, PFAUDLER FMDWV-50500E.D.

Reglassed Pfaudler Cryolock shaft. RA1000 glass. 3.5" X 122". DTW drive. Light blue glass. Carbon steel construction., PFAUDLER RA1000.

Used 3BRC Pfaudler agitator for 3000 gallon reactor.approx 166"L X 5.5" DIA x 44" span.from a 8RW drive., PFAUDLER 3BRC.

50 Gallon glass lined head, manufactured by Pfaudler, approximately 27" diameter, fittings: 2", 3", 4", 1.5", 1" with (2) lifting lugs., PFAUDLER 50 GALLON.

Used 18" Manway Cover great cover For 4,000 Gallon Glass Lined Reactor---reglassed., PFAUDLER 18".
