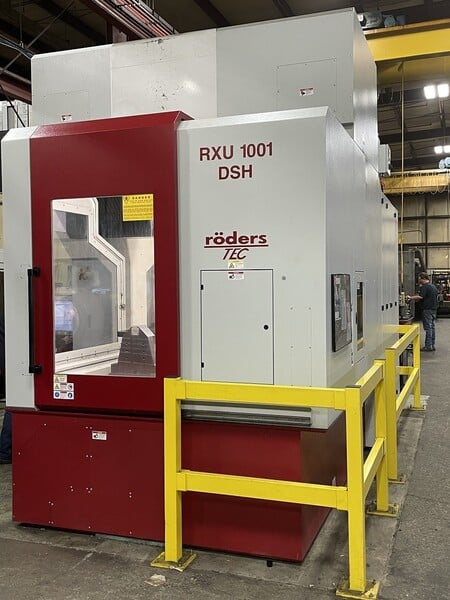

Manufacturer: Roders
Model: RXU1001DSH
Year: 2017
Longitudinal" X: 31.5
Cross" Y: 33.7
Vertical" Z: 19.8
RPM: 30000
Stock # 2540
1 / 3
Click to zoom in
1 / 3
For Sale by Hitech Machinery Sales Inc
Surplus Record Dealer Since 2004
Location: St. Charles, IL
Contact Bill Raye
Phone Number: 630...> Show Phone Number 630-443-7865
Let the seller know you found their listing on Surplus Record!
Description
Equipped with:

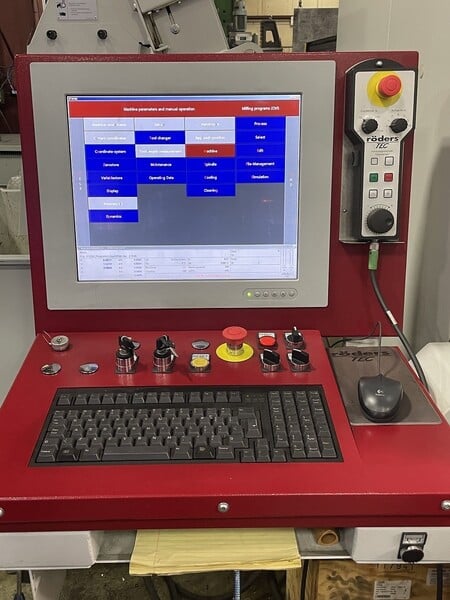

* Roeders RMS6 Control
* Linear Motors - Direct Drive
* Fischer 30,000 RPM Spindle, Type MFW1709/30
* HSK F63 Taper
* 24 Position ATC
* Quadroguide -Y&Z-Axis Construction with 4 Linear Guide Rails
* Blum Laser Tool Setter
* Automatic Tool Cleaning Station
- Compressed Air-Blast Cleaning of Cutting Tool Before Laser Measurement
* Oil Mist Spray Cooling System
- Lubricates Tool With Fine Oil/Air Mist
* Software for Re-Cutting Partial Programs
- Fully Integrated Into the NC Milling Simulation Program
* Ethernet Network Card
* NC Milling Simulation Program
- Easy to Use Windows Interace, Runs Directly on Control
* 3D Touch Probe for Automatic Workpiece Setup
- Reference Pin Included, Fully Integrated into Contol, Data Transmission via IR-Interface
* High Accuracy Package
- Measurement of Spindle Growth With Non-Contact Sensor
* Auto-Calibration 5-Axis
- "On The Fly" Calibration for Use Between or During Part Production
* Surface Optimiser - RMS6/SO
* Lift UP Z-Axis - In Case of Power Failure
* Scraping Conveyor 1001
* Emulsion Cooling - 40 Bar
* Transmission Lead-Through Milling Spindle
* Oil/Mist Suction Mechanical Air Cleaning Unit
* Chiller for Cooling the Spindle, Drives, and Cabinet
* Available Manuals and Accessories
* Roeders RMS6 Control
* Linear Motors - Direct Drive
* Fischer 30,000 RPM Spindle, Type MFW1709/30
* HSK F63 Taper
* 24 Position ATC
* Quadroguide -Y&Z-Axis Construction with 4 Linear Guide Rails
* Blum Laser Tool Setter
* Automatic Tool Cleaning Station
- Compressed Air-Blast Cleaning of Cutting Tool Before Laser Measurement
* Oil Mist Spray Cooling System
- Lubricates Tool With Fine Oil/Air Mist
* Software for Re-Cutting Partial Programs
- Fully Integrated Into the NC Milling Simulation Program
* Ethernet Network Card
* NC Milling Simulation Program
- Easy to Use Windows Interace, Runs Directly on Control
* 3D Touch Probe for Automatic Workpiece Setup
- Reference Pin Included, Fully Integrated into Contol, Data Transmission via IR-Interface
* High Accuracy Package
- Measurement of Spindle Growth With Non-Contact Sensor
* Auto-Calibration 5-Axis
- "On The Fly" Calibration for Use Between or During Part Production
* Surface Optimiser - RMS6/SO
* Lift UP Z-Axis - In Case of Power Failure
* Scraping Conveyor 1001
* Emulsion Cooling - 40 Bar
* Transmission Lead-Through Milling Spindle
* Oil/Mist Suction Mechanical Air Cleaning Unit
* Chiller for Cooling the Spindle, Drives, and Cabinet
* Available Manuals and Accessories
Get Your Price from Hitech Machinery Sales Inc!
