Parpas #Diamond-Linear, CNC gantry mill, 24 automatic tool changer, 87" X Travel, 59" Y Travel, 39" Z, 20k RPM, HSK-63-A, 5-Axis, Heidenhain TNC 530i, thru spindle coolant, 2012

Parpas Diamond 5-Axis Linear Gantry Type VMC - 2012
87" x 59" x 39" , Continuing Indexing Head

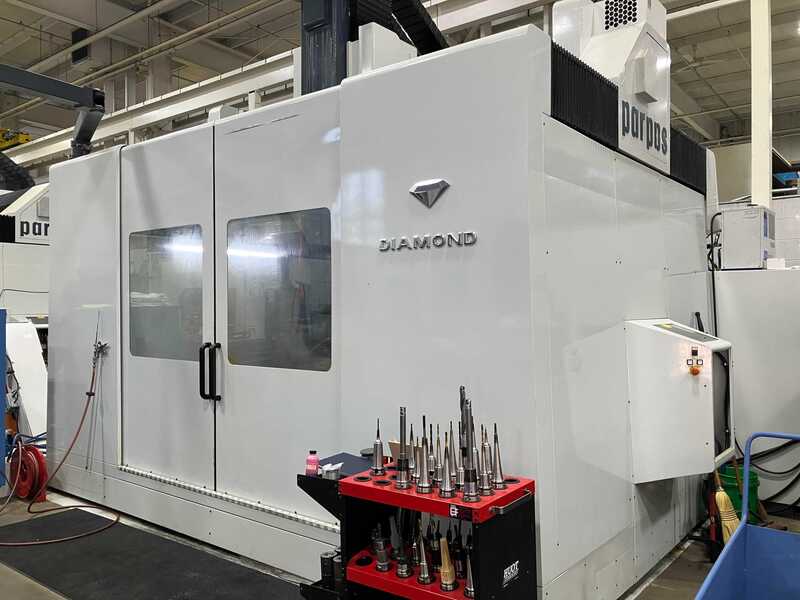

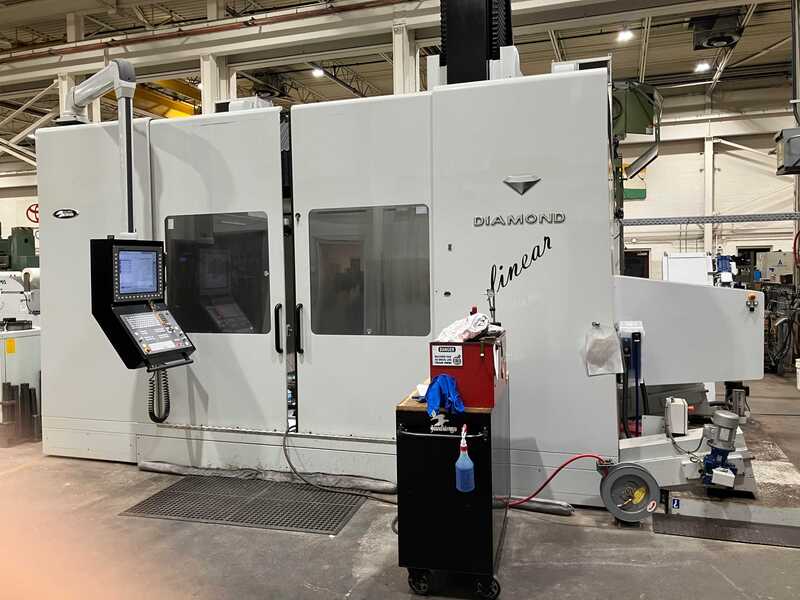

Parpas Diamond 5 Axis Linear Gantry Type Vertical Machining Center
New 2012
Specifications:
Control: Heidenhain TNC 530i
Axis Travels:
(X axis travel) Longitudinal 87"
(Y axis travel) 59"
(Z axis travel ) 39" (1000 mm)
Additional 12.99 inches (165mm or 6.49"/side) can be reached on the X & Y Axis by rotating the
Head around C-Axis in Vertical Position.
Spindle Nose to Table in Vertical 1235 mm / 48.6 inches
T-Slotted Table Dimension 91" x 63" (2300 x 1600mm)
Clearance Between The Columns 2700 mm / 106 inches
5-Axis Head Pivot Value 330mm / 12.99 inches
X and Y Axes Feed Rates 80M / 3149" /min
Z Axis Feed Rate 80M / 3149" /min
Ballscrews All 3 Axis
Feed Rate 1500 IPM

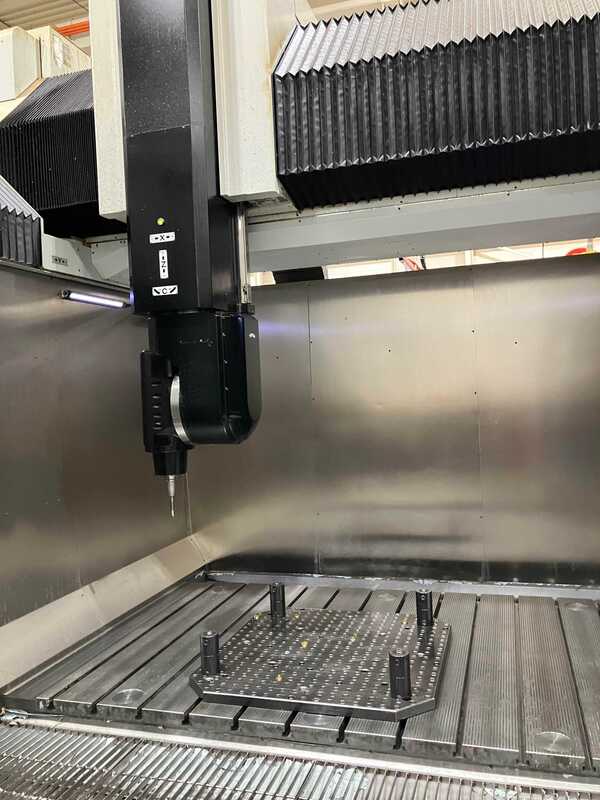

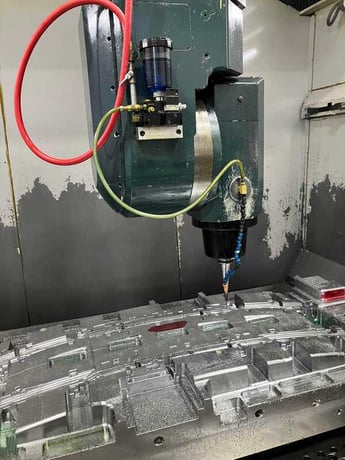

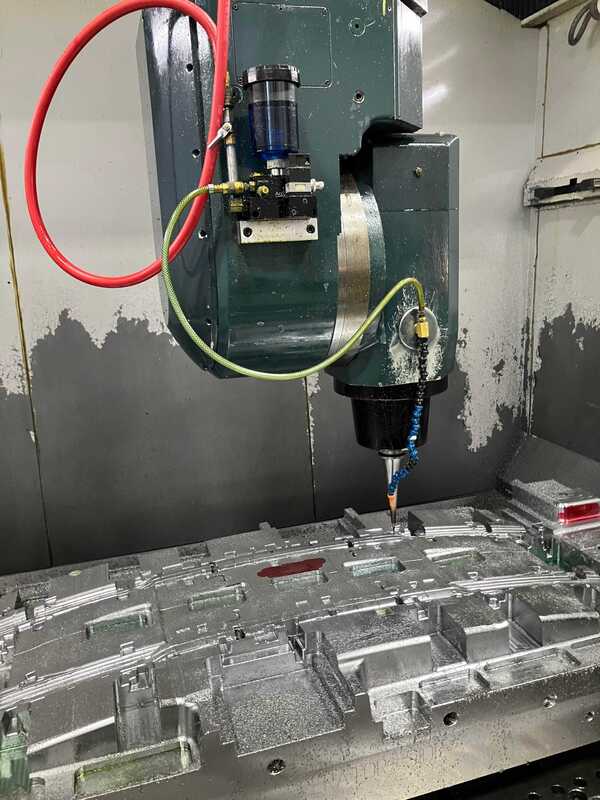

5-Axis Milling Head:
Continuous Indexing Head
A & C Axis (TOE-29 Head)
Ram C-Axis Range +/- 370
Head A-Axis Range +/- 105
A & C Axis Head Positioning Increment 0.001 Each Axis
Spindle Speed 20,000 RPM
Power (continuous) 29 kW
Constant power range 3,000 -20,000 RPM
Spindle torque 92Nm S1, 117Nm S6
Spindle taper HSK-63-A
Coolant around the spindle 450 PSI
Air around the spindle 100 PSI

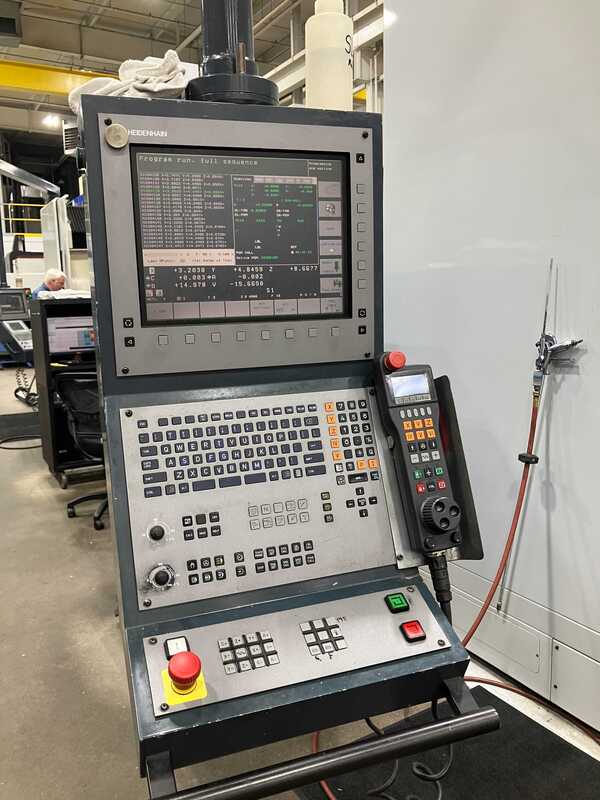

Heidenhain 530i control
Automatic Tool Changer 24 Pockets
HSK63 spindle taper
(2) Chip Conveyors
Chiller Unit
Air Dryer
HVAC Controlled Gantry
5-Axis Dual Torque Motor Driven Liquid Cooled Head
Remote Hand Held Pendent with Electronic Hand-wheel included.

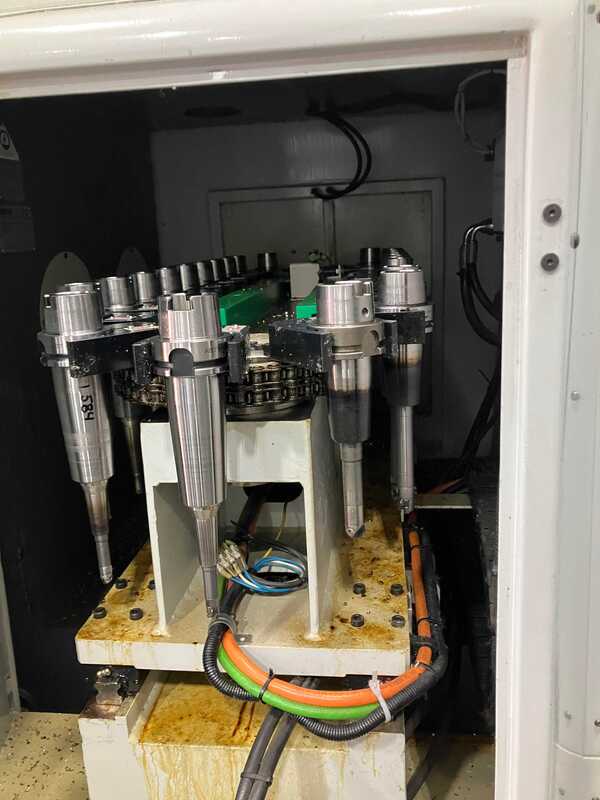

24-Position Automatic Tool Changer
Flood Coolant System External to the Spindle
Through-Tool High Pressure Coolant 735-PSI

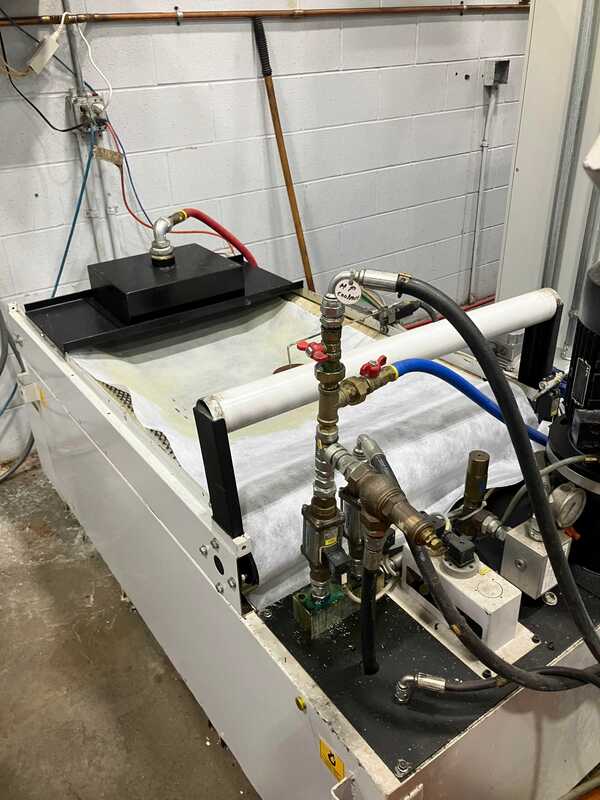

Paper Tray Coolant Filtration System (Losma)
Oil Skimmer
Air/Coolant Tool Cooling with Switching (through the spindle and around)

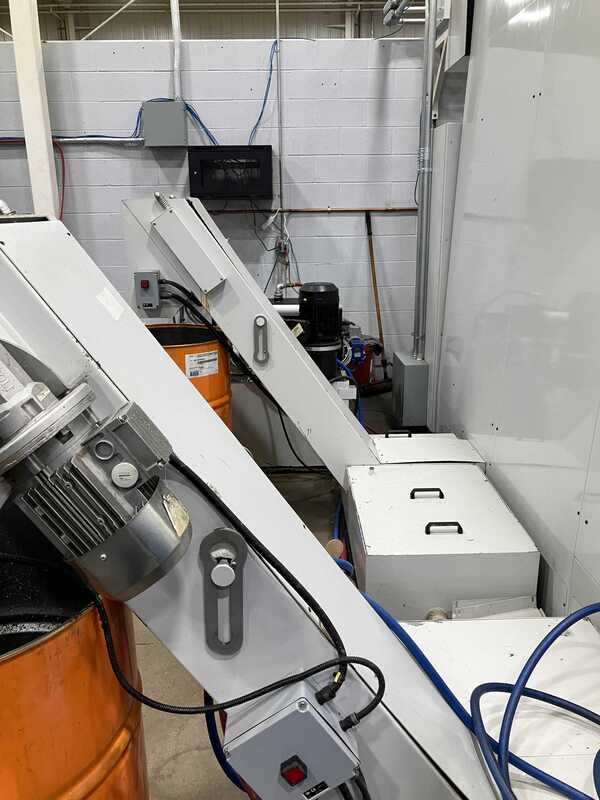

Dual Front & Back of Table Chip Conveyor System
Foot Print Dimensions: 232" Wide LR x 195" FB
