Forel I.G.-2540-R-L, Insulated Glass Line, 98" x 157" size, 0.11" x 2" thick, R-L, 137.8' Total L, 2009

$233,230 USD

Request Formal Quote

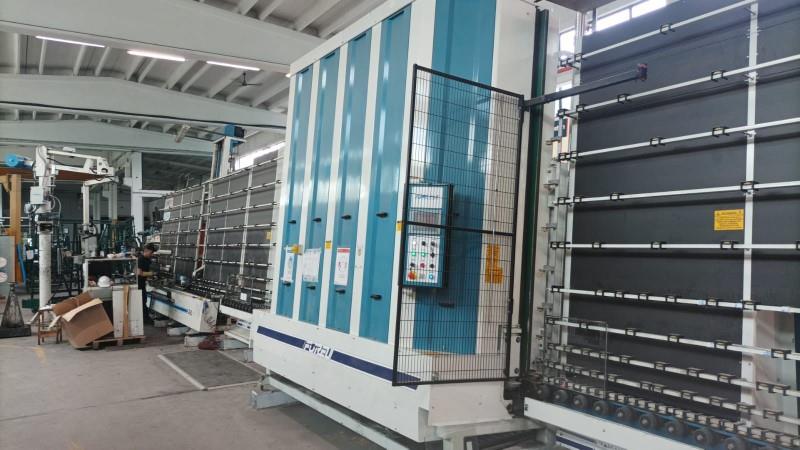

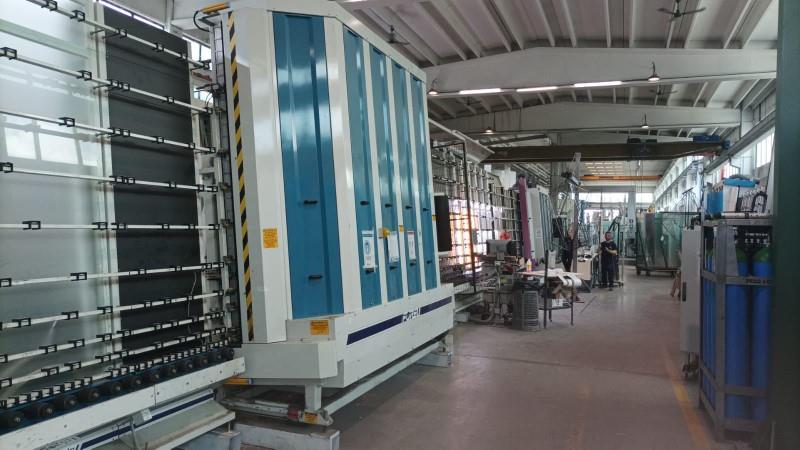

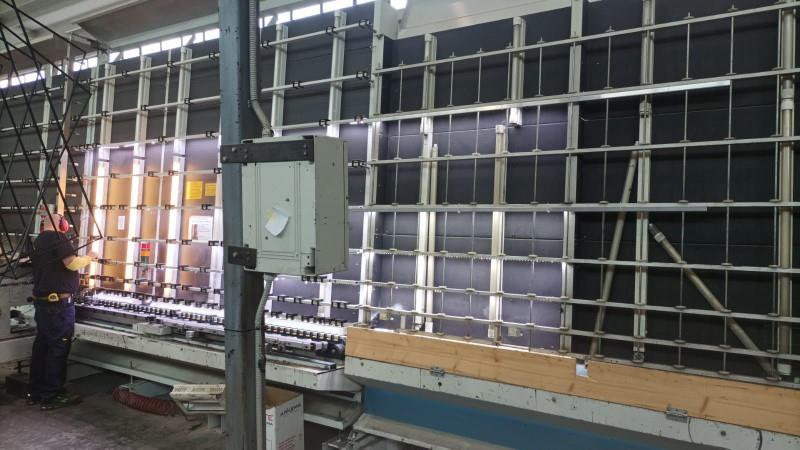

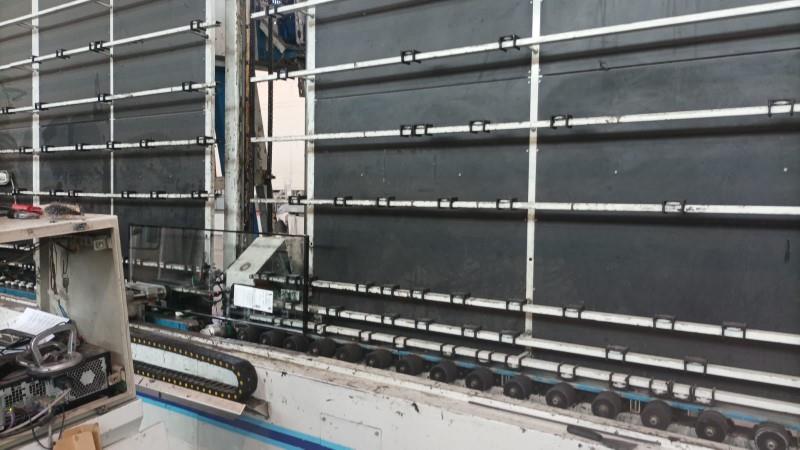

FOREL I.G. 2540 R-L Insulating Glass Line - 2500 x 4000 mm (98" x 157")The loading zone at the inlet is designed to feed the washer in a timely manner. Using an 8-Brush washer and drying zone ensures cleanness of the single glass sheets before frame mounting and insulating glass assembly.Final visual quality checks are done at the frame mounting station. The press finalizes this automated process before manual take off and secondary sealing.Working direction: Right to Left.Consists Of The Following Equipment Components:FOREL Vertical Washing Machine (2009)Automatic washing and drying system for glass panes with infinitely variable adjustment of the glass thicknesses. With Low-E capability.LISEC "GPS Perfect Scan" Quality Scanner for Single Sheets and Insulating Glass (2009)GPS.perfectscan - the software of the LiSEC glass scanning system - inspects glass surface and body according to architectural regulations for the visual quality of glass. The visual scan of the pane (see Scanning functionality) is done with high resolution. Afterward, GPS.perfectscan filters the detected errors according to parameter-adjustable criteria to show production-relevant errors only. Parameter configuration and filter criteria can be adjusted by the operator at any time (scan recipes). Specific scan recipes scanning for various quality levels can be created depending on glass types, customers and/or projects. Scan recipes are changed either manually by the operator or can be automatically depending on a continuous GPS line server connection.FOREL Assembly And Frame-Setting Station (2009)Vertical station for the manual application of spacer frames on glass sheets. After feeding in the glass sheet to the reference point, the auxiliary frame mounting stops automatically adjust to the bottom and front vertical glass edge.FOREL Flat Press (2009)Fully automated machine for flat pressing of insulating glass units. The press is suitable for processing double and triple-insulating glass units, any kind of shape (Shape Catalogue), cast glass, and laminated glass. Precise metering of the quantity of gas and a specially developed nozzle system enable units to be filled with argon or krypton at the highest possible gas filling rate. When using mixed gases, precision regulators will control the gas amount and mixing ratio.FOREL Automatic Sealing Robot (1997)Automatic sealing machine designed to apply a sealant to insulating glass units. The machine consists of an infeed and outfeed section and of an unloading station.A separate measuring section in front of the machine measures the thickness of the glass panes, the air spaces between them, and the total thickness of the glass unit. The top edge of the insulating glass unit is guided along a horizontal roller beam. In this way, glass units are conveyed at a given distance to the back panel in the sealing sections. They are transported on a wear-resistant transport chain, which supports the unit’s bottom edge only slig
