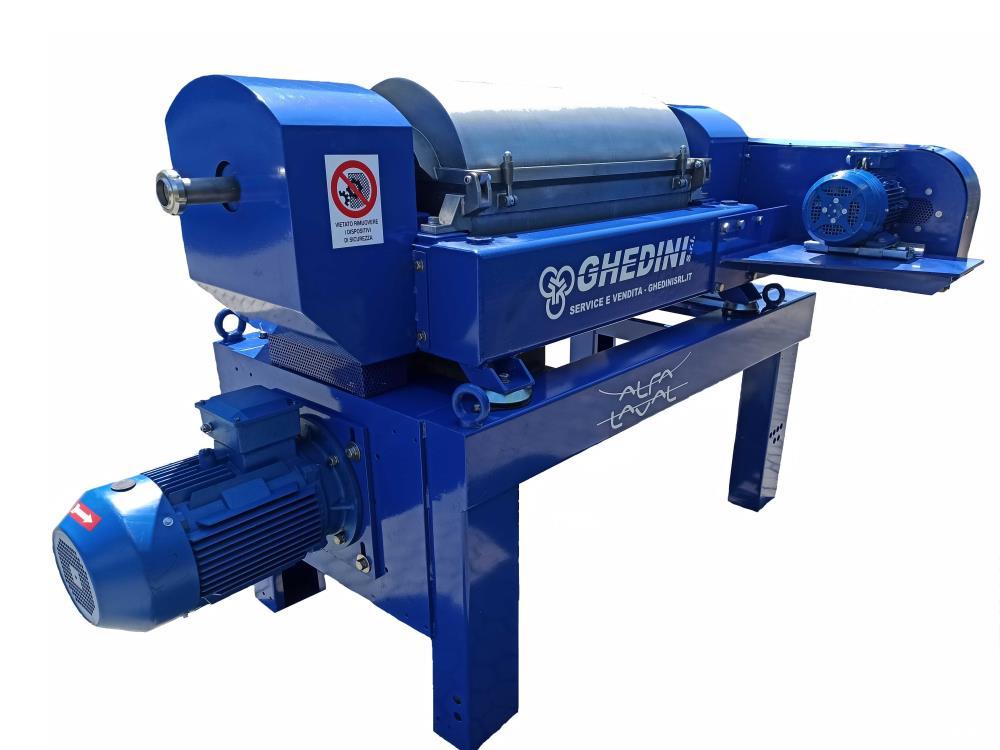

14" x 35" Alfa-Laval #NX14 Series 400, Decanter Centrifuge, 4000 RPM, 3.5 CFM, Refurb, Siemens PLC, VFD, 400 V.

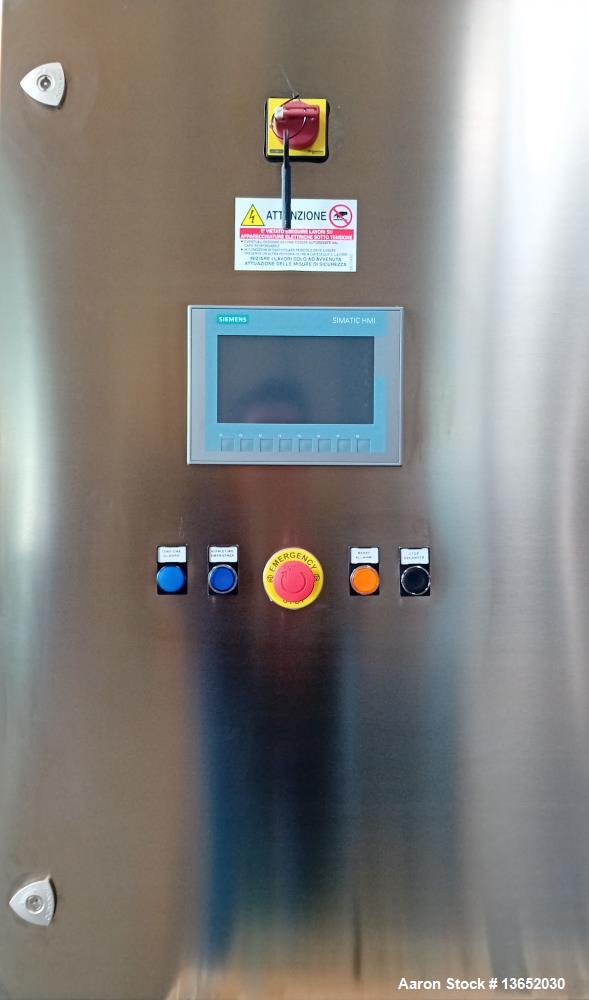

used & refurbished alfa laval decanter centrifuge model nx14 series 400. brand new control panel included technical information: throughput capacity up to 6 m3/hr effective capacity depends on the characteristics of the product and the quality of clarification required around: 2.500 lt/hr avocado oil 2.500 lt/hr seed oil 10-11 q.li olive oil 1.500-2.000 lt/hr animal fat 1.400 lt/hr sludge plastic recovery 3.000 lt/hr vegetable drink 2.500-3.000 lt/hr animal blood bowl diameter 353 mm bowl length 888 mm two phase (solid/liquid); open discharge liquids, open discharge solid main motor 15 kw (vfd) back motor 4 kw (on-off) if requested bowl speed 4000 rpm gear box 2,5 knm 2-stage 1:159 operator safety device included torque overload device included manual included new control panel plc, touchscreen siemens 3f+n+pe 400 v50 hz: vfd on the main motor (and self-braking back motor if requested decanter gross measures: 2600x1600x1600h mm decanter gross weight: 1250 kg control panel gross measusres: 100x30x60h mm control panel gross weight: 80 kg application examples avocado oil edible oil fruit juice curds and whey seed oil (sunflower) plastic recovery biogas chamomile vegetable drinks sludge. our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
