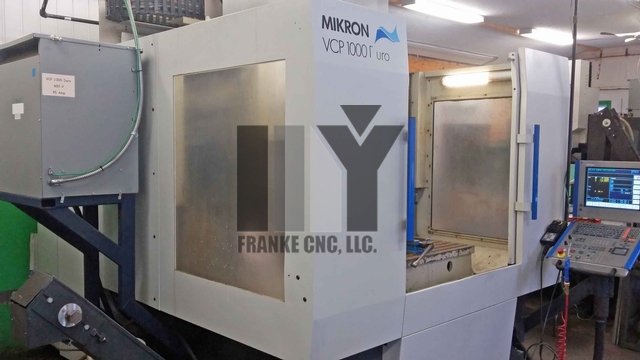

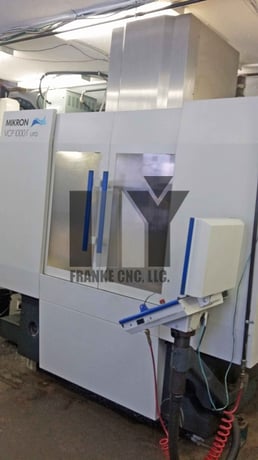

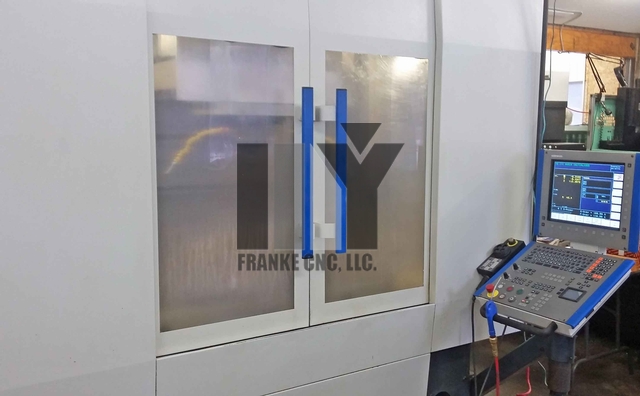

Mikron #GFMS-VCP-1000 DURO, 30 automatic tool changer, 39.4" X, 25.6" Y, 19.7" Z, 20000 RPM, 3-Axis, 2003

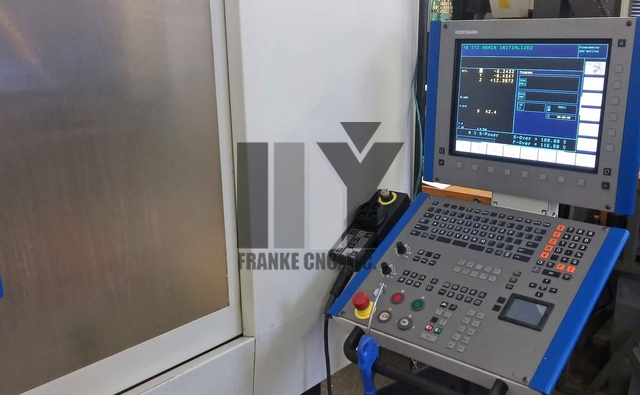

VERTICAL MACHINING CENTERS MIKRON VCP 1000 Duro SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: One used 2003 MIKRON GFMS-VCP 1000 Duro 3-Axis Vertical Machining Center: Machine made in Nidau, Switzerland HEIDENHAIN iTNC530 Control with electronic handwheel & Ethernet interface The VCP range was specifically designed to meet the highly demanding requirements of the mould and die industry as well as the production of parts requiring high accuracy. The following features are designed specifically for the high accuracy requirements of mould making: -MASSIVE 21,716 lbs polymer concrete (man made granite) base. This composite offers excellent vibration dampening characteristics: approximately 10 times greater than cast iron and significantly better than welded construction. A high degree of dampening is essential when working with high feed rates, high acceleration, and is required for superior surface finishes. The structure of the VCP 1000 Duro makes it ideal for difficult applications, such as hard metal machining, where any transmitted vibration leads to increased wear or fracturing of the cutter. -SWISS made Step-Tec motor spindle with active external spindle chiller -Direct measurement all axes via HEIDENHAIN linear glass scales -High precision, widely spaced linear guides in all three axes, 6 roller bearing skates each in X and Y-axes, as well as 4 in the Z-axis give the best rigidity and robustness -Large diameter high precision recirculating ballscrews are used to transmit the drive forces to the axes -HSK 63 spindle taper for maximum rigidity, tool life, and best surface quality finish -WORK AREA- -HIGH PERFORMANCE MOTOR SPINDLE- -FEED DRIVES- -TOOL CHANGER- -SAFETY EQUIPMENT- -WORK TABLE- -EQUIPPED WITH- BLUM Laser Tool Measuring of tool length & diameter, also with broken tool detection RENISHAW MP12 infrared parts measuring probe Completely enclosed work cabin Chip conveyor Side window for loading in extra large parts Ethernet interface on control Active external spindle chiller PRICE QUOTED IN UNITED STATES DOLLARS
