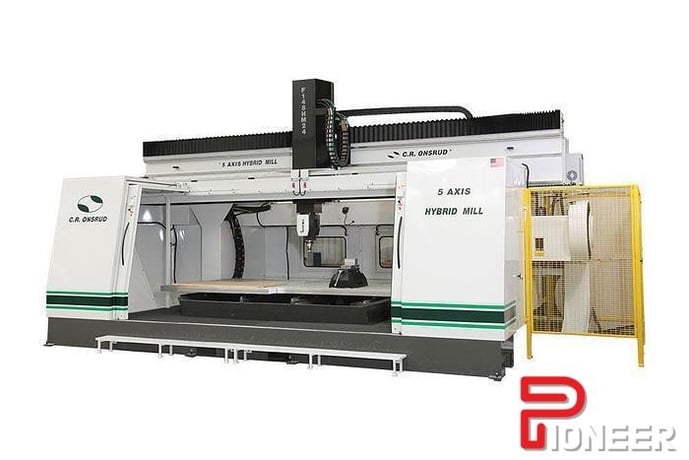

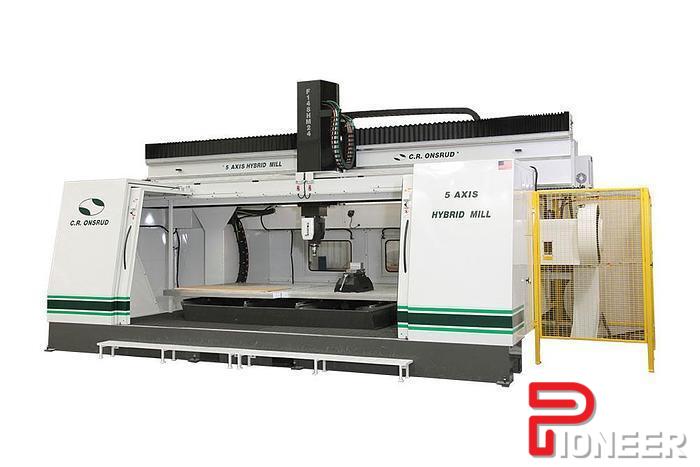

Onsrud #5-Axis-HM-Series, 5-axis CNC Milling Center, 72" x 144" table, 146" X, 244" Y, 41" Z, 15 HP, 24000 RPM, 24 side mount tool changer

Description
Have you been looking for a machine that has the rigidity and accuracy of a CNC Mill, but the large work envelope of a high speed CNC router? Let us introduce the newly re-designed 5-Axis Hybrid Mill. This fully enclosed, 5-axis machining center consistently delivers finished parts meeting the stringent requirements of aerospace, defense, automotive and other fine-tolerance demanding industries. We listened to customer feedback, and have incorporated major improvements upon the first generation Hybrid Mill - including the addition of internal perimeter walkways for easy material handling, loading or fixturing - and an enhanced chip management and collection system. Offered in an optional Daul Process configuration, this twin table CNC platform affords you the technology to machine independent programs on each table simultaneously for maximum flexibility. If you need even more cutting power, C.R. Onsrud offers a range of additional options (including dual spindles, high torque spindles, and quick change, large capacity tool changers) to get the most automation and production out of this precision workhorse. If you need to hold demanding tolerances and are looking to run multiple parts simultaneously, then you owe it to yourself to look at the new and improved C.R. Onsrud Hybrid Mill Series.
Compact Design Saves Valuable Shop Floor Space
C.R. Onsrud High-Flow Universal Vacuum Table System with Low Vacuum Sensing
Independently Controlled Vacuum Zones
Comes Equiped with Choice of Flow Through or Dedicated Spoil Board

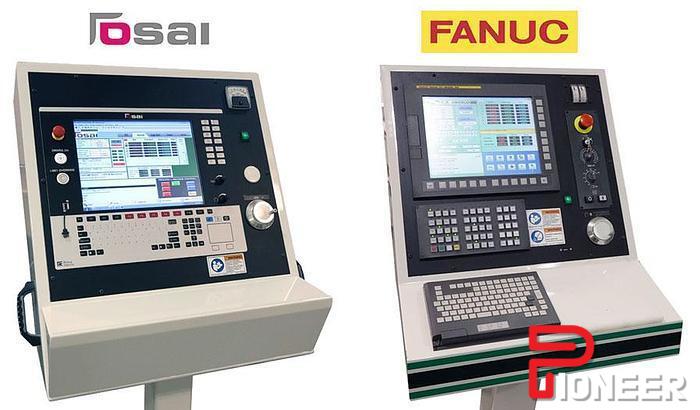

OSAI 10/510 CNC Controller with Integrated Touch Screen PC (Fanuc option available)
4-Port Ethernet Connection, USB, and Serial Connectivity, for Easy Network Integration
Full 3D capability, Helical Interpolation, and Simultanious 5-Axis Motion Standard
Specifications
