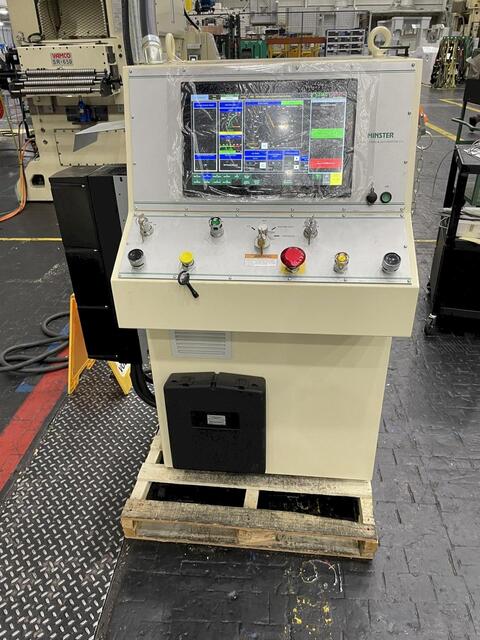

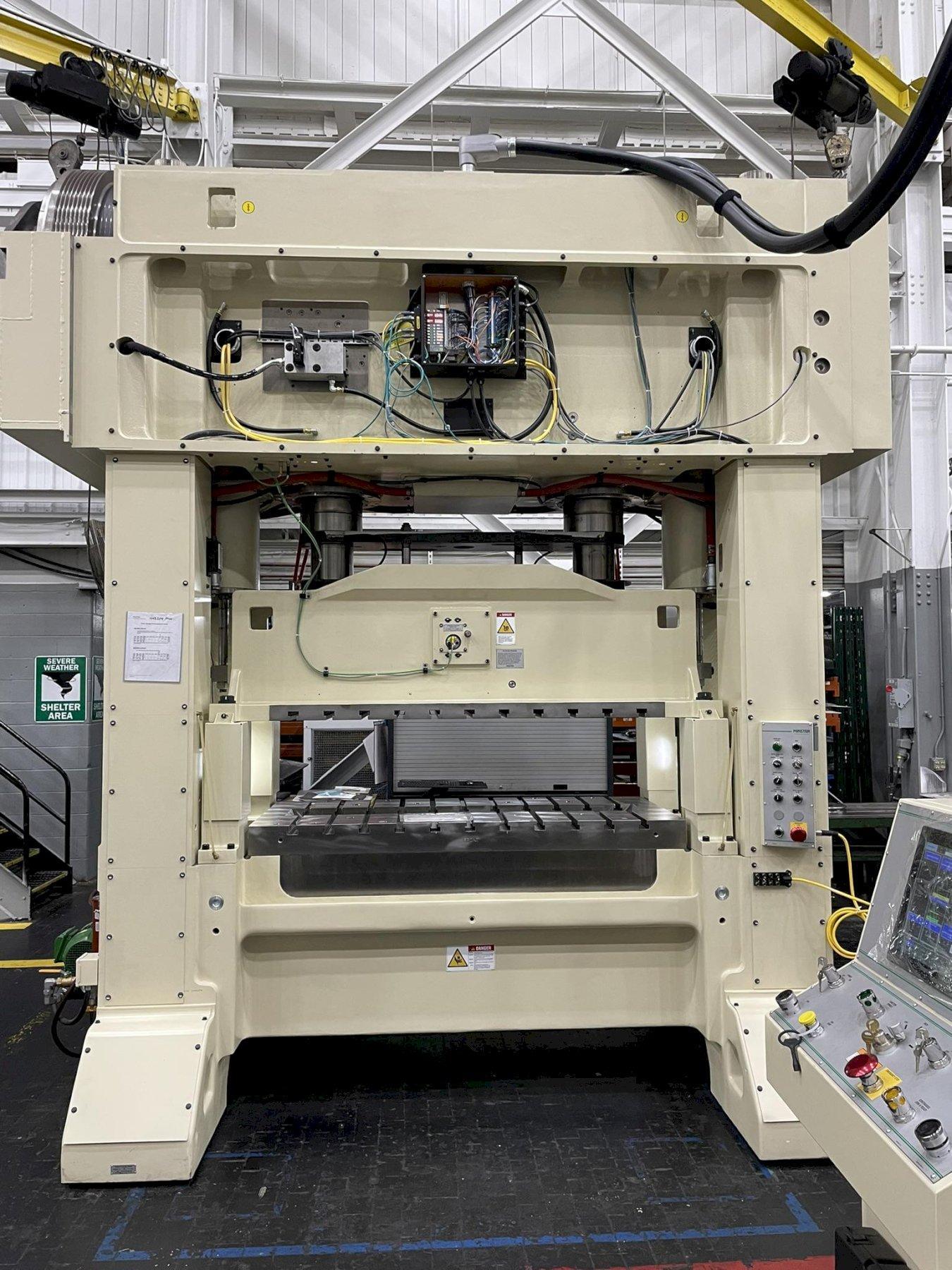

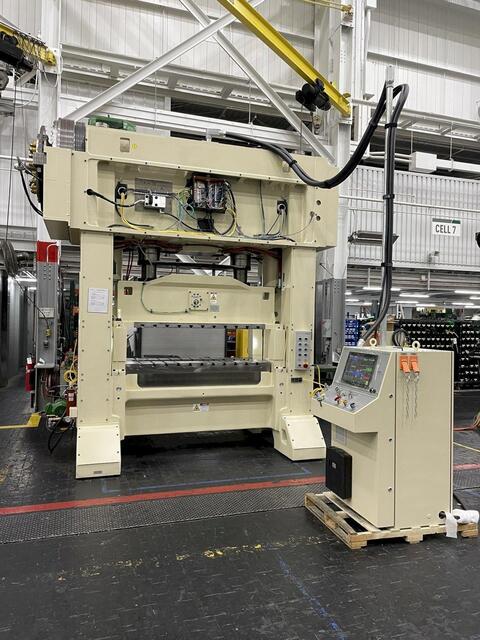

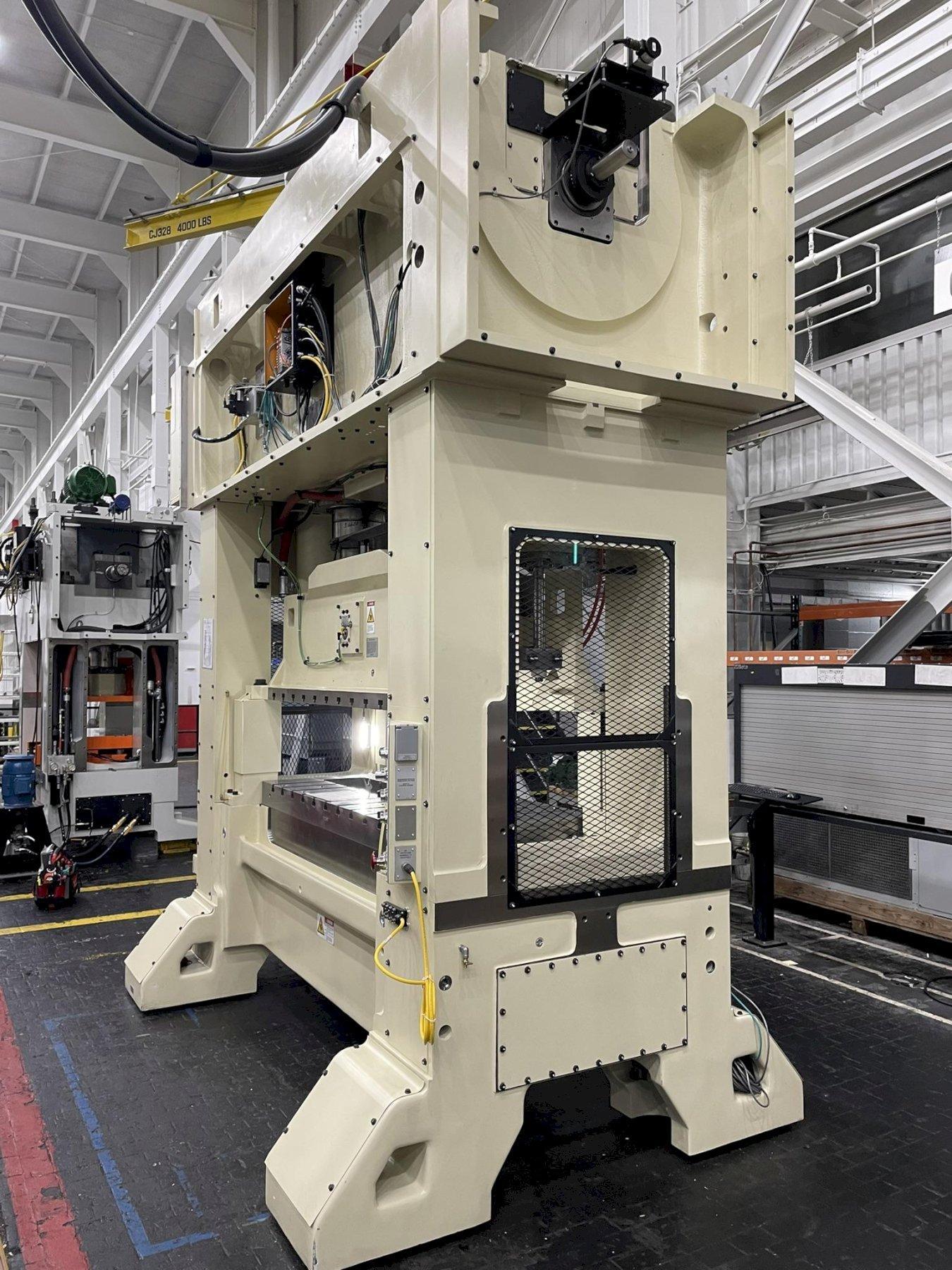

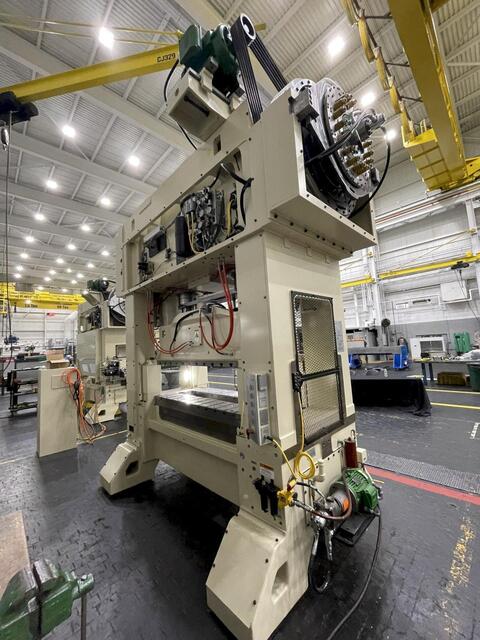

180 Ton, Minster #P2H-160-74x33-FW, straight side double crank press, 3.9" stroke, 17.7" Shut Height, 5.9" adj., 250 SPM, 24.8" passline, 2024, new

SPM 250

Tonnage 180 tons

Stroke 3.94 inches

Shut Height 17.72 inches

Vari Speed (Yes/No) yes

Bed W 33.5 inches

Bed L 74.8 inches

Crank (Single/Double) double

SPECIFICATIONS

Press Specifications

Model Number........................................................ P2H-160-74x33-FW

Force × Distance off Bottom.................................. 1600 kN × 1.5 mm (180 ton × 0.060 in)

Crankshaft Extension Location............................... Opposite Drive Side

Drive Arrangement.................................................. Flywheel

Drive Location........................................................ Left Hand Side

Lube Unit Location................................................. Opposite Feed Side

Approximate Press Weight..................................... 35 400 kg (78,000 lb)

Shutheight Indicator Readout................................. Inch

Shop Air Pressure, Minimum.................................. 5.9 bar (590 kPa) (85 psi)

Press Slide Specifications

Stroke Length, Speed Range................................... 100 mm (3.94 in), 70 - 250 spm

Shutheight Adjustment........................................... 150 mm (5.90 in)

Quick Access Slide Range...................................... 12 - 165 mm (0.50 - 6.50 in)

Area of Slide, R-L × F-B........................................ 1900 × 850 mm (74.8 × 33.5 in)

Slide Face Machining.............................................. Standard

Press Bolster Specifications

Bolster Plate Material.............................................. Steel

Bolster Plate Thickness........................................... 125 mm (4.92 in)

Area of Bolster, R-L × F-B..................................... 1900 × 850 mm (74.8 × 33.5 in)

Opening in Bolster, R-L × F-B............................... 1600 × 250 mm (63.0 × 9.9 in)

Bolster Plate Machining.......................................... Standard

Press Frame Specifications

Upright Passline Opening, F-B............................... 630 mm (24.8 in)

Area of Bed, R-L × F-B.......................................... 1900 × 850 mm (74.8 × 33.5 in)

Opening in Bed, R-L × F-B.................................... 1600 × 370 mm (63.0 × 14.6 in)

Bed Deflection at 67% of Die Area........................ 0.12 mm/m (0.0014 in/ft)

Shutheight, Maximum (SDAU).............................. 450 mm (17.72 in) on Bolster

Approx Clearance, Mount to Bottom of Bed......... 300 mm (11.8 in)

Approx. Distance Mount to Top of Bolster............ 1180 mm (46.4 in)

Approx. Distance Mount to Top of Bed................. 1060 mm (41.5 in)

Approx. Floor Area, R-L × F-B.............................. 3700 × 2050 mm (144 × 80.0 in)

Approx. Overall Area, R-L × F-B........................... 3700 × 2050 mm (144 × 80.0 in)
